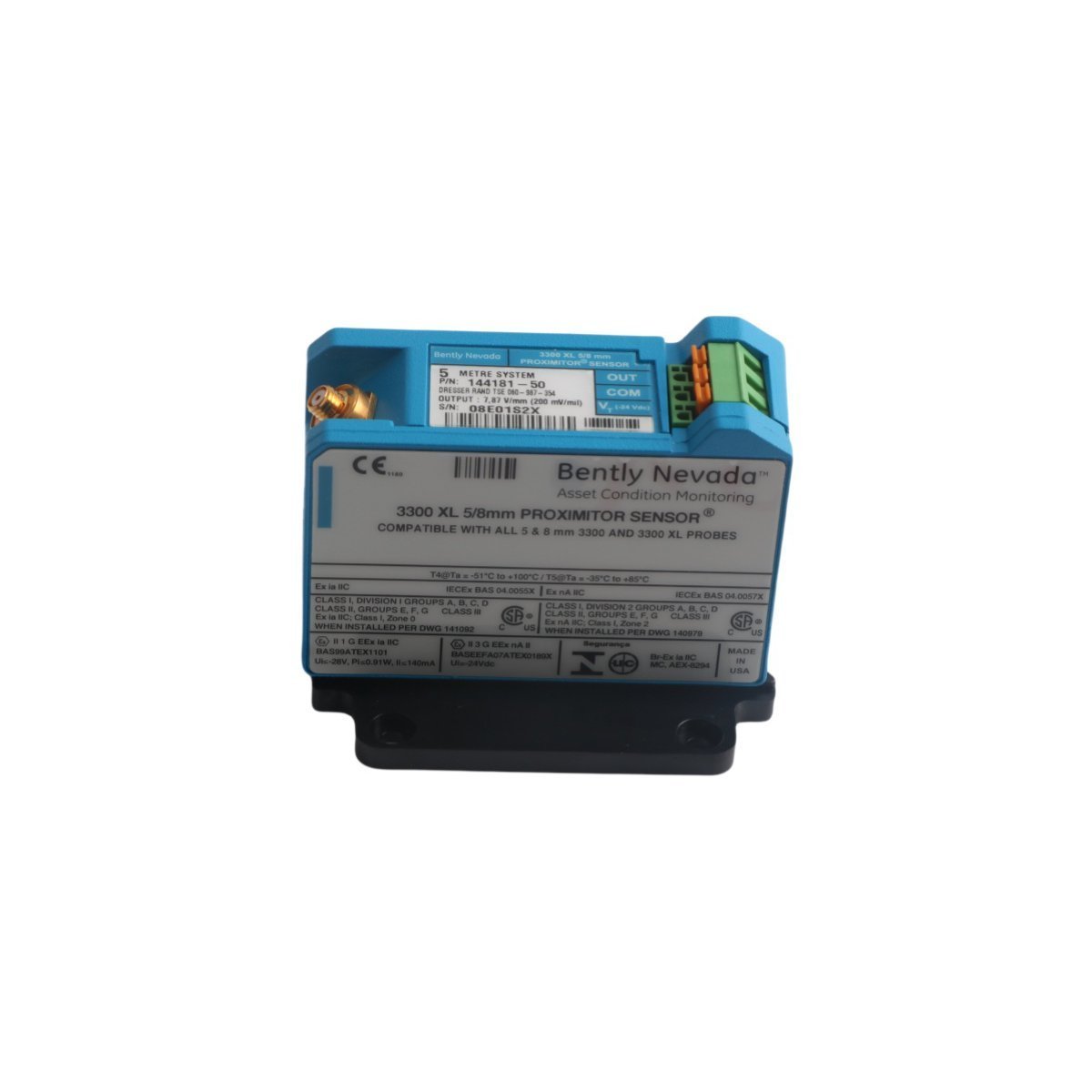

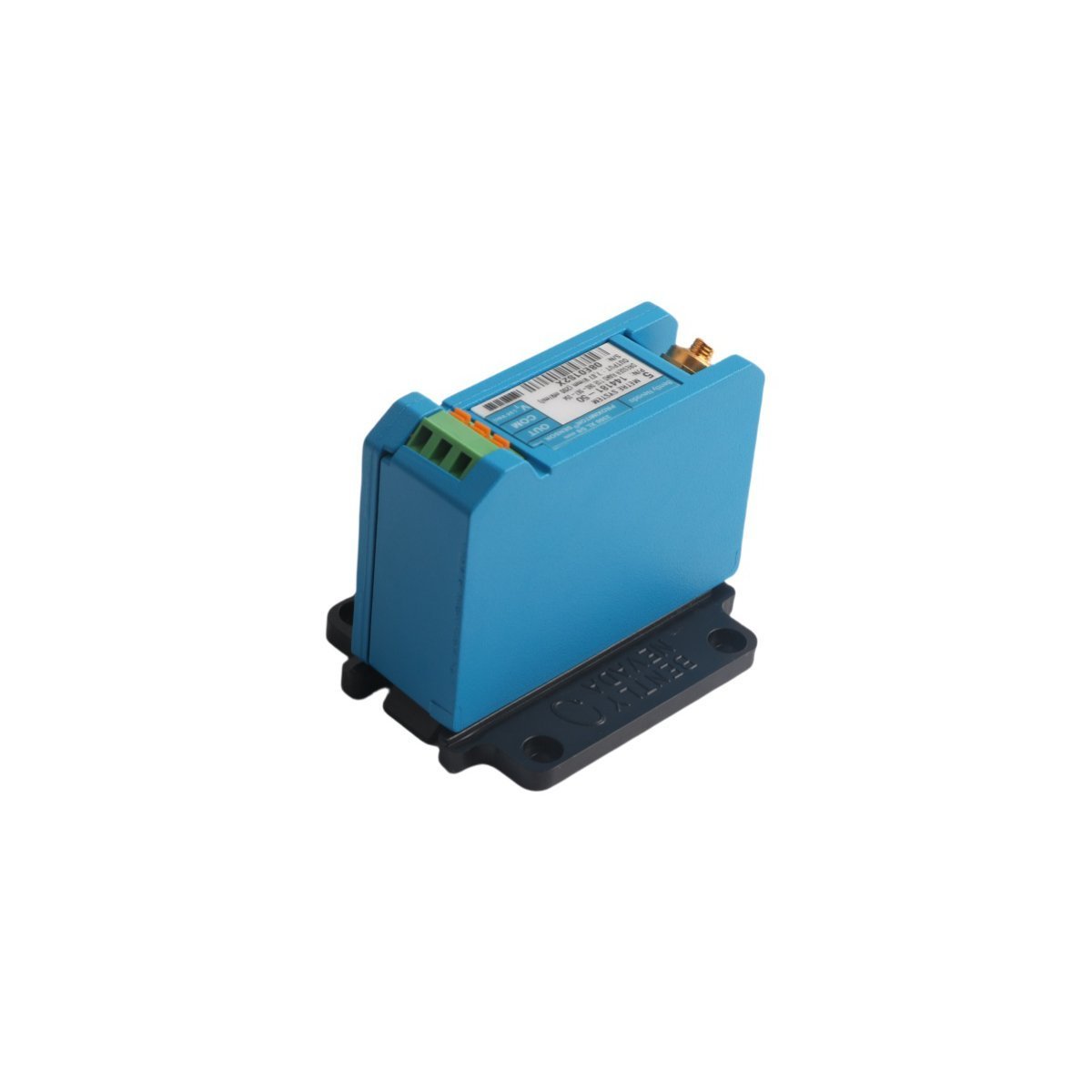

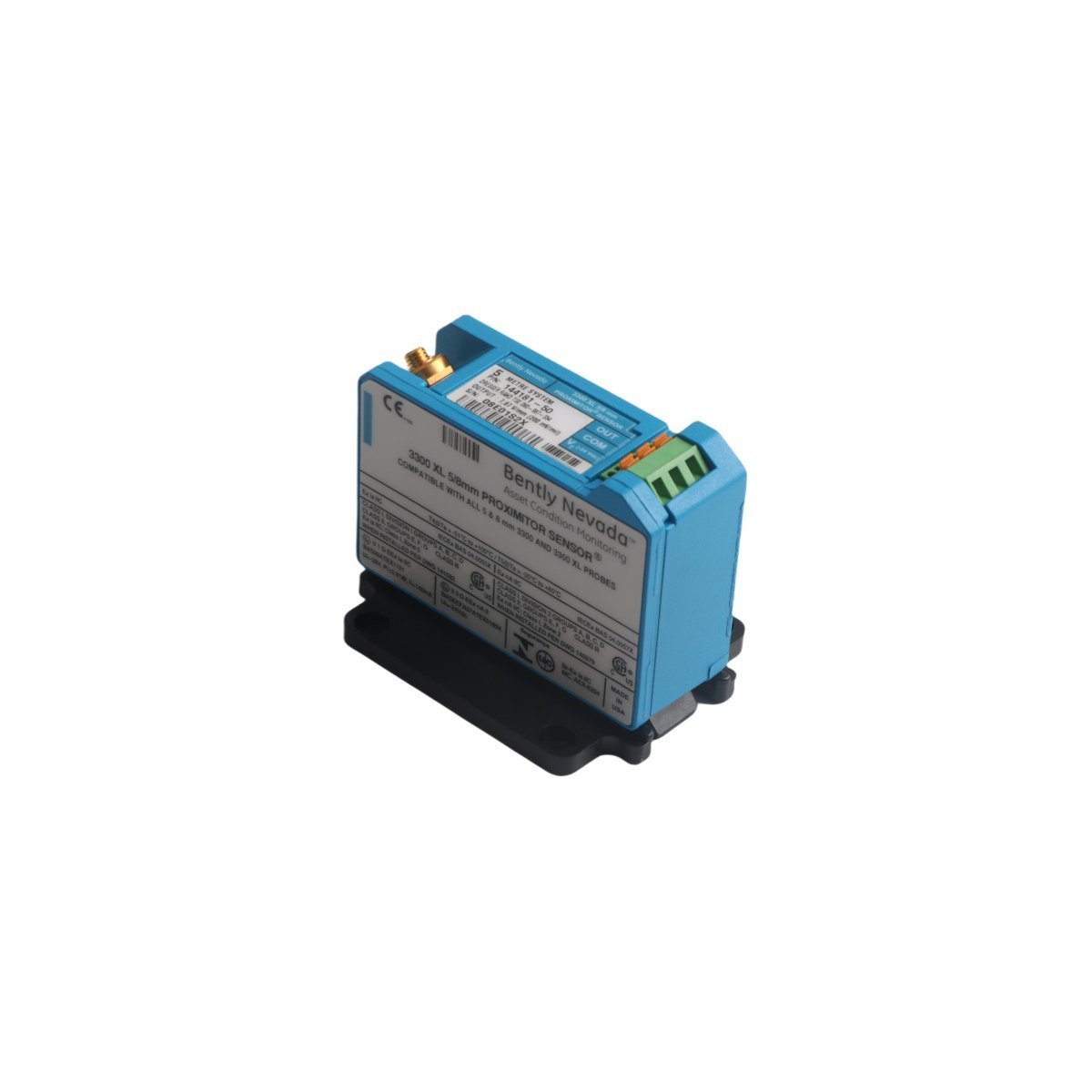

The Bently Nevada 144181-50 acts as the signal processing heart for the 3300 XL proximity transducer system. This sensor accepts high-frequency signals from the probe and converts them into usable voltage outputs. These outputs correspond directly to the distance between the probe tip and the target shaft. Consequently, it provides critical data for monitoring radial vibration and axial thrust. The device ensures high-fidelity data transmission to monitoring racks like the Bently Nevada 3500 series.
Core Technical Characteristics
- Model Identification: 144181-50
- System Compatibility: 3300 XL 5mm and 8mm series
- Operating Temperature: -51°C to +100°C (-60°F to +212°F)
- Linear Range: 2.0 mm (80 mils)
- Input Voltage: -17.5 Vdc to -26 Vdc
- Signal Output: -100 mV/mil (3.94 V/mm) or -200 mV/mil (7.87 V/mm)
- Material: Polyphenylene sulfide (PPS) and stainless steel base
Industrial Applications and Integration
Engineers primarily install this sensor on rotating assets with fluid-film bearings. Typical applications include steam turbines, centrifugal compressors, and large electric motors. It serves as a vital link in predictive maintenance programs by detecting early mechanical wear. Because the sensor offers complete interchangeability, it eliminates the need for individual bench calibration. This efficiency significantly reduces maintenance hours during plant turnarounds.
Quality and Certification Standards
The 144181-50 model adheres to stringent international safety and performance regulations. It carries various hazardous area approvals, including ATEX, IECEx, and CSA certifications. This robust engineering ensures the sensor maintains accuracy in explosive or corrosive atmospheres. By following API 670 standards, Bently Nevada guarantees the highest level of machinery protection. This reliability makes it the global benchmark for asset condition monitoring.
