330901-00-09-70-02-05 3300 Series NSv Proximity Probe Bently Nevada

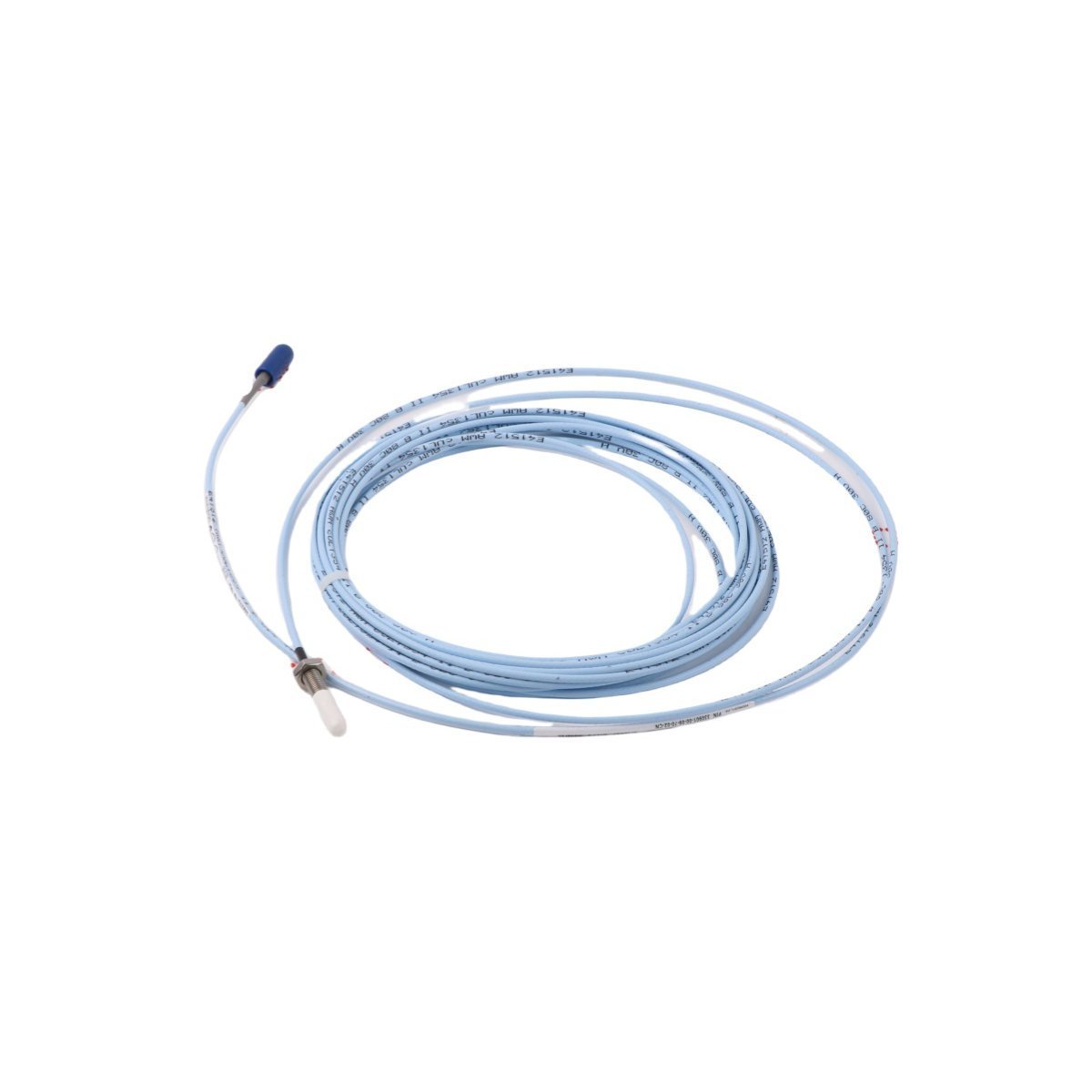

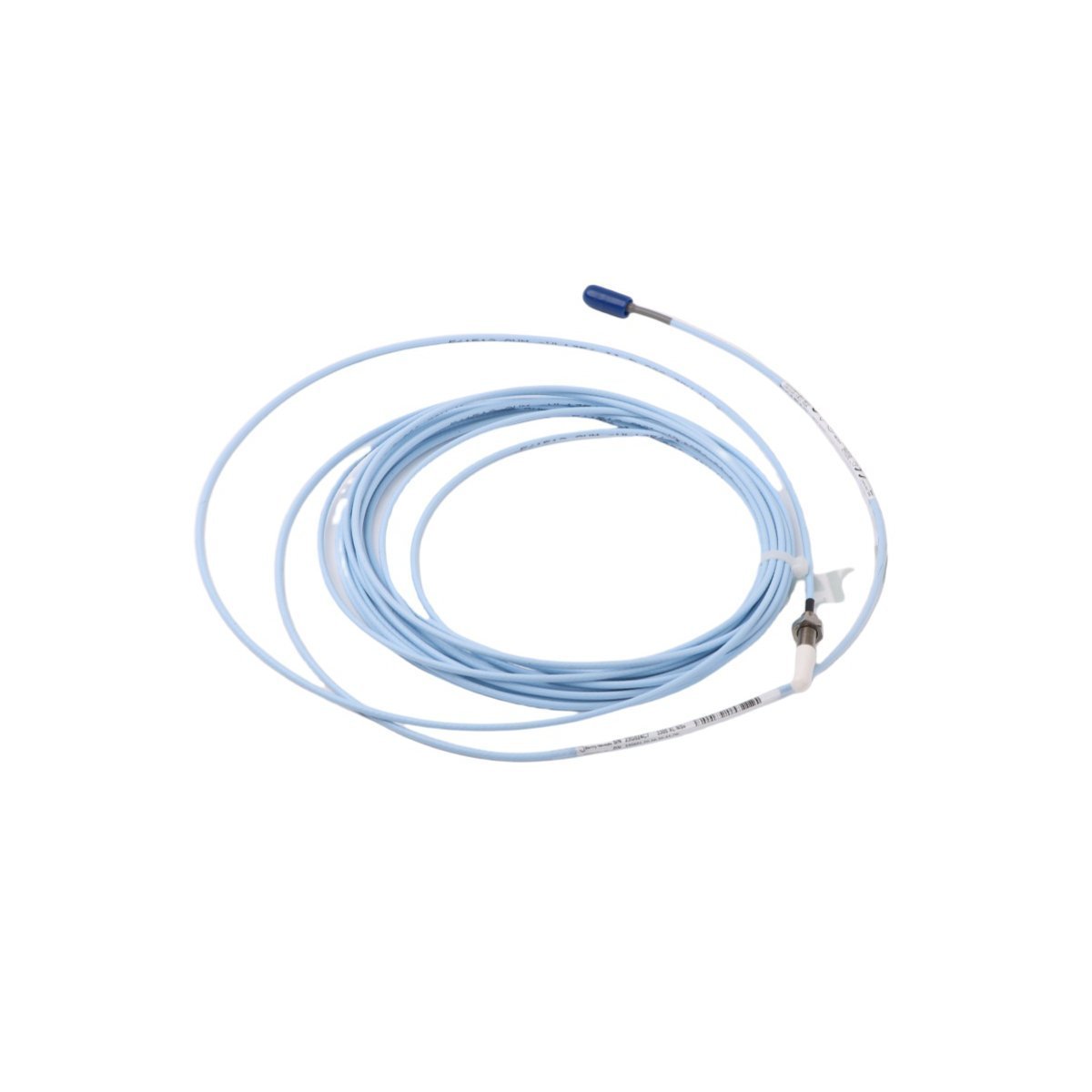

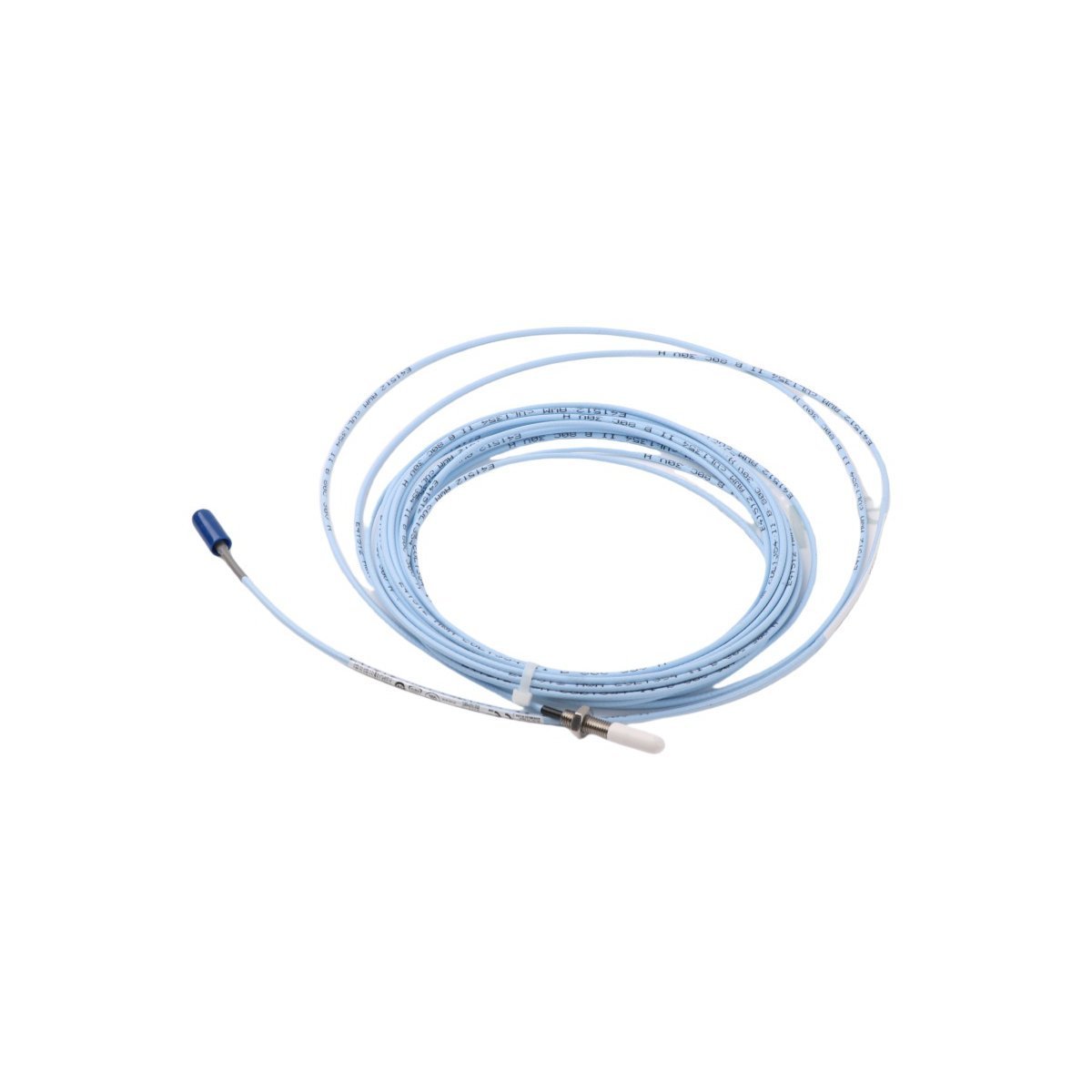

Bently Nevada 330901-00-09-70-02-05 3300 NSv Proximity Probes

The Bently Nevada 330901-00-09-70-02-05 serves as the primary 330901 3300 NSv Proximity Probes utilized to execute non-contacting displacement measurements across TSI platforms. The assembly acts as a physical-to-electrical signal link, measuring shaft motion and position within confined spaces where standard 5 mm or 8 mm transducers exceed mechanical boundaries. The hardware directly outputs raw high-frequency signals reflecting micro-inch proximity movements on target surfaces.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware leverages specialized eddy-current probe scaling to convert structural gap variations into continuous voltage outputs. Because the transducer design accommodates narrow constraints, field technicians perform gap voltage validation (-10 VDC targets) to align the probe tip inside the specified 1.5 mm linear operating range. This positioning ensures optimal frequency response tracking for complex rotor dynamics.

The proximity probe utilizes sideview capabilities and localized magnetic field focusing to maintain high cross-talk suppression benchmarks when installed inside tight counter-bores. The probe design prevents nearby structural masses from corrupting dynamic radial vibration, thrust position, or Keyphasor measurements, facilitating direct replication of shaft behavior.

Frequently Asked Questions

Q: Can this 7.0-meter probe connect directly to a standard 3300 XL 8 mm Proximitor Sensor?

A: No. The 330901-00-09-70-02-05 probe must interface exclusively with a 3300 XL NSv Proximitor Sensor. Standard 8 mm Proximitor electronics utilize different tank circuit tuning parameters that will cause a scale factor mismatch.

Q: What happens to the monitoring loop if the miniature ClickLoc connector comes loose?

A: An open circuit or loose connector interface will interrupt the high-frequency RF loop, forcing the monitor rack to register an immediate OK fault. Operators must bypass active alert and danger shutdown relays prior to servicing the physical connection.

Q: How do small shaft targets under 51 mm affect the average scale factor?

A: The 3300 NSv probe geometry compensates for small target diameters down to 51 mm for radial measurements and 15 mm for axial surfaces, preserving the 7.87 V/mm scale factor where standard probes experience severe calibration drop-off.

Field Installation Guidelines

• Verify that the counter-bore clearance around the probe tip meets the minimum non-interference diameter specified in the NSv manual to prevent sideview measurement distortion.
• Mount the ClickLoc connector body within dedicated insulation sleeves to isolate the high-frequency shield path from direct contact with machine ground plates.
• Route the integral 7.0-meter cable assembly through structural tracking conduit, avoiding physical proximity to high-current AC lines to prevent EMI noise injection.
• Apply calibrated mechanical torque to the 1/4-28 UNF jam nuts during physical gapping to prevent the probe body from backing out under severe high-speed vibration.
