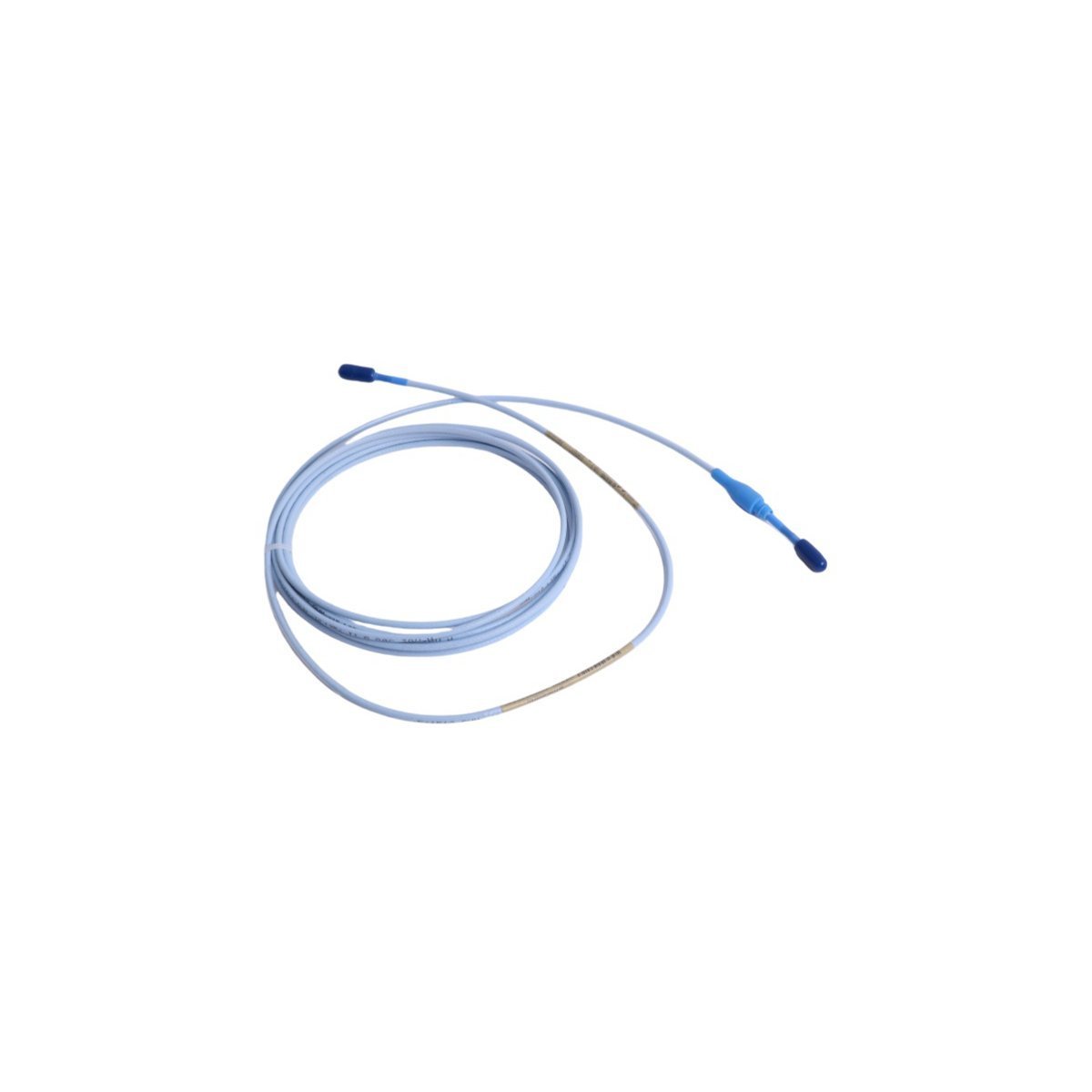

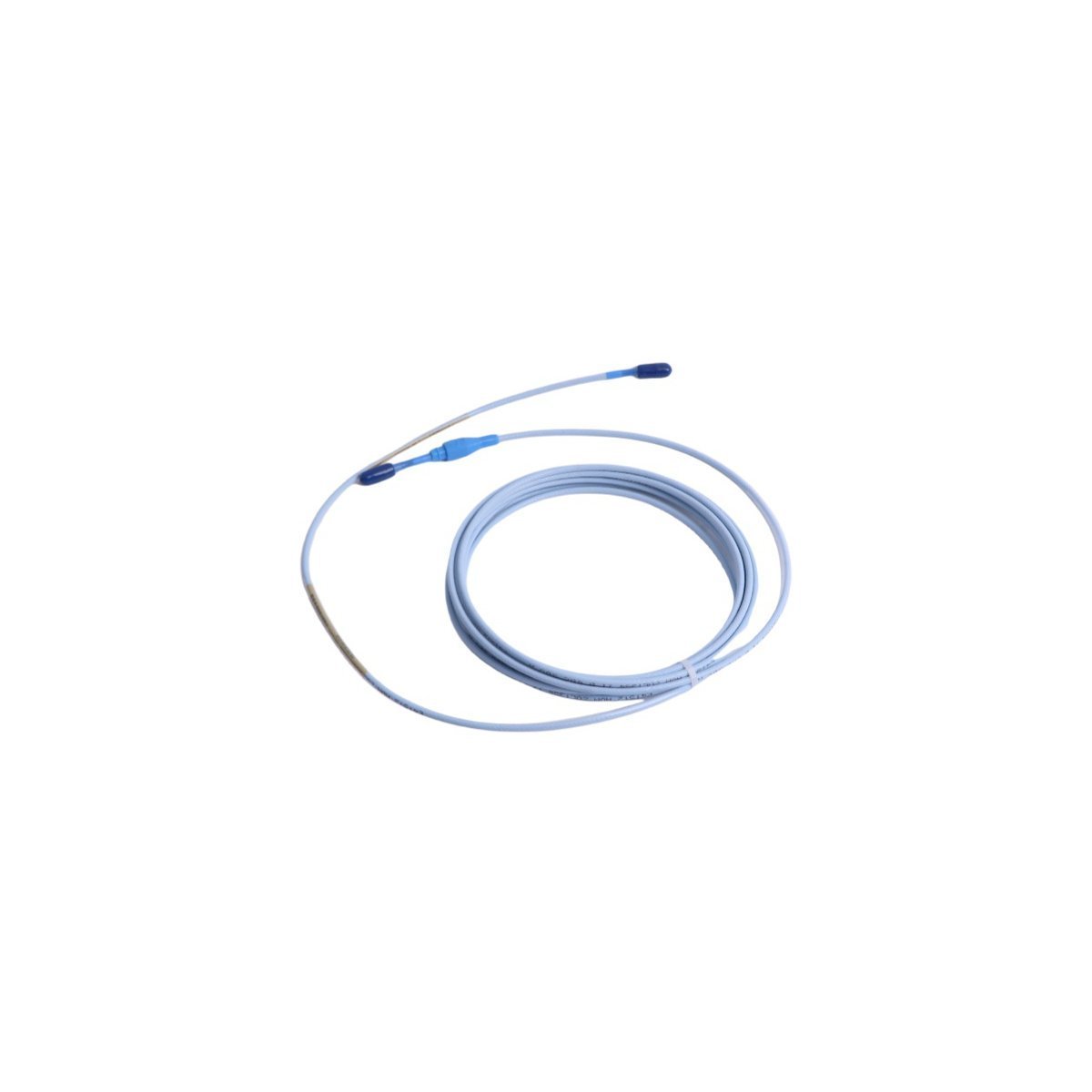

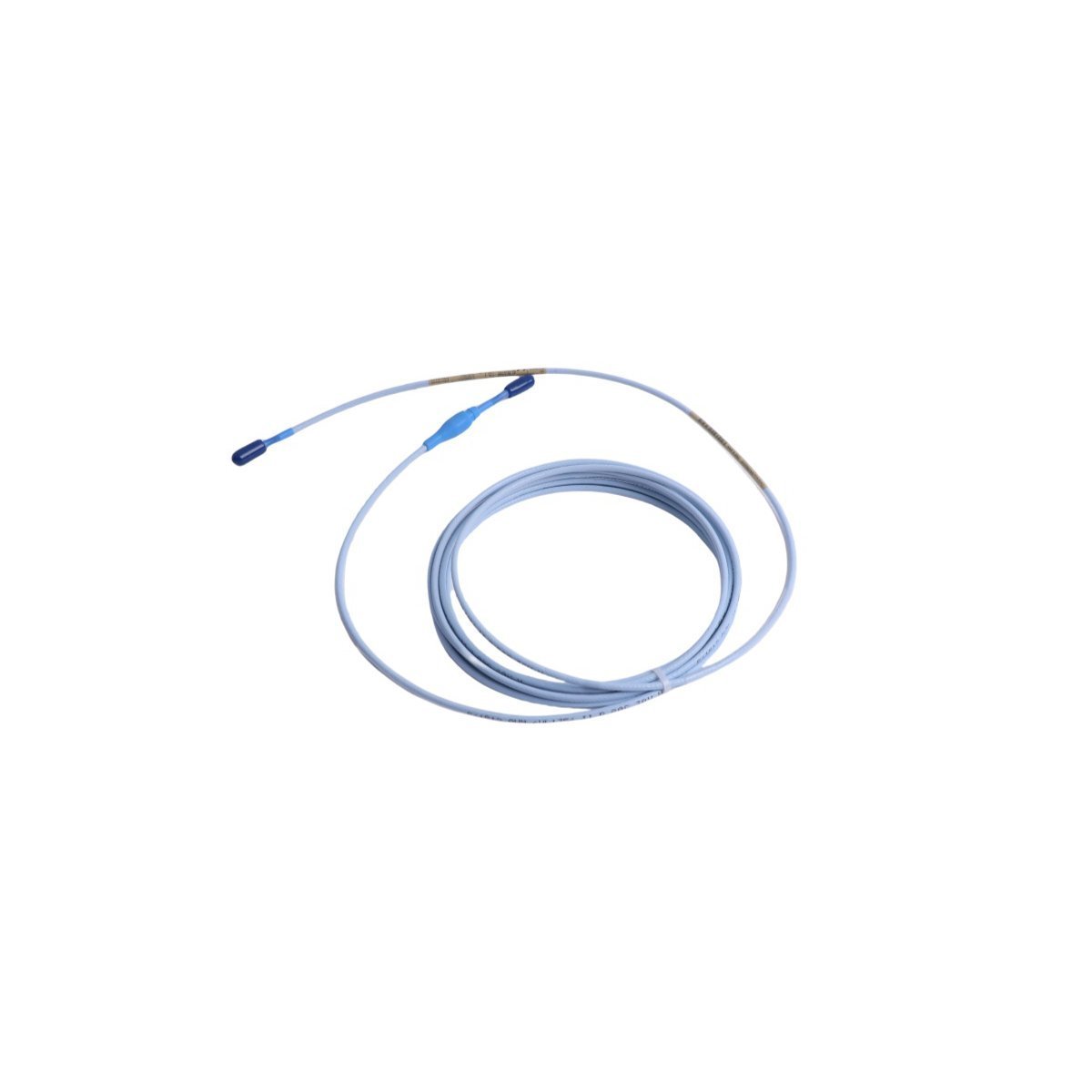

Bently Nevada 330130-045-02-05 I/O Interface

The Bently Nevada 330130-045-02-05 serves as a high-performance bridge within the 3300 XL 8mm Proximity Transducer System. This extension cable facilitates precise signal transmission between the proximity probe and the Proximitor sensor. By maintaining consistent electrical impedance, it ensures accurate non-contact displacement and vibration measurements. The system provides essential diagnostic data for protecting critical rotating machinery in power generation and oil and gas facilities.

Mechanical Resilience and Design

Bently Nevada engineered the 330130-045-02-05 to withstand aggressive industrial environments. The cable features advanced insulation that resists moisture, oil, and chemical exposure. Furthermore, the patented ClickLoc connector system ensures a secure, vibration-proof electrical connection. Gold-plated contacts minimize signal loss and prevent oxidation over long-term deployment. This rugged construction allows the cable to perform reliably under extreme temperature fluctuations and high-vibration conditions.

System Integration and Applications

This specific model simplifies the integration of sensors into Turbine Supervisory Instrumentation (TSI). Its 4.5-meter length offers flexible routing through protective conduits and cable trays. Technicians typically utilize this extension cable on various rotating assets, including:

• Centrifugal and axial compressors
• Steam and gas turbines
• High-speed industrial pumps
• Large electric motors and generators

Technical Specifications Summary
