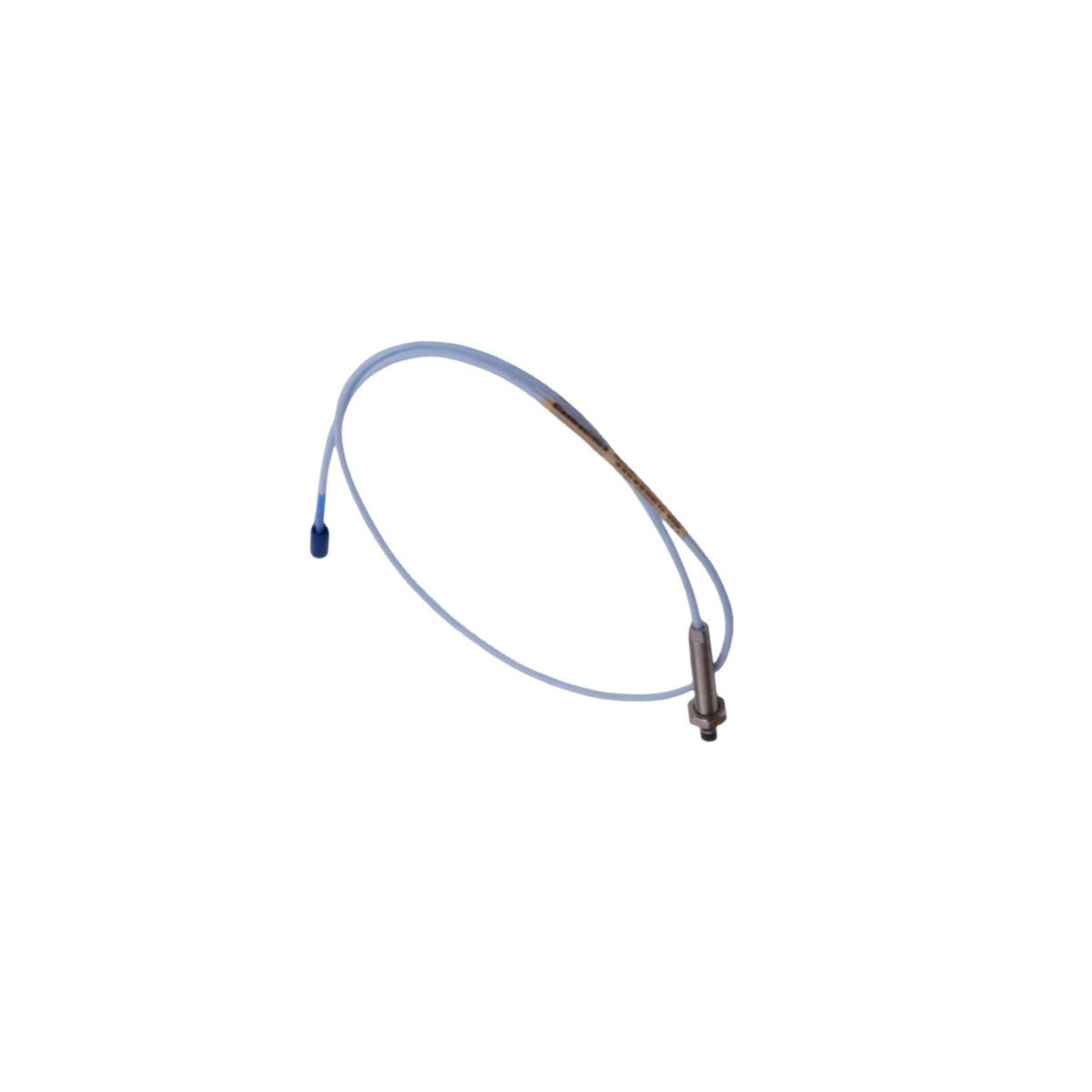

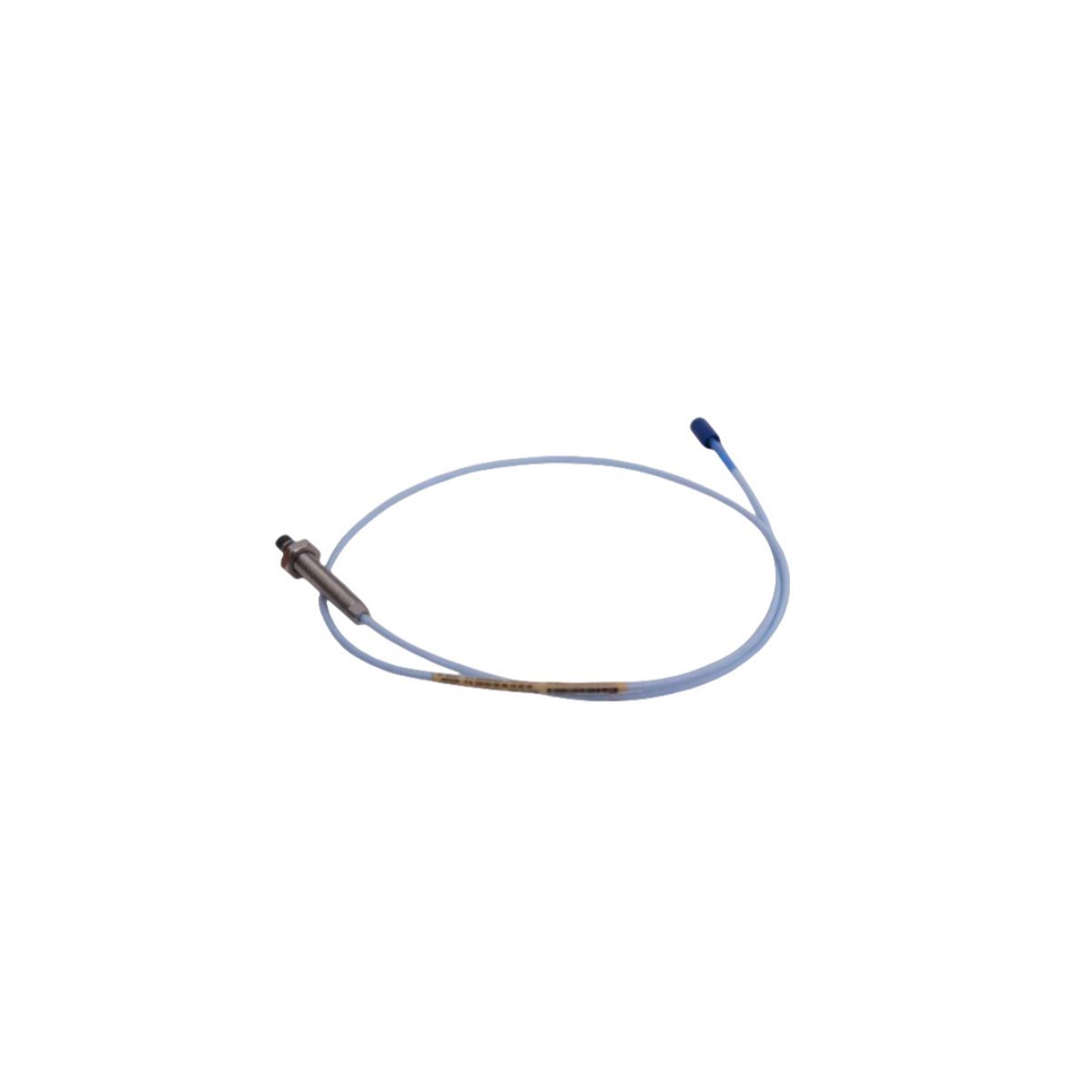

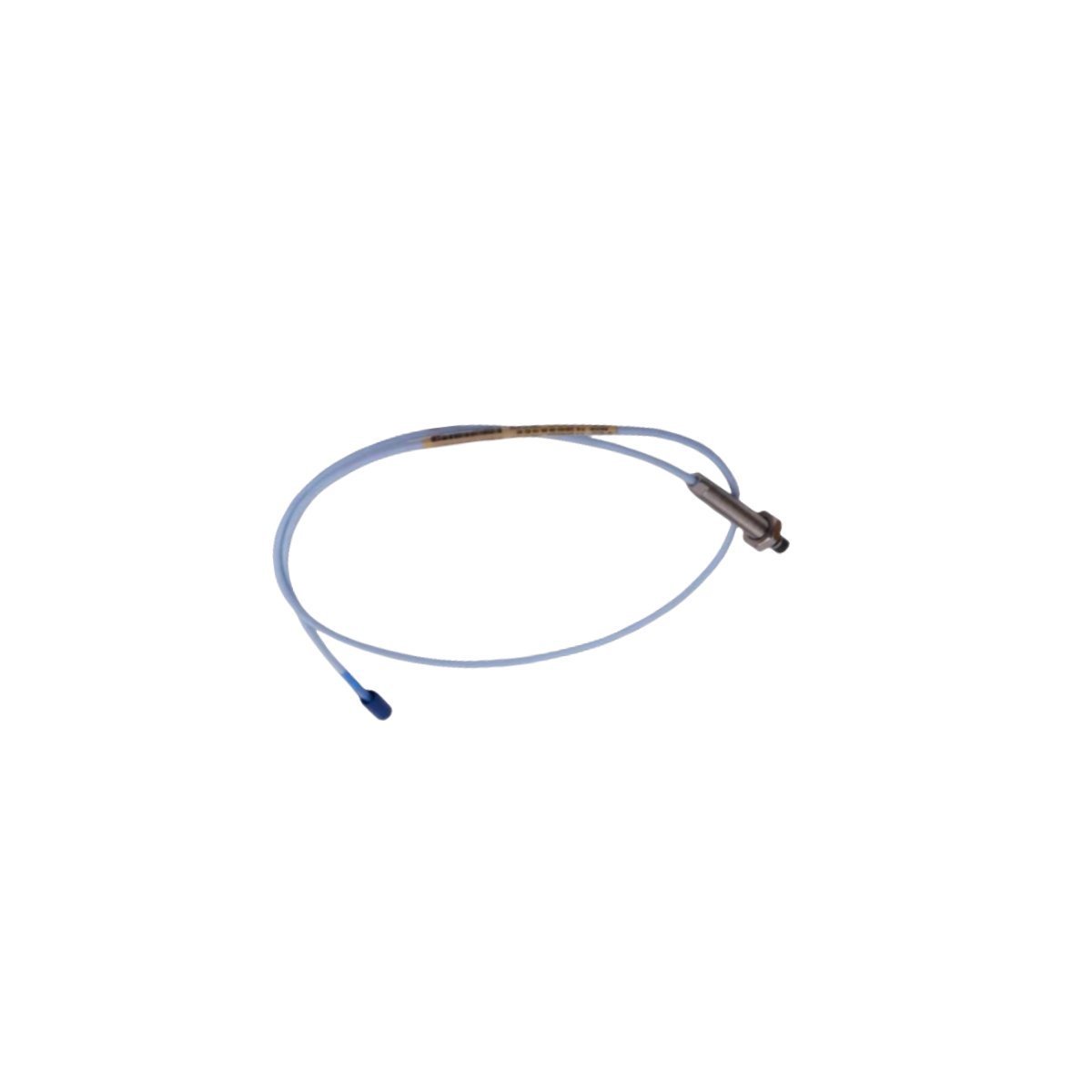

The Bently Nevada 330103-00-05-20-02-CN provides high-accuracy, non-contact displacement monitoring for critical industrial assets. As a fundamental part of the 3300 XL 8mm Transducer System, this probe measures both static position and dynamic vibration. It tracks the movement of rotating shafts by generating a proportional voltage signal relative to the distance from a conductive target. This data enables early detection of mechanical fatigue and prevents catastrophic machinery failure.
Design Features and Durability
This model utilizes a metric M10 x 1 threaded case to ensure compatibility with international machinery standards. The probe tip features polyphenylene sulfide (PPS), which offers exceptional resistance to chemical corrosion and moisture. Additionally, the integrated cable uses high-quality shielding to minimize electromagnetic interference. The gold-plated ClickLoc connector provides a secure, vibration-resistant interface that maintains signal stability over long durations.
Industrial Applications
The 330103-00-05-20-02-CN thrives in high-pressure and high-temperature environments. Operators typically install these sensors in Turbine Supervisory Instrumentation (TSI) systems to monitor:
- Radial vibration in fluid-film bearings
- Axial (thrust) position in compressors
- Shaft eccentricity during machine startup
- Keyphasor and speed measurements for diagnostic analysis
Technical Specifications Summary
| Feature | Specification |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Type | 3300 XL 8mm |
| Thread Size | M10 x 1 (Metric) |
| Unthreaded Length | 0 mm |
| Case Length | 50 mm |
| Total Length | 2.0 Meters (6.6 Feet) |
| Agency Approval | CN (Certified for hazardous area use) |
