Bently Nevada 330130-040-03-00 I/O Interface

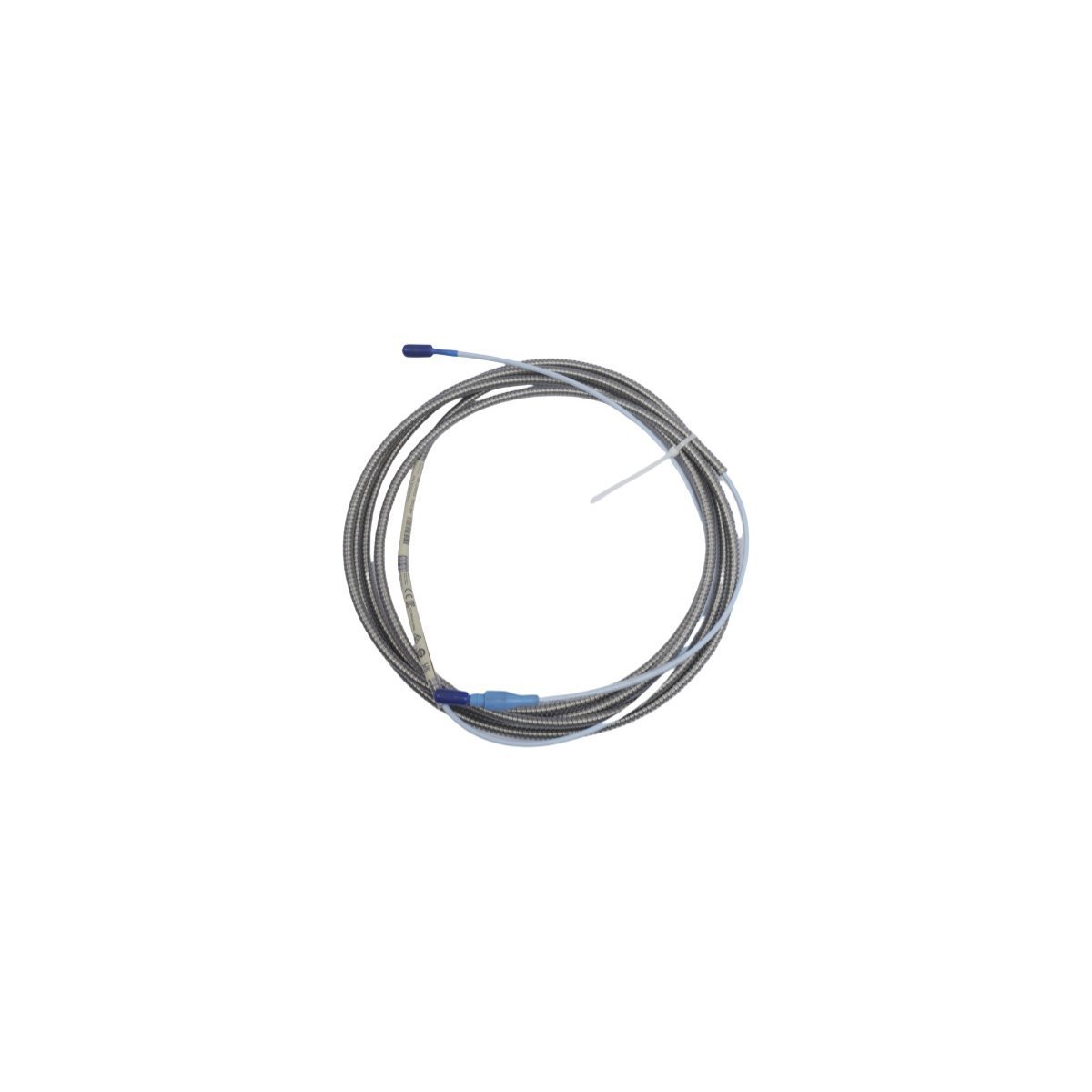

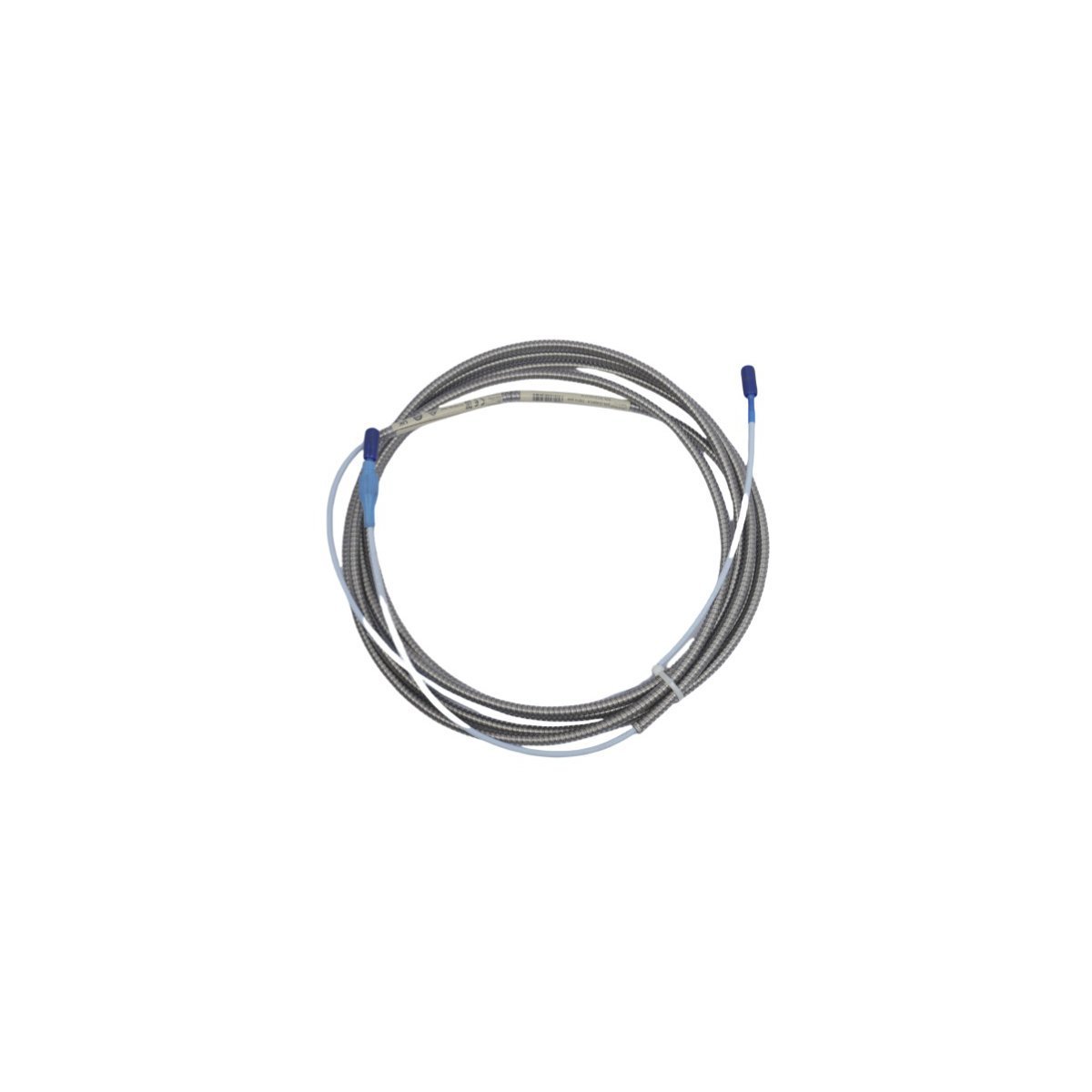

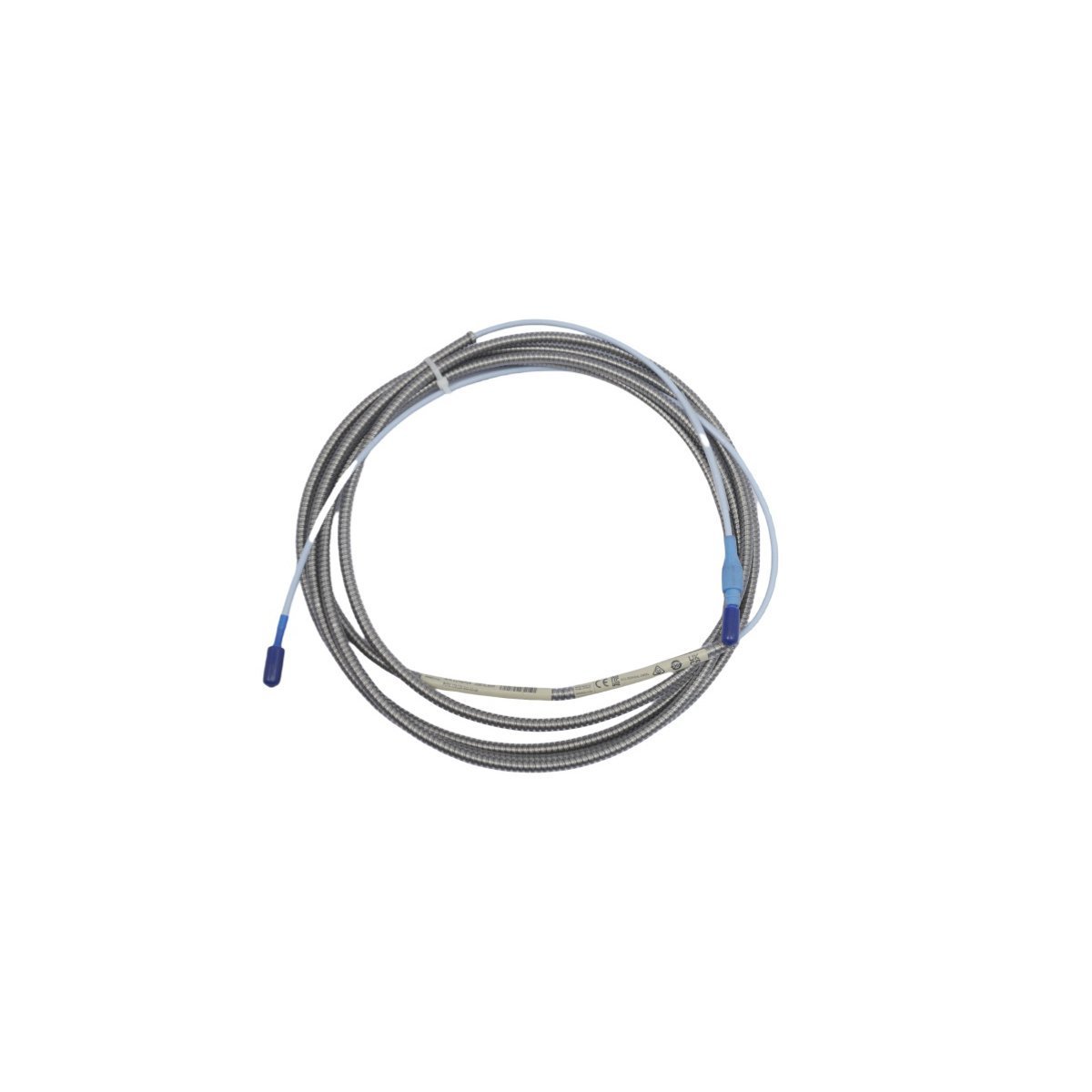

The Bently Nevada 330130-040-03-00 is a high-performance extension cable designed for the 3300 XL 8mm Proximity Transducer System. This component acts as the critical bridge between the proximity probe and the Proximitor sensor. Because impedance matching is vital in eddy current systems, this cable ensures signal linear stability across the entire measuring range. It maintains the integrity of vibration and position data for critical rotating machinery.

Design and Physical Resilience

This specific model features an advanced mechanical build to withstand aggressive industrial environments. The 330130-040-03-00 utilizes high-dielectric insulation to prevent signal interference. Furthermore, the cable includes FluidLoc technology. This design prevents oil and other liquids from leaking through the interior of the cable. The gold-plated ClickLoc connectors provide a secure, vibration-resistant connection while minimizing electrical resistance.

Hardware Configuration

The part number 330130-040-03-00 specifies a tailored set of features for field installation:

• Cable Length: 4.0 meters (13.1 feet).
• Armor Option: Standard cable (No stainless steel armor).
• Agency Approval: Standard worldwide certifications (ATEX, CSA, IECEx).
• Total System Length: Designed for 5-meter or 9-meter total system lengths.

Industrial Applications

The 3300 XL extension cable is a standard component in Turbine Supervisory Instrumentation (TSI). It is widely used in refineries, power plants, and manufacturing facilities. This cable is compatible with 3500 series monitoring systems and supports the following machinery:

• Steam and gas turbines.
• Centrifugal and axial compressors.
• High-speed industrial gearboxes.
• Large electric motors and generators.

Technical Specifications Summary
