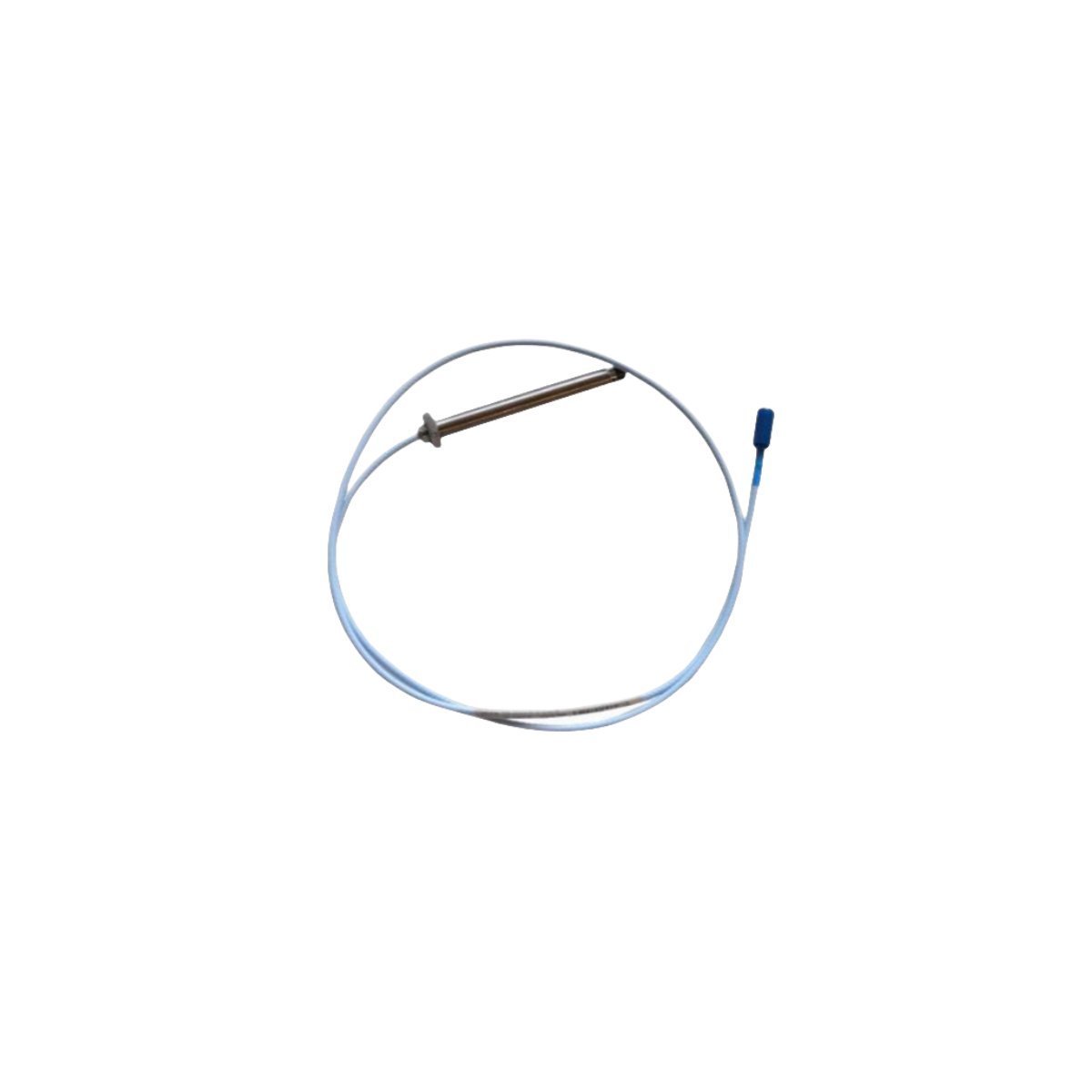

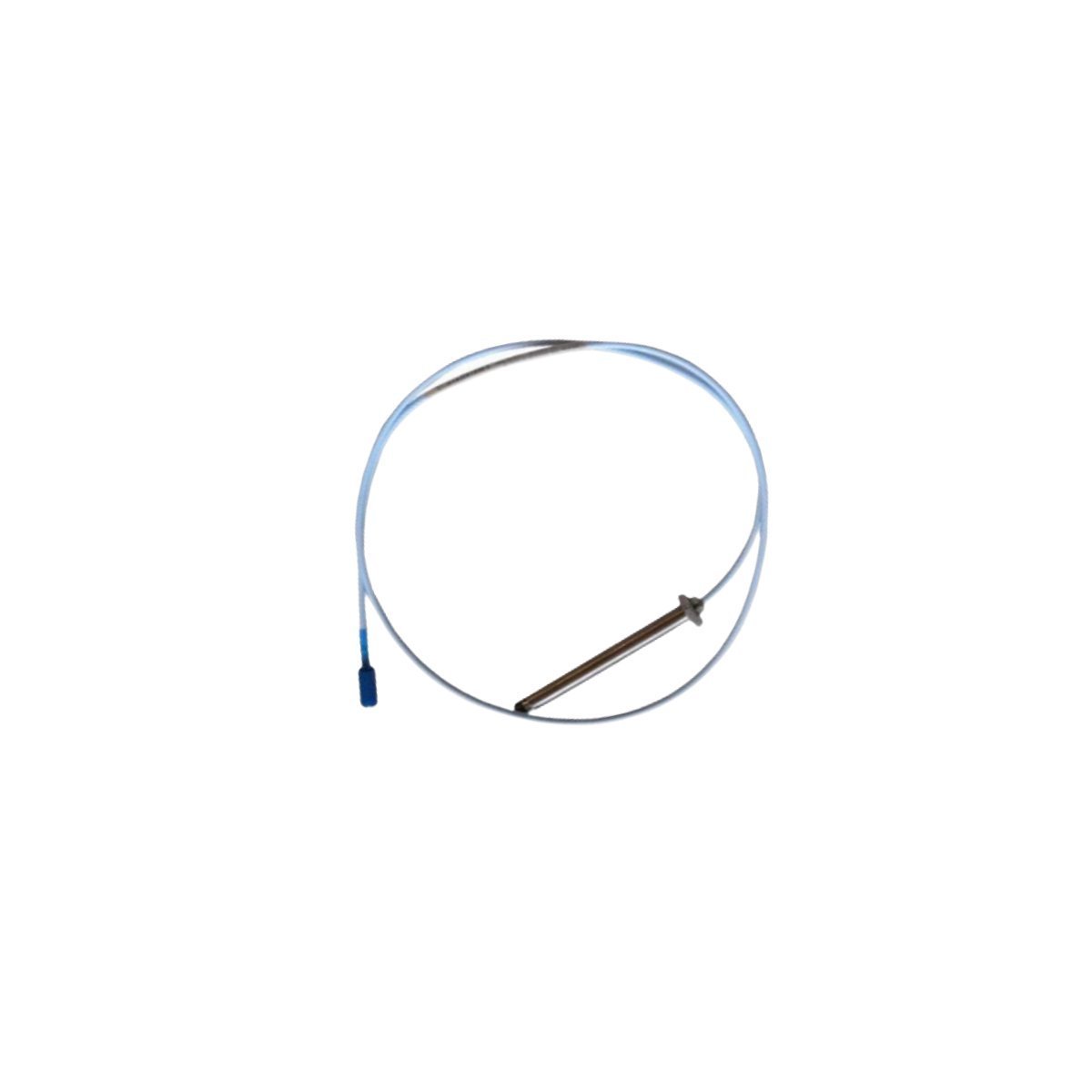

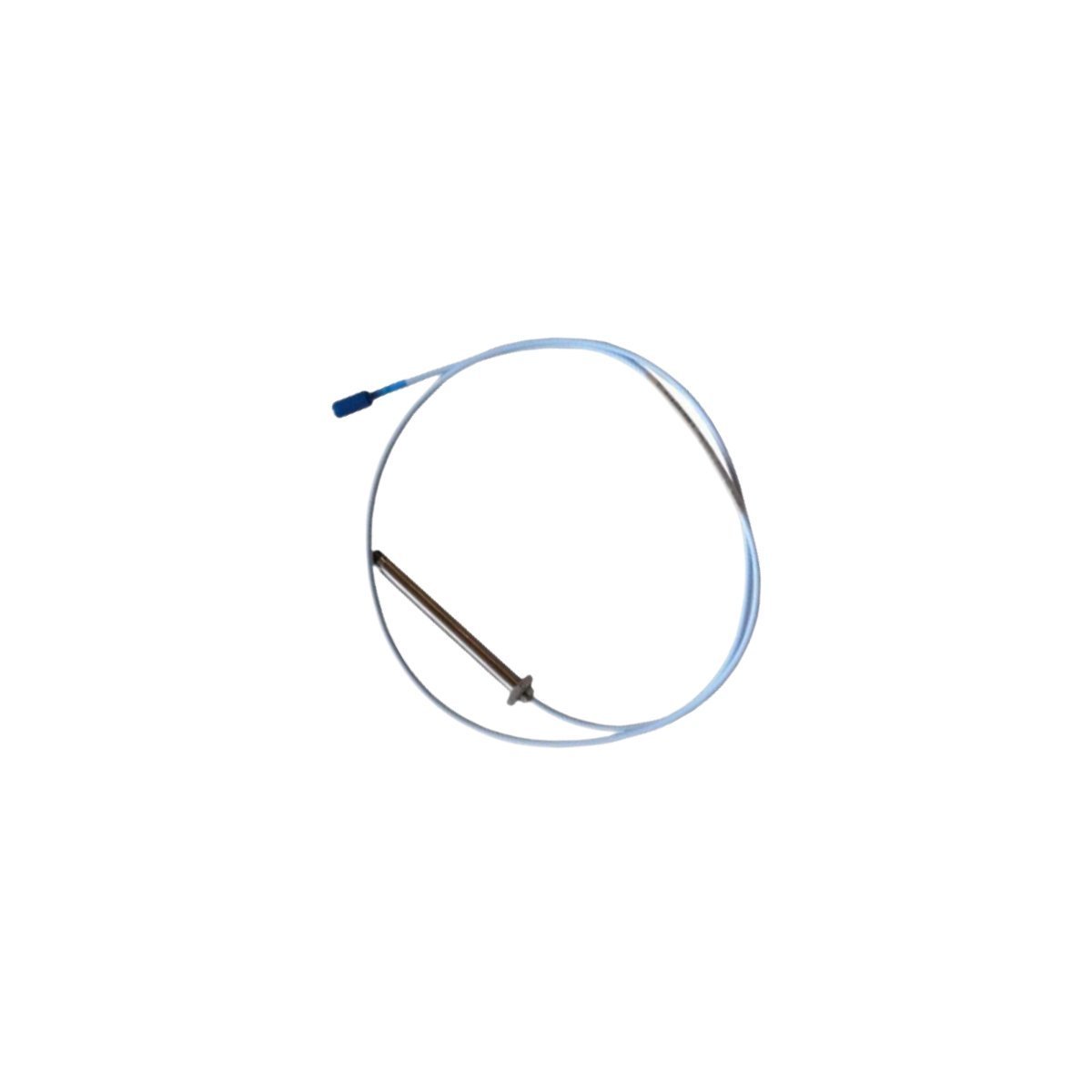

The Bently Nevada 330103-00-04-50-11-00 offers high-precision, non-contact displacement monitoring for industrial assets. As a primary component of the 3300 XL 8mm Transducer System, it uses eddy current technology to track shaft vibration and axial position. The probe tip translates the gap between the sensor and a conductive target into a proportional voltage signal. This system supports a linear measuring range of 2.0 mm (80 mils) and delivers critical diagnostic data for high-speed machinery.
Configuration and Build Specifications
This model features a metric M10 x 1 thread to simplify integration into international machinery housings. The part number 330103-00-04-50-11-00 identifies the following mechanical and electrical parameters:
- Unthreaded Length: 0 mm.
- Overall Case Length: 40 mm.
- Total Length: 5.0 meters (16.4 feet).
- Connector Option: Miniature coaxial ClickLoc connector with a silicone protector.
- Agency Approval: Multi-agency hazardous area certifications including ATEX, IECEx, and CSA.
Technical Specifications Summary
| Feature | Specification |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Series | 3300 XL 8mm |
| Thread Type | M10 x 1 (Metric) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Ingress Protection | IP67 / NEMA 4X |
WordPress Product Short Description
The Bently Nevada 330103-00-04-50-11-00 provides high-precision vibration and axial position monitoring for critical rotating assets. This 3300 XL 8mm proximity probe features a 40mm metric threaded case and an integrated 5.0-meter cable. It ensures reliable performance in hazardous industrial environments.
