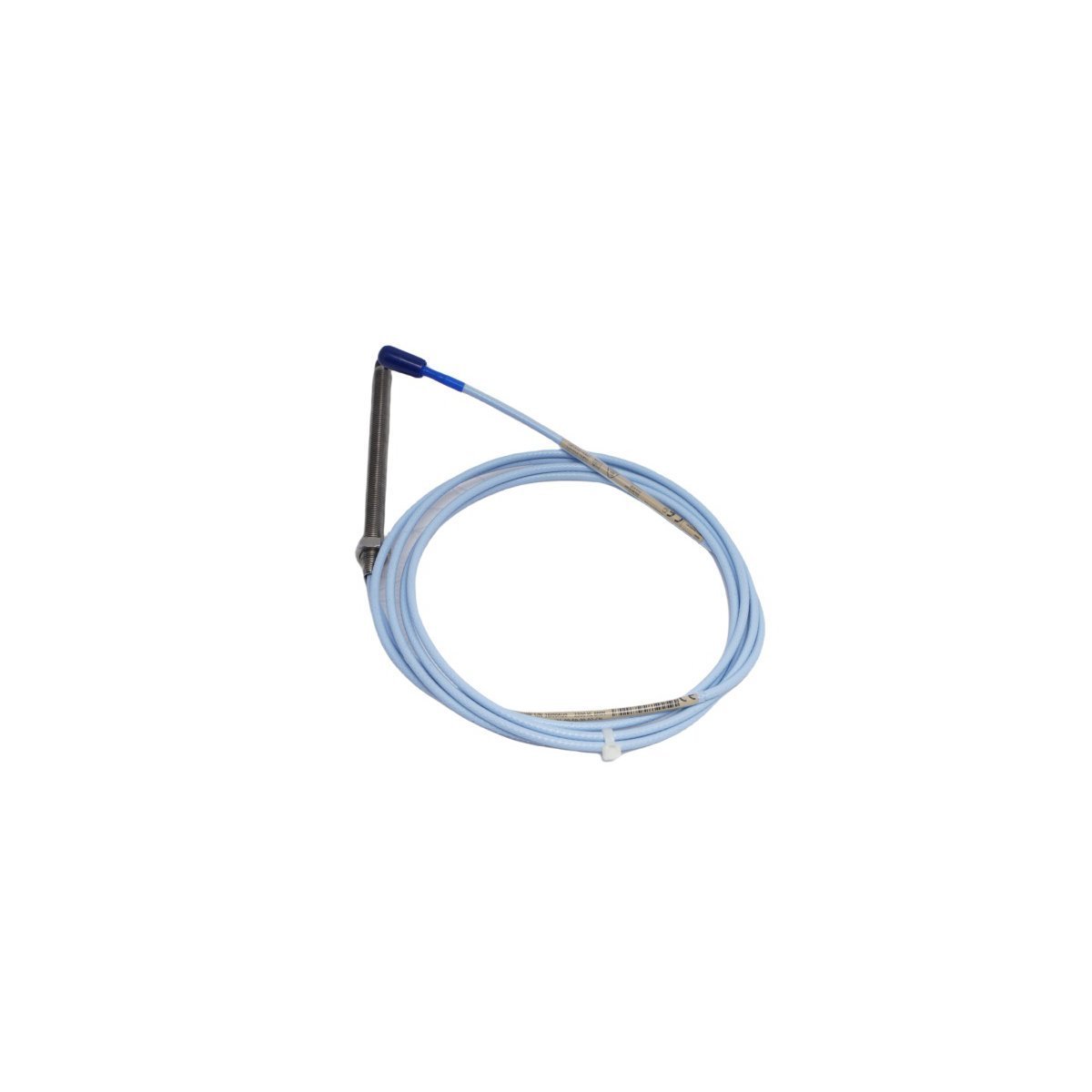

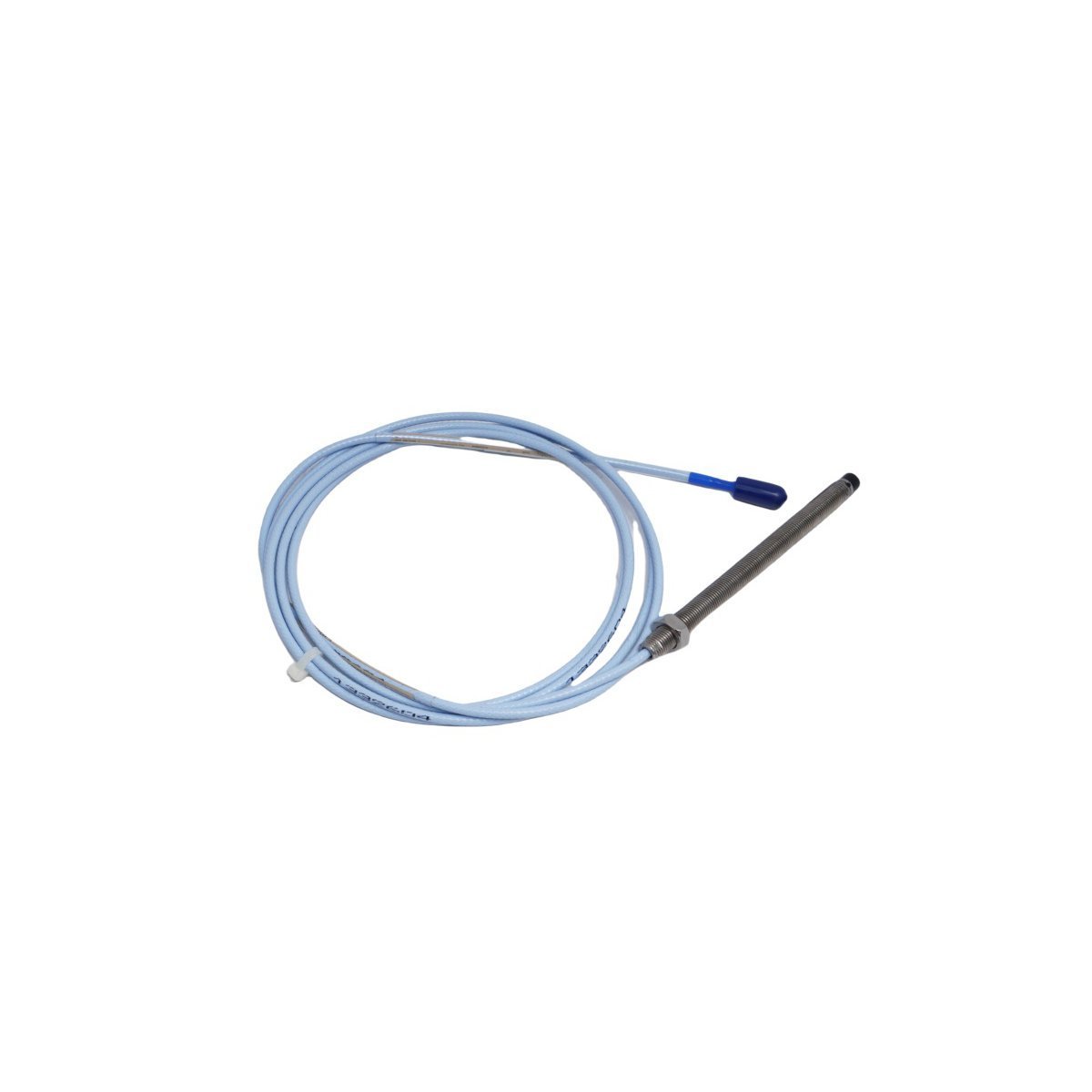

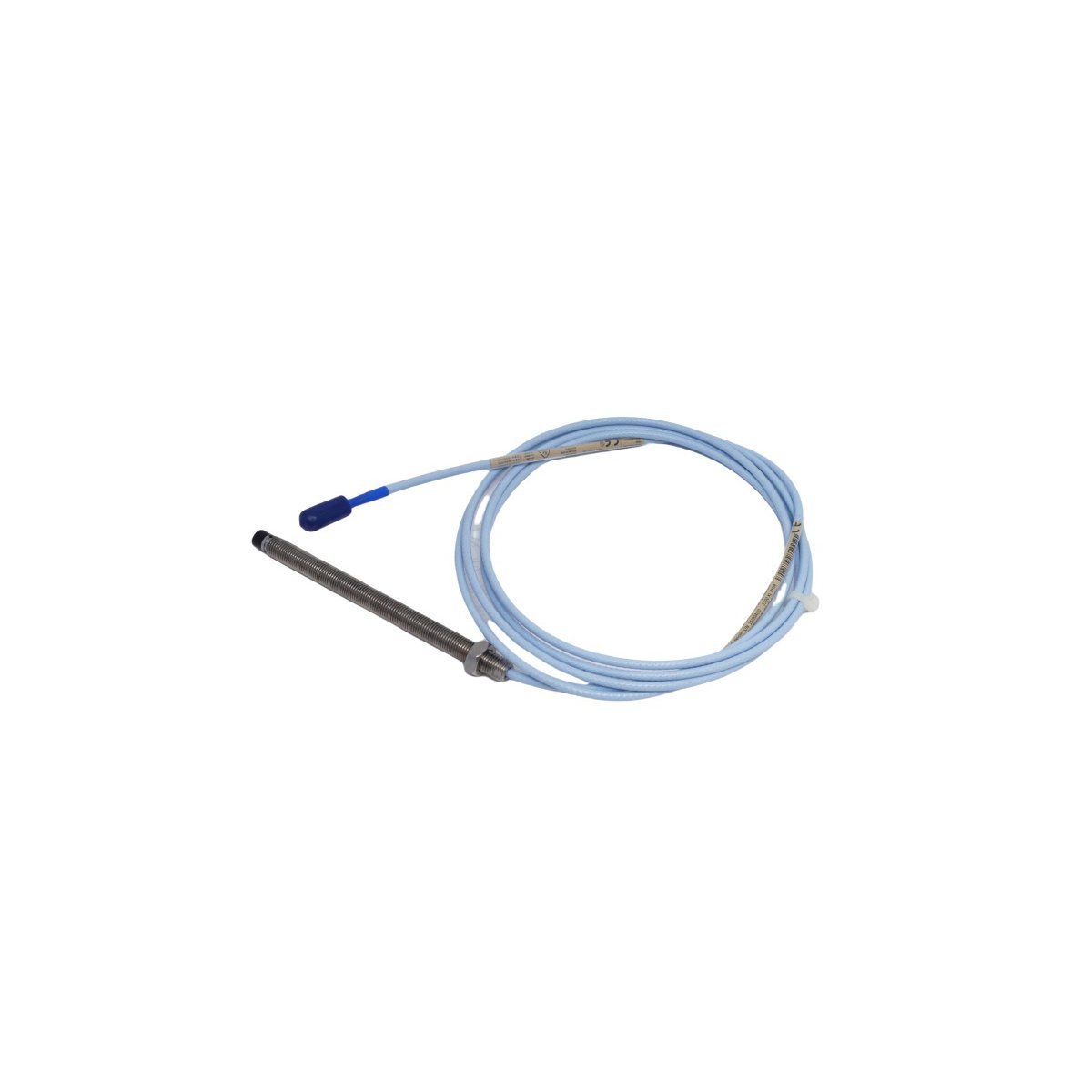

The Bently Nevada 330101-00-50-20-02-CN is a high-precision eddy current sensor designed for the 3300 XL 8mm Proximity Transducer System. This non-contact probe measures both static displacement and dynamic vibration on critical rotating assets. By providing a standard linear range of 2.0 mm (80 mils), it allows operators to monitor shaft position and radial vibration with extreme accuracy. This specific model features a 3/8-24 UNF thread, making it a standard choice for industrial machinery monitoring.
Design Features and Resilience
This probe incorporates advanced materials to ensure stability in volatile industrial settings. The probe tip utilizes polyphenylene sulfide (PPS), which resists moisture and chemical degradation. Furthermore, the 3300 XL technology significantly reduces temperature cross-sensitivity compared to previous generations. This ensures that measurement accuracy remains consistent despite thermal fluctuations inside machine housings. The miniature coaxial ClickLoc connectors feature gold plating to prevent oxidation and maintain signal integrity in high-vibration zones.
Hardware Configuration
The part number 330101-00-50-20-02-CN defines a specific set of mechanical and certification options:
- Unthreaded Length: 0.0 inches.
- Overall Case Length: 5.0 inches.
- Total Length: 2.0 meters (6.6 feet).
- Connector Option: Miniature coaxial ClickLoc connector with protector.
- Agency Approval: CN (Country-specific/China certifications).
WordPress Product Short Description
The Bently Nevada 330101-00-50-20-02-CN is a 3300 XL 8mm proximity probe with a 5.0-inch case and 2.0-meter cable. Optimized for non-contact vibration and position monitoring, it provides durable and accurate measurement for critical turbines, compressors, and pumps.
