Bently Nevada 330104-01-12-05-01-05 3300 XL 8 mm Proximity Sensors

Bently Nevada 330104-01-12-05-01-05 3300 XL 8 mm Proximity Probes

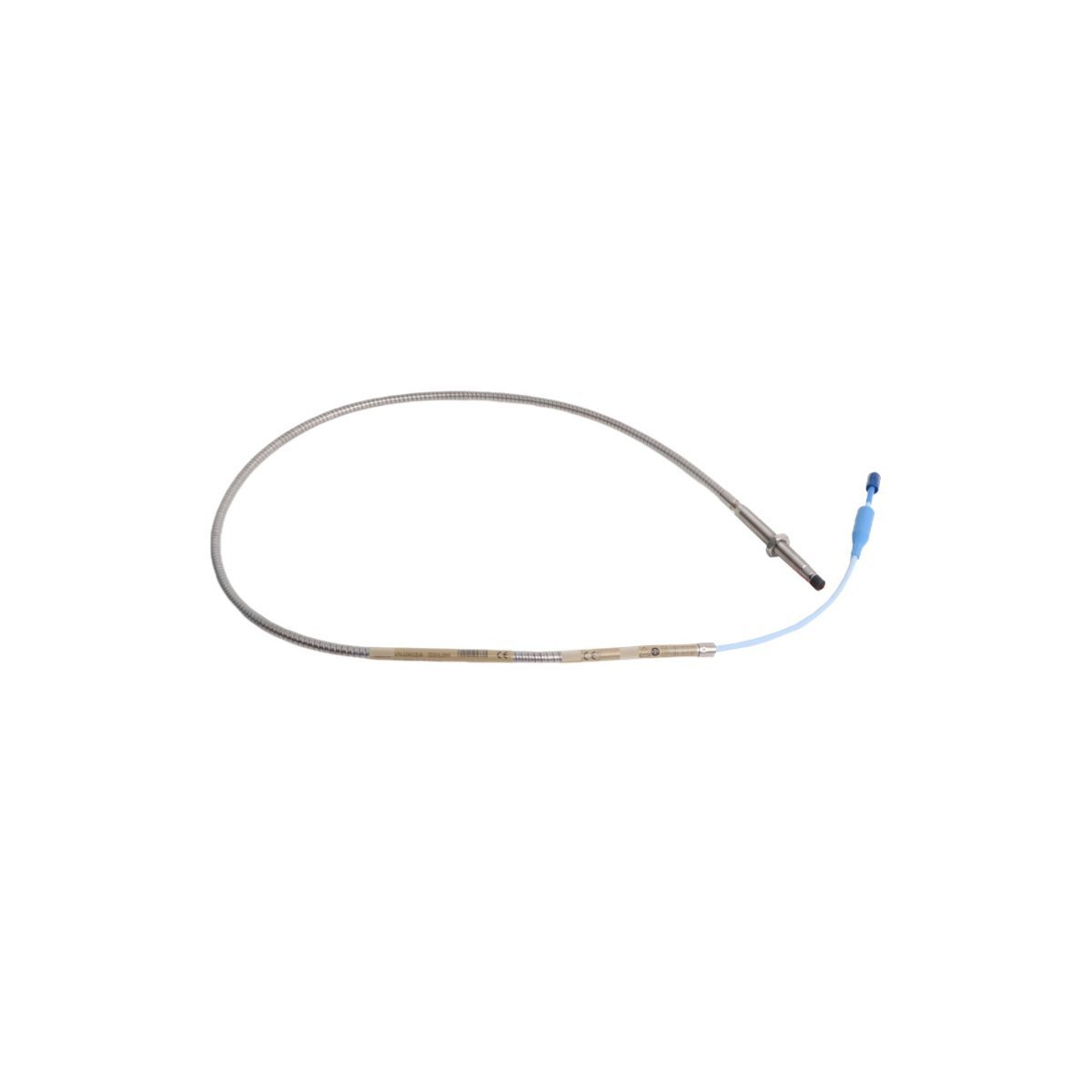

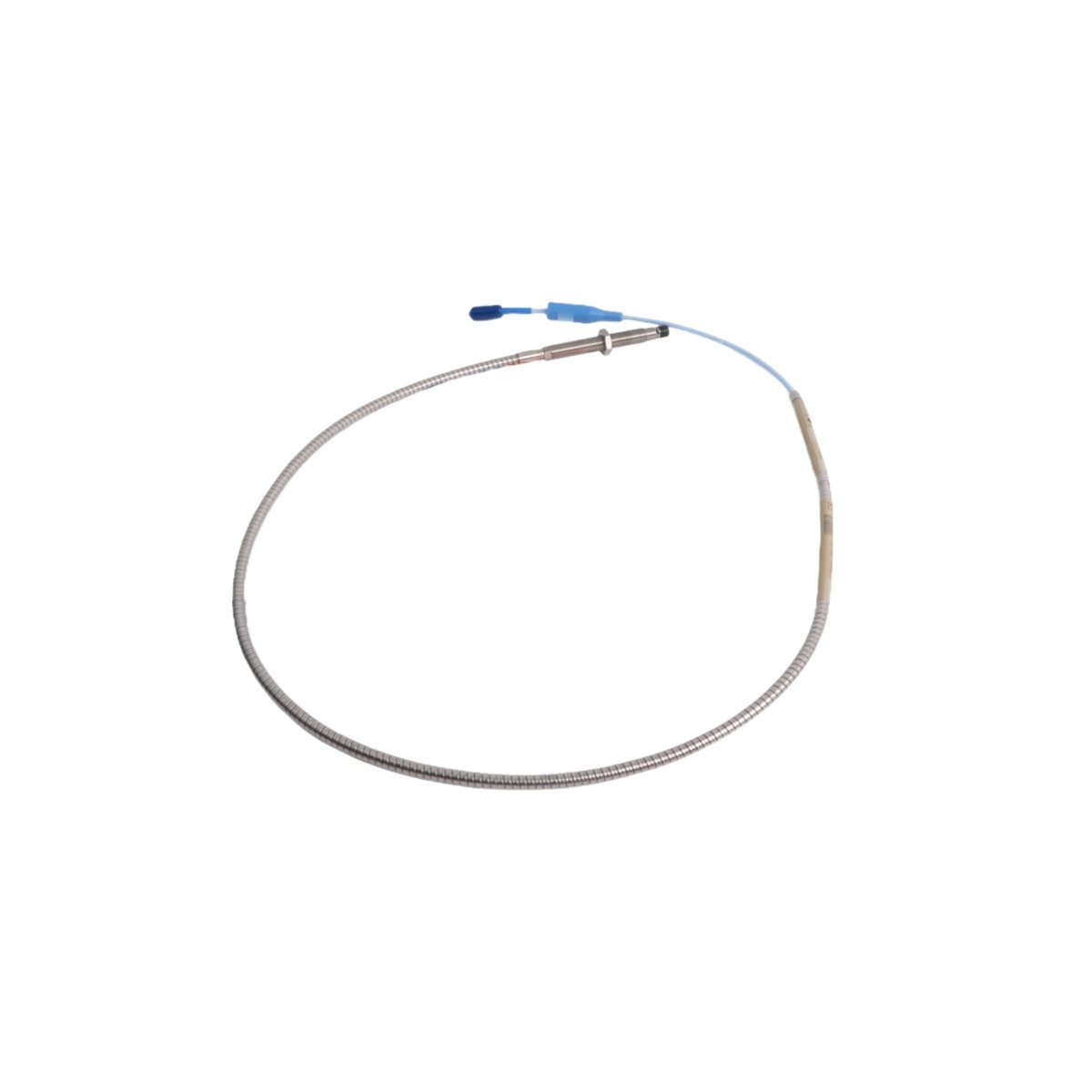

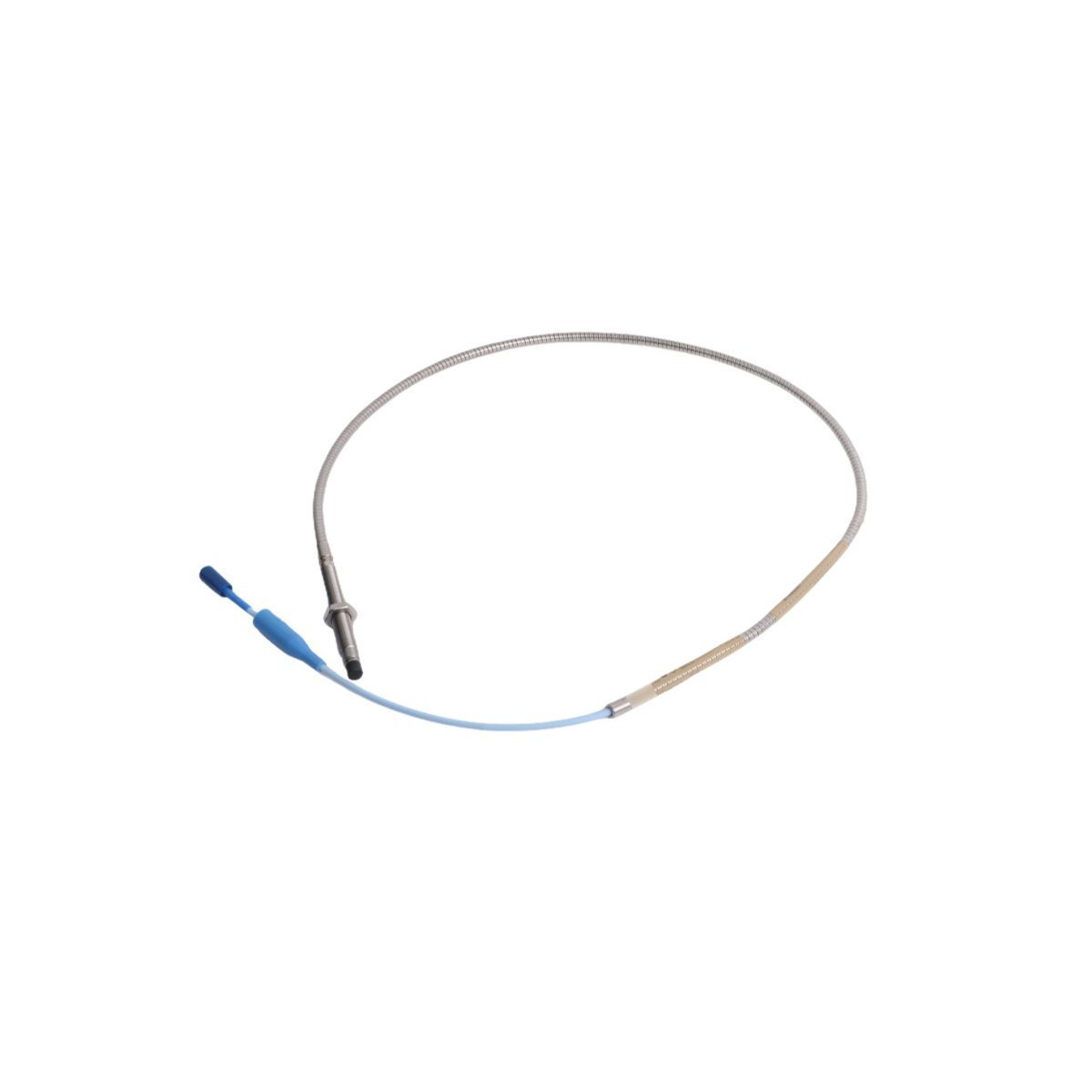

The Bently Nevada 330104-01-12-05-01-05, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for contactless shaft vibration and axial position measurement within Machinery Protection TSI Systems. The probe tip projects an high-frequency electromagnetic field onto the target shaft surface, whereupon the system converts physical gap changes into proportional DC and AC electrical output signals via the companion Proximitor Sensor.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring & Eddy-Current Probe Mechanics

Engineers utilize precise eddy-current probe scaling to establish predictable linear voltage translation over the 80 mil measurement span. During mechanical setup, operators verify gap voltage validation (-10 VDC targets) by positioning the probe face until the Proximitor signal output registers -10.0 VDC, which places the target surface precisely at the center of the dynamic measurement envelope.

Because structural vibration alters the eddy-current field geometry, engineers monitor rotor dynamics across high-speed rotating shafts without making physical contact. Furthermore, installers maintain proper spatial separation between adjacent sensor tips inside bearing housings, which guarantees effective cross-talk suppression and eliminates mutual inductive interference.

Frequently Asked Questions

Q: How do technicians confirm proper physical positioning before locking the probe into place?

A: Installers monitor the DC voltage output at the Proximitor Sensor while slowly threading the probe body toward the shaft surface. Once the multimeter indicates the target gap voltage validation point of -10.0 VDC (representing the midpoint of the linear range), the technician secures the locknut to prevent physical movement.

Q: Does replacing a damaged probe require re-calibration of the Proximitor Sensor?

A: Technicians can swap out any 3300 XL 8 mm probe directly because Bently Nevada enforces complete physical and electrical interchangeability across the 3300 XL series. Consequently, personnel avoid time-consuming bench calibration steps as long as the total electrical length of the probe, extension cable, and sensor remains consistent.

Q: How does the ClickLoc coaxial connector preserve signal integrity in harsh environments?

A: The ClickLoc miniature connector utilizes a positive-locking mechanism that resists vibrational loosening. Furthermore, technicians slide an insulating silicone sleeve over the joined connectors, which prevents signal noise and eliminates ground loops caused by unintended contact with machine housing metal.

Field Installation Guidelines

Installers must execute physical mounting with care to preserve thread integrity and protect the PPS tip face. Screw the probe body into the reverse-mount bracket or housing thread, and feed the integral coaxial cable smoothly through the conduit channel.

Connect a digital multimeter to the raw buffer output terminals on the Proximitor Sensor. Rotate the probe body to adjust the physical gap while watching the DC voltage reading. As the probe tip approaches the conductive shaft, the voltage drops from the negative supply rail toward 0 VDC; stop rotation immediately when the meter displays -10.0 VDC.

Tighten the mounting hardware or jam nut against the bracket to seal the position. Route the 0.5 meter integral coaxial cable along dedicated cable trays, and maintain a minimum bend radius of 25.4 mm (1.0 inch) to prevent internal core damage. Finally, push the coaxial ClickLoc connector firmly into the extension cable mating plug until the detent clicks, and pull the protective rubber boot over the connection to isolate the signal path from earth ground.
