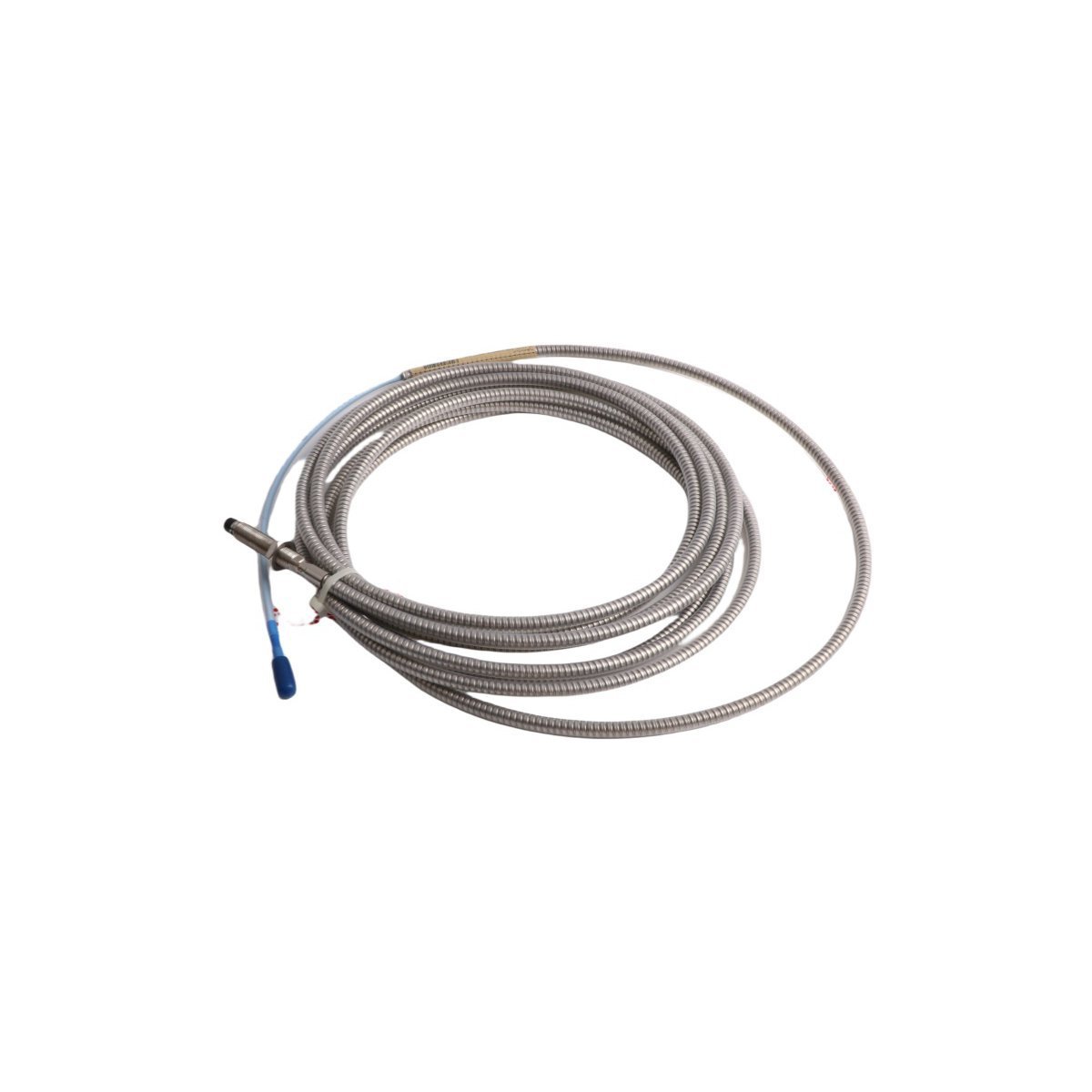

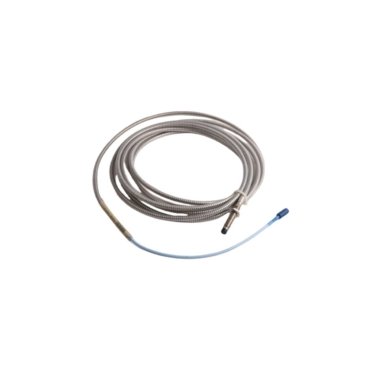

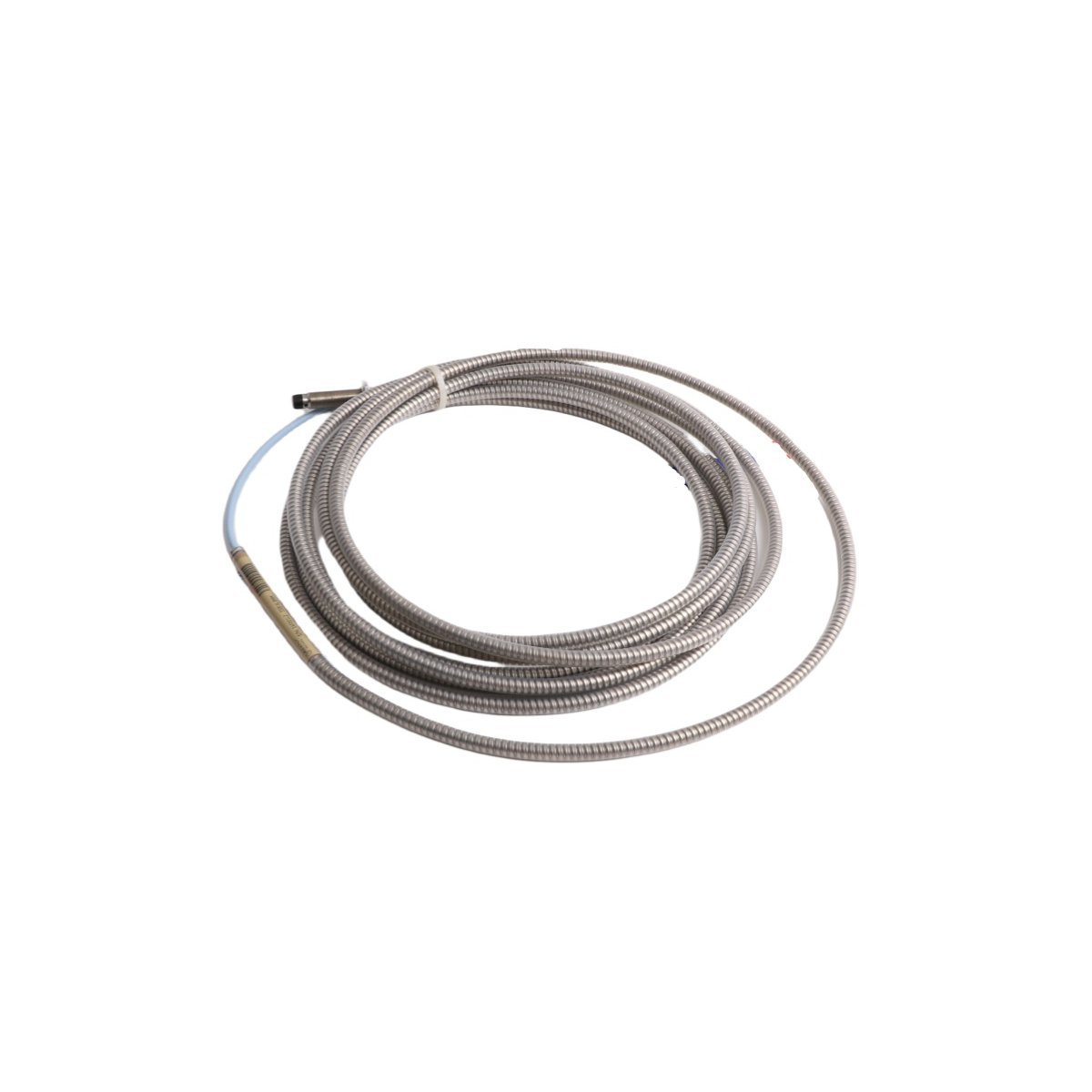

The Bently Nevada 330104-00-05-50-02-05 is a high-performance eddy current sensor engineered for the continuous monitoring of rotating machinery. As a primary sensing element in the 3300 XL series, this 8 mm probe measures the gap between the probe tip and a conductive target, such as a machine shaft. It provides high-resolution data for both radial vibration (dynamic motion) and axial position (static displacement), allowing for the early detection of mechanical wear or potential failure.
Industrial Applications and Compliance
This proximity probe is a standard solution for assets utilizing fluid-film bearings, where precise clearance monitoring is critical. It is fully compliant with API 670 standards, making it suitable for rigorous machinery protection applications in the following sectors:
- Power Generation: Monitoring steam and gas turbine shaft stability.
- Oil and Gas: Assessing centrifugal compressor and pump health.
- Water Treatment: Tracking large-scale motor and gearbox vibration.
- Speed Sensing: Utilizing the probe as a Keyphasor signal for RPM and phase-angle measurements.
Key Technical Attributes
The 330104-00-05-50-02-05 configuration is designed for ease of installation and long-term signal stability. Its modular design allows for the interchangeability of probes, extension cables, and Proximitor sensors without the need for individual component calibration.
- Probe Tip Diameter: 8 mm
- Thread Interface: 3/8-24 UNF (Standard English)
- Unthreaded Length: 0.0 inches
- Case Length: 0.5 inches
- Total Cable Length: 5.0 meters (approximately 16.4 feet)
- Connector System: Gold-plated ClickLoc miniature coaxial connector
- Mounting Configuration: Standard unarmored cable with miniature connector
- Environmental Resistance: Built to withstand high-pressure oil environments and extreme temperatures.
