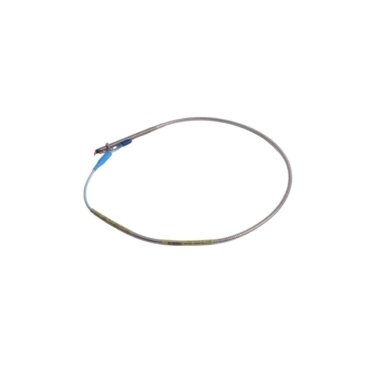

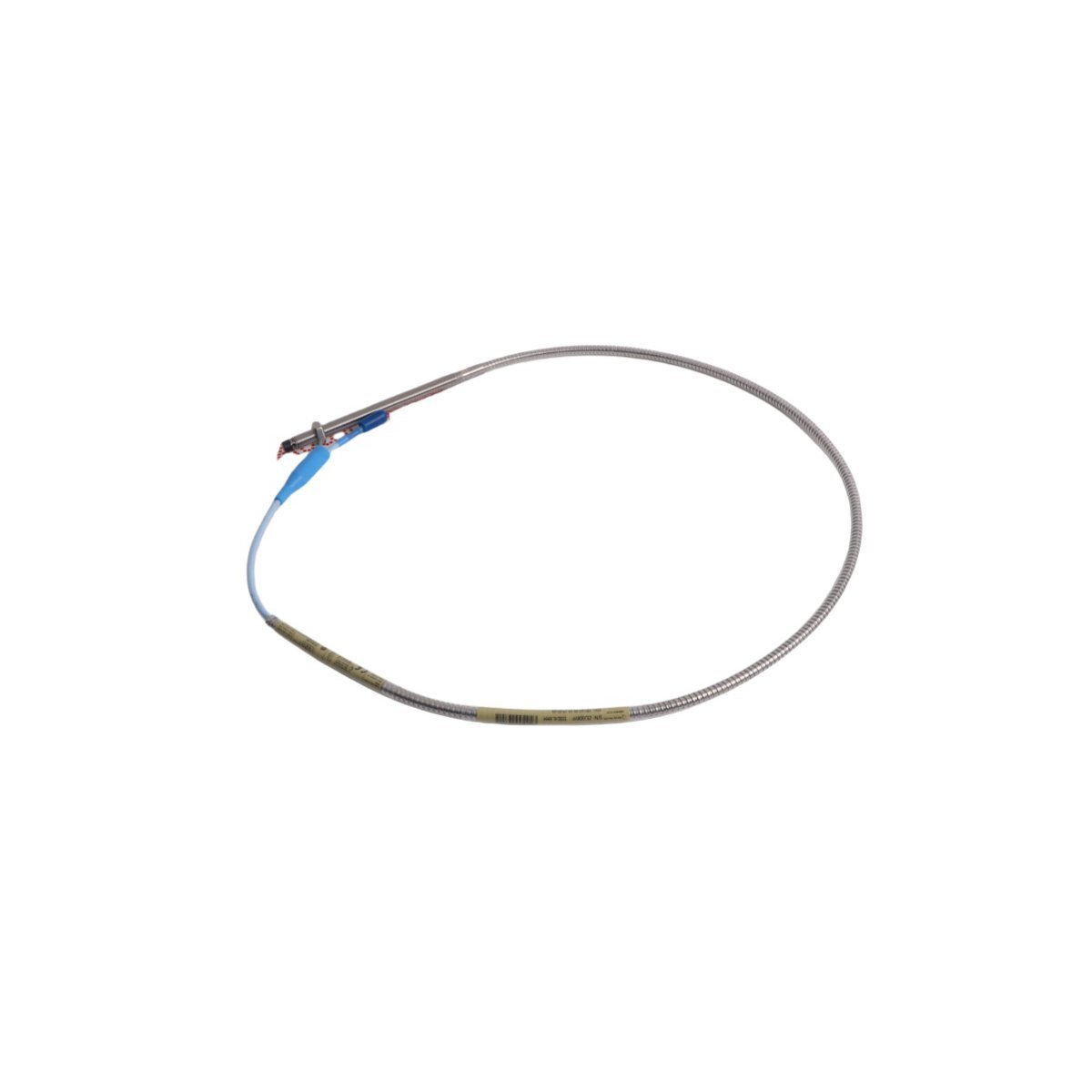

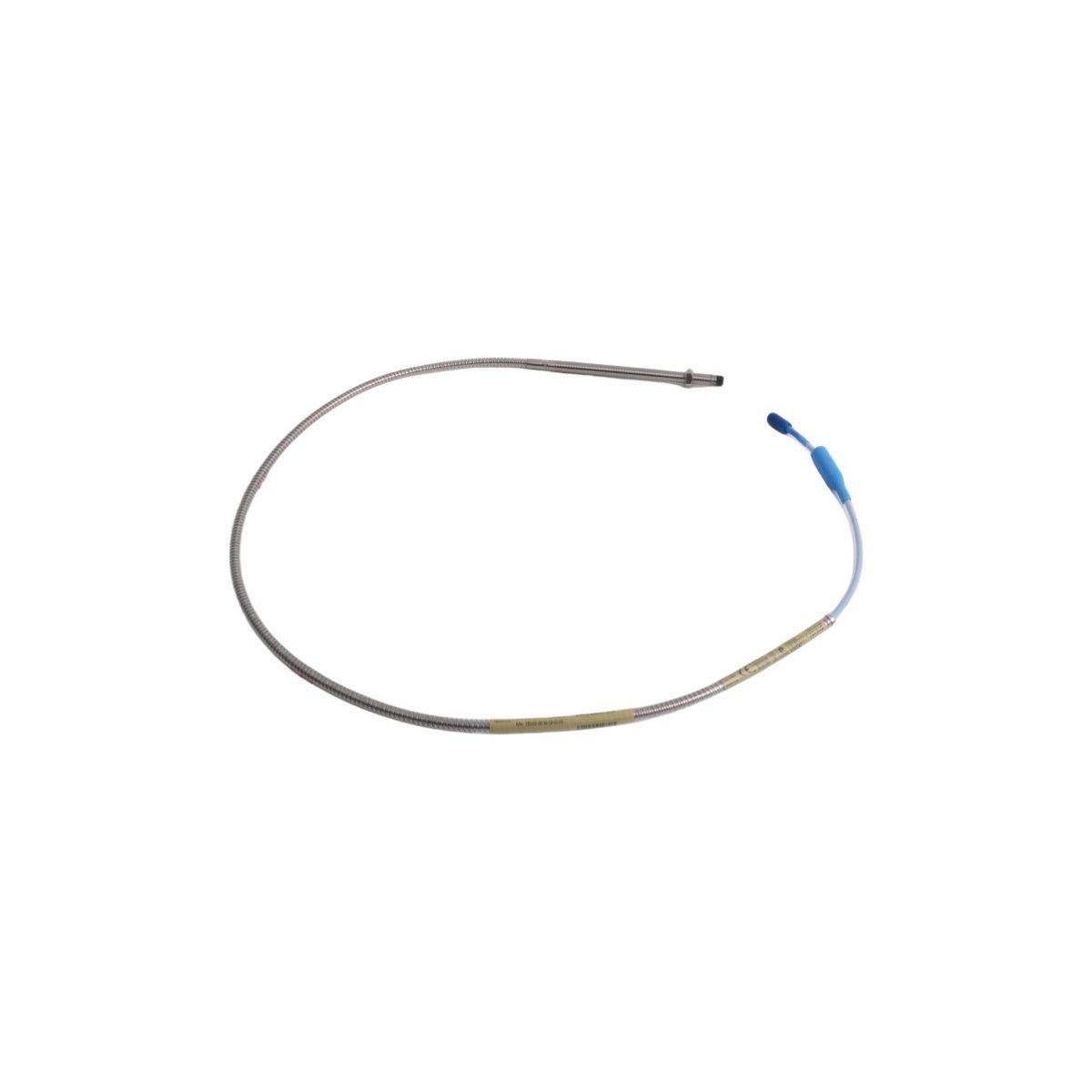

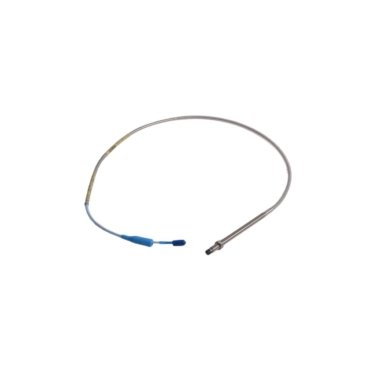

The Bently Nevada 330102-00-50-10-01-00 is a high-precision eddy current sensor designed for non-contacting displacement measurements. As a fundamental component of the 3300 XL 8 mm Transducer System, this probe monitors the gap between the sensor tip and a conductive target surface. It generates a voltage signal directly proportional to the physical distance, facilitating the capture of both static position data and dynamic mechanical vibration.
Industrial Applications
This proximity probe is engineered for industrial assets utilizing fluid-film bearings. It is a critical hardware component for machinery protection systems in the following applications:
- Radial Vibration: Continuous monitoring of shaft motion within bearing housings.
- Axial Position: Precise tracking of thrust displacement in turbines and compressors.
- Keyphasor Reference: Providing timing and speed signals for phase-angle diagnostics.
- Eccentricity: Measuring shaft thermal bow during startup sequences.
Configuration Specifications
| Attribute | Specification |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 5.0 inches |
| Total Cable Length | 1.0 Meter (3.3 feet) |
| Connector Type | Miniature Coaxial ClickLoc (Gold-plated) |
| Agency Approvals | ATEX, IECEx, CSA (Refer to specific certificate) |
| Cable Jacket | FEP (Fluorinated Ethylene Propylene) |
Environmental and Mechanical Durability
To ensure performance in harsh environments, the probe utilizes TipLoc technology to securely bond the tip to the stainless steel body. The FluidLoc cable construction prevents process liquids or pressurized oil from leaking through the cable’s interior. Additionally, gold-plated connectors provide a vibration-resistant interface, ensuring signal integrity in the presence of high-frequency interference.
