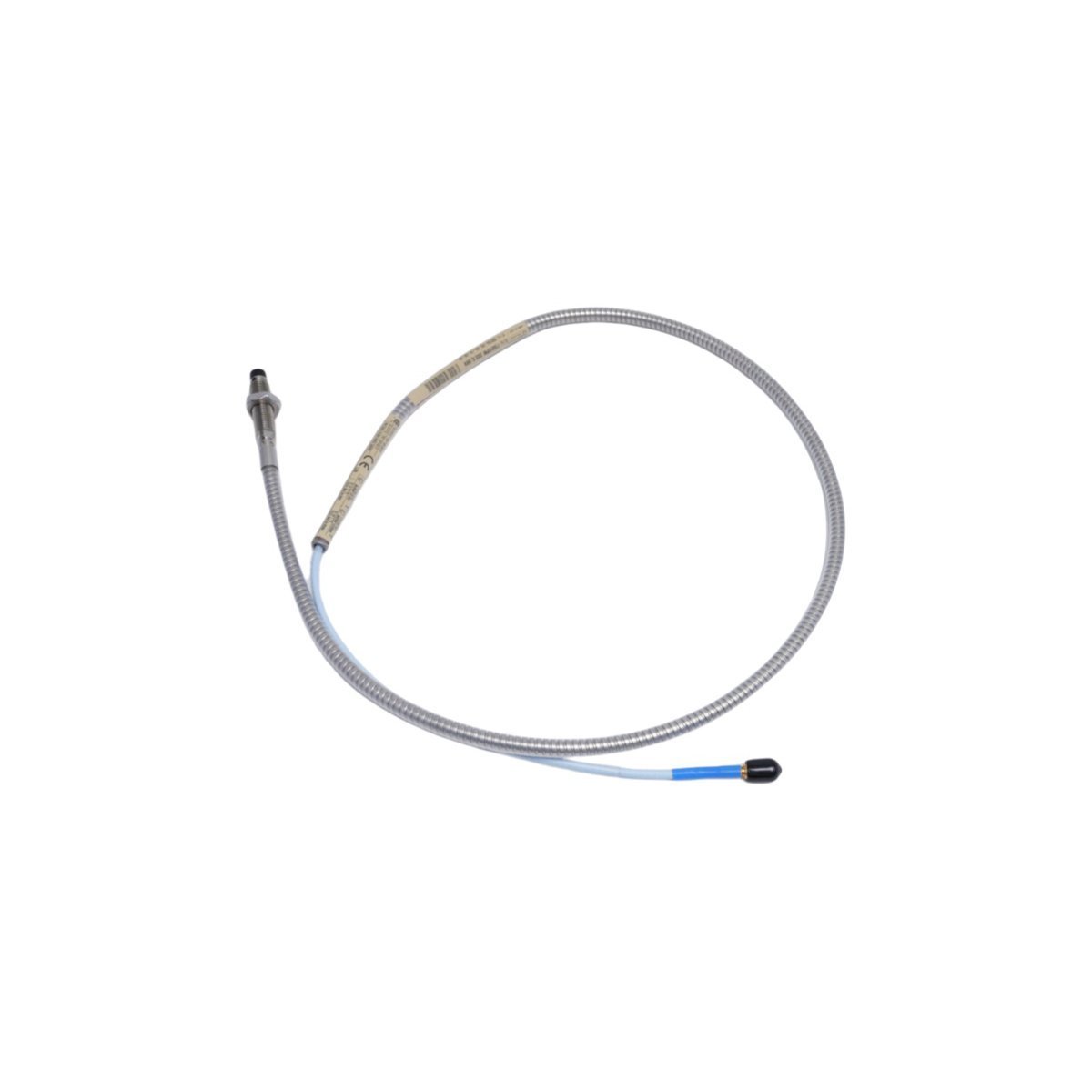

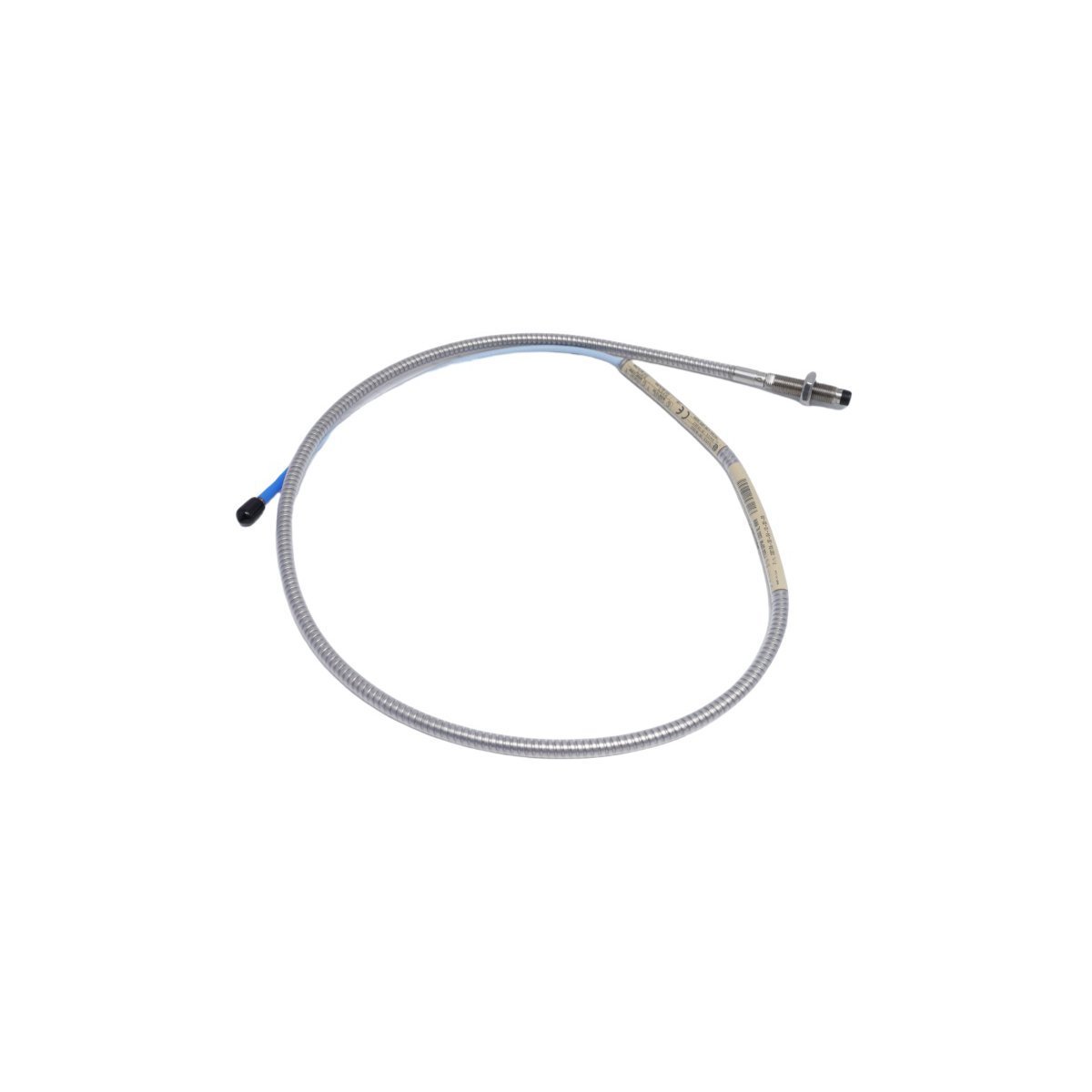

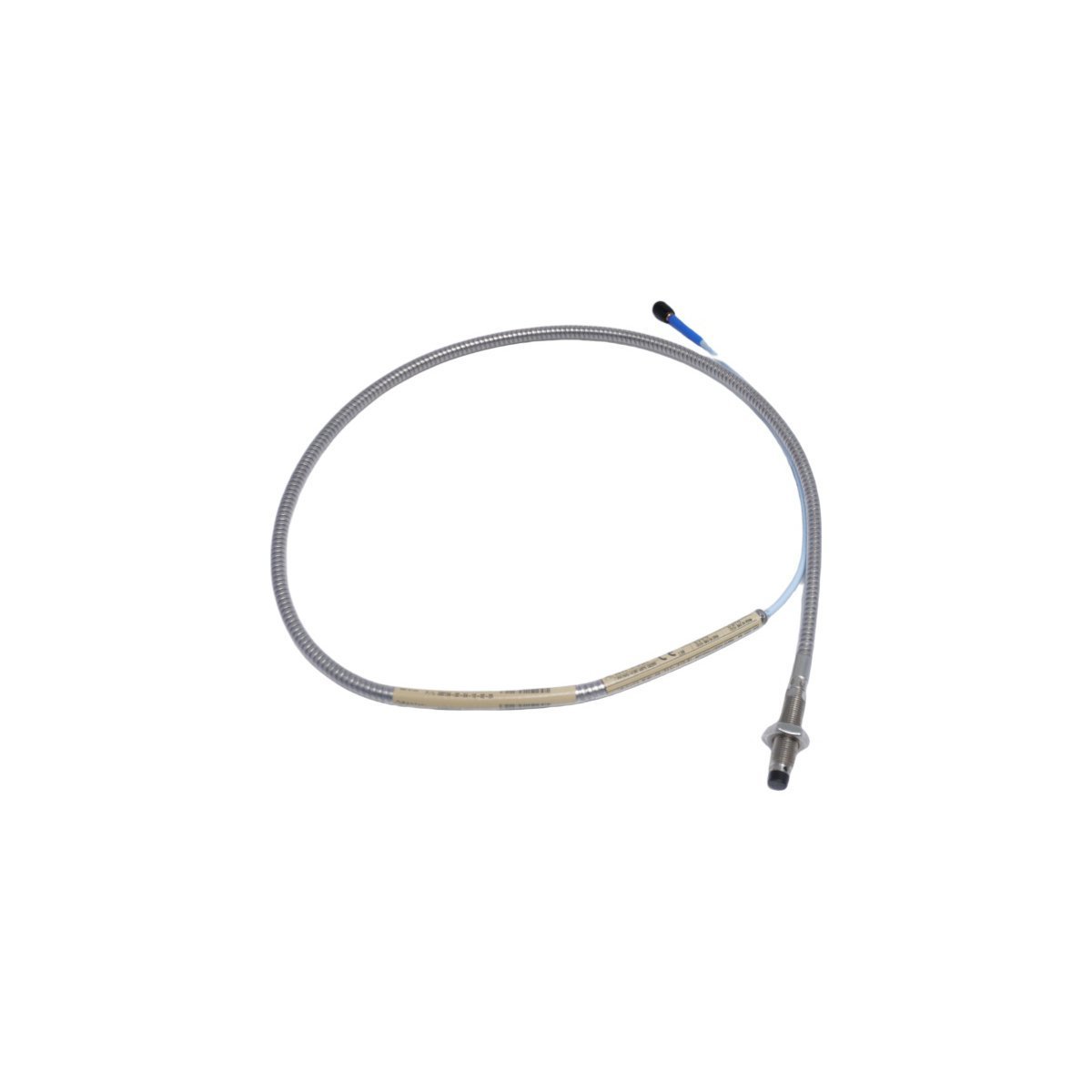

Bently Nevada 330104-00-04-10-02-05 3300 Series 8 mm Proximity Probe

Bently Nevada 330104-00-04-10-02-05 8 mm Proximity Probes

Configured for fluid-film bearing displacement and vibration monitoring in TSI (Turbine Supervisory Instrumentation) platforms, the Bently Nevada 330104-00-04-10-02-05, also cataloged as the 330104 8 mm Proximity Probe, provides direct physical/electrical execution. The hardware reads dynamic shaft motion and static position relative to the sensor tip. Operators integrate this sensor into machinery protection systems to transmit continuous analog voltages representing physical proximity data.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware relies on eddy-current probe scaling to convert physical gap distance into proportional voltage outputs. The 8 mm tip maintains a standard scale factor of 7.87 V/mm (200 mV/mil) when the field technician pairs the assembly with a matching 3300 XL Proximitor Sensor. During calibration, the installation engineer performs gap voltage validation to confirm target positioning, aiming for a -10 VDC baseline within the linear range to optimize measurement accuracy.

This linear response curve captures high-frequency rotor dynamics, tracking shaft vibration, eccentricity, and thrust position. The system architecture utilizes internal cross-talk suppression methodologies, which isolate the active RF magnetic fields from adjacent probe tips when technicians maintain the minimum specified spatial separation during mounting.

Frequently Asked Questions

Q: Does this proximity probe support hot-swap replacement while the machinery protection system is live?

A: Field personnel can disconnect and replace the probe while the system operates, but the disconnected channel will immediately trip an under-voltage fault or OK circuit alert. Technicians must bypass the associated alert/danger relays before swapping hardware to prevent false machinery shutdown commands.

Q: What regulates the electrical power consumption of the probe?

A: The probe behaves as a passive inductive load. The external Proximitor Sensor supplies the radio frequency excitation current, meaning the probe consumes no direct DC input power on its own.

Q: How do variation limits in extension cable length affect the probe calibration?

A: The hardware requires a precise total electrical length of either 5.0 meters or 9.0 meters. The installer must match the probe total length option with the specific Proximitor model, or the scale factor will shift outside standard calibration tolerances.

Field Installation Guidelines

• Lead the coaxial cable extension through dedicated, rigid conduit paths to shield the raw RF signal loops from external electromagnetic interference.
• Maintain a minimum physical distance between adjacent 8 mm probe tips to ensure cross-talk suppression remains effective within multi-axis measurement planes.
• Connect the outer shielding braid of the extension cable to the dedicated instrument ground plane exclusively at the Proximitor housing terminal, preventing ground loops.
• Tighten the probe body nuts to structural brackets according to mechanical thread torque limits, ensuring the sensor face maintains a constant vertical aspect relative to the observed target shaft area.
