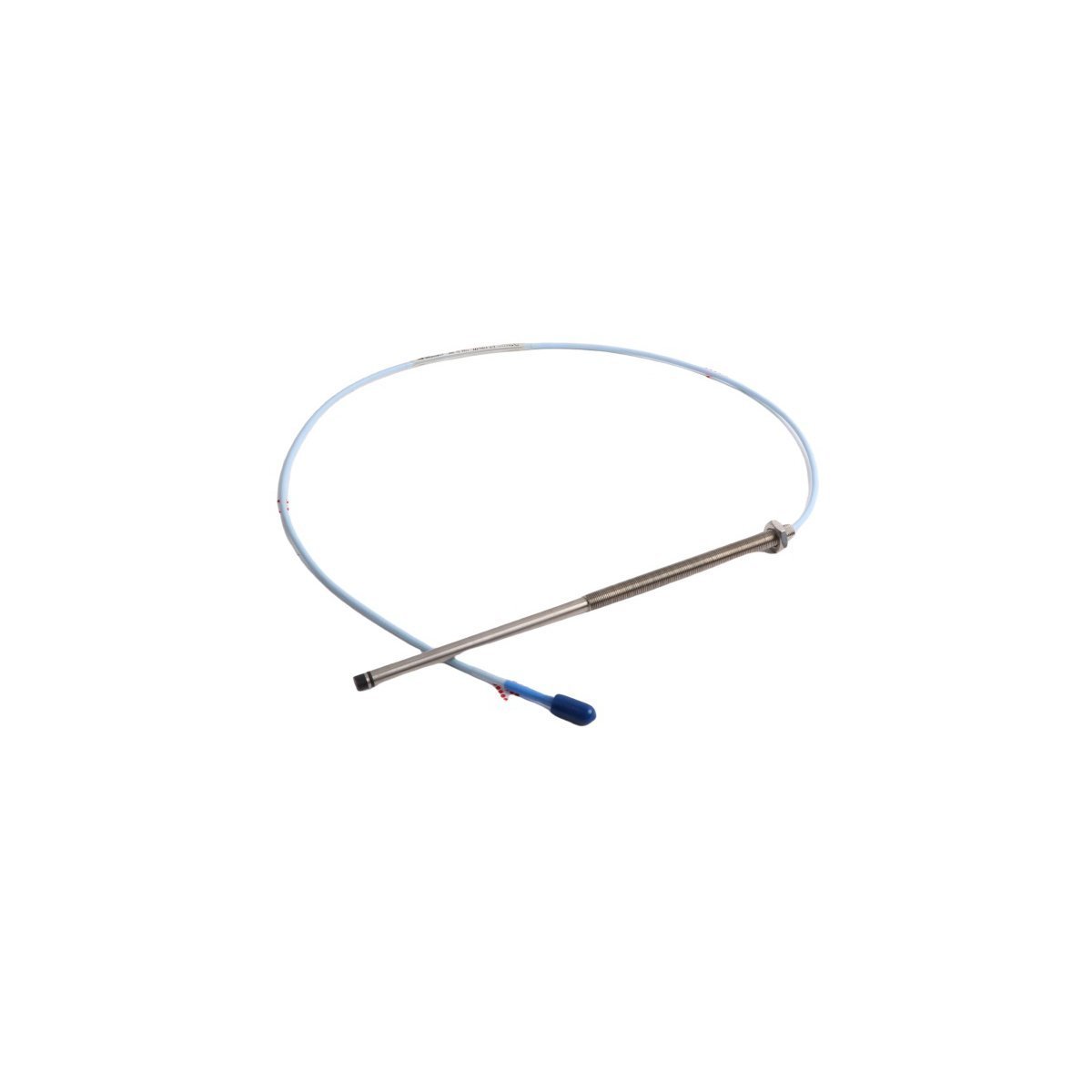

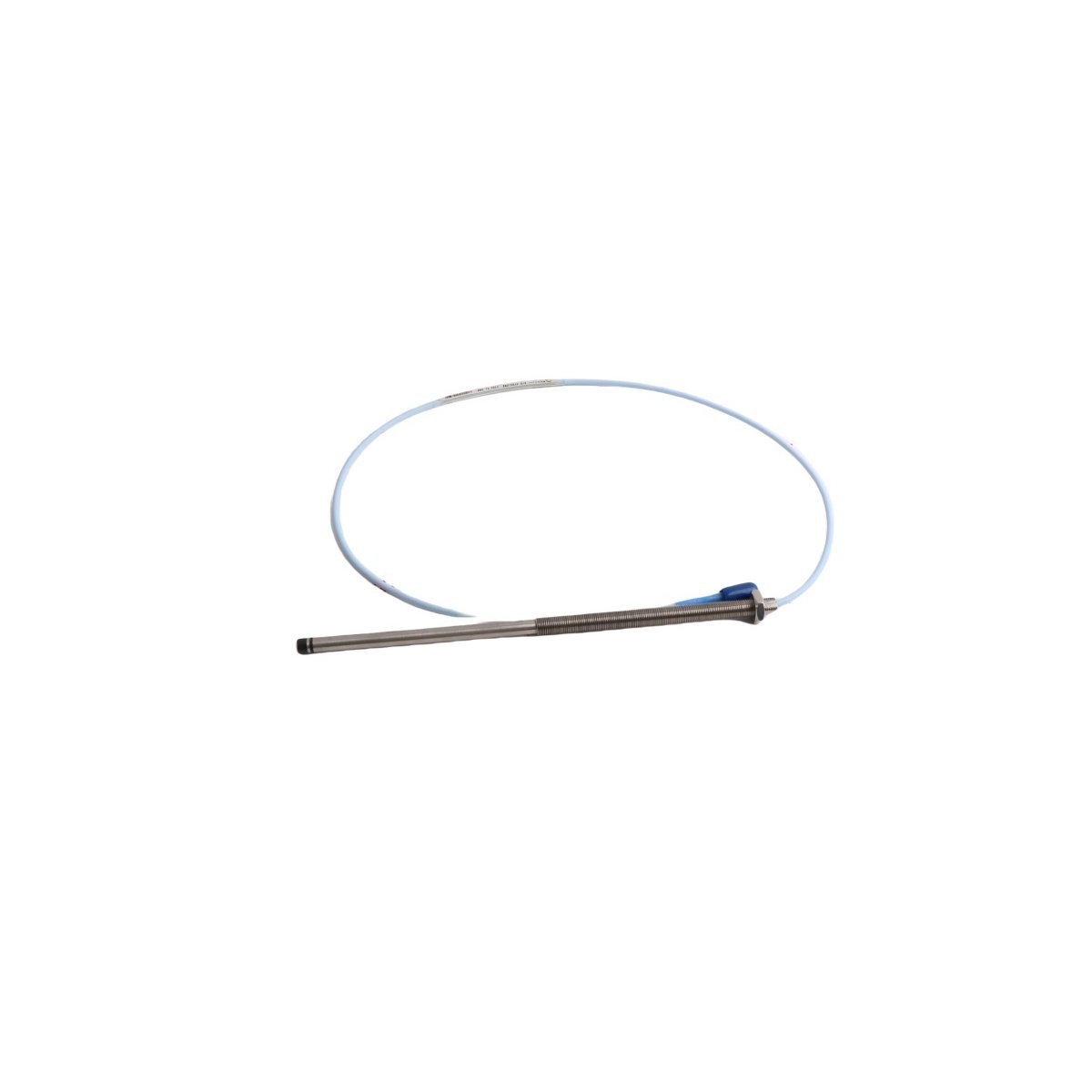

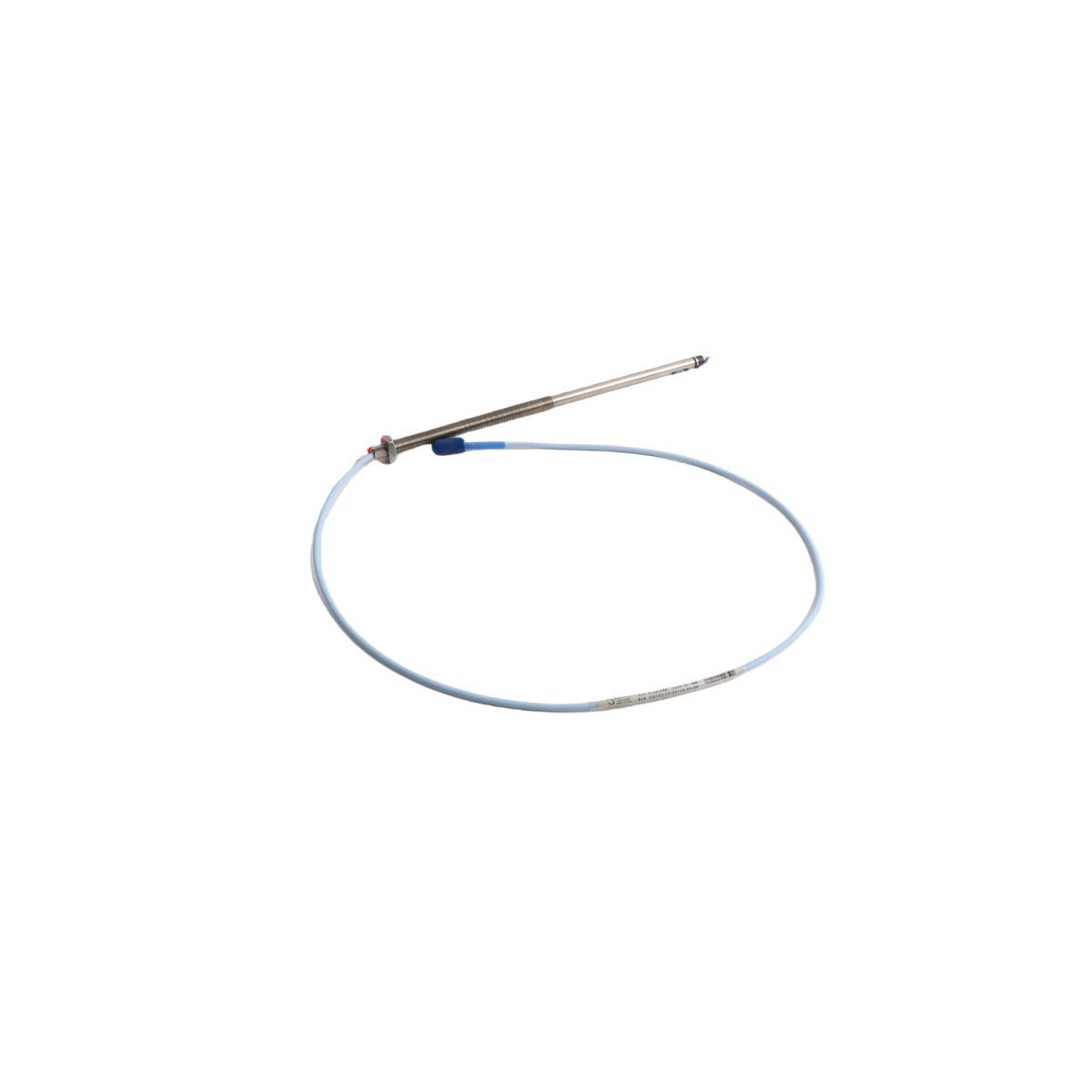

The Bently Nevada 330103-12-25-10-02-00 is a high-precision eddy current sensor designed for the 3300 XL series machinery protection system. Primarily, this proximity transducer measures the distance between the probe tip and a target conductive surface. By converting this gap into a proportional voltage signal, it provides essential data regarding shaft vibration and axial position. Consequently, this hardware is a vital component for ensuring the safety and operational efficiency of high-speed rotating assets.
Core Technical Specifications
The 330103-12-25-10-02-00 configuration features the following mechanical and electrical parameters:
- Probe Tip Diameter: 8mm
- Thread Type: 3/8-24 UNF (standard imperial thread)
- Unthreaded Length: 1.2 inches (Option 12)
- Overall Case Length: 2.5 inches (Option 25)
- Total Cable Length: 1.0 meter / 3.3 feet (Option 10)
- Connector Option: ClickLoc miniature coaxial connector with connector protector (Option 02)
- Agency Approval: Standard industrial certifications (Option 00)
- Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
Machinery Protection and Asset Longevity
Because durability is critical in power generation and petrochemical industries, this probe features a chemically resistant polyphenylene sulfide (PPS) tip. For instance, it is frequently deployed to monitor steam turbines, centrifugal compressors, and heavy-duty pumps. Moreover, the integration of the ClickLoc connector system prevents accidental disconnection due to machine vibration. This secure coupling ensures that the 3500 series monitoring rack receives a continuous, noise-free signal for real-time asset protection.
Installation and Field Performance
Regarding installation, the 2.5-inch case length allows for flexible mounting within various bearing housing depths. Specifically, the gold-plated contacts inside the connector housing minimize electrical resistance and signal loss. Furthermore, the 1.0-meter cable length is optimized for connection to a secondary extension cable or a nearby Proximitor. In short, the 330103-12-25-10-02-00 provides the resilience and accuracy necessary to support sophisticated predictive maintenance programs in the most demanding industrial plants.
