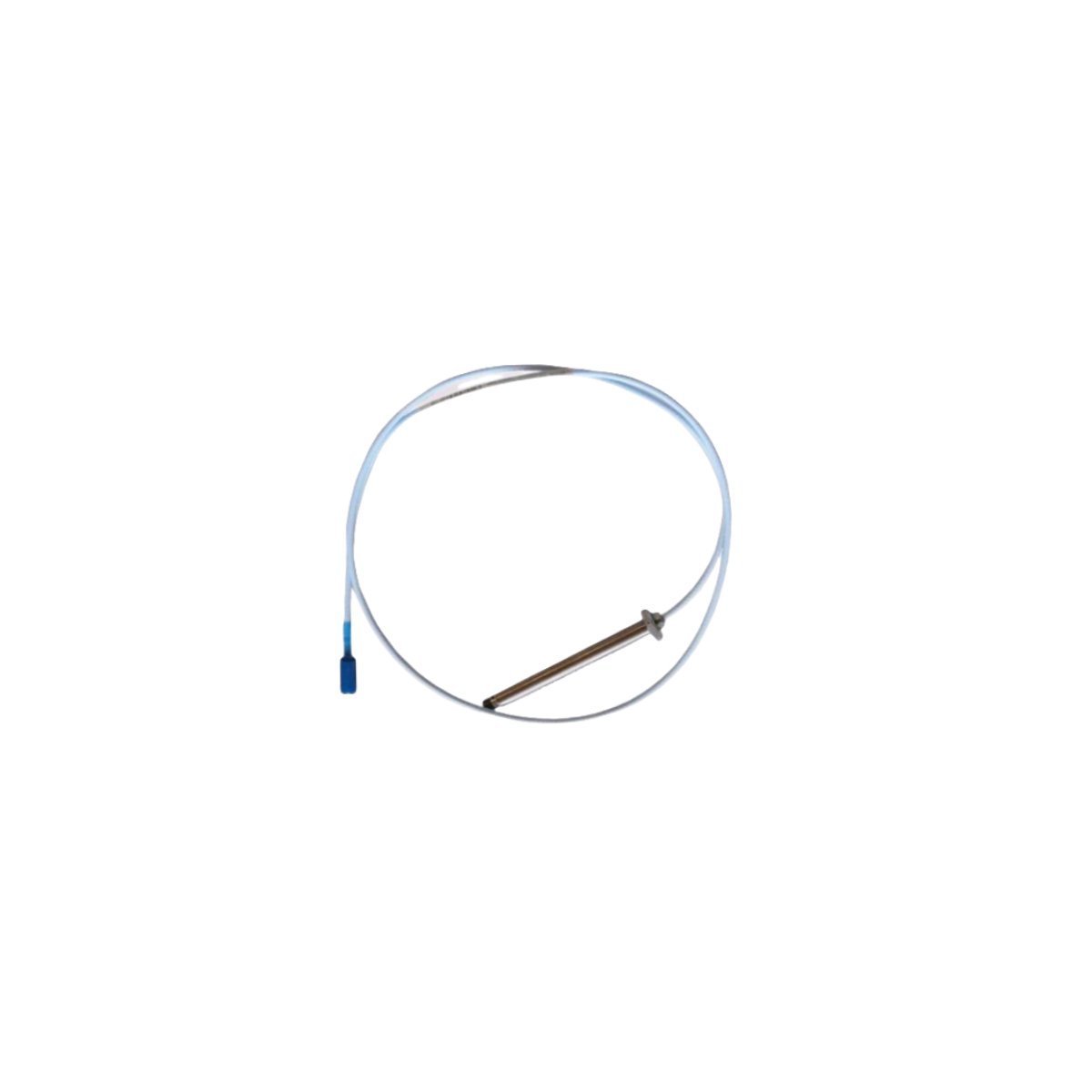

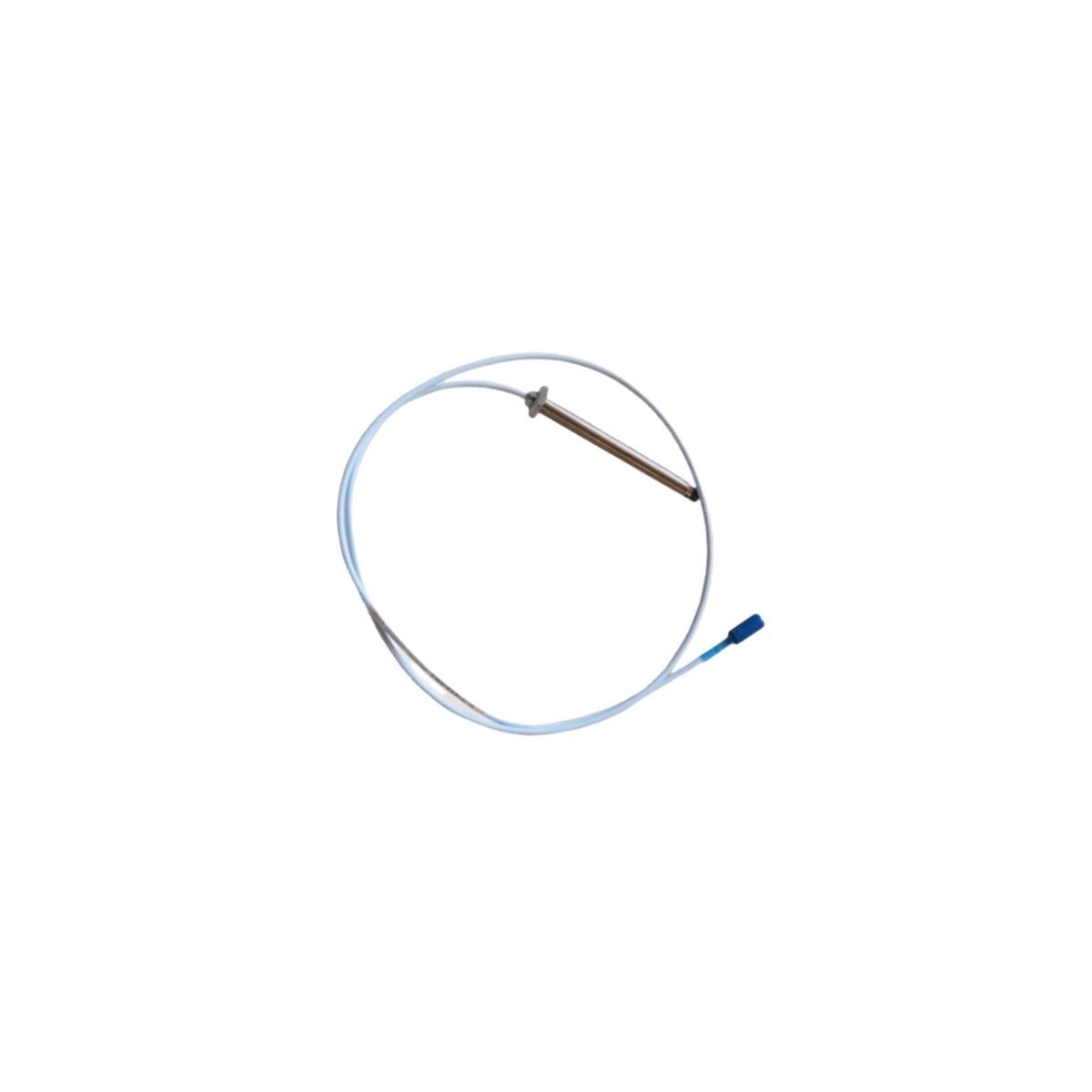

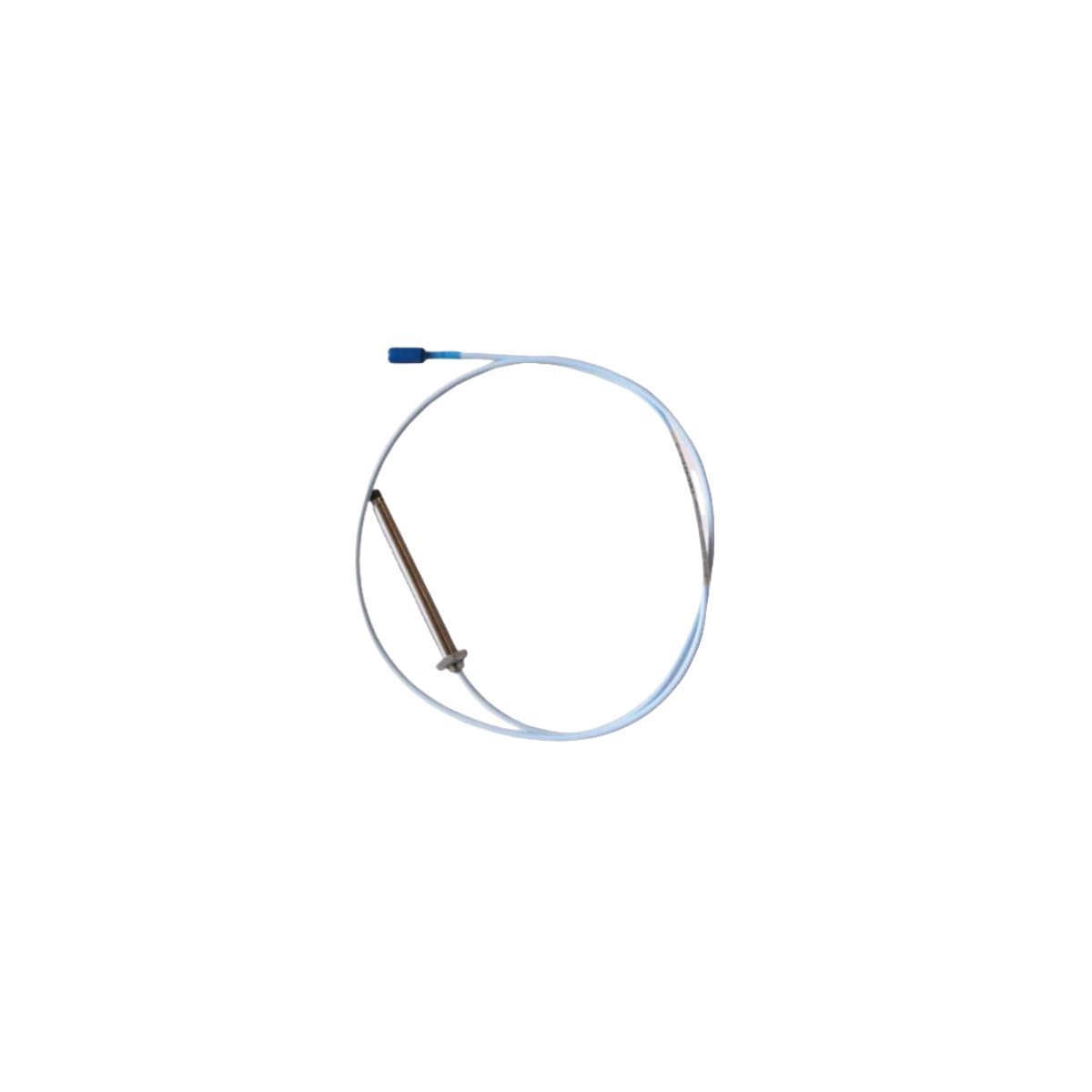

Bently Nevada 330103-00-10-10-01-00 Proximity Probe

The Bently Nevada 330103-00-10-10-01-00 is a high-accuracy eddy current sensor designed for the 3300 XL series monitoring framework. Primarily, this proximity probe serves as a non-contacting transducer for measuring shaft vibration and axial position on rotating machinery. By providing precise displacement data, it enables operators to maintain strict machinery protection standards. Consequently, this component is fundamental for the stable operation of high-speed industrial assets.

Technical Configuration Details

The specific parameters for the 330103-00-10-10-01-00 model include:

• Probe Tip Diameter: 8mm
• Thread Type: 3/8-24 UNF thread
• Unthreaded Length: 0.0 inches
• Overall Case Length: 1.0 inch
• Total Cable Length: 1.0 meter (3.3 feet)
• Connector Option: Miniature coaxial ClickLoc connector
• Agency Approval: Standard approvals for non-hazardous or multi-certified areas
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Industrial Applications and Integration

Because durability is paramount in heavy industry, this probe is utilized across power generation and petrochemical sectors. For instance, it is a standard choice for monitoring steam turbines, centrifugal compressors, and large-scale pumps. Furthermore, the probe integrates seamlessly with Bently Nevada 3500 series racks for comprehensive machinery protection. Thus, it allows maintenance teams to transition from reactive repairs to a more efficient predictive maintenance strategy.

Reliability and Mechanical Integrity

Regarding long-term service, the 330103-00-10-10-01-00 features a polyphenylene sulfide (PPS) tip for enhanced chemical resistance. Specifically, the gold-plated contacts within the ClickLoc connector eliminate signal drift and electrical noise. Moreover, the 3/8-24 mounting thread provides a secure and standardized fit for various industrial bearing housings. In short, this proximity probe delivers the resilience and precision necessary to safeguard critical machinery and optimize plant-wide efficiency.
