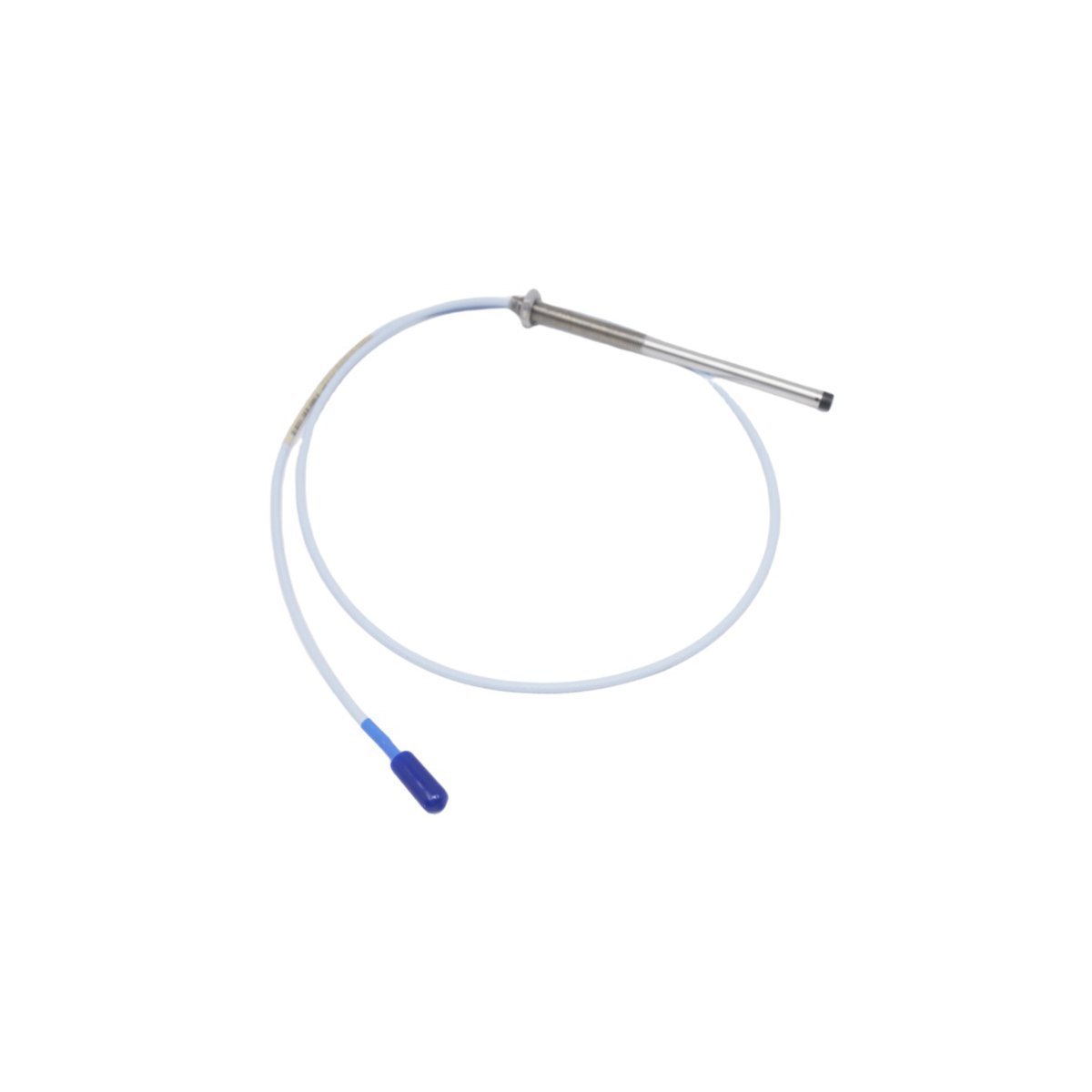

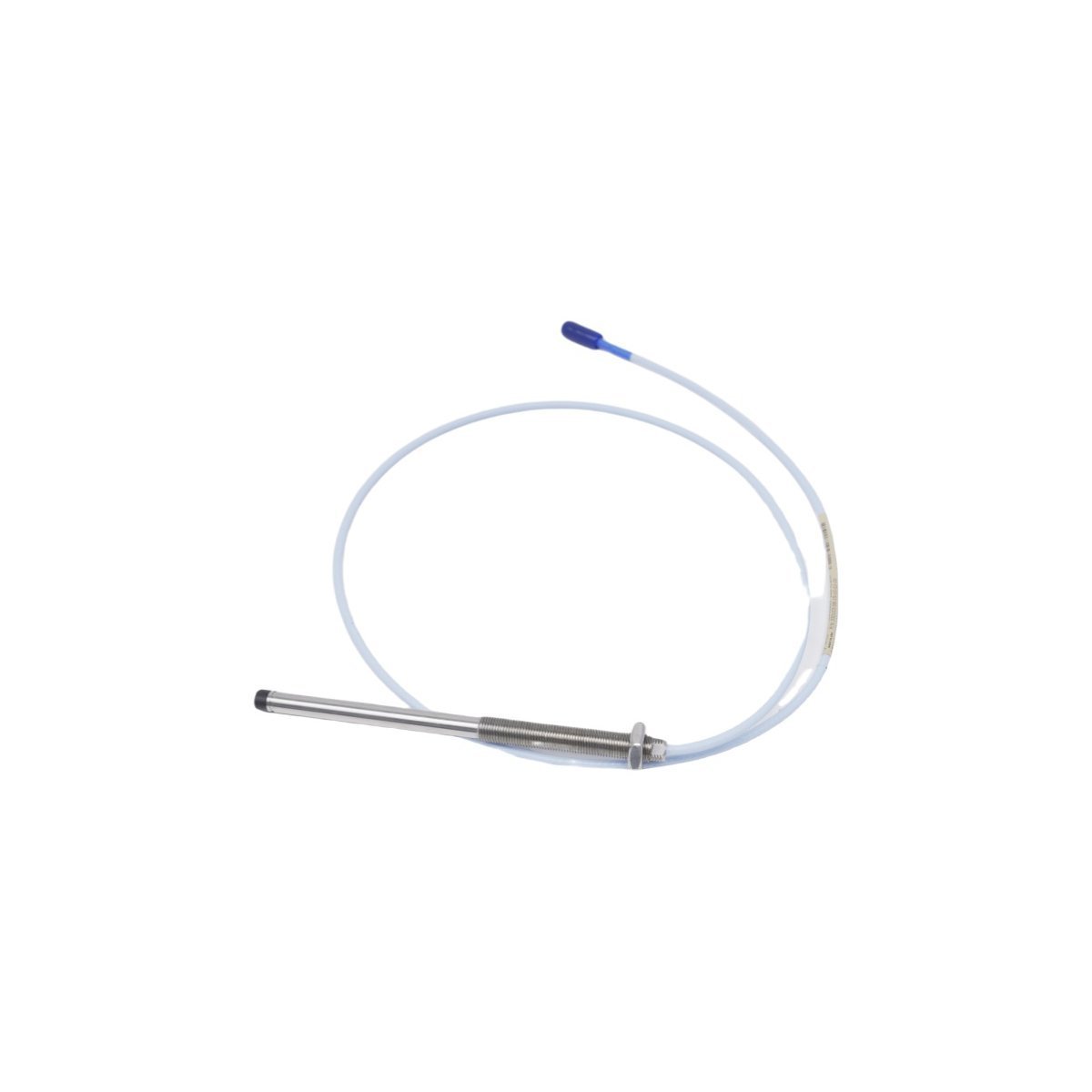

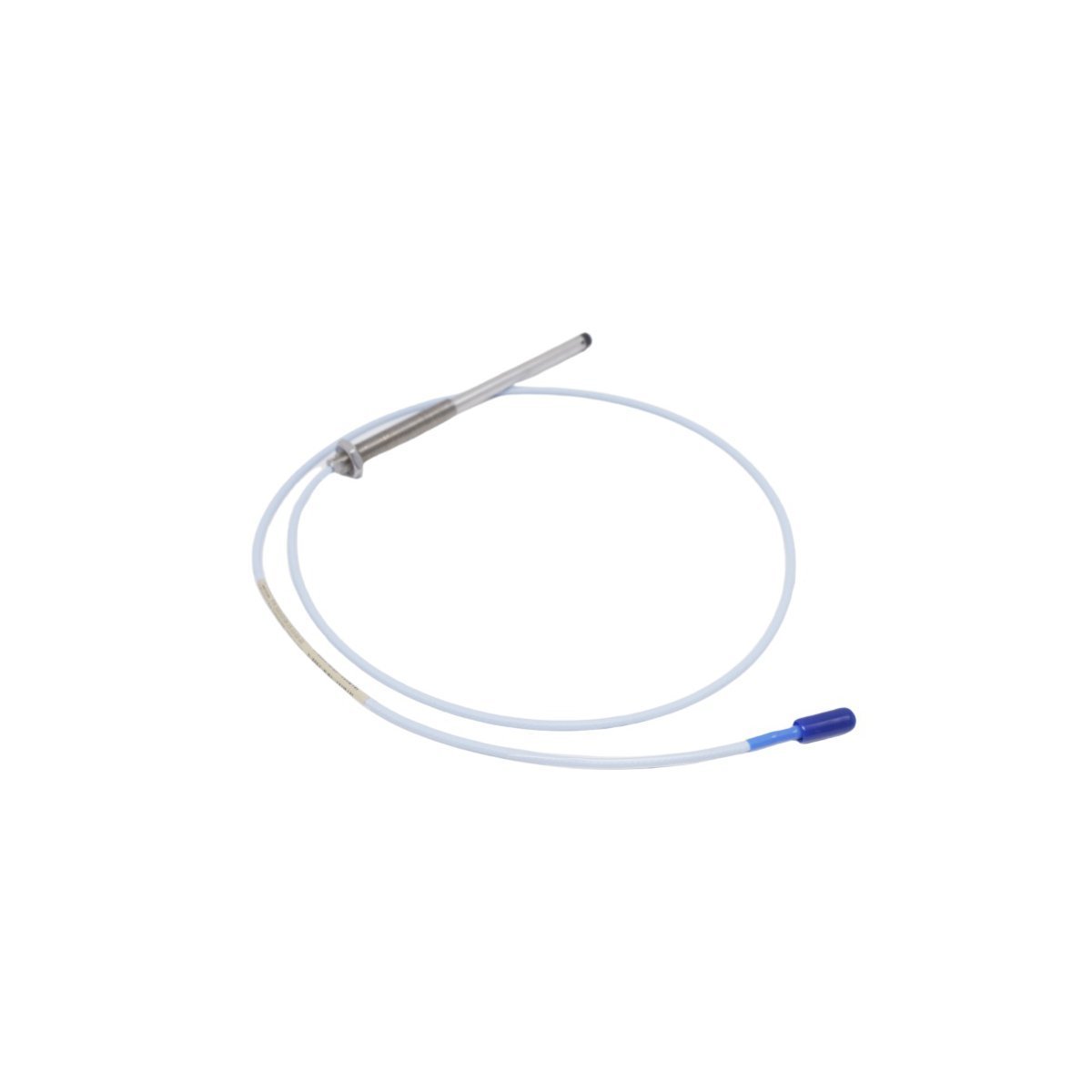

Bently Nevada 330103-08-15-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-08-15-10-02-00 is a high-precision transducer designed for the 3300 XL Proximity Transducer System. Primarily, this sensor measures static and dynamic distances between a probe tip and a target. It is a critical component for monitoring vibration, axial position, and speed in large-scale rotating machinery.

Operational Principles and Accuracy

Technically, this probe utilizes eddy current technology to capture non-contact displacement data. First, the probe tip generates a magnetic field that interacts with a conductive shaft. Additionally, the Proximitor sensor converts these physical changes into a stable electrical signal. Consequently, this allows maintenance teams to detect shaft misalignment or bearing wear with extreme accuracy.

Detailed Technical Specifications

Based on the specific part number breakdown, the technical parameters include:

• Probe Series: 3300 XL 8 mm
• Unthreaded Length: 0.8 inches
• Overall Case Length: 1.5 inches
• Total Length: 1.0 Meter (3.3 feet)
• Connector Type: Miniature coaxial ClickLoc connector with connector protector
• Agency Approval: Multi-approvals (ATEX, IECEx, CSA)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Industrial Applications and Housing

Because of its robust construction, this probe excels in the harshest industrial environments. For instance, it is widely applied in steam turbines, centrifugal compressors, and power generators. Furthermore, the probe features a hermetically sealed tip that resists water and oil ingress. Thus, it ensures reliable signal transmission even in the high-pressure conditions of modern turbine housings.

Reliability and System Longevity

Regarding lifecycle management, the 330103 series is built for long-term stability. Specifically, the gold-plated contacts prevent oxidation and signal drift over many years. Moreover, the 3300 XL design reduces the need for frequent manual recalibration. In short, this proximity probe provides the essential data required to prevent catastrophic machine failure and optimize maintenance schedules.
