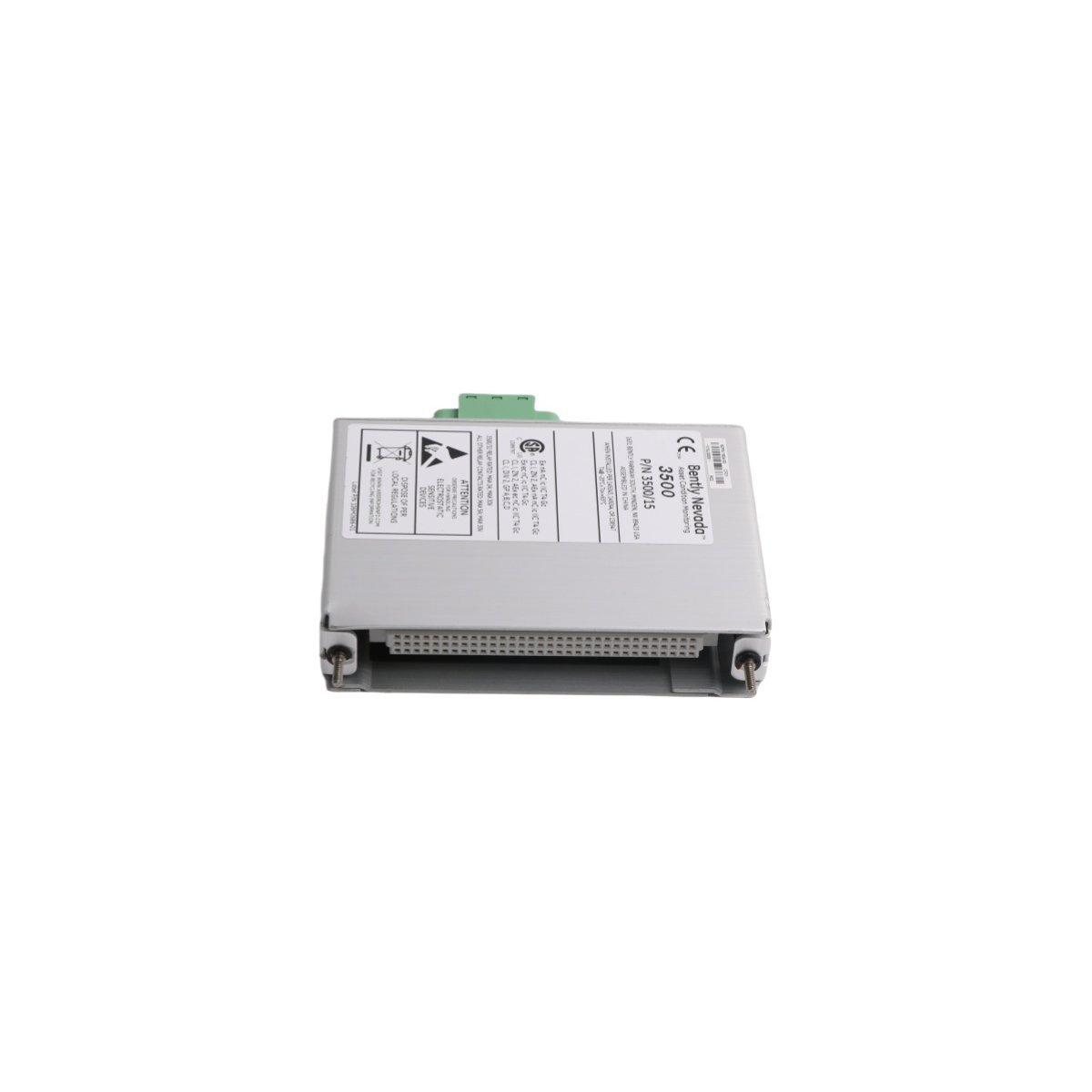

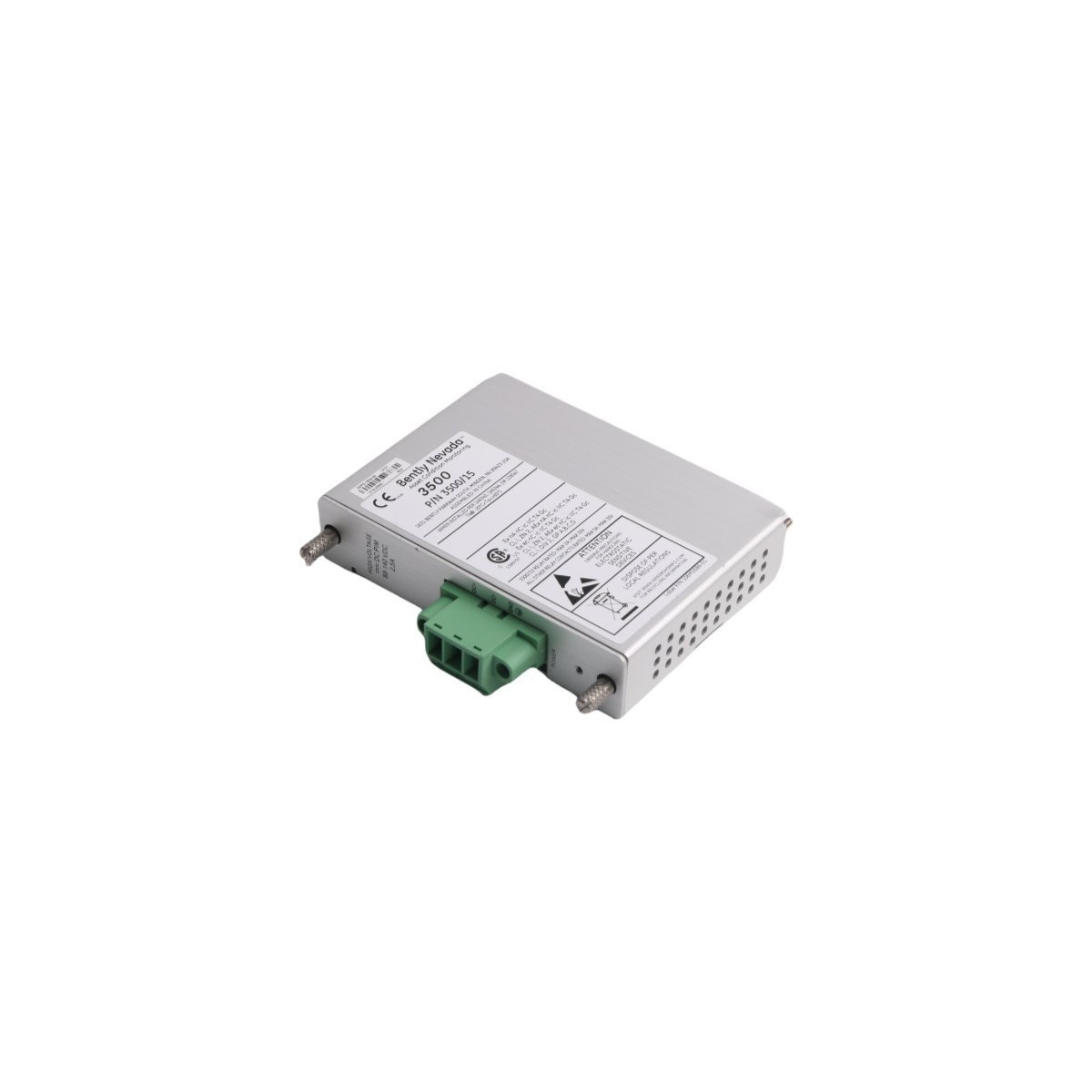

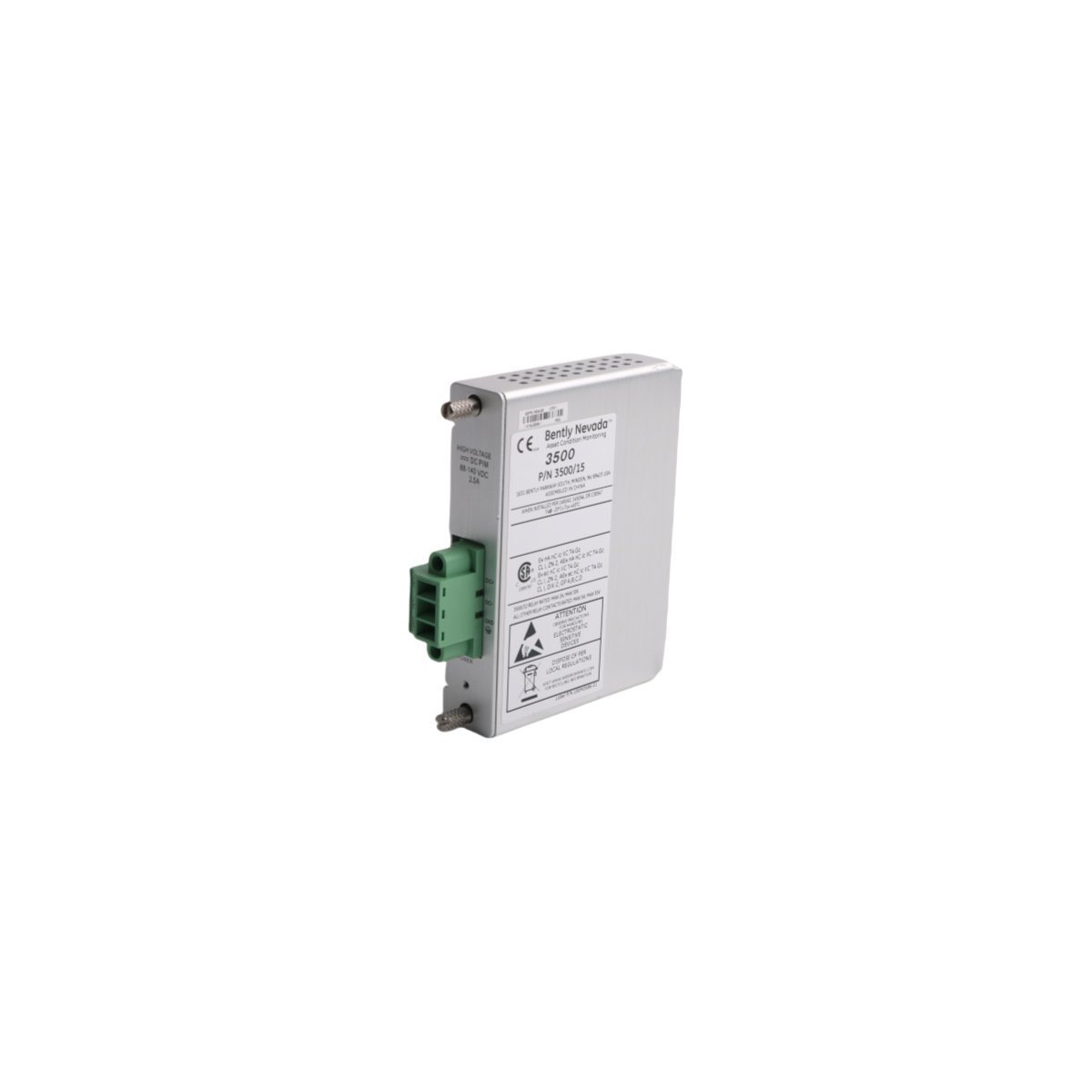

Bently Nevada 115M7750-01 DC Power Input Module

The Bently Nevada 115M7750-01 serves as a critical Power Input Module (PIM) for the 3500 Series Machinery Protection System. This high-voltage DC component facilitates the entry of primary power into the system rack.It ensures that the monitoring hardware receives a stabilized and filtered energy supply. By managing high-voltage DC inputs efficiently, the module supports the continuous operation of Turbine Supervisory Instrumentation (TSI). Its robust electrical architecture prevents power fluctuations from affecting sensitive vibration and position monitoring data.

Rugged Construction for Extreme Environments

Engineers designed the 115M7750-01 to thrive in the taxing conditions often found in oil, gas, and power generation facilities. The housing utilizes a premium aluminum alloy that balances structural durability with a lightweight profile. This material choice aids in thermal dissipation, allowing the module to function reliably across a wide temperature spectrum from -40°C to +85°C. Because industrial climates vary significantly, this extended thermal range ensures the 3500 rack remains operational in both arctic and tropical settings without hardware degradation.

Technical Specifications

Compliance and Safety Standards

Safety and regulatory compliance are fundamental to the 115M7750-01 design. The module carries both CE and UL certifications, which confirms its adherence to international electrical safety protocols. It features protective circuitry to handle single-phase high-voltage DC inputs while maintaining isolation from the system backplane. This high level of protection safeguards the broader automation network from potential electrical faults at the source. Consequently, the module provides a secure interface for power distribution in critical machinery protection applications.
