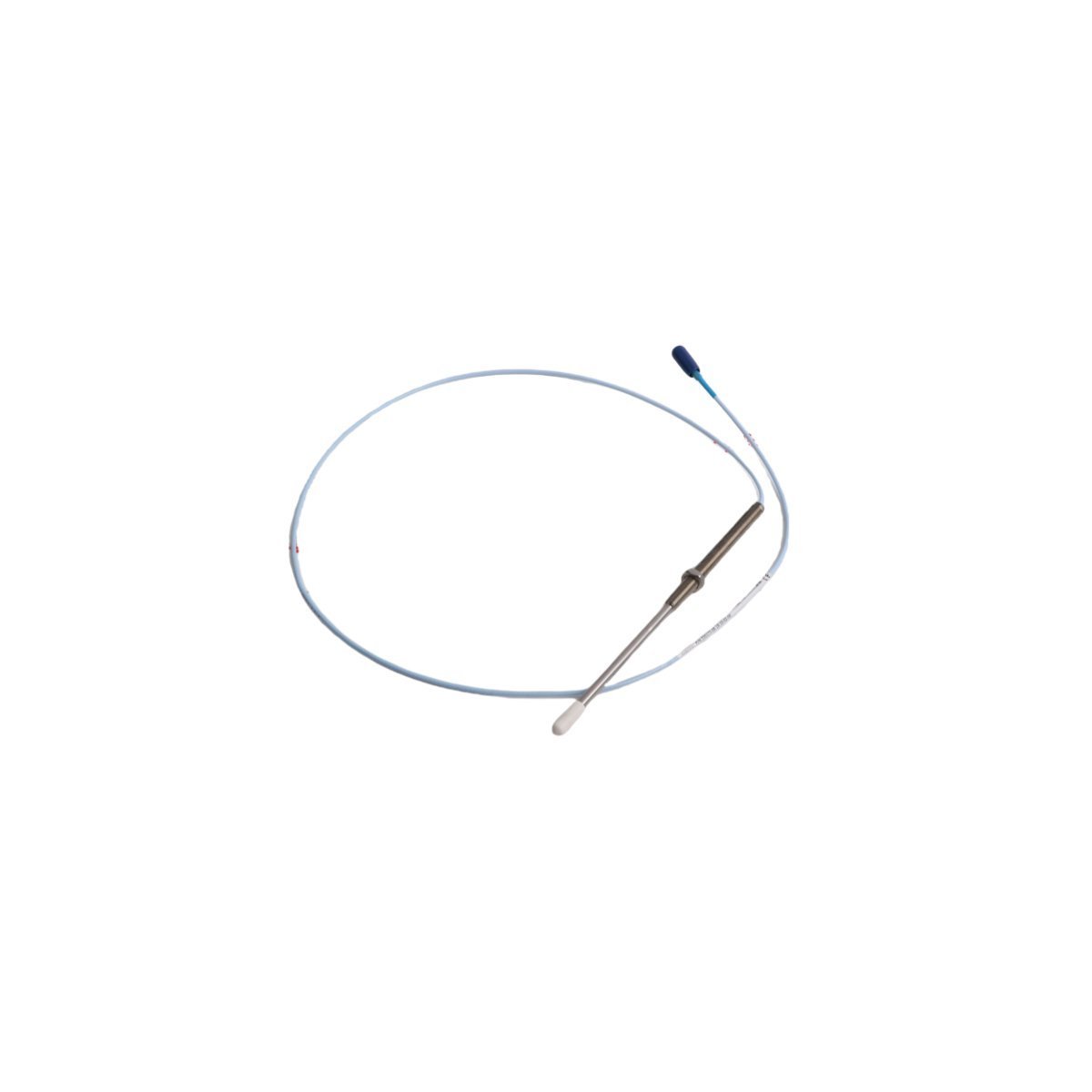

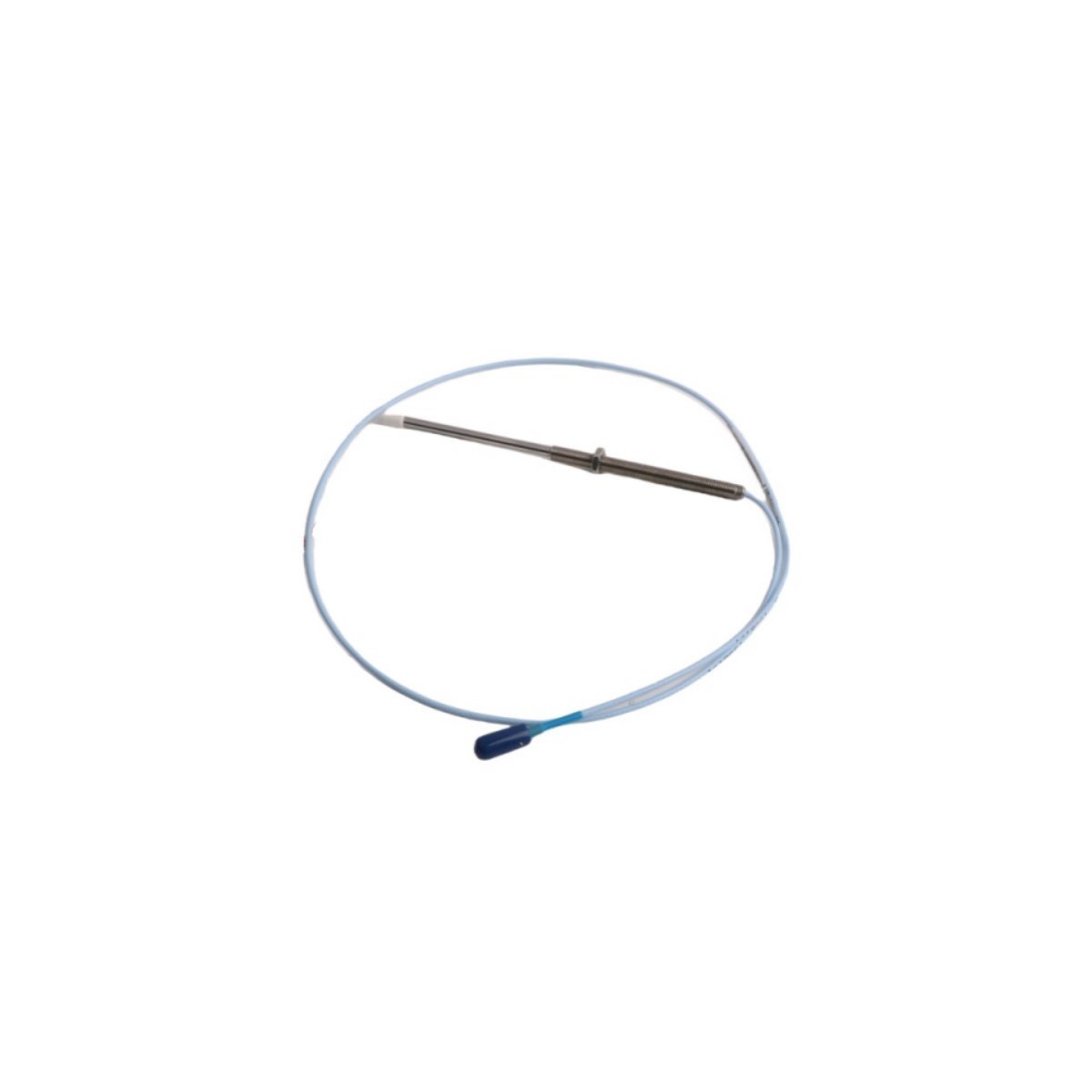

The Bently Nevada 330173-08-18-10-02-00 is a high-precision eddy current sensor designed for the 3300 XL 5mm Transducer System. Primarily, this probe measures radial vibration and axial position on smaller rotating shafts where space is restricted. By providing non-contact displacement data, it enables real-time monitoring of critical machine tolerances. Consequently, this sensor is a fundamental tool for preventing mechanical overstress in high-speed industrial assets.
Advanced Diagnostics and Predictive Maintenance
Technically, this probe is engineered to identify subtle mechanical shifts before they escalate into failures. First, the 5mm tip allows for installation in compact bearing housings. Additionally, it detects early signs of rotor friction, shaft bow, and bearing degradation. Because it provides continuous data streams, maintenance teams can transition from reactive repairs to proactive asset management. This shift effectively minimizes unplanned outages and extends the operational life of the equipment.
Core Technical Specifications
The 330173-08-18-10-02-00 model is defined by these specific engineering parameters:
- Probe Tip Diameter: 5mm (0.197 inches)
- Thread Type: M8 x 1 metric thread
- Unthreaded Length: 08 (80mm)
- Overall Case Length: 18 (180mm)
- Total Cable Length: 10 (1.0 Meter / 3.3 feet)
- Connector Option: 02 (Miniature coaxial ClickLoc connector with connector protector)
- Agency Approval: 00 (Standard approvals for industrial environments)
- Temperature Rating: -51 °C to +177 °C (-60 °F to +351 °F)
Industrial Resilience and System Integration
Because industrial environments present challenges like chemical exposure and thermal cycling, this probe features a rugged polyphenylene sulfide (PPS) tip. For instance, the probe body is fully sealed to prevent oil and moisture ingress. Furthermore, the 3300 XL technology ensures excellent frequency response and temperature stability. This allows the probe to integrate seamlessly with Bently Nevada 3500 series machinery protection racks. Thus, it provides a unified safety solution for power plants, refineries, and manufacturing hubs.
