330101-00-30-10-10-02-05 Bently Nevada 3300 XL Proximity Probe 8mm Sensor

Bently Nevada 330101-00-30-10-10-02-05 3300 XL 8 mm Proximity Probes

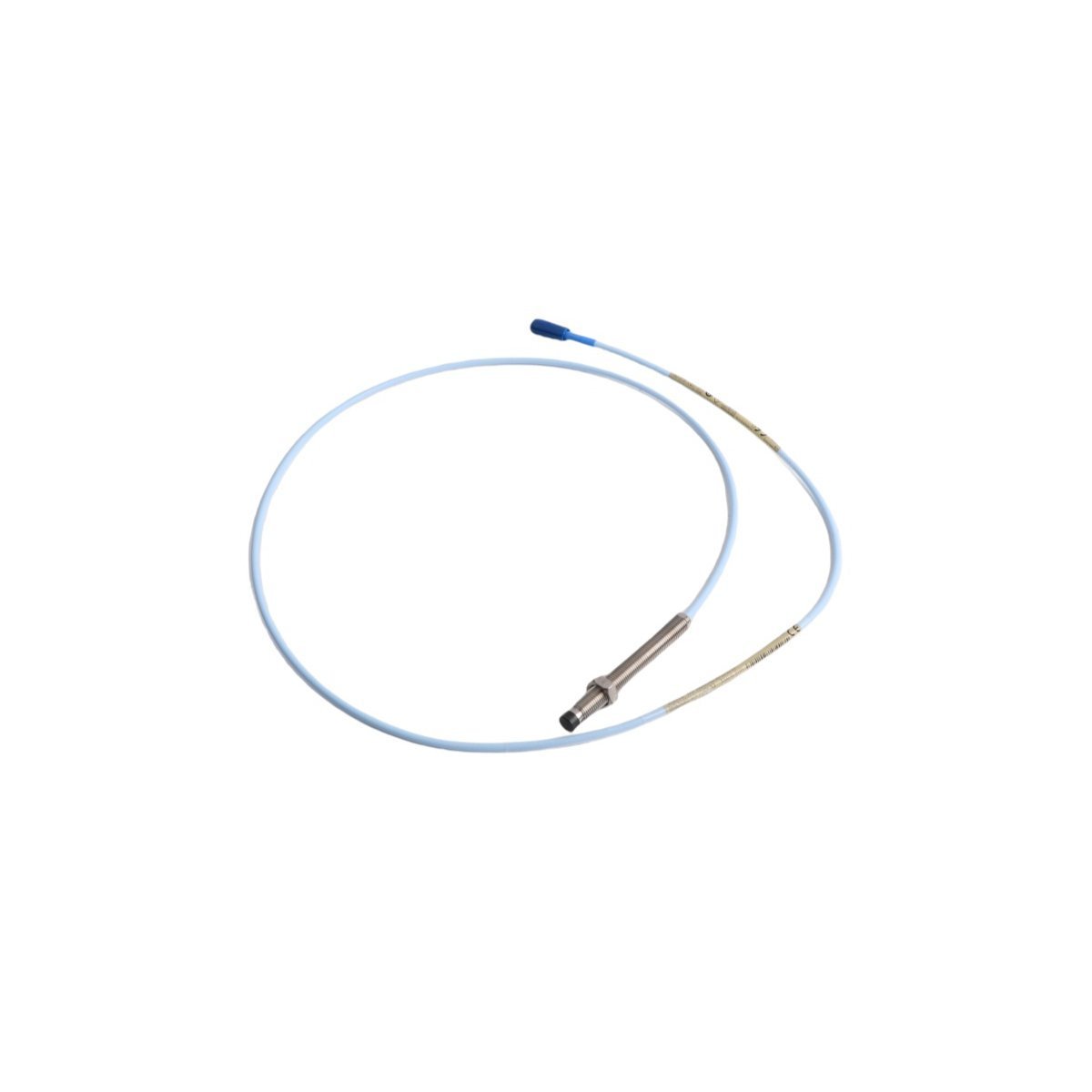

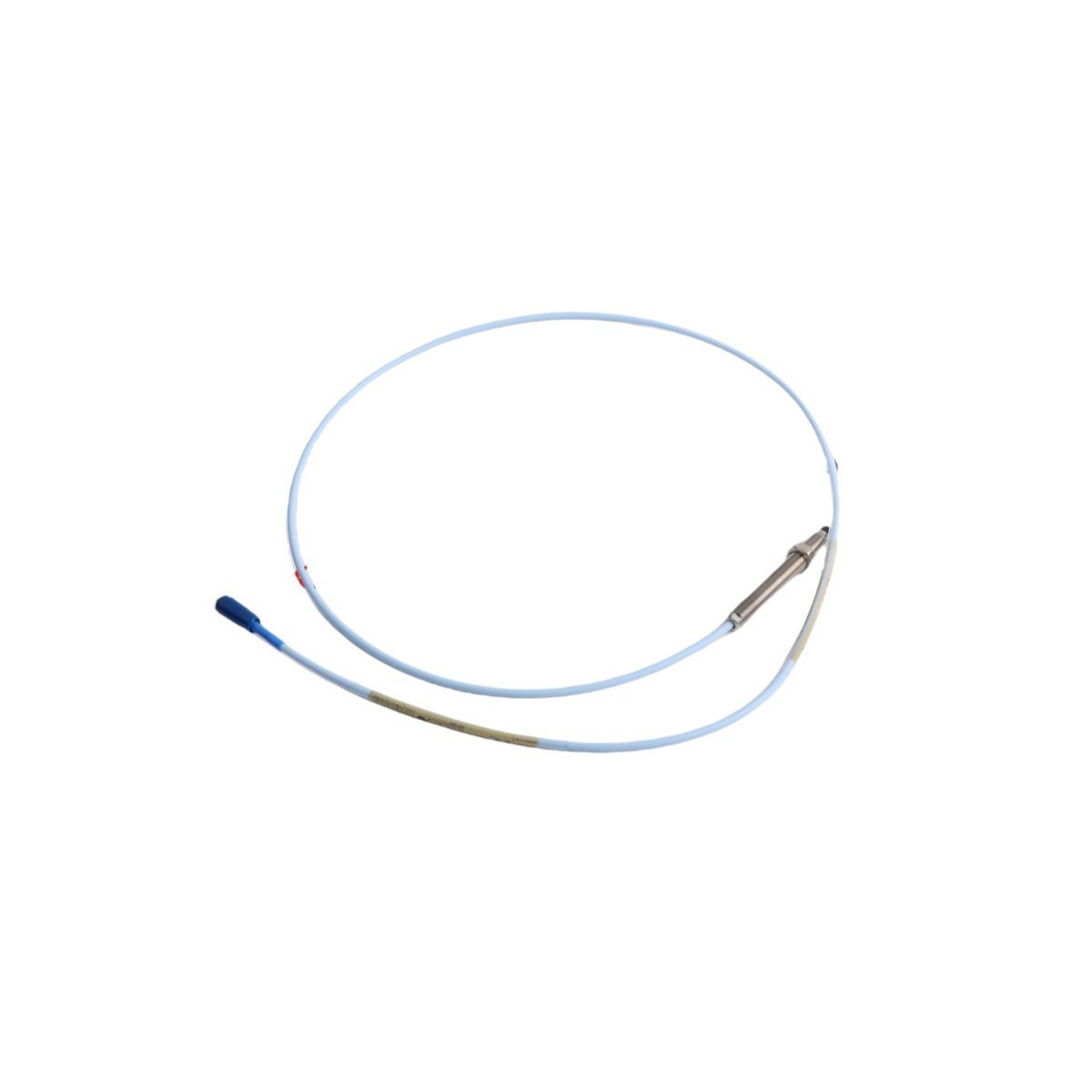

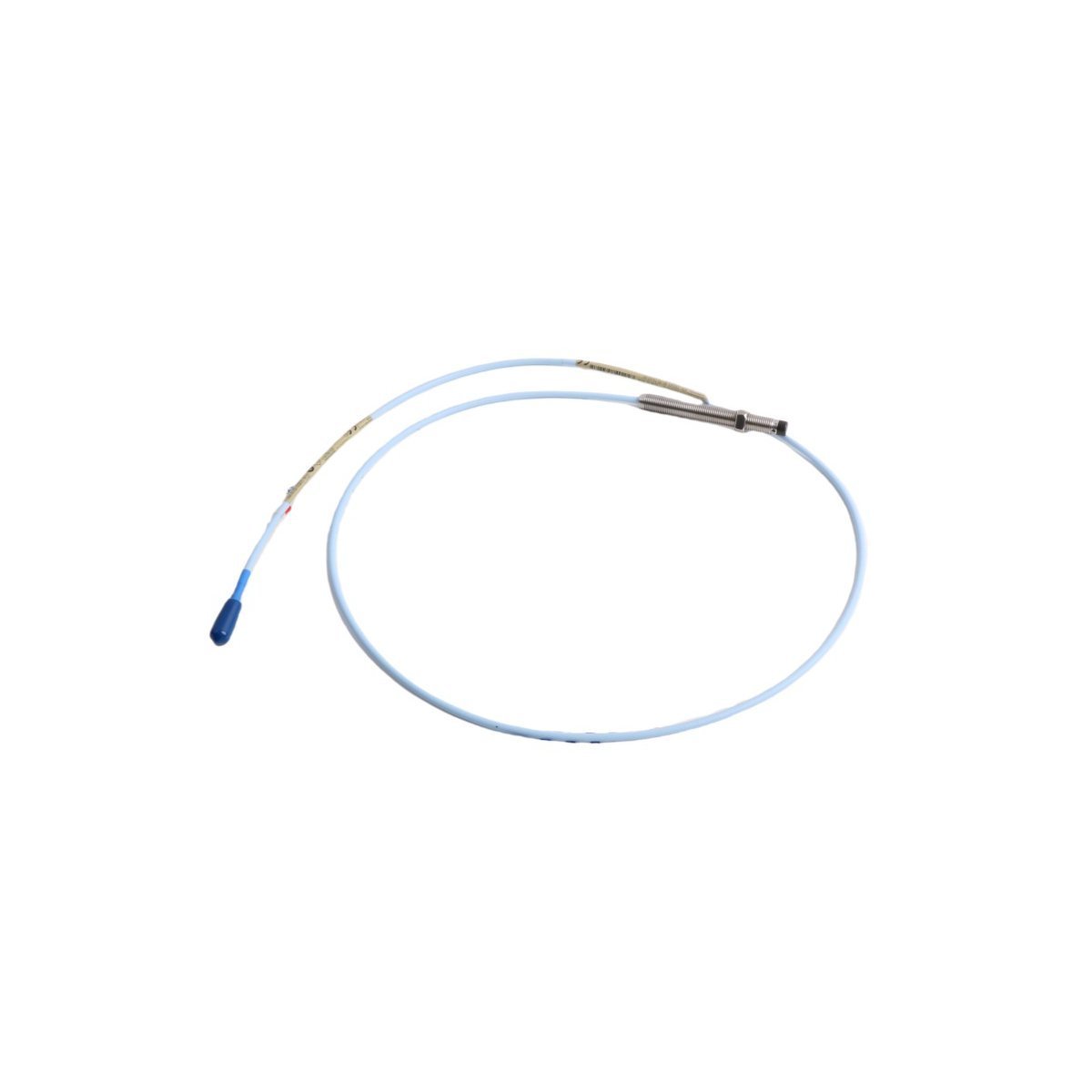

The Bently Nevada 330101-00-30-10-10-02-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for radial vibration and axial position measurement within TSI machinery monitoring networks. The unit drives alternating current through its 8 mm tip to generate an electromagnetic field, tracking microscopic shaft displacements near fluid-film bearings. An integrated 1.0 meter coaxial cable terminated with a miniature ClickLoc connector routes the proximity signals directly to external transducer electronics.

Hardware Specifications

Mechanical Monitoring & TSI Product Attributes

The sensor implements precise eddy-current probe scaling to convert structural shaft displacement into microvolt-level electrical variations. Field personnel establish baseline operational parameters by completing a gap voltage validation check, which requires positioning the probe tip to target a -10 VDC static voltage output. This precise calibration point ensures linear tracking across the total displacement window. The unarmored design suppresses interference in tight machine geometries, allowing correct operation near narrow counterbores while internal cross-talk suppression keeps multiple sensors stable when mounted closely for dual-axial or XY-radial rotor dynamics analysis.

Frequently Asked Questions

Q: How does the technician verify correct physical positioning before finalizing installation?

A: The field engineer monitors the DC output voltage across the proximitor signal terminals while adjusting the thread depth. The technician locks the probe into place when the multimeter indicates a steady target reading of -10 VDC.

Q: What functions do these proximity probes perform on shafts smaller than 51 mm?

A: The probe supplies electrical signal data to calculate radial vibration amplitudes, determine absolute thrust positions, provide tachometer inputs, monitor zero speed thresholds, and generate phase-locked Keyphasor reference pulses.

Field Installation Guidelines

• Thread Mounting and Torque: Thread the 3/8-24 UNF housing into the machine port manually until the tip approaches the target area. Utilize a calibrated torque wrench on the hex flats to tighten the mounting hardware, preventing shell distortion or internal thread failure.
• Cable Bend Radius Controls: Route the 1.0 meter unarmored lead cable carefully along structural supports. Maintain a constant bend radius greater than 25.4 mm (1.0 inch) because sharp folds degrade shield continuity and alter transmission impedance.
• Shield Grounding Infrastructure: Connect the outer coaxial shielding braid exclusively to the instrument rack common ground bus bar. Never connect the shield at the machine case end, because a dual-point ground connection creates circulating currents that corrupt the vibration readings.
• Conduit Isolation Separation: Separate the sensor signal cables from high-power distribution lines. Install the extension cables inside grounded, dedicated metal conduits to block electromagnetic noise from contaminating the low-voltage diagnostic output.
