Bently Nevada 21747-040-00 7200 Series Proximitor Extension Cable

Bently Nevada 21747-040-00 Extension Cable

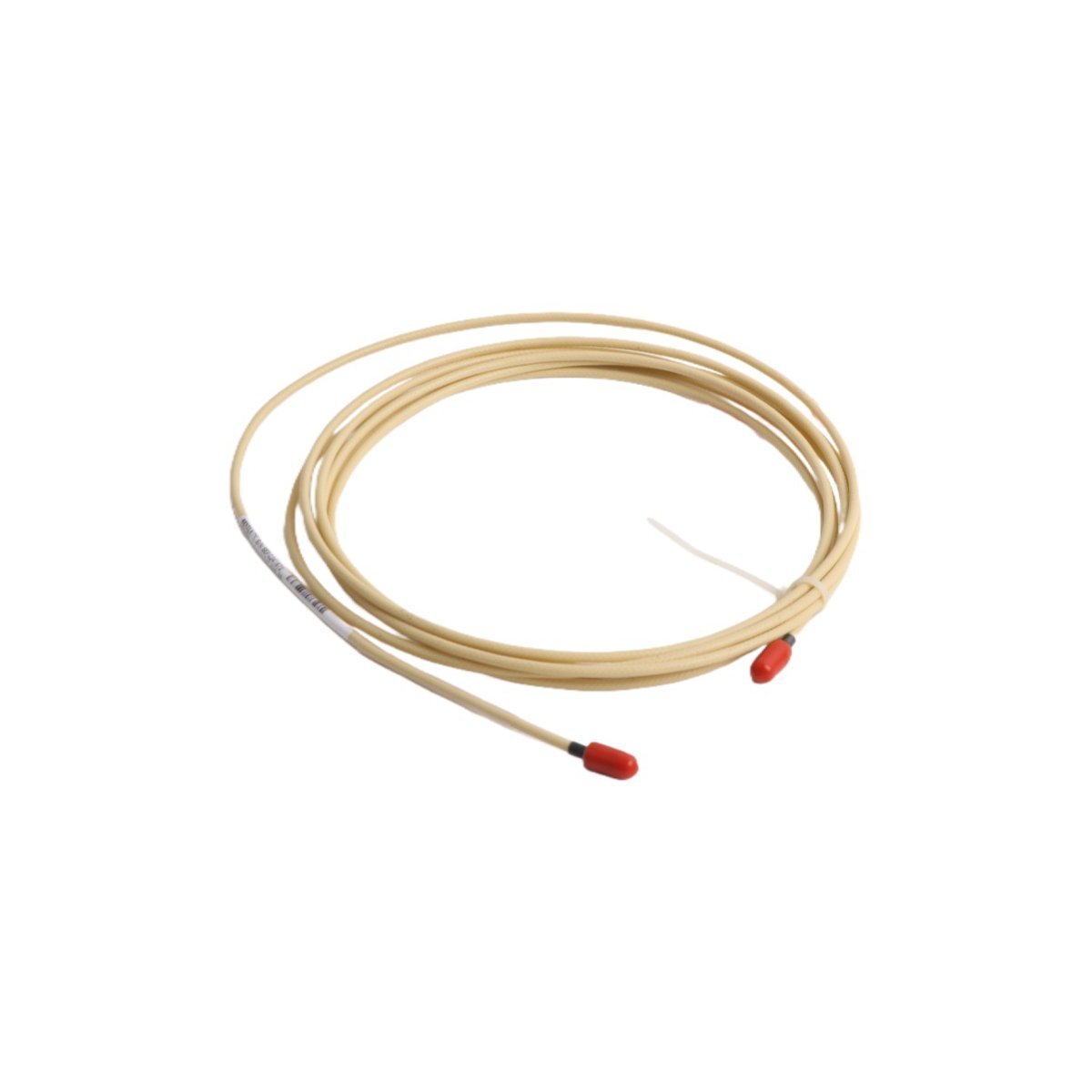

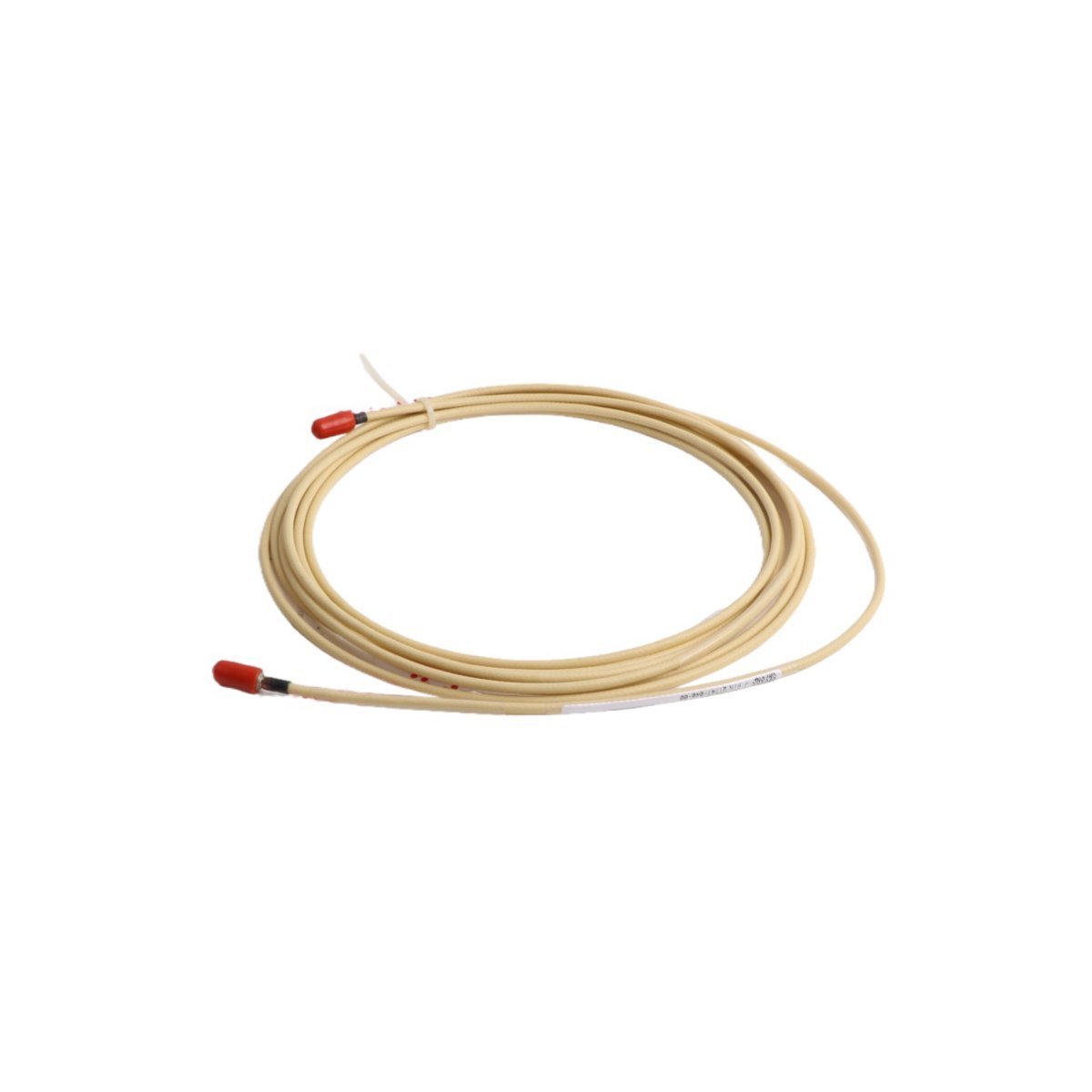

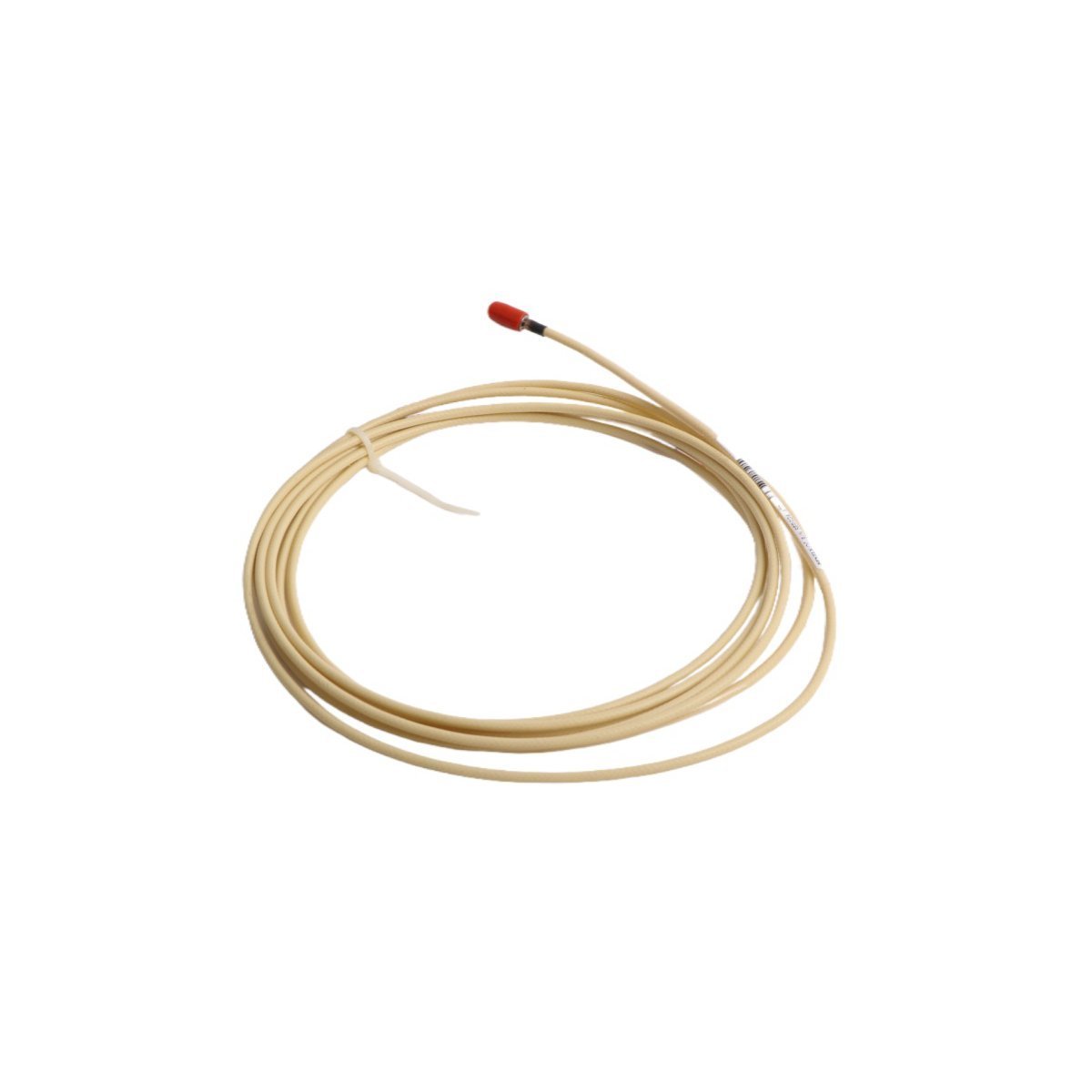

The Bently Nevada 21747-040-00, also cataloged as the 21747 Extension Cable, operates as a dedicated hardware component for high-frequency analog signal transmission within 7200 Series proximity transducer systems. The cable passes low-voltage radio frequency signals between a proximity probe tip and an external Proximitor sensor, establishing a continuous electrical path for non-contact displacement measurement. By maintaining a constant internal capacitance across its 4.0-meter length, the hardware prevents signal attenuation over a frequency response span from 0 Hz to 10 kHz, allowing downstream racks to evaluate real-time shaft movements.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Because the cable capacitance acts as a core element of the tuned RF oscillator circuit, technicians must verify the physical parameters to prevent errors in eddy-current probe scaling. During calibration procedures, engineers conduct a gap voltage validation check to verify that the Proximitor sensor provides exactly -10 VDC targets at the center of the probe linear range. The 21747-040-00 geometry provides high signal clarity and effective cross-talk suppression when field crews group multiple transducer lines into a single junction box. This grounding and layout architecture ensures that the system tracks the precise high-speed rotor dynamics of turbines, compressors, and pumps without introducing phase lag or distortion.

Frequently Asked Questions

Q: How does the lack of mechanical armor affect the routing and protection rules for this cable?

A: The unarmored design reduces overall weight and maximizes physical flexibility in tight locations. However, field teams must route this cable through rigid or flexible metal conduits to provide physical protection against external mechanical damage and fluids inside the machine casing.

Q: Does this 7200 series extension cable support direct integration into newer 3300 or 9000 monitoring racks?

A: Yes. While the cable belongs to the 7200 system family, the resulting analog voltage signals route directly into standard 3300 and 9000 monitoring system backplanes, provided that the chosen Proximitor matches the electrical length of the probe assembly.

Q: Can maintenance personnel modify or cut the physical length of this extension cable in the field?

A: No. Field personnel must never cut or shorten the cable. Altering the factory length modifies the total electrical inductance and capacitance, which destroys the calibrated eddy-current probe scaling slope.

Field Installation Guidelines

• Adhere to Bend Radius Limits: Do not force the coaxial cable into a turn tighter than a 25.4 mm (1.0 inch) radius. Sharp bends stress the internal dielectric layer, altering local capacitance values and corrupting vibration measurements.
• Isolate Coaxial Connector Interconnects: Slip a clear insulation sleeve over the coaxial connection point between the probe and extension cable. This step prevents the exposed outer metal shell from grounding against conduits, which eliminates ground loop noise.
• Observe Torque Limits on Connectors: Connect the miniature coaxial terminals using finger pressure first, then use a matching connector wrench to finalize the link. Avoid over-tightening, because excessive mechanical torque strips the threads and causes intermittent open circuits.
• Enforce Single-Point Shield Grounding: Terminate the outer shield loop exclusively at the monitoring rack end. Leave the field junction box side floating to prevent stray circulating currents from interfering with the analog displacement signals.
