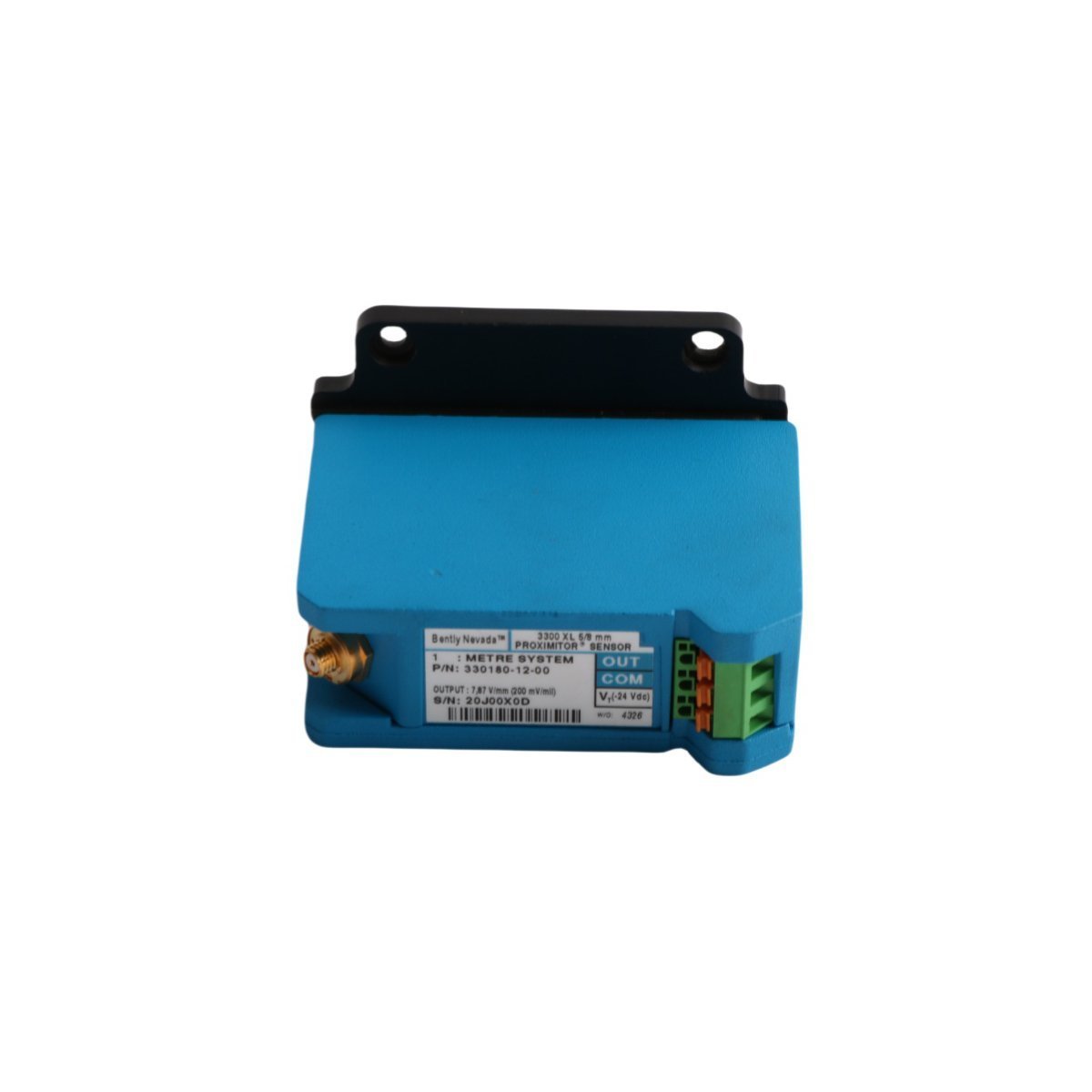

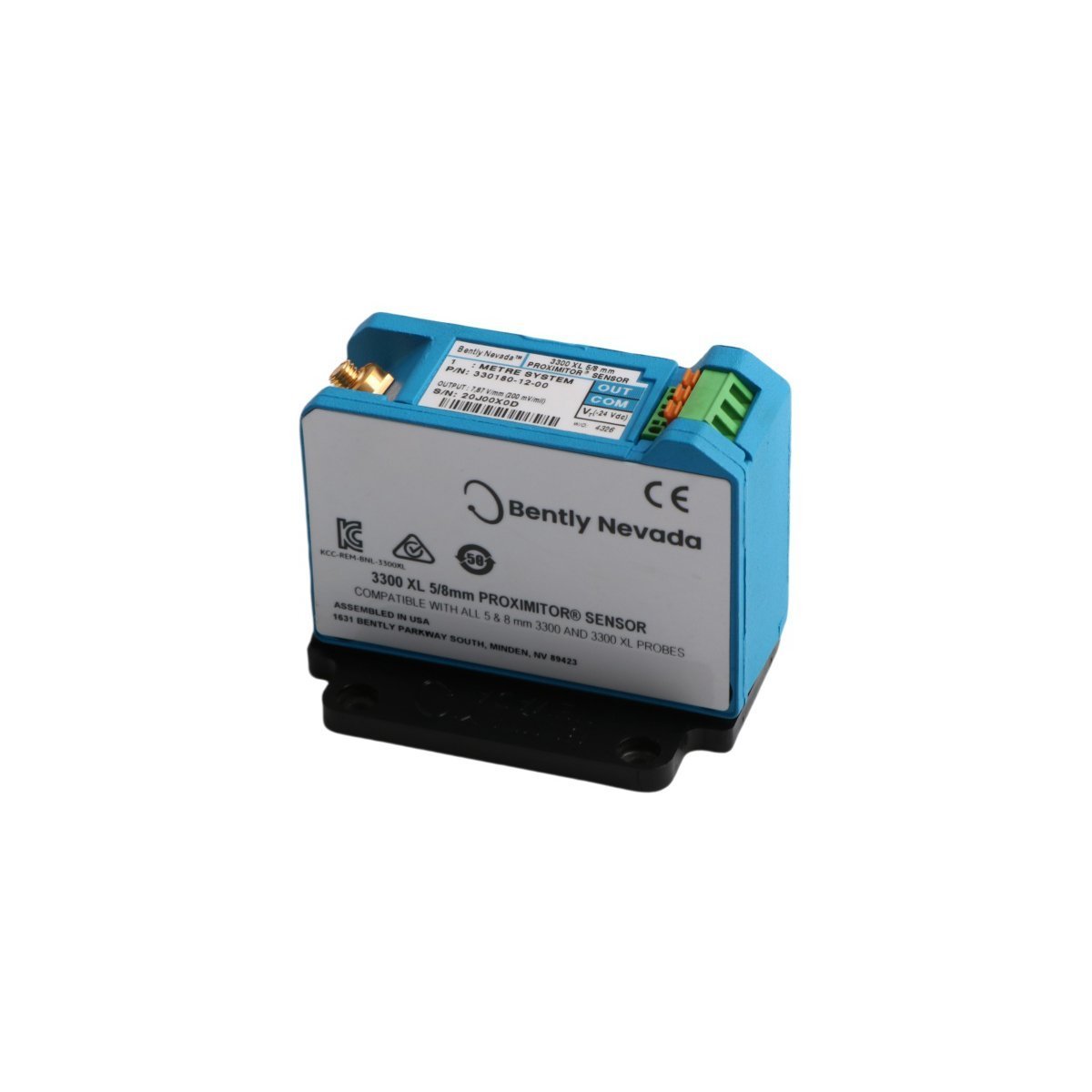

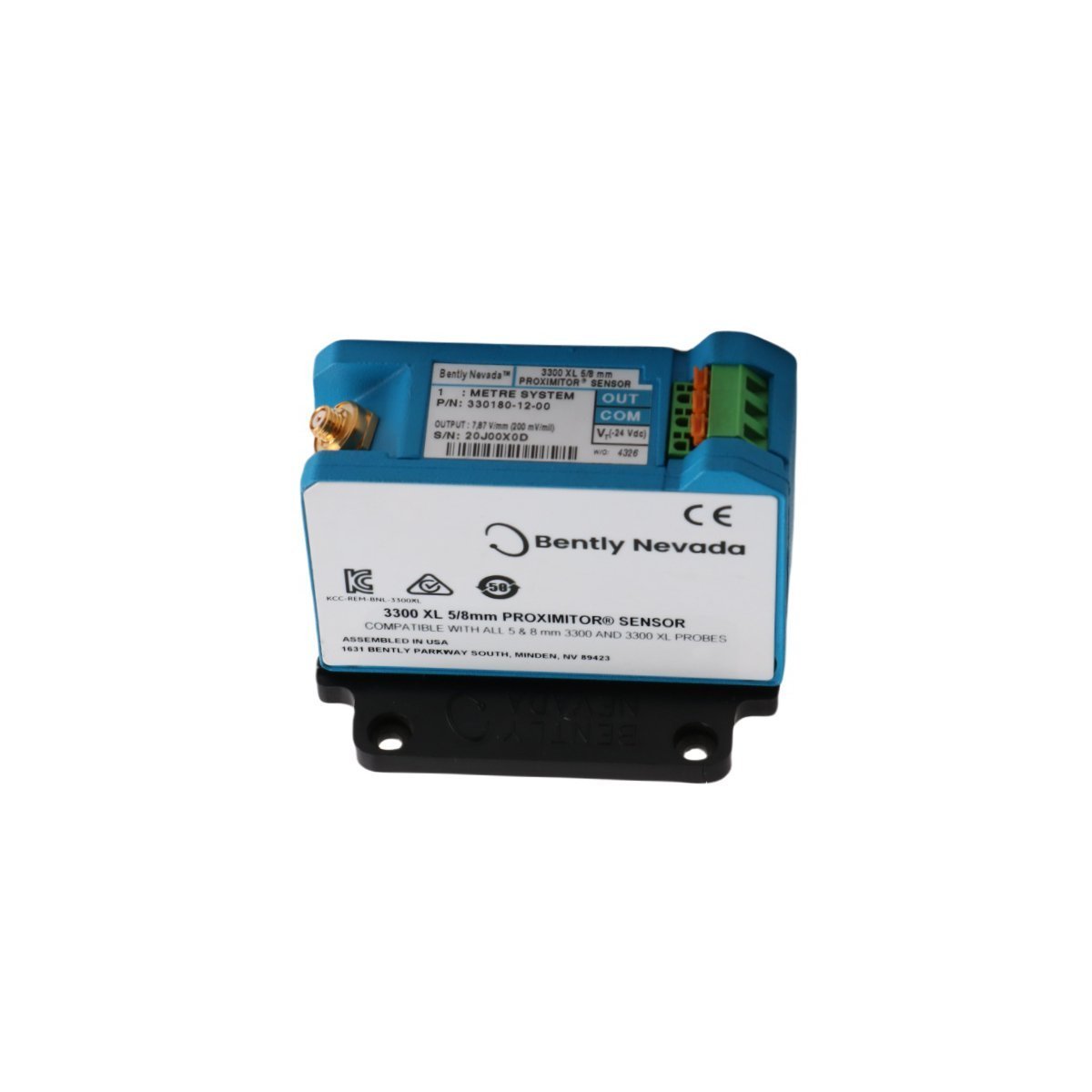

Bently Nevada 330180-12-00 3300 XL Proximitor Sensor

The Bently Nevada 330180-12-00, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for converting high-frequency eddy-current signal modulations into linear voltage outputs within TSI platforms. The device supplies a radio frequency excitation signal to a connected proximity probe via a 1.0-meter integrated cable length. As the target surface moves relative to the probe tip, the sensor circuit detects variations in the electromagnetic field impedance and generates a proportional analog output signal for direct transmission to monitoring racks.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Internal analog circuitry precisely conditions the sensor output to ensure accurate tracking of dynamic rotor dynamics. During physical installation, field technicians verify the electrical midpoint by performing a gap voltage validation procedure, ensuring the static output stabilizes at -10 VDC targets when the target faces the center of the calibrated range. The hardware architecture incorporates integral shielding to achieve exceptional cross-talk suppression and RFI/EMI immunity without requiring external isolated mounting plates. This internal balancing structure maintains the exact eddy-current probe scaling factor even when engineers install the sensor assembly inside non-conductive fiberglass enclosures or run unshielded field wiring conduits.

Frequently Asked Questions

Q: How do the tool-free SpringLoc terminals perform under continuous machinery vibration compared to standard screw terminals? A: The SpringLoc terminal strips maintain constant mechanical tension on the field wiring. This spring-loaded design continuously resists vibration-induced loosening, preventing intermittent contact open-circuits that typically trip machinery protection systems using traditional screw-type terminals.

Q: Does this specific Proximitor sensor variant require an external isolation plate when mounting directly to a metallic enclosure panel? A: No. The physical base layout provides complete electrical isolation natively. Field teams install the sensor directly onto standard 35 mm DIN rails or 4-hole panels without adding separate isolator plates, which simplifies grounding networks.

Q: Can the sensor output drive a raw signal over long distances without experiencing significant signal degradation? A: Yes. The low-impedance analog output stage drives standard field wiring up to 300 meters (1000 feet) to connect downstream machinery protection monitors, provided that technicians follow proper cable capacitance rules.

Field Installation Guidelines

• Verify System Length Matching: Confirm that the combined length of the proximity probe and the extension cable matches the 5.0-meter or 9.0-meter calibration specification of the Proximitor sensor. Any physical total length mismatch shifts the baseline calibration curve.
• Execute Terminal Strip Wiring: Strip the field wiring insulation back approximately 7 mm (0.28 inches). Fully depress the SpringLoc actuator button using a small screwdriver tool, insert the bare solid or stranded copper wire into the open terminal cage, and release the tension button to lock the conductor.
• Observe Enclosure Clearance Minimums: Maintain a minimum 50 mm (2.0 inches) clearance between the Proximitor terminal blocks and any adjacent metallic surfaces or wire ducts. This spacing ensures proper hand access and prevents accidental terminal short circuits during live testing.
• Single-Point Grounding Implementation: Ground the overall shield loop exclusively at the monitoring rack chassis ground terminal. Keep the local sensor enclosure insulated from ground loops by utilizing the built-in isolation housing during rail installation.
