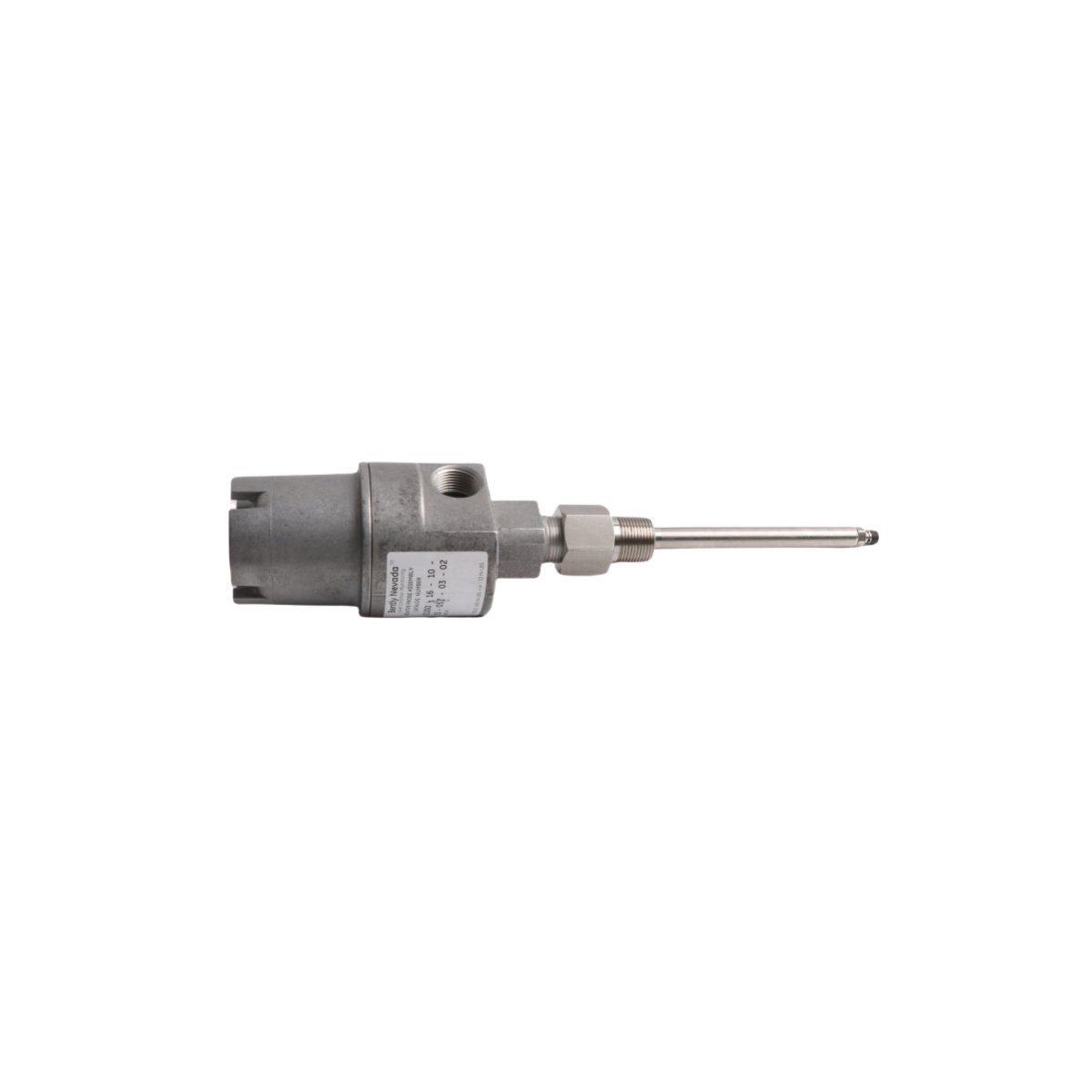

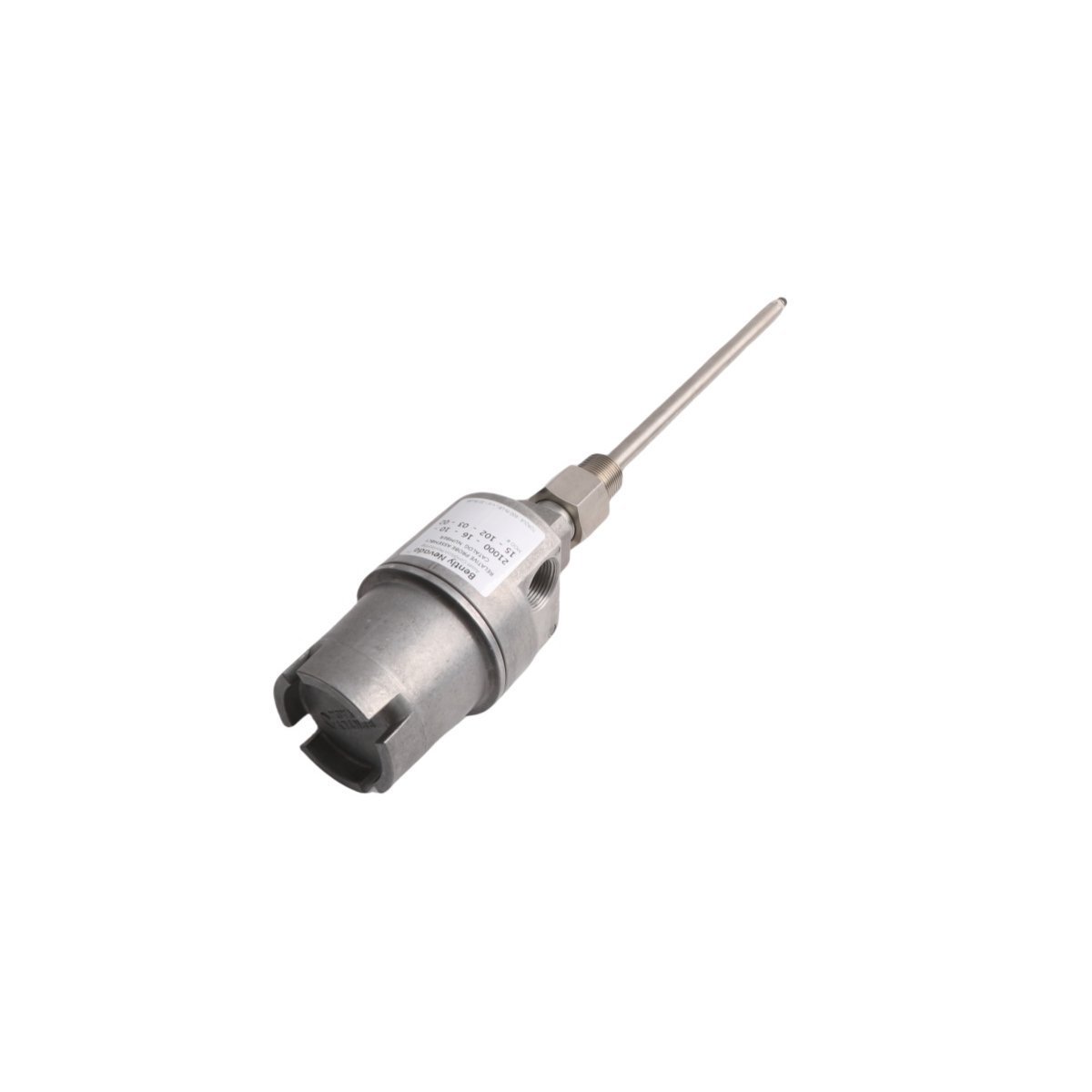

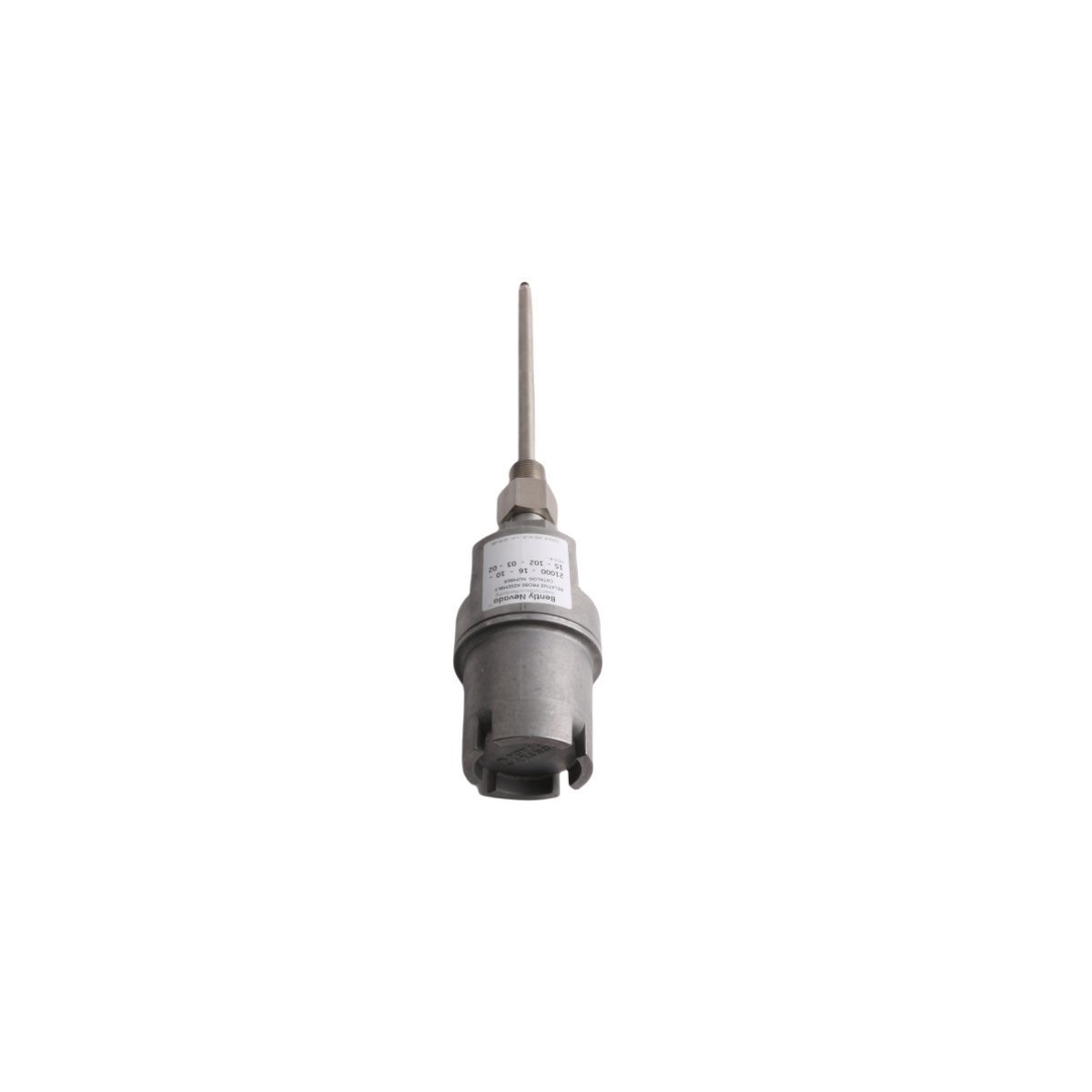

Bently Nevada 21000-16-10-35-098-03-02 External Proximity Probe Housing Assembly

Product Overview

The Bently Nevada 21000-16-10-35-098-03-02 provides robust environmental and mechanical protection for 8mm proximity probes within a 3300 XL transducer network. Plant operators utilize this specialized external housing to adjust or replace proximity sensors externally without dismantling the machinery casing, simplifying predictive maintenance tasks on critical rotating assets.

Technical Specifications

Environmental & Physical Parameters

• Brand Manufacturer: Bently Nevada (Baker Hughes)
• Specific Model Number: 21000-16-10-35-098-03-02
• Assembly Classification: External Proximity Probe Housing
• Main Casing Material: Anodized Aluminum
• Probe Sleeve Composition: 304 Stainless Steel
• Operational Temperature Envelope: -51°C to +177°C (-60°F to +351°F)
• Total Enclosure Weight: 1.08 kg
• Outer Package Dimensions: 8.5 cm x 8.5 cm x 30.5 cm
• Harmonized Tariff Code (HS Code): 8537101190

Dimensional Configuration Breakdown

The complex alphanumeric suffix defines the precise mechanical measurements of this protective assembly:

• Probe Sleeve Length Option (-16): 1.6 inches nominal length
• Reverse Mount Probe Thread Option (-10): 3/8-24 UNF thread profile
• Standoff Adapter Length Option (-35): 3.5 inches total standoff extension
• Overall Insertion Depth (-098): 9.8 inches calibrated depth
• Fitting Thread Selection (-03): 3/4-14 NPT conduit connection ports
• Agency Approval Class (-02): Multi-certified for hazardous industrial zones

Core Functional Applications

External Transducer Environmental Protection

This assembly isolates the internal proximity probe from extreme outdoor conditions, chemical washes, and ambient moisture. By sealing the cable entry point with high-grade grommets and industrial-strength O-rings, the unit preserves optimal signal transmission paths between the probe tip and the remote Proximitor sensor.

Turbine Supervisory Instrumentation (TSI)

Engineers incorporate these rugged enclosures into standard TSI layouts to shield phase-reference (Keyphasor) sensors and relative shaft vibration monitors. The assembly facilitates stable mounting against heavy bearing blocks on high-output turbines, expansive steam generators, and industrial gearboxes.

Online Probe Calibration Adjustments

The mechanical design allows physical adjustment of the sensor gap from the outside of the machine. Operators can safely configure the electrical middle-of-range voltage spacing while the process machinery remains online, eliminating unnecessary plant downtime during routine diagnostics.

Key Technical Advantages

Severe Temperature Resilience

The structural choice of cast aluminum paired with low-leakage fluorocarbon seals permits flawless operation in sub-zero processing environments as low as -51°C, as well as high-heat proximity locations reaching up to +177°C.

Modular Cable Retention System

An internal cable seal grip with swappable neoprene grommets grips the transmissive coaxial lead firmly. This clamping action dampens high-frequency plant vibrations, preventing mechanical stress from weakening the delicate sub-miniature coaxial connections inside the housing.

Simplified Conduit Routing

Dual 3/4-14 NPT explosion-proof ports accommodate seamless connections to solid metal conduit systems. The integrated internal reducer and plug combinations allow field technicians to choose the optimal exit direction for local wiring paths.
