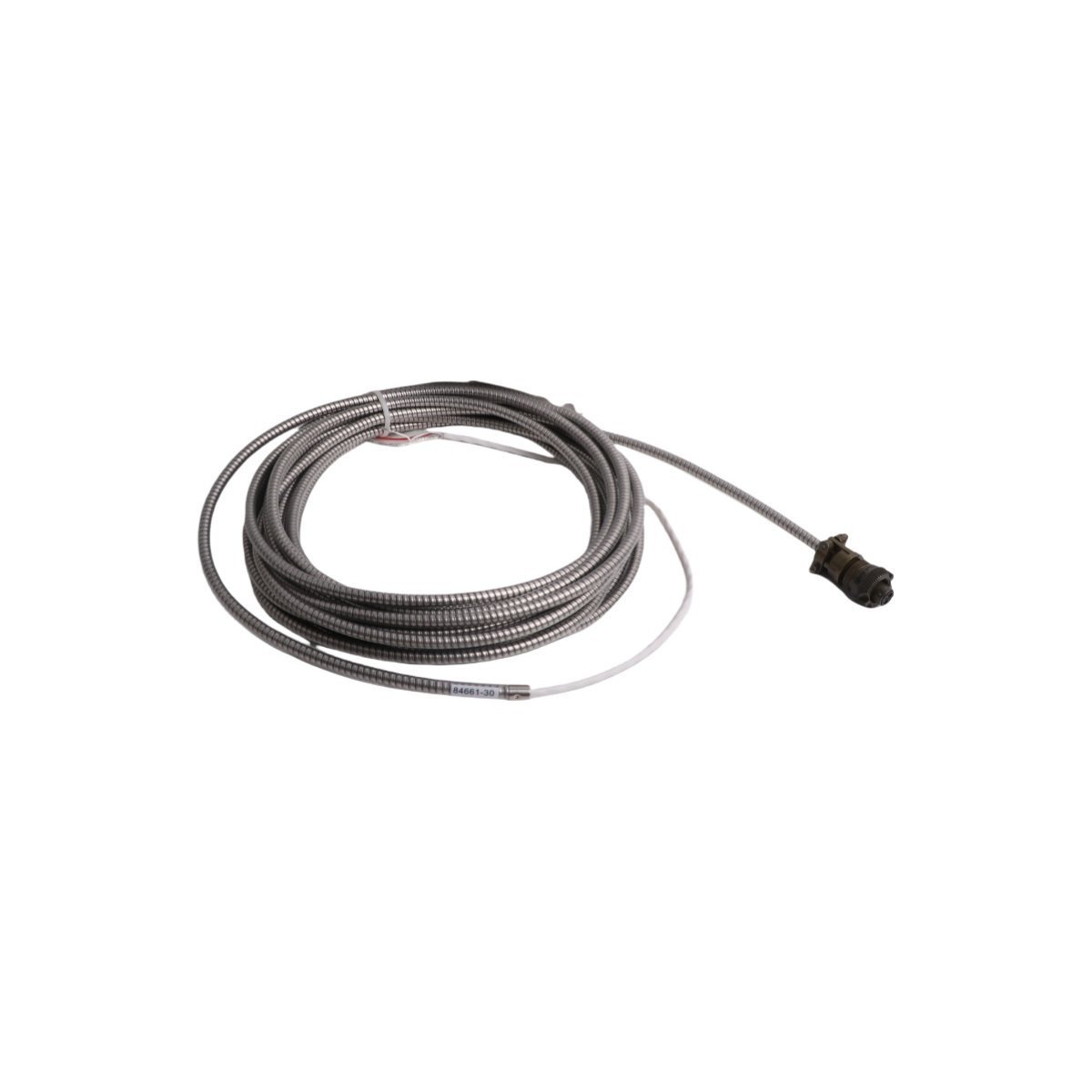

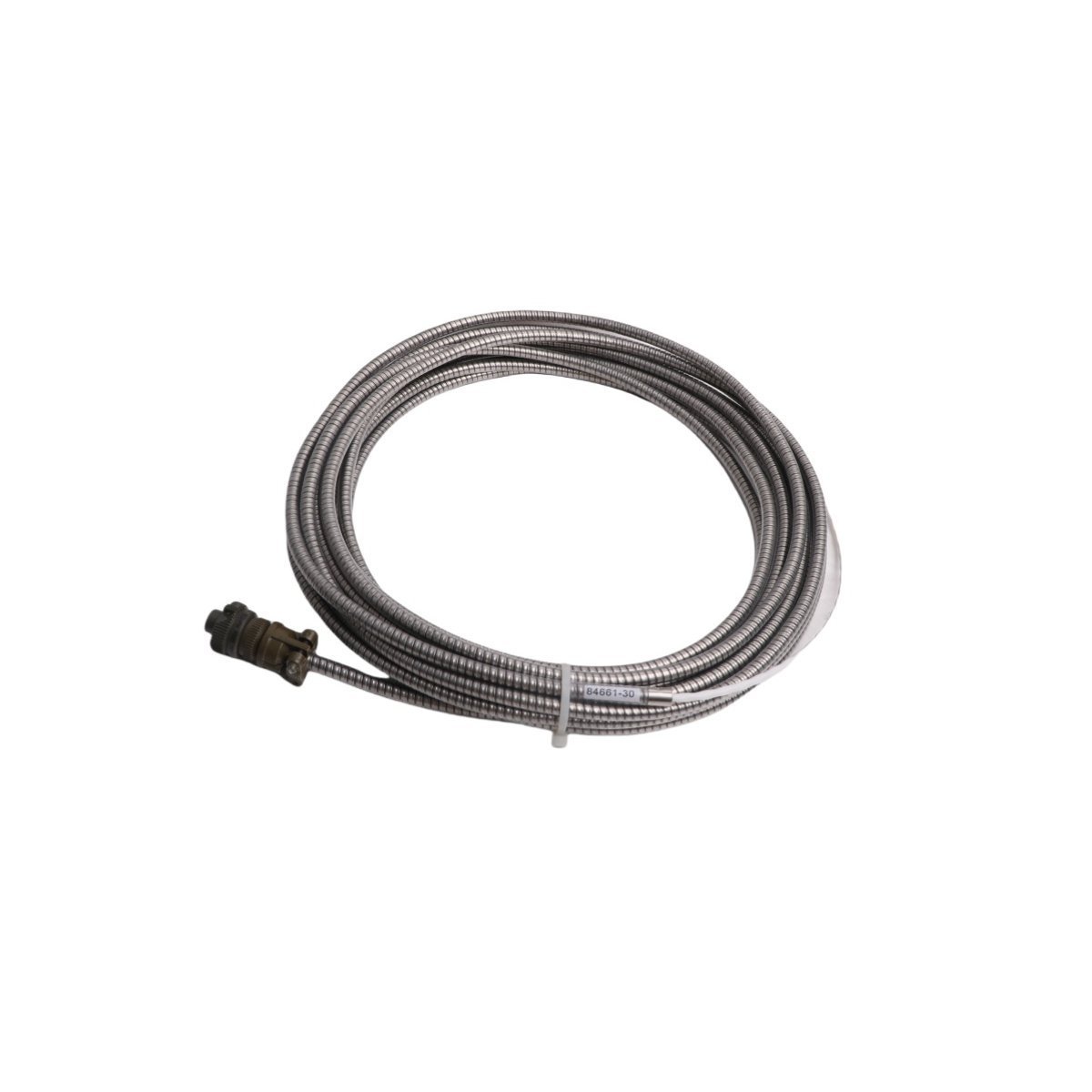

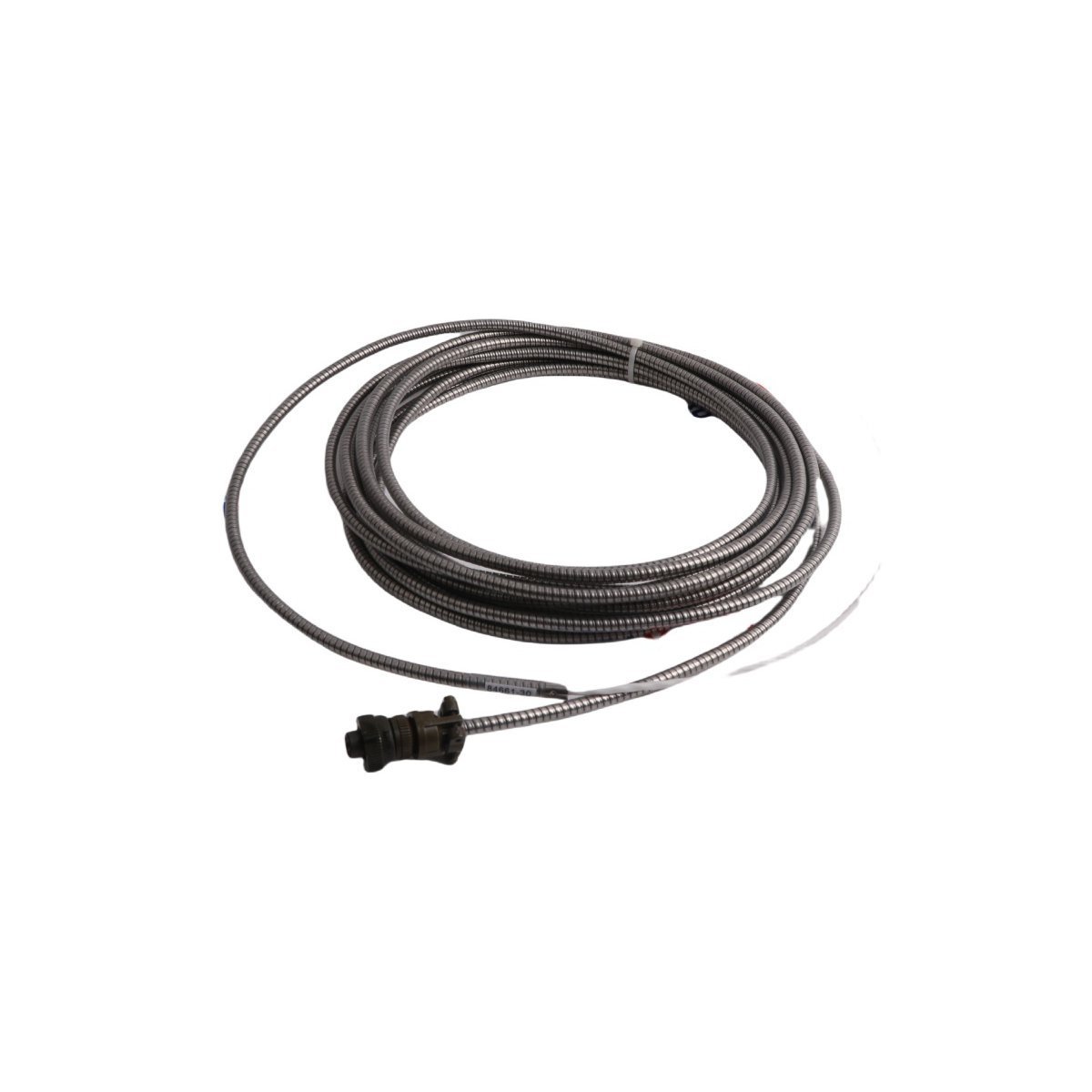

84661-30 Bently Nevada Heavy-Duty Velomitor Vibration Transducer Cable

Product Overview

The Bently Nevada 84661-30 bridges the critical physical gap between a casing-mounted Velomitor sensor and a centralized asset protection system. This heavy-duty interconnect cable converts and transfers high-frequency raw vibration data with negligible signal attenuation, preventing data corruption across harsh industrial interference zones.

Technical Specifications

Electrical and Signal Parameters

• Brand Manufacturer: Bently Nevada (Baker Hughes)
• Model Identifier: 84661-30
• Component Category: Velomitor Interconnect Cable Assembly
• Wire Gauge Profile: 22 AWG Dual Conductor
• Cross-Sectional Area: 0.382 mm²
• Voltage Capability Rating: Up to 300 V AC/DC
• Safe Current Threshold: Approximately 7 A at 25°C ambient
• Minimum Insulation Resistance: 1000 MΩ·km
• Core Diagnostic Application: Turbine Supervisory Instrumentation (TSI)

Physical and Packaging Attributes

• Net Shipping Weight: 1.48 kg
• Package Dimensions: 28.0 cm x 26.0 cm x 6.0 cm
• Outer Shielding Construction: Braided shield configuration
• Customs Tariff Designation (HS Code): 8537101190
• Minimum Order Unit: 1 Piece

Core Functional Applications

Casing Vibration Data Transmission

Plant engineers install this dedicated interconnect cable primarily to transmit velocity signals from machinery casings directly to 3500 series vibration monitoring racks. Because the internal conductors preserve low-frequency phase and amplitude accuracy, security systems can reliably monitor overall structural health on large balance-of-plant rotating equipment.

Heavy Rotating Asset Diagnostics

The 84661-30 cable assembly serves an indispensable role in monitoring high-stress assets like induction motors, large exhaust fans, industrial blowers, and medium-sized centrifugal pumps. The shielded internal pair mitigates electromagnetic field pollution, providing field technicians with clean, uncorrupted waveform data for spectral analysis.

Predictive Maintenance Networks

By establishing a secure, low-impedance link from the sensor to the local junction box, this cable supports continuous asset health tracking. This clear path enables maintenance software to capture subtle changes in velocity metrics, allowing the facility to plan overhauls efficiently and minimize catastrophic downtime.

Key Technical Advantages

Exceptional Electromagnetic Immunity

The design incorporates a dense internal shield layer that effectively deflects common industrial noise, such as cross-talk from nearby power lines, variable frequency drives (VFDs), and heavy switchgear. Consequently, the monitored signal maintains exceptional purity throughout long cable runs.

Heavy-Duty Mechanical Durability

High-grade insulation jackets protect the inner 22 AWG copper cores against persistent machinery vibration, physical flexing, and localized mechanical pulling forces during installation. This rugged layer ensures structural integrity over long operational lifetimes.

Plug-and-Play System Validation

Because Bently Nevada builds this cable precisely to match their standard Velomitor connector keys, it facilitates immediate integration without requiring field splices or manual calibration modifications. This compatibility accelerates safety commission times and lowers total maintenance costs.
