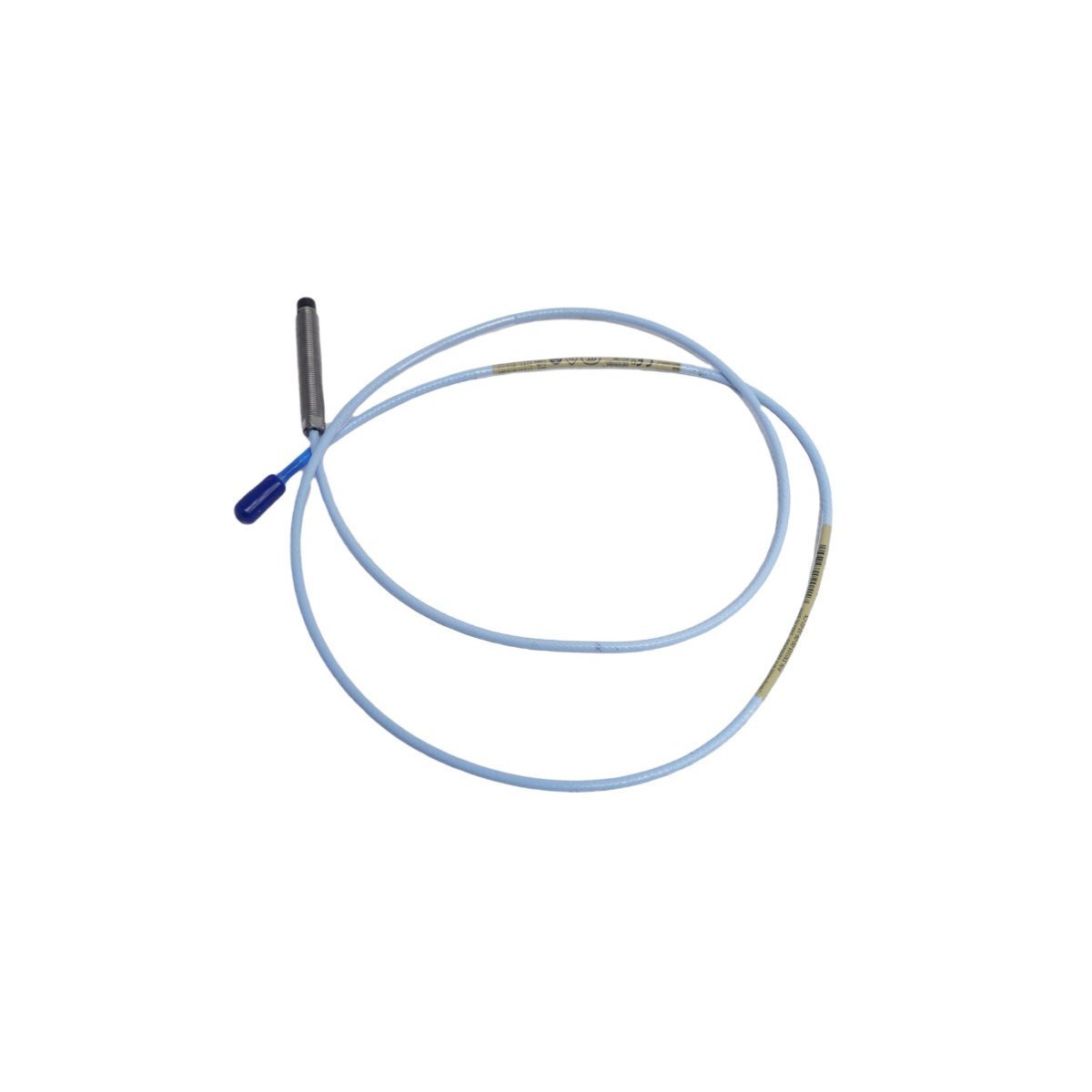

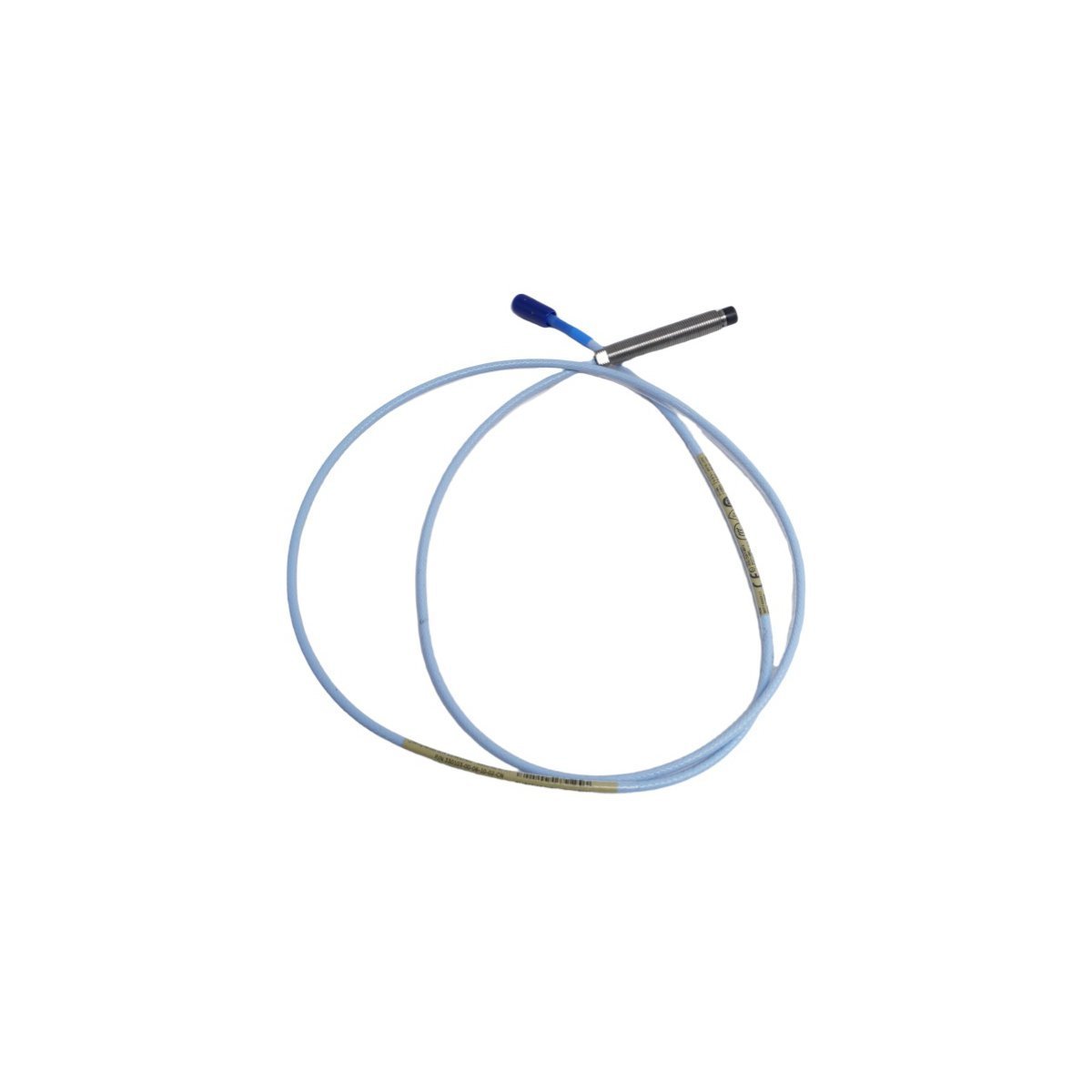

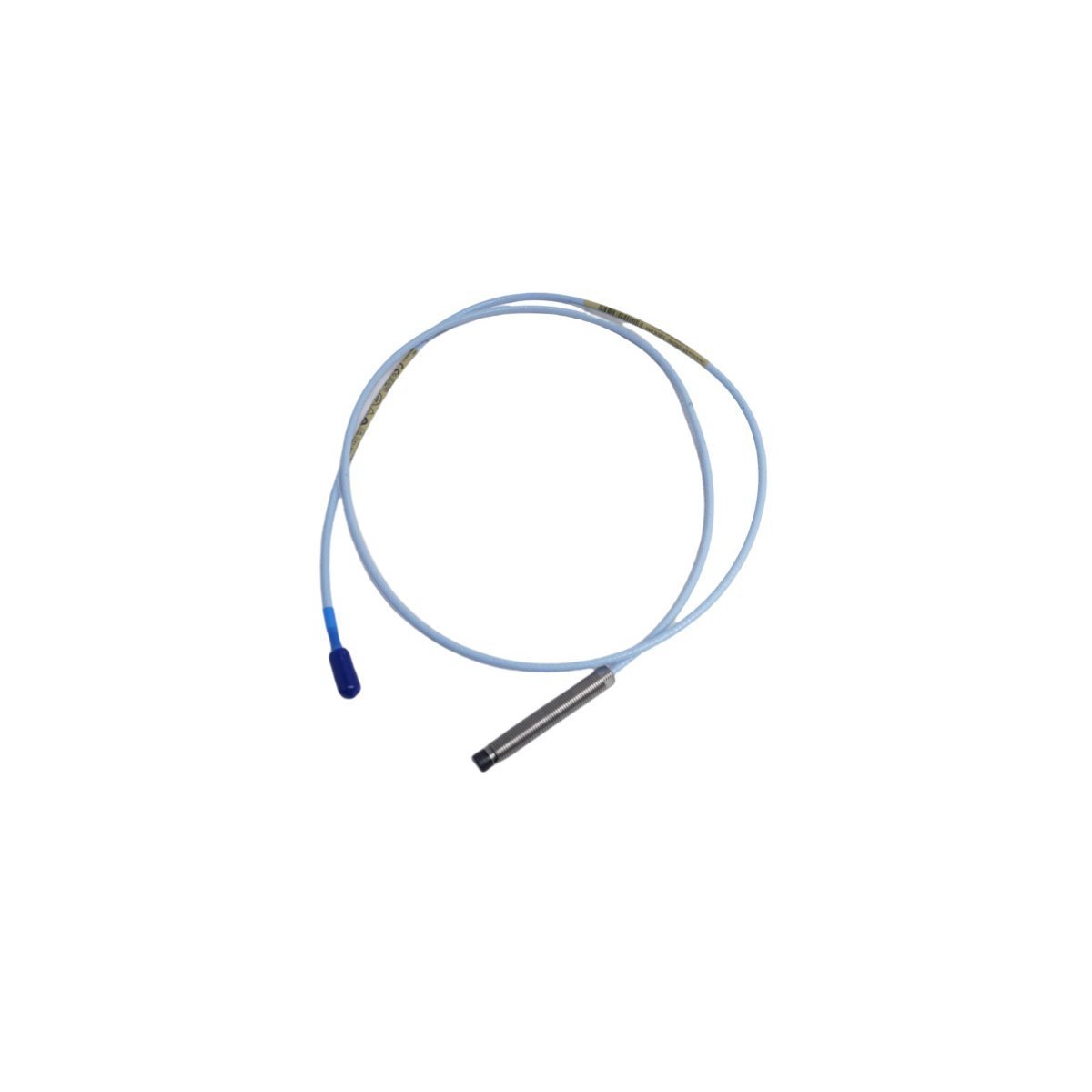

The Bently Nevada 330103-00-06-10-12-05 serves as the primary sensing element for industrial vibration monitoring. This eddy current sensor detects the distance between the probe tip and the observed metal surface. It converts these physical displacements into precise electrical signals. Monitoring systems then interpret this data to evaluate machine health. The probe supports both dynamic vibration tracking and static position measurements.
Technical Configuration and Build
- Model Number: 330103-00-06-10-12-05
- Thread Type: 3/8-24 UNF threads
- Unthreaded Length: 0.0 inches
- Overall Case Length: 0.6 inches
- Total Length: 1.0 Meter (3.3 feet)
- Connector Type: Miniature coaxial with ClickLoc
- Approval Rating: Multiple hazardous area certifications (Option 05)
Industrial Applications and Benefits
Heavy industries deploy this sensor for critical machinery protection. It excels in monitoring fluid-film bearing machines such as turbines and compressors. Maintenance teams utilize it for radial vibration, thrust position, and Keyphasor applications. The probe remains stable across a wide temperature spectrum. This reliability prevents false trips in power generation and oil and gas facilities.
Standards Compliance and Installation
The 330103-00-06-10-12-05 meets all API 670 requirements for vibration monitoring. This compliance ensures full interchangeability with other 3300 XL series components. Users can swap probes without recalibrating the associated Proximitor sensor. Consequently, this feature simplifies field maintenance and reduces asset downtime. The robust 3/8-24 threads facilitate easy mounting into standard machine housings.
