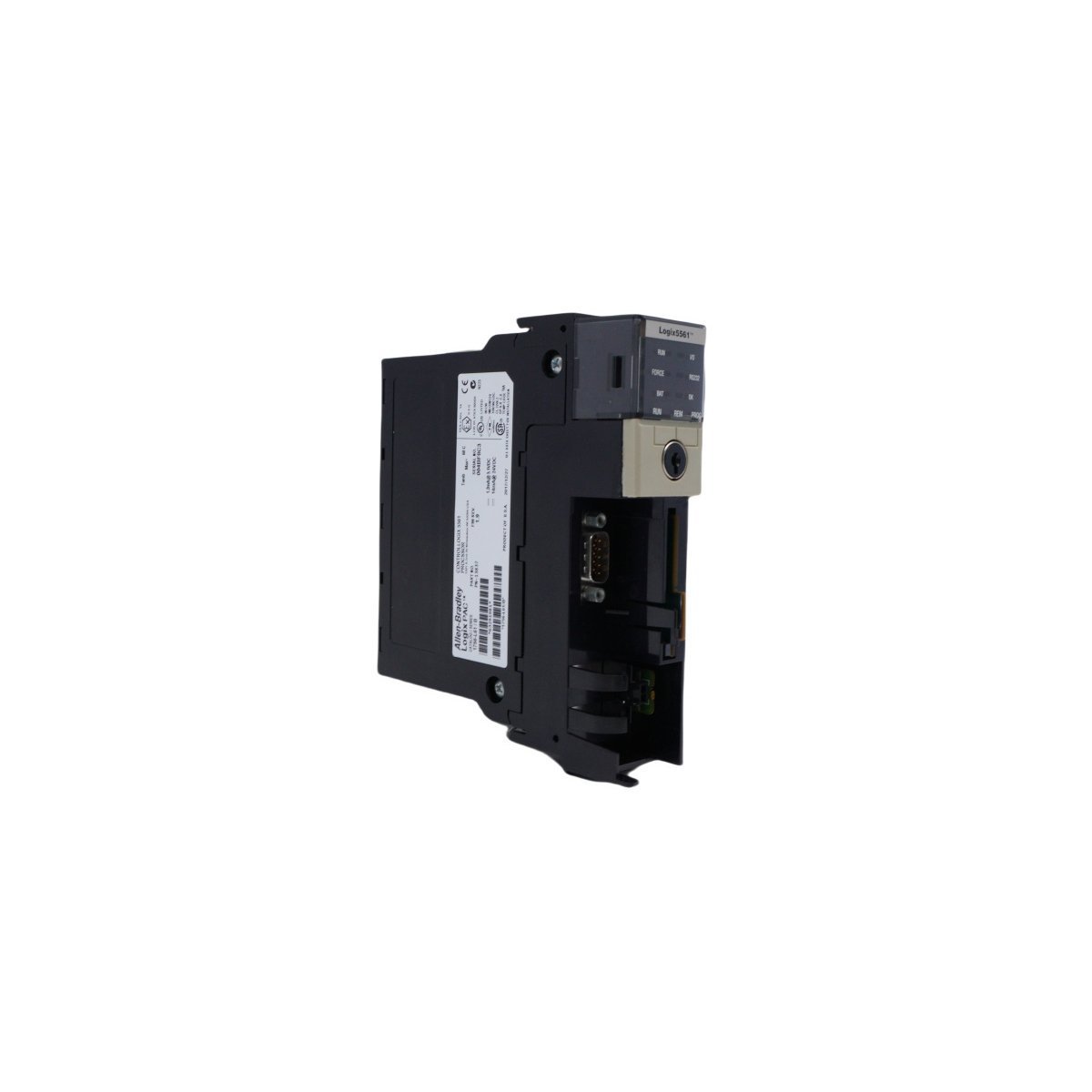

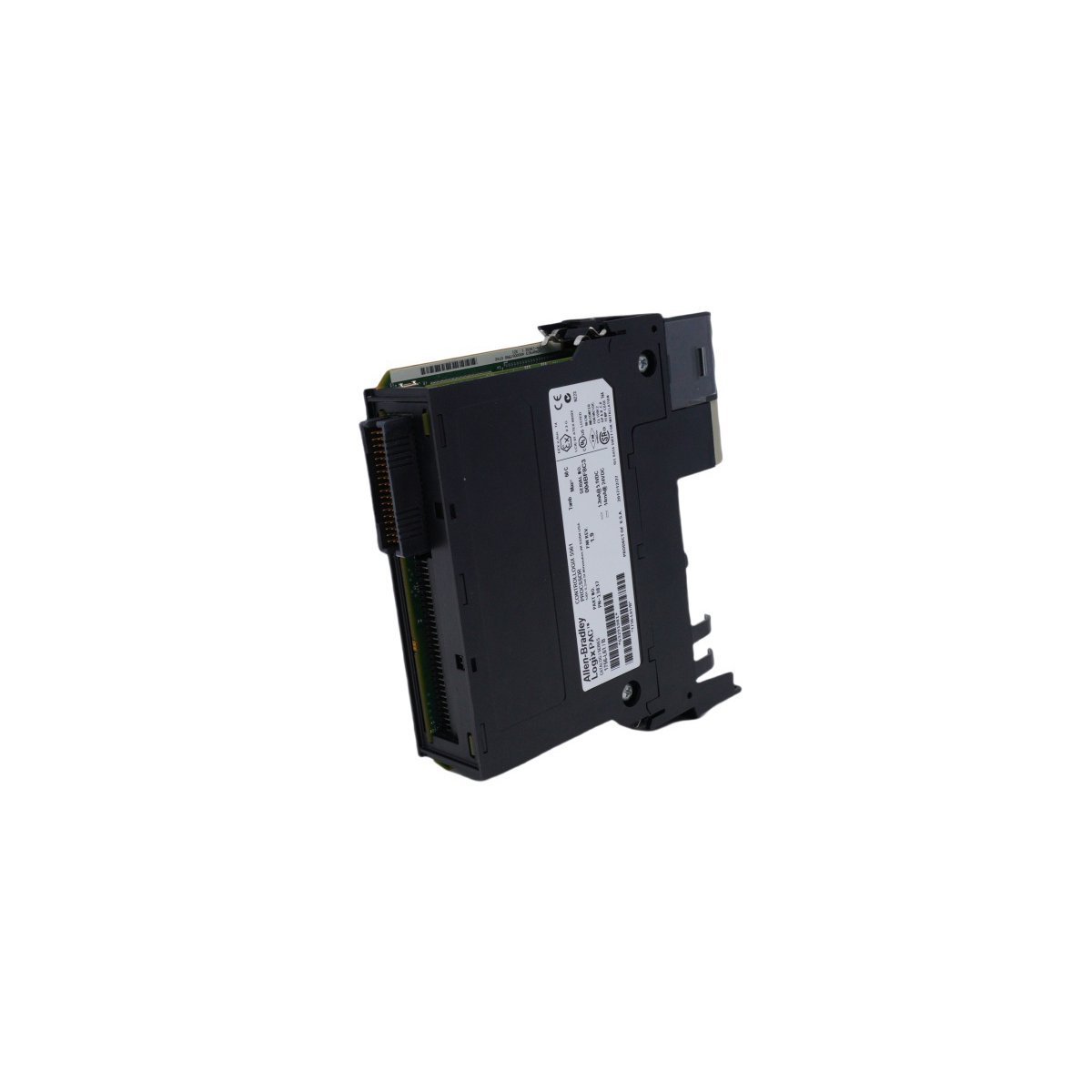

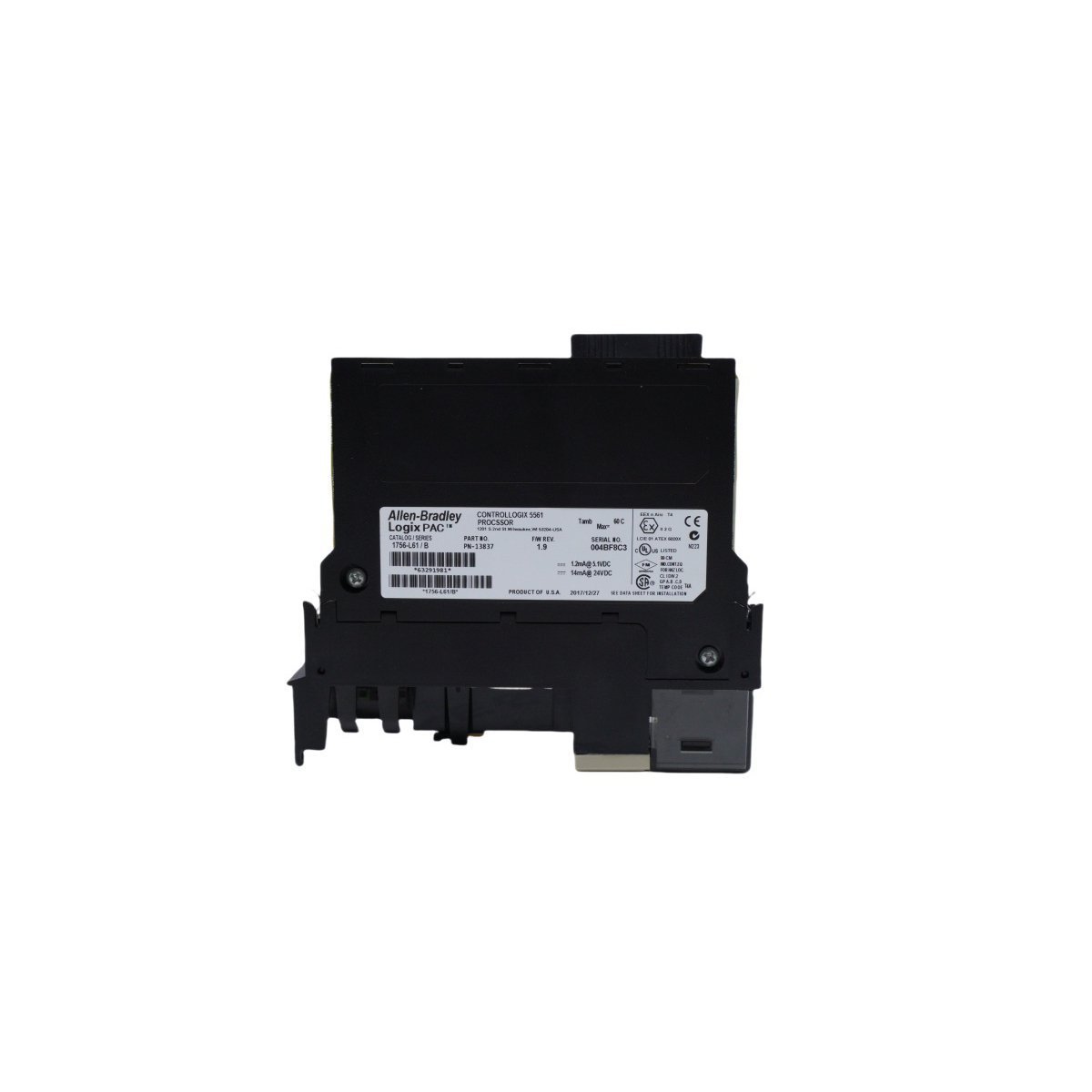

Allen-Bradley 1756-L61 ControlLogix Logix5561 Processor

The Allen-Bradley 1756-L61 serves as a central processing unit for the high-performance ControlLogix platform. This module effectively manages complex control intensive tasks across diverse industrial sectors. It features a scalable architecture that accommodates both discrete and motion control requirements. Furthermore, the processor utilizes a multitasking operating system to prioritize critical control loops. This ensures consistent execution times for time-sensitive automation sequences. The Logix5561 architecture supports advanced programming instructions for sophisticated process management.

Data Integrity and Memory Capabilities

Data security remains a fundamental priority for this controller series. The 1756-L61 includes 2 MB of user memory for storing application code and data tags. Additionally, an integrated battery backup system protects volatile memory during unexpected power losses. Users can easily replace the lithium battery to maintain long-term data retention. The module also supports nonvolatile memory expansion through specialized CompactFlash cards. This allows for permanent storage of firmware and project files for rapid system recovery.

Network Integration and Connectivity

The 1756-L61 integrates seamlessly into the broader Rockwell Automation ecosystem. It communicates efficiently across various networks like EtherNet/IP, ControlNet, and DeviceNet. Consequently, the processor coordinates synchronized data exchange between remote I/O and other controllers. The front-facing RS-232 serial port provides a direct interface for local programming and diagnostics. Moreover, the module supports multiple programming languages including Ladder Logic and Structured Text. This flexibility simplifies the development of complex industrial applications.

Technical Specifications
