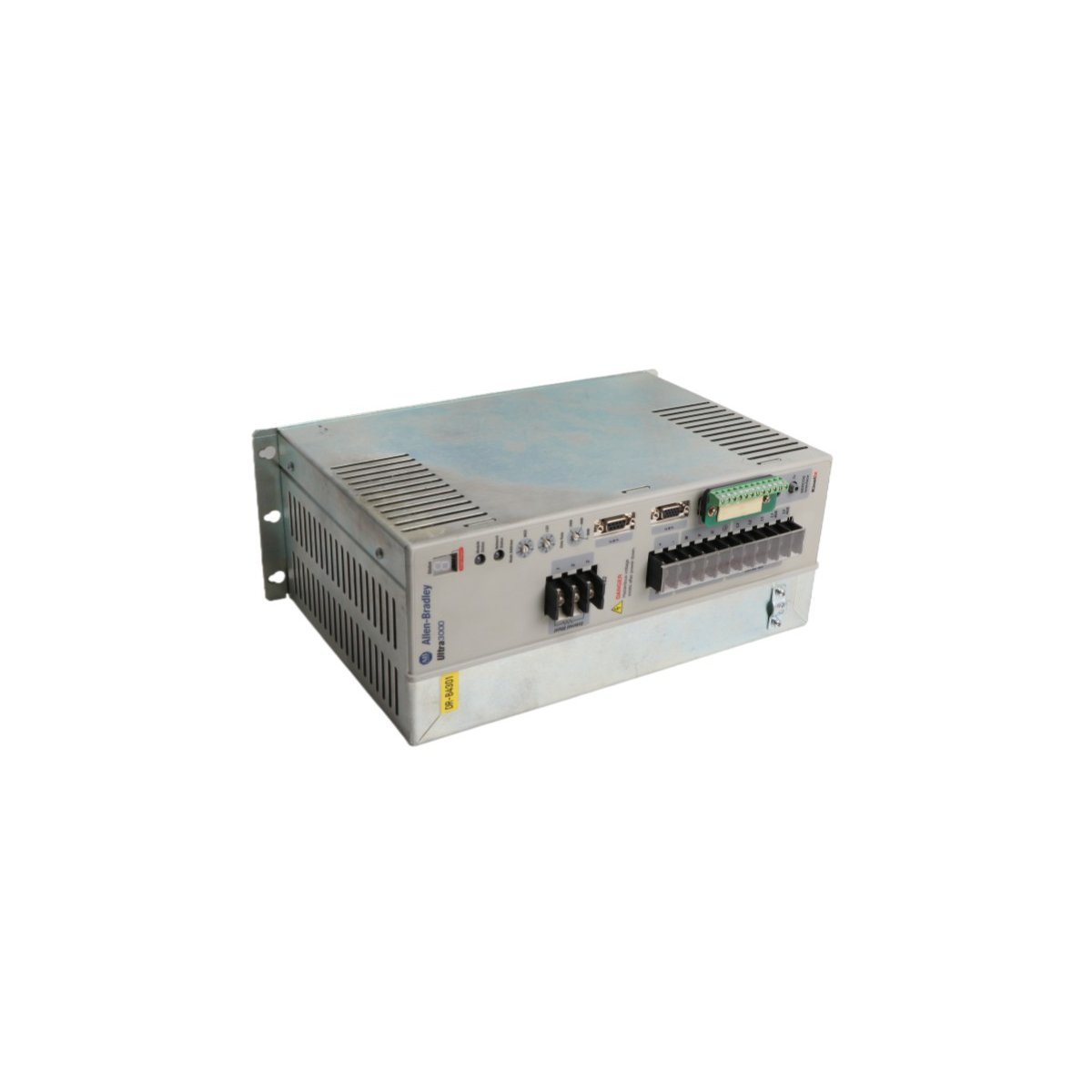

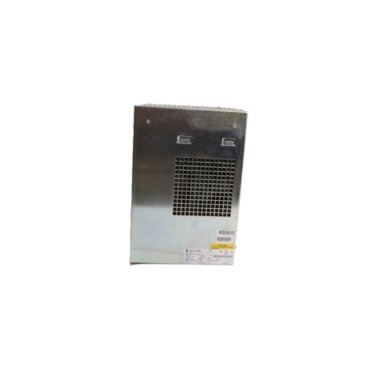

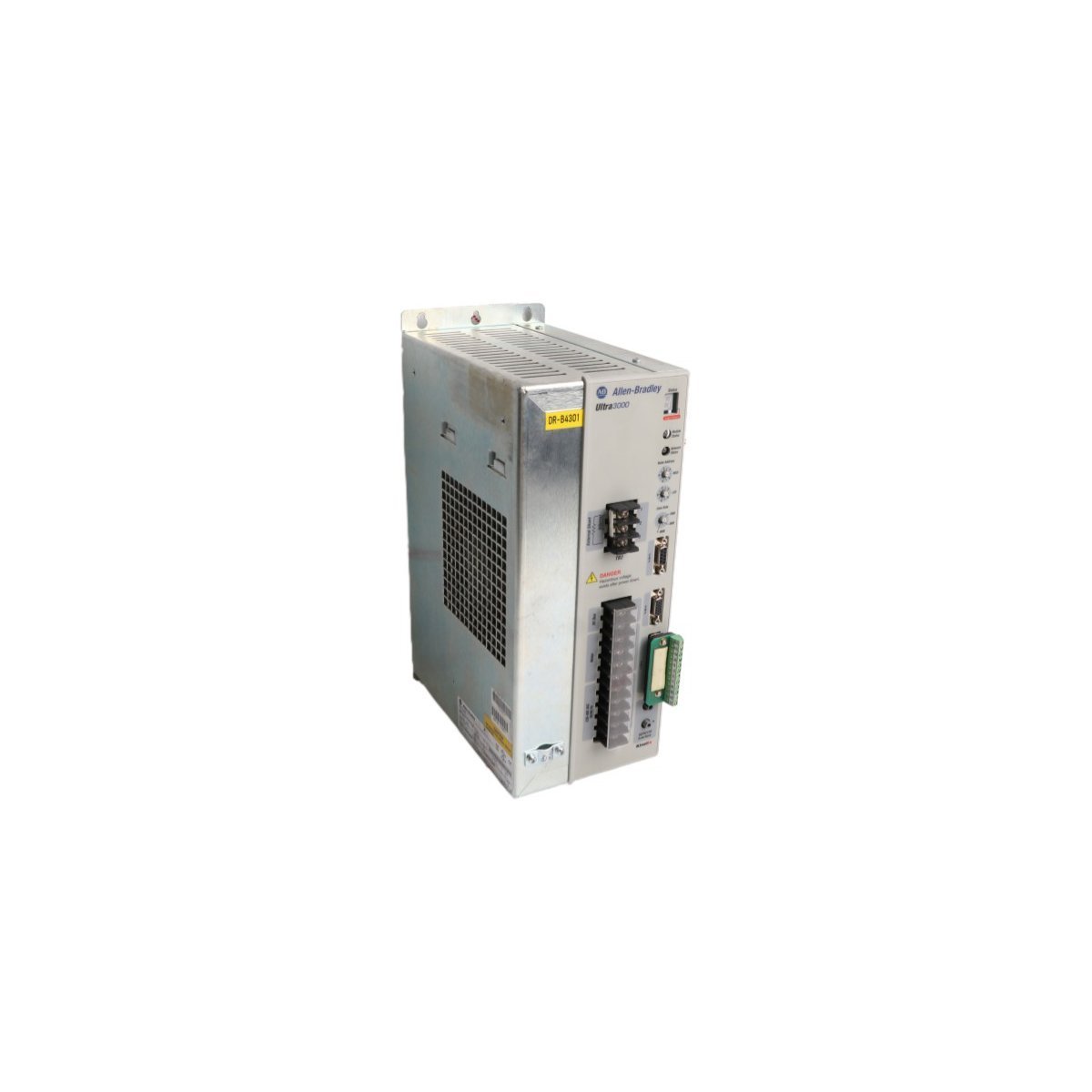

Allen-Bradley 2098-DSD-020-SE Servo Drive

The Allen-Bradley 2098-DSD-020-SE belongs to the high-performance Ultra3000 digital servo family. This specific model features a SERCOS interface for seamless fiber-optic communication. It integrates directly with Logix platforms to provide synchronized multi-axis motion control. Consequently, the drive executes complex velocity and position commands with extreme precision. The digital architecture eliminates the noise issues common in traditional analog systems. This makes it ideal for high-speed packaging and assembly applications.

Power Capabilities and Electrical Specifications

This drive operates on a flexible AC input range to suit various factory standards. It converts single-phase power into high-torque performance for brushless servo motors. The internal power stage handles significant current peaks for rapid acceleration. Furthermore, the unit supports auxiliary feedback for increased positioning accuracy in demanding tasks. Its compact frame allows for efficient mounting within shallow industrial control cabinets.

• Input Voltage: 100–240V AC (Single-Phase)
• Input Frequency: 47–63 Hz
• Continuous Output Current: 10 Amperes (0-peak)
• Intermittent Peak Current: 30 Amperes (0-peak)
• Internal Bus Capacitance: 1410 µF
• Communication Ports: SERCOS Fiber Optic, RS-232, RS-485
• Operating Temperature: 0°C to 55°C (32°F to 131°F)

Advanced Hardware Features and Diagnostics

The 2098-DSD-020-SE includes a clear 7-segment status display on the front panel. This display provides real-time diagnostic codes to simplify system commissioning and maintenance. Each unit features three dedicated connector ports (CN1, CN2, and CN3) for flexible interfacing. These ports manage motor feedback, I/O signals, and auxiliary communication simultaneously. Additionally, the drive supports optional shunt modules to manage regenerative energy during deceleration. These hardware protections ensure long-term durability in heavy-duty manufacturing environments.

System Integration and Modern Automation

This Ultra3000 drive excels in environments requiring fast update rates and low jitter. Because it uses the SERCOS protocol, it reduces wiring complexity in multi-axis machines. Engineers can configure the drive through standard software tools for rapid deployment. The unit also complies with global standards for electromagnetic compatibility and safety. This versatility ensures reliable operation in industries ranging from food processing to automotive assembly.
