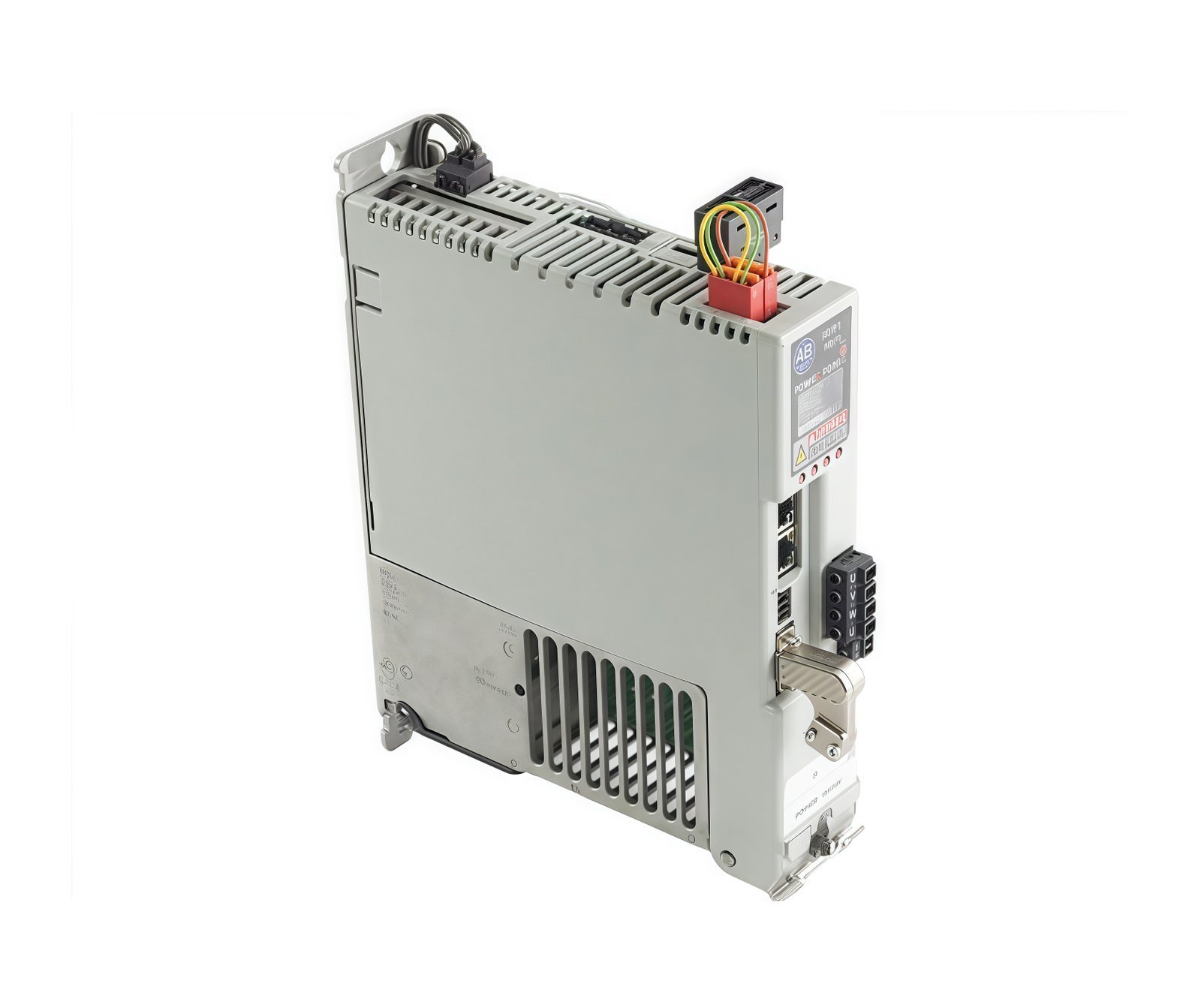

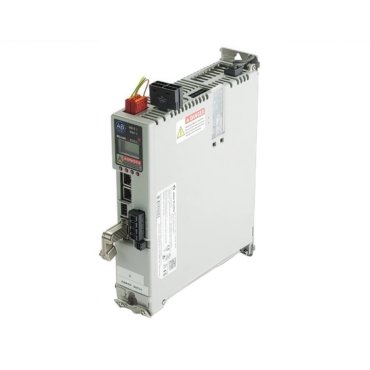

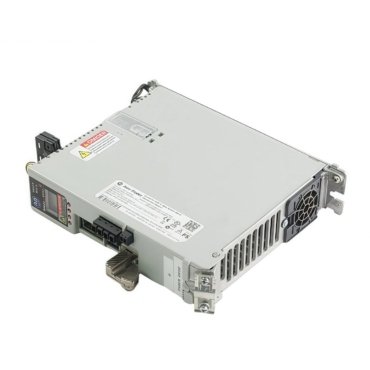

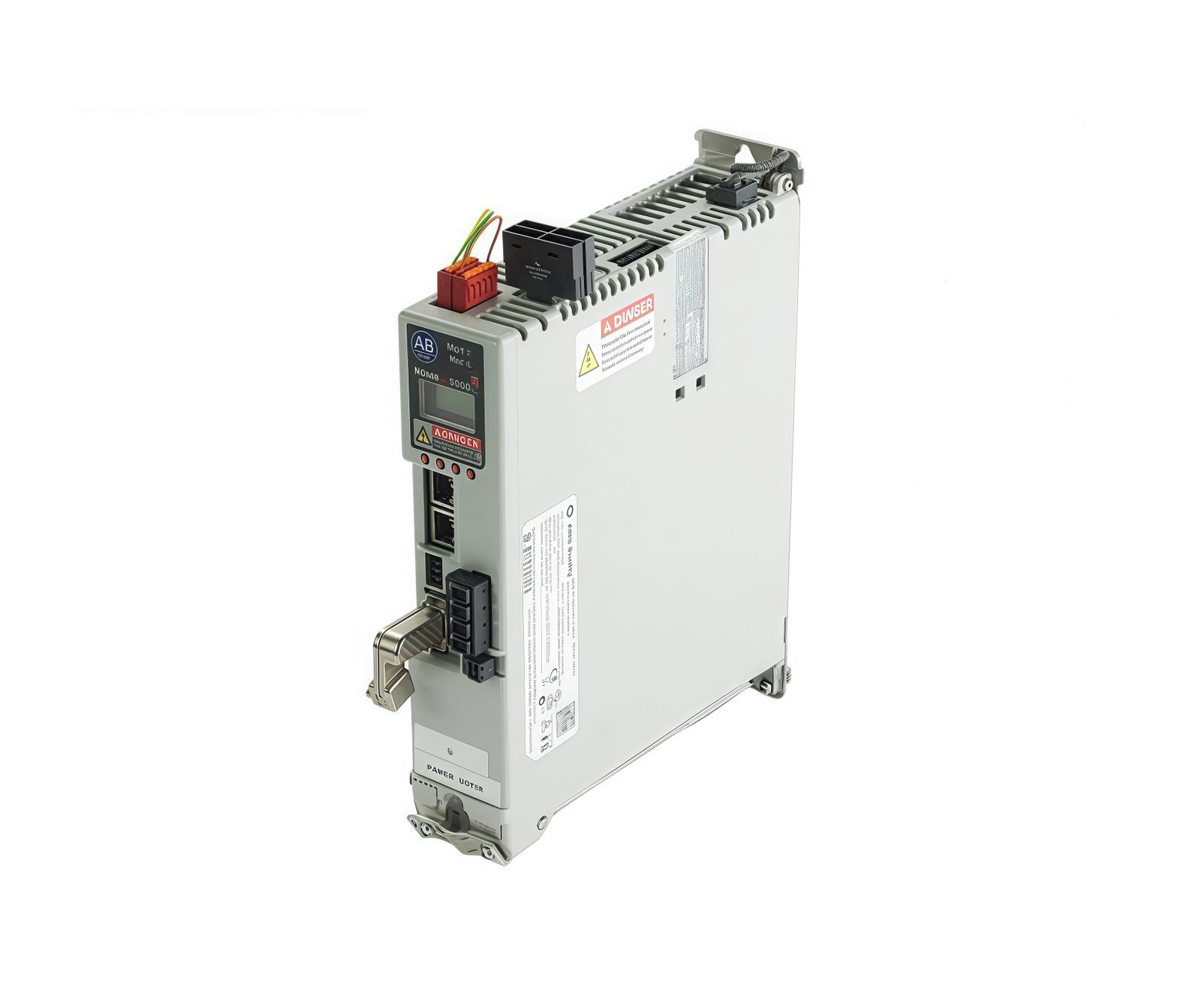

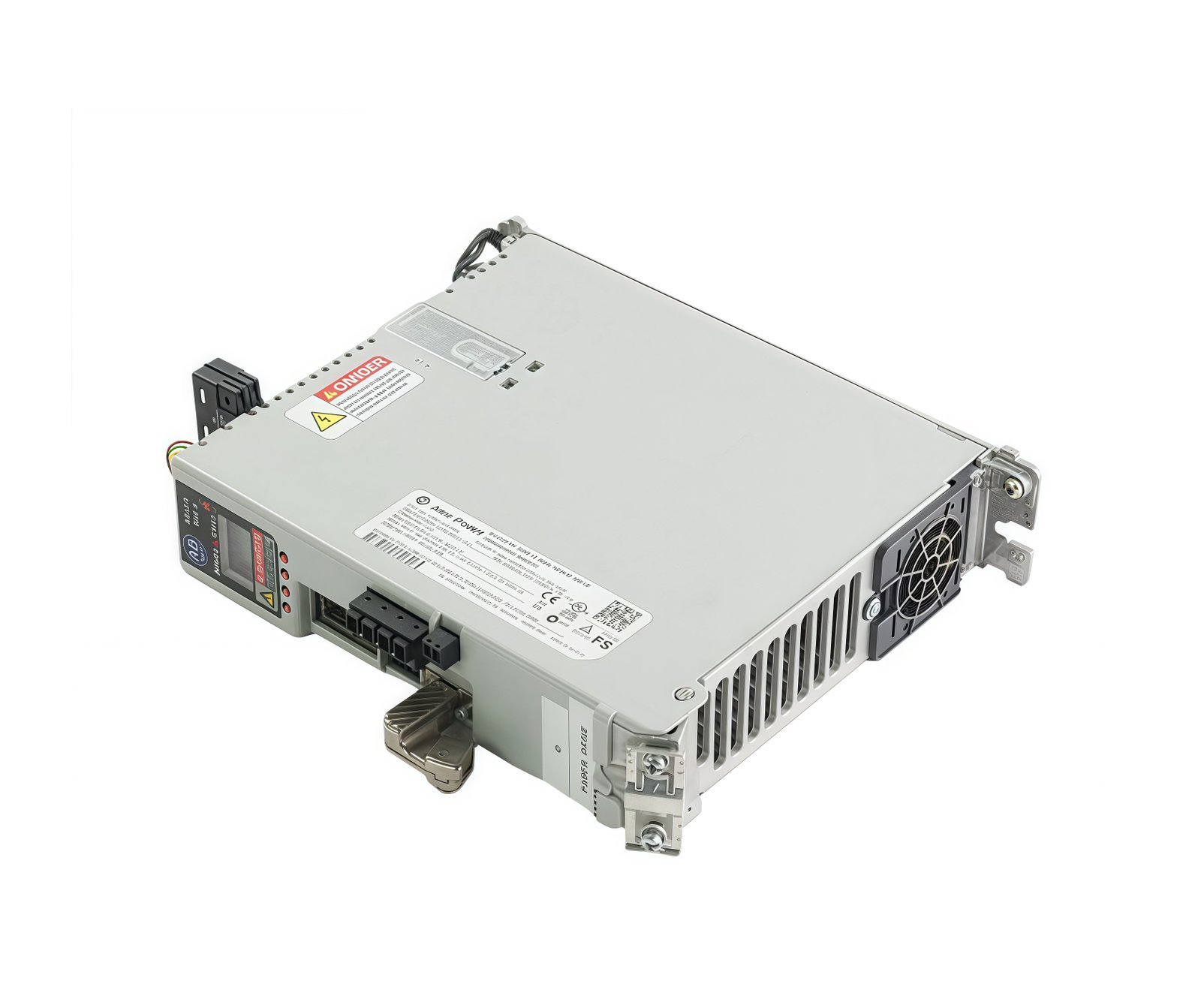

Allen Bradley 2198-H015-ERS Servo Drive

The Allen Bradley 2198-H015-ERS is a high-efficiency servo drive within the Kinetix 5500 motion control family. This unit provides precise regulation for both synchronous servo and induction motors in automated environments. By utilizing the EtherNet/IP network, the drive streamlines safety and motion tasks onto a single cable. Consequently, users experience reduced wiring complexity and faster commissioning times. This drive excels in applications requiring high-speed synchronization and reliable torque management. Its versatile power stage supports various voltage configurations to meet global industrial standards.

Technical Specifications

Advanced Motion Control and Network Flexibility

The 2198-H015-ERS incorporates sophisticated control loops to achieve superior machine performance. It features a 1000 Hz current loop and a 300 Hz velocity loop for rapid response. Furthermore, the integrated 4 kHz PWM frequency ensures smooth motor operation and minimal vibration. The dual-port Ethernet interface supports linear and Device Level Ring (DLR) network topologies. These options provide high availability and network fault tolerance for critical production lines. Operators can monitor real-time motor feedback through a high-resolution digital interface.

Safety Integration and Industrial Durability

Safety remains a priority with the inclusion of hardwired Safe Torque Off (STO) functionality. This feature allows the drive to remove power from the motor without disconnecting the main supply. Additionally, the unit boasts a short-circuit current rating of 200,000 A for maximum protection. The compact Frame 2 housing saves significant space inside electrical control cabinets. Robust internal protection circuits prevent damage from overvoltage, thermal overload, and feedback loss. These measures collectively increase equipment uptime and safeguard facility personnel during maintenance.
