GE IC200UEO116 VersaMax Expansion Output Modules

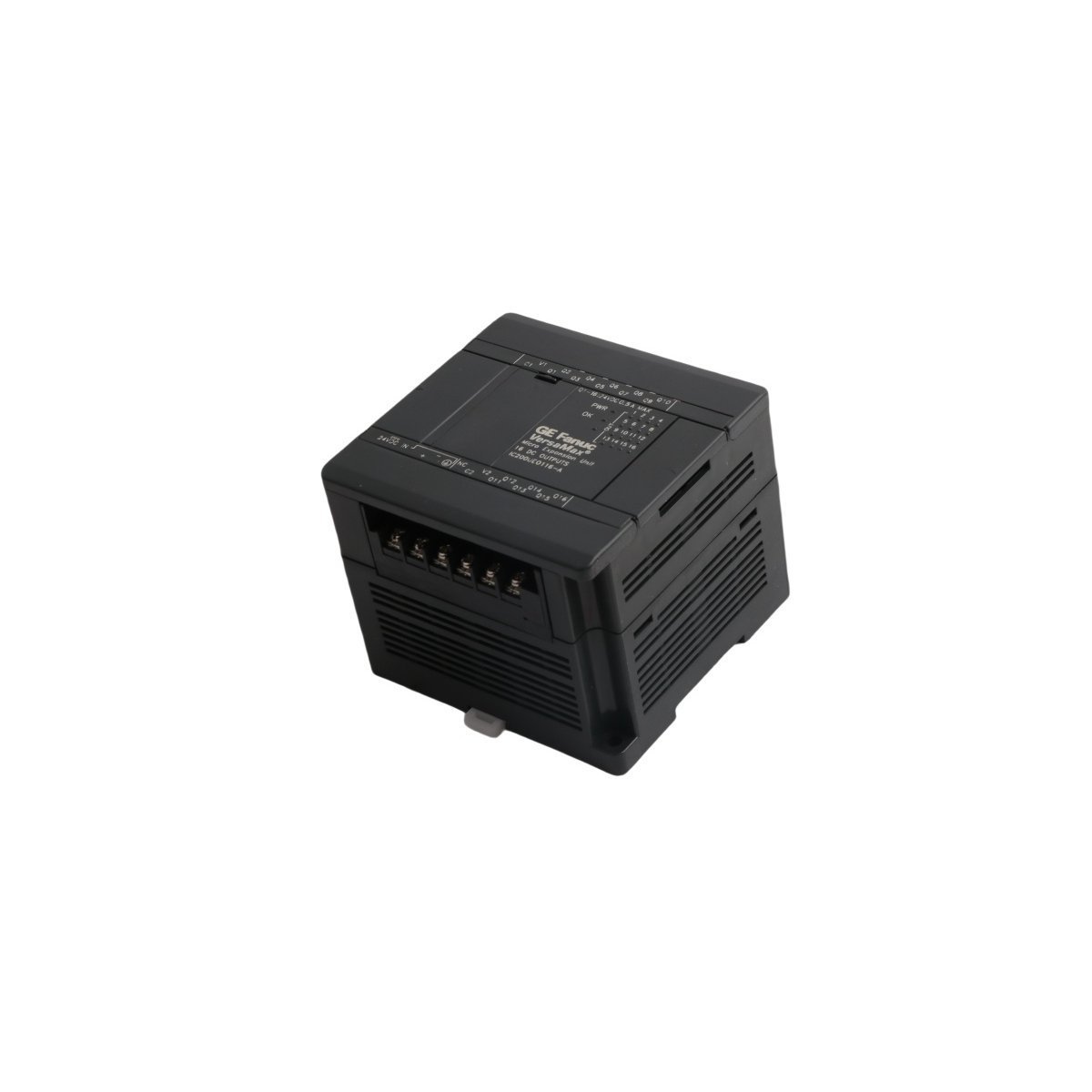

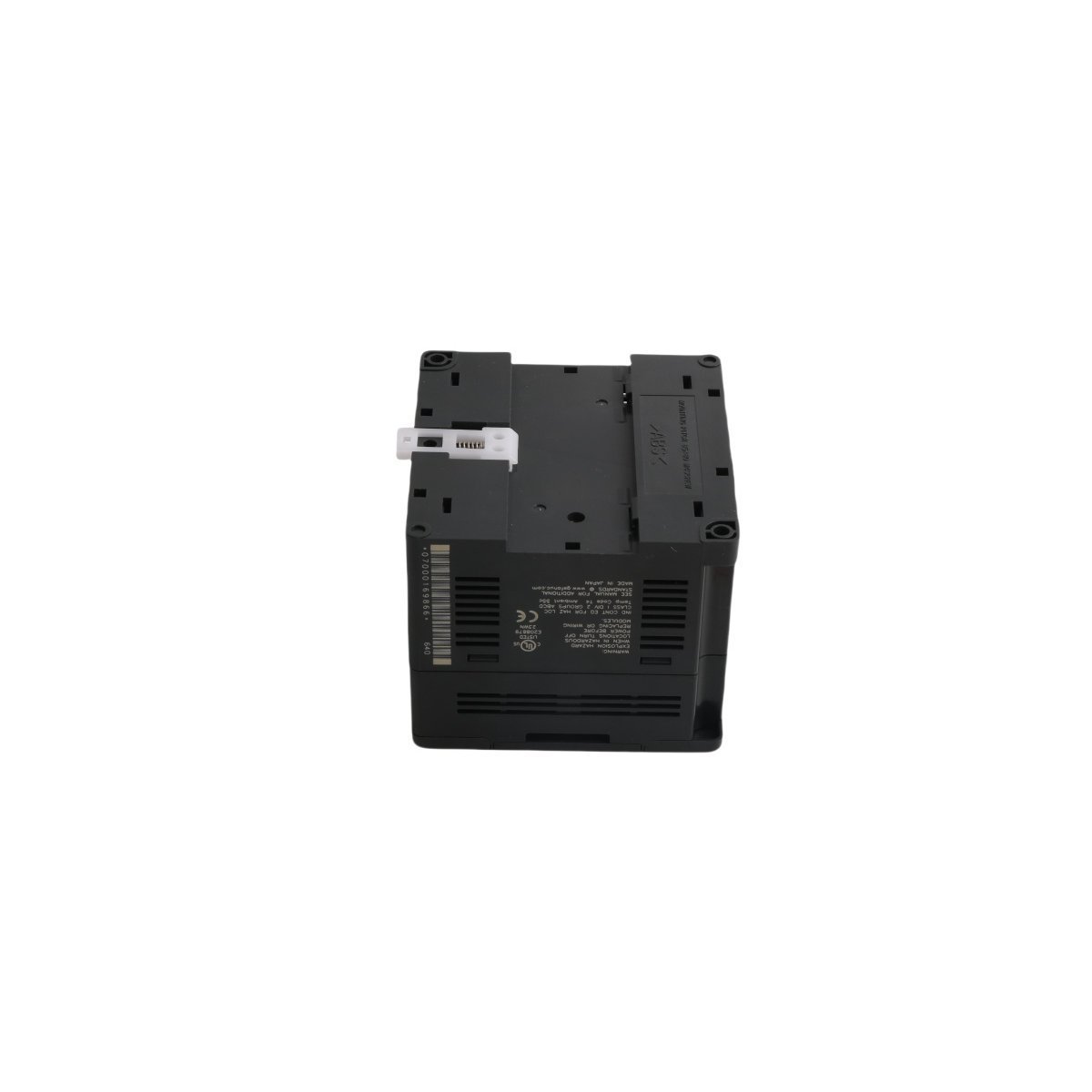

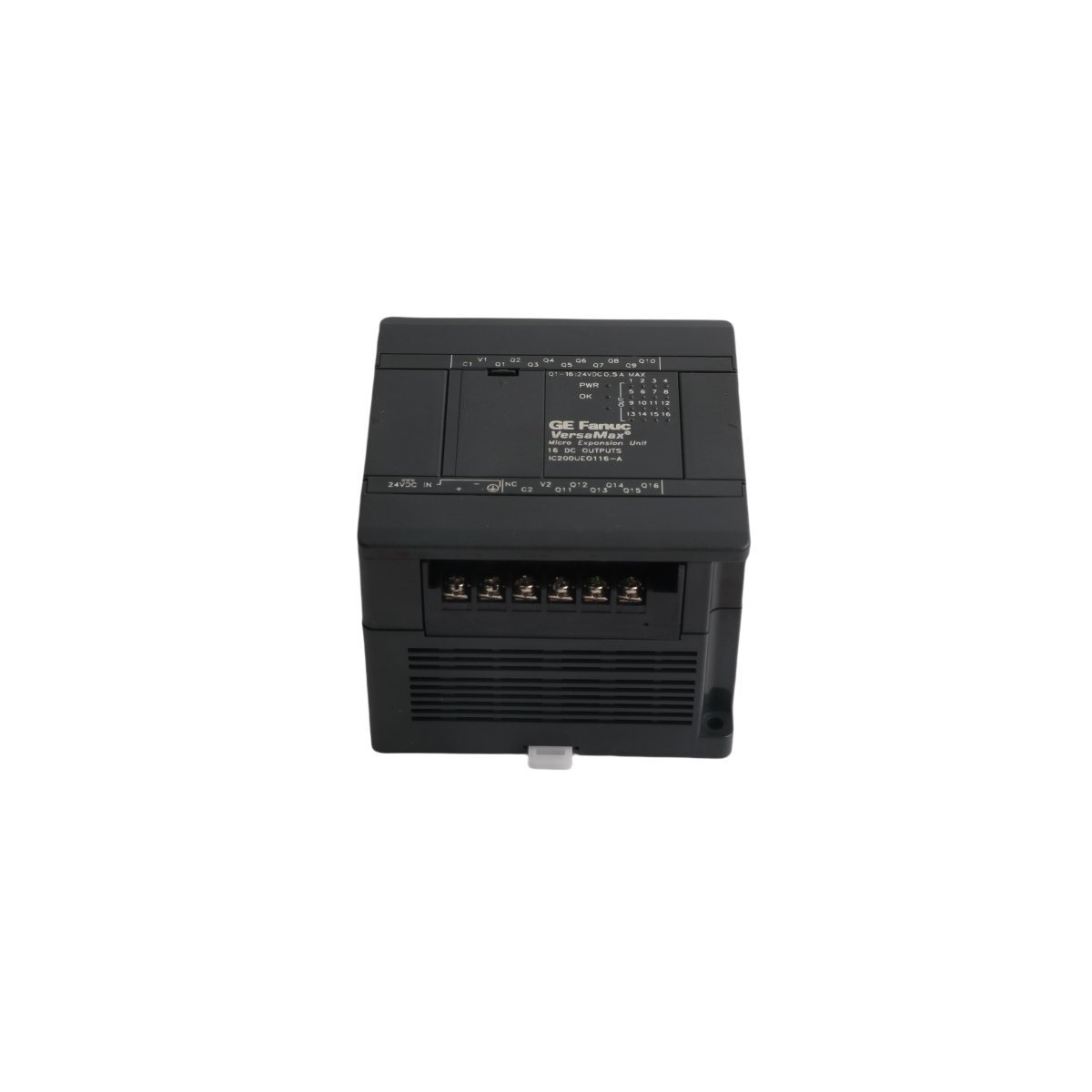

GE IC200UEO116 VersaMax Expansion Output Module

The GE IC200UEO116, also cataloged as the IC200UEO116 Expansion Output Module, operates as a dedicated hardware component for extending discrete control capabilities within VersaMax Micro PLC systems.

Hardware Specifications

PLC I/O Density and Firmware Integration

The IC200UEO116 executes high-speed signal processing within the VersaMax I/O backplane architecture. The module supports deterministic communication across the PLC bus, ensuring that output state transitions align with the CPU scan cycle. Engineers utilize these high-density expansion points to scale control logic without exceeding backplane power budgets. Firmwares governing the module manage the handshaking protocol with the base controller, while the transistor switching arrays accommodate rapid cycling typical of automated production sequences.

Frequently Asked Questions (FAQ)

Q: Does the IC200UEO116 support hot-swapping during active operation?

A: No, the module requires the removal of field power and backplane power prior to physical extraction to prevent transient voltage spikes or backplane communication errors.

Q: How should inductive loads be managed with this sink-type output module?

A: Because the outputs utilize transistors for switching, engineers must install flyback diodes or appropriate external suppressors across inductive loads to mitigate negative voltage spikes generated during de-energization.

Q: Is the output current protection self-resetting?

A: No, the output transistors lack internal electronic trip protection. External fast-acting fuses are required for each common circuit to prevent permanent semiconductor damage under short-circuit conditions.

Field Installation Guidelines

1. Mounting Stability: Secure the module to the DIN-rail using the integrated latching mechanism. Ensure the module snaps firmly into the expansion port to maintain reliable backplane bus contact.
2. Electrical Isolation: Route high-voltage power lines through separate wire ducts from low-voltage signal cabling to prevent inductive coupling and crosstalk.
3. Shielding and Grounding: Connect the common ground terminal to a low-impedance earth bus. Proper grounding ensures that the 1500 V RMS isolation barrier effectively protects the logic circuitry from field-side electrical surges.
4. Wiring Termination: Utilize appropriate gauge wire for the 24 VDC supply. Ensure that the external fuses are installed as close to the common supply point as feasible to maximize protection effectiveness.
