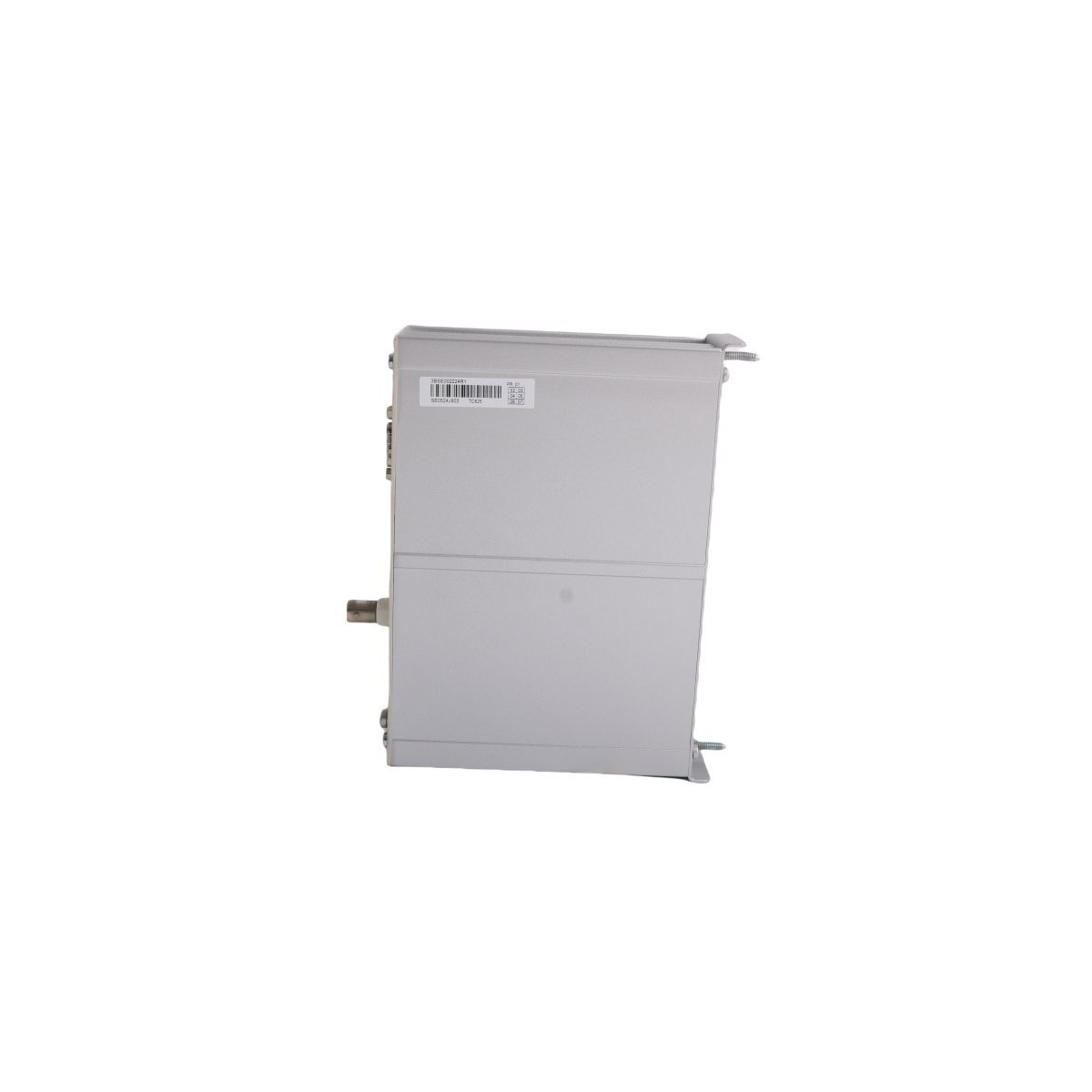

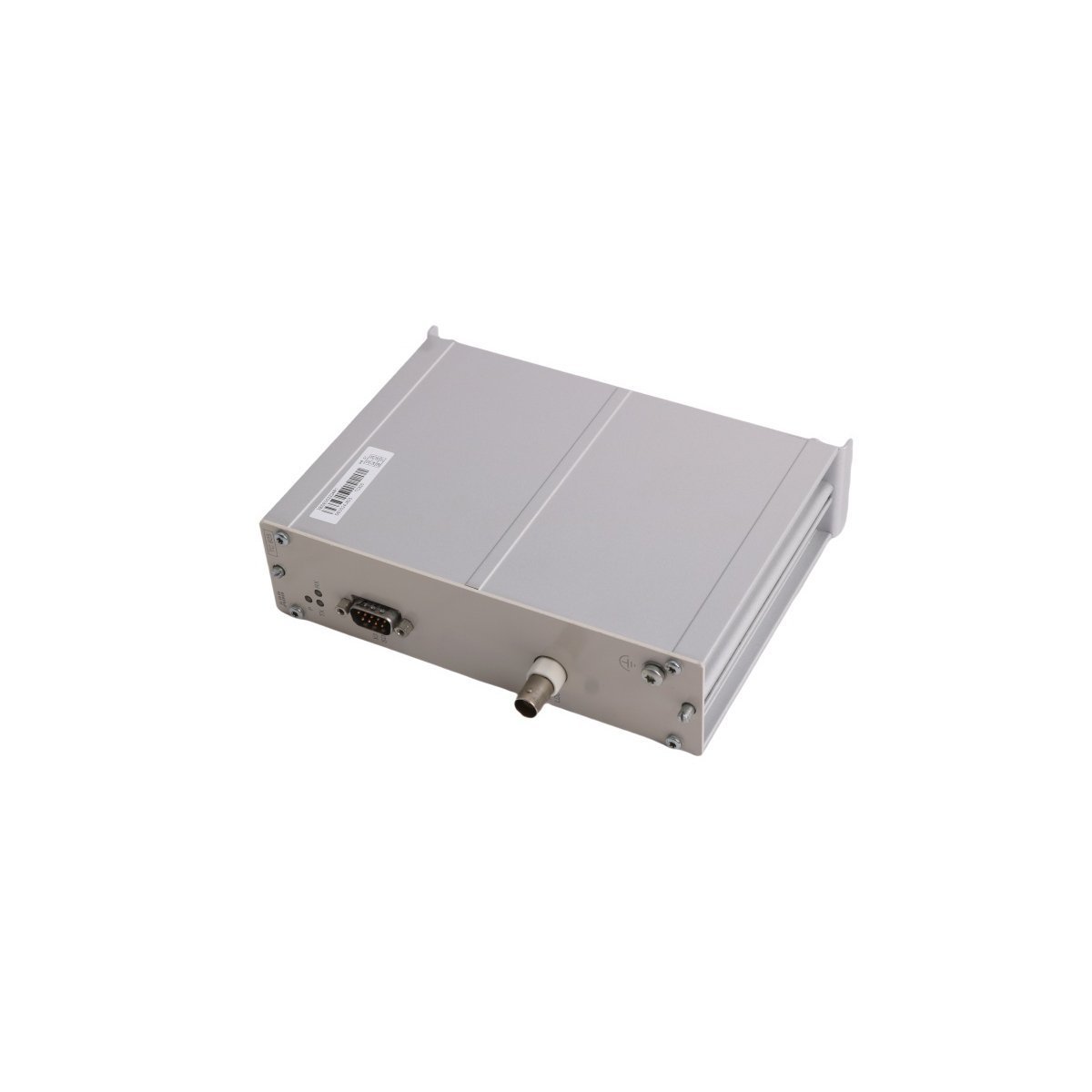

The ABB TC625 3BSE002224R1 serves as a high-reliability coaxial modem within the Advant Fieldbus 100 (AF100) architecture. This device provides the physical layer interface necessary for transmitting data across coaxial cabling. It functions primarily to bridge Advant Controller 400 Series processors and AdvaSoft workstations with the AF100 network. By converting electronic signals into a format suitable for coaxial media, the TC625 ensures long-distance signal integrity and robust data exchange. This modem remains an active part of the ABB product lifecycle, supporting critical industrial communication infrastructures.
Interface Compatibility and Integration
System engineers utilize the TC625 to establish stable coaxial links through various communication interface boards. The module integrates seamlessly with the following components:
- CI526 Interface: One or two TC625 modems connect directly to provide single or redundant coaxial paths.
- CI522 and CI520 Boards: These interfaces utilize the TC625 specifically for coaxial media communication.
- Redundancy Support: The modem supports dual-channel configurations to prevent network downtime.
- Cable Requirements: The unit connects to the CI526 board and SB512 power unit via the TK549 specialized connection cable.
Hardware Installation and Power Requirements
Reliable operation of the TC625 requires a stable power source, typically provided by the SB512 power supply unit. During installation, the modem mounts in close proximity to the communication interface to minimize signal attenuation. The modular design allows for rapid replacement, which is vital for maintaining high availability in Distributed Control Systems (DCS). Furthermore, the Swedish-engineered housing provides the durability needed for industrial environments. This modem maintains the signal strength required for high-speed bus communication, even in areas with significant electromagnetic interference.
Primary Industrial Applications
The TC625 modem is frequently deployed in large-scale control environments that rely on the AF100 protocol. Typical applications include:
- Power Plant Automation: Connecting remote I/O to central Advant controllers.
- Steel and Paper Mills: Managing real-time data flow across expansive facility floor plans.
- Marine Systems: Providing reliable communication for shipboard control networks.
- Mining Operations: Establishing long-range bus connections in harsh underground environments.
