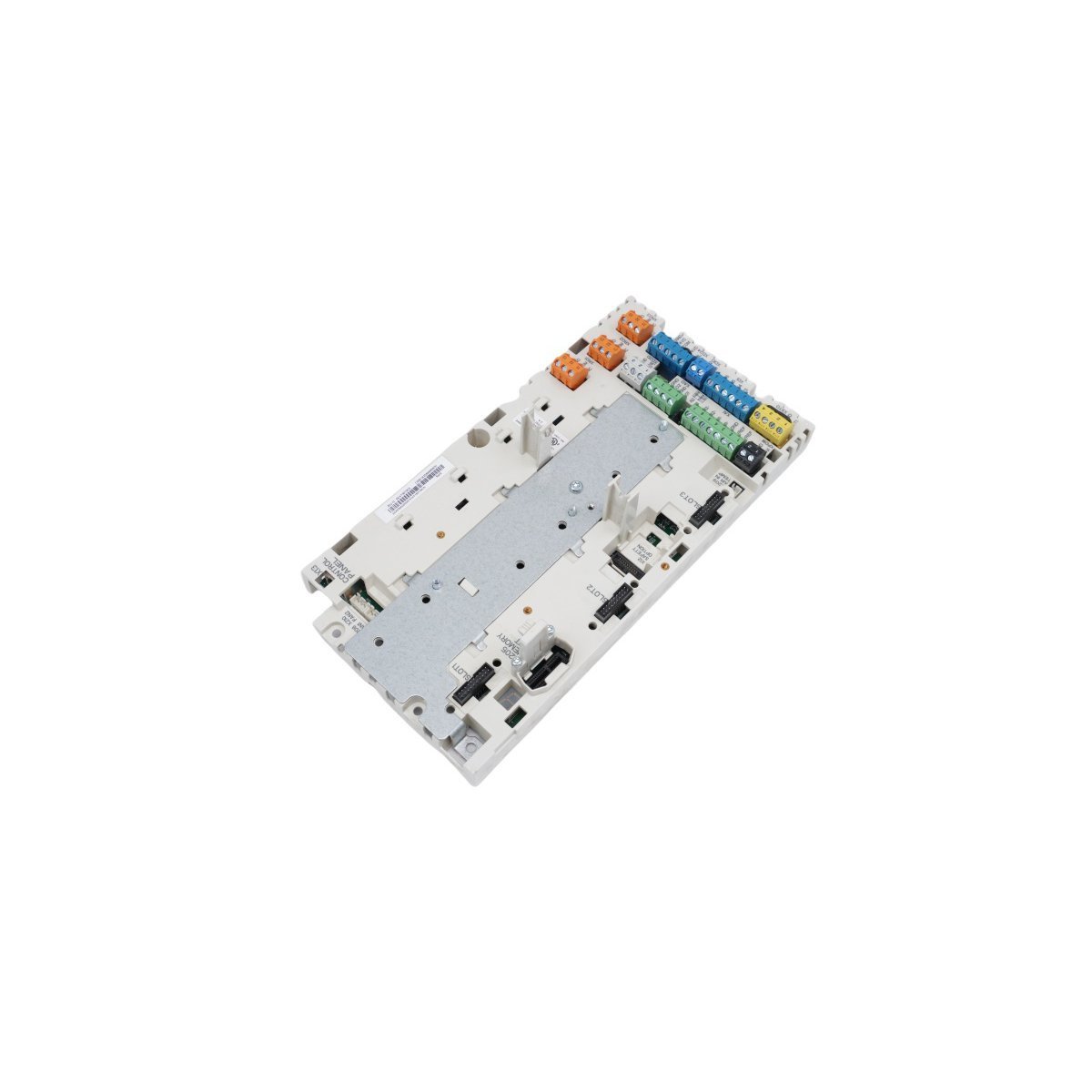

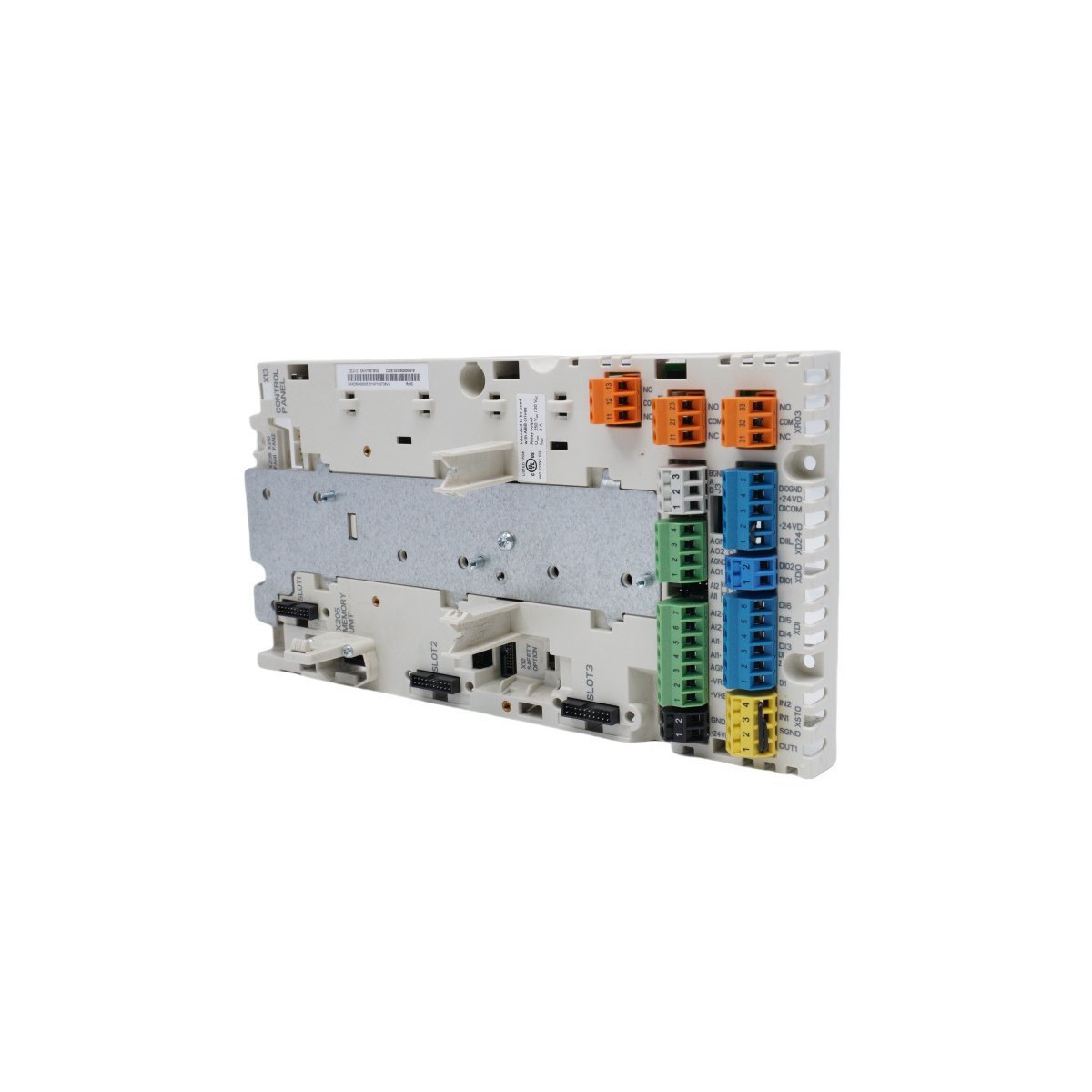

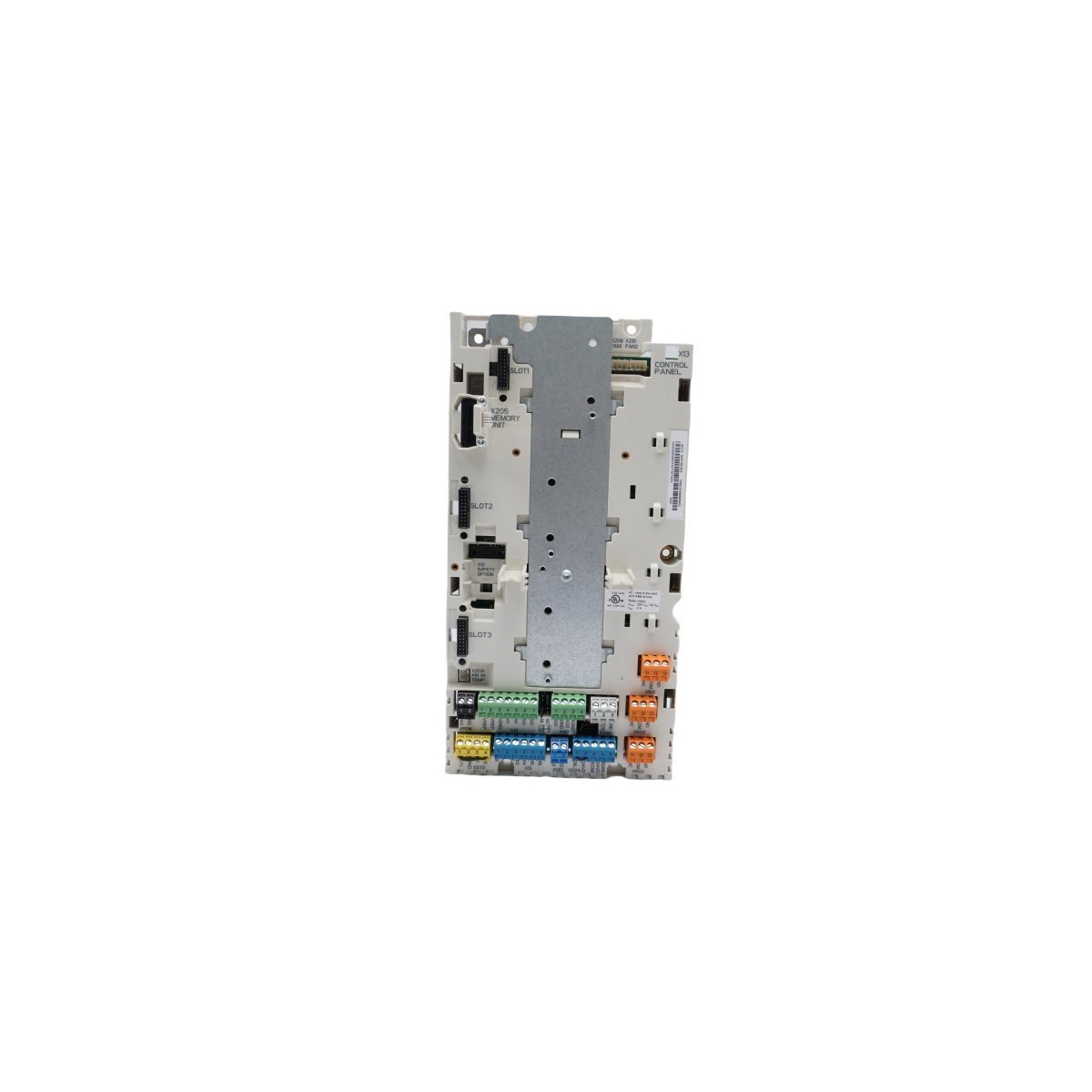

The ABB ZCU-12 3AXD50000005751 serves as the specialized control intelligence for the ACS880-11 drive series. This unit manages complex motor regulation tasks to ensure the highest levels of operational efficiency. Because it features a versatile processing architecture, the ZCU-12 supports multiple motor technologies, including AC induction, permanent magnet, and synchronous reluctance motors. The unit translates high-level system commands into precise electrical adjustments. This capability allows operators to achieve tight control over speed and torque in demanding industrial environments.
Advanced System Integration
Connectivity remains a priority for the ZCU-12 architecture. The unit provides multiple built-in interfaces that simplify the link between the drive and the overarching control network. Consequently, engineers can easily integrate the ZCU-12 into various Distributed Control Systems (DCS) or PLC setups. The unit constantly monitors motor health and performance parameters. If it detects a deviation from set limits, it triggers immediate protective actions to prevent hardware damage. This proactive monitoring approach significantly boosts overall system reliability.
Key Technical Characteristics
- Manufacturer: ABB
- Model Designation: ZCU-12
- Global Order Code: 3AXD50000005751
- Compatible Series: ACS880-11 Drive Systems
- Physical Mass: 0.58 kg
- Standard Dimensions: 27.2 x 8.5 x 13.9 cm
- Manufacturing Origin: Sweden
- Application Focus: Precise torque and speed regulation
Installation and Hardware Maintenance
The ZCU-12 uses a compact footprint to save valuable space within electrical cabinets. To ensure a professional installation, technicians should utilize the provided mounting template for accurate screw placement. This streamlined design reduces the time required for both initial setup and field replacements. Although the module reached its official discontinuation phase in late 2018, it remains a critical component for the maintenance of existing ACS880-11 drive infrastructures. Its robust Swedish engineering ensures continued performance even in high-vibration industrial settings.
