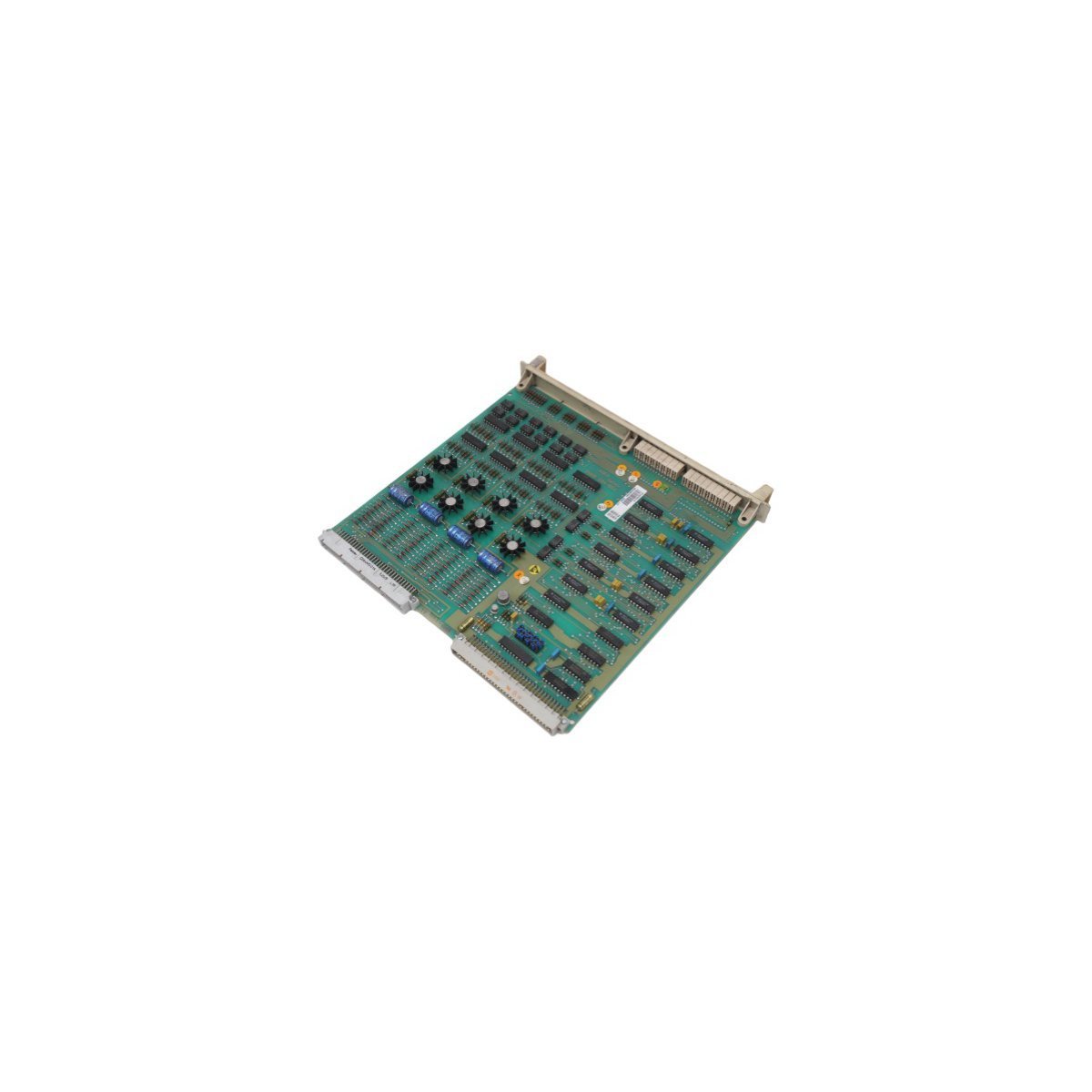

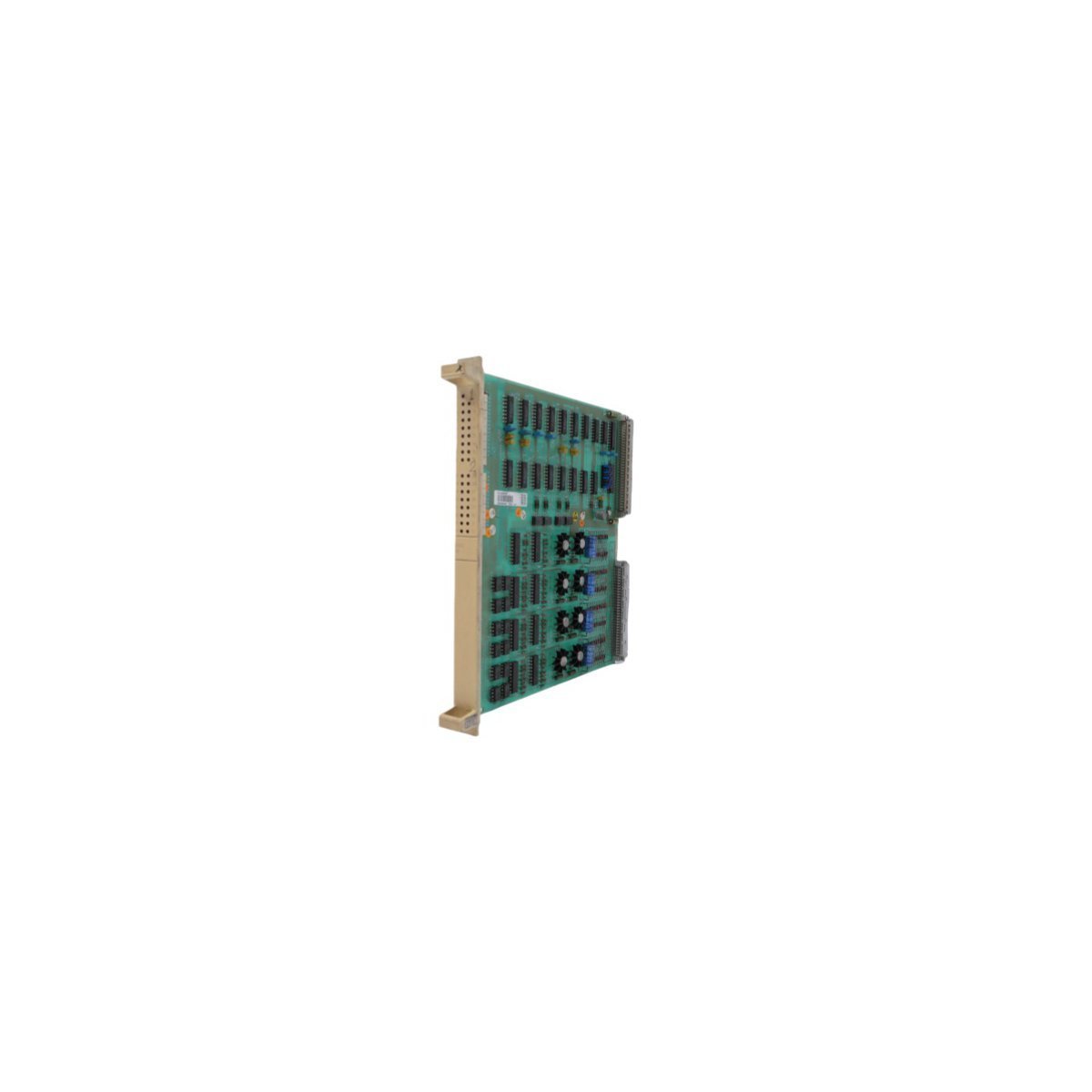

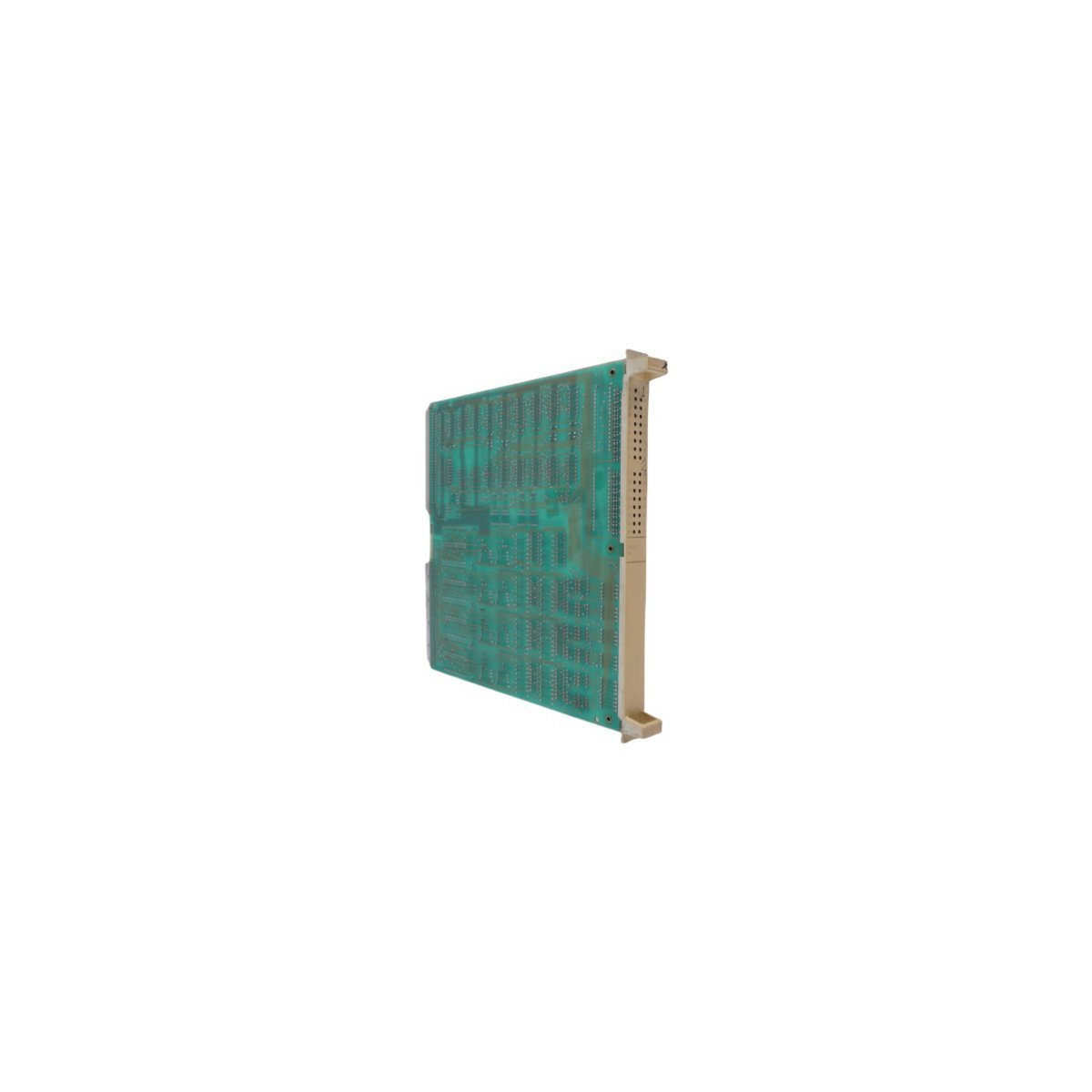

The ABB DSDO110 (57160001-K) serves as a high-reliability interface for the Advant S100 I/O system. This board translates controller logic into physical electrical outputs to drive field actuators. It manages various loads including motor starters, indicating lamps, and solenoid valves. Consequently, the module ensures consistent performance in high-stakes DCS environments.
Furthermore, the unit features robust circuit protection to safeguard against electrical transients. It effectively isolates the control layer from field-side disturbances and noise. The DSDO110 remains a fundamental component for maintaining process integrity in heavy industry.
Technical Profile and Specifications
- Manufacturer: ABB
- Model Designation: DSDO110
- Order Reference: 57160001-K
- I/O Series: S100 System
- Hardware Type: Digital Output Board
- Net Weight: 0.44 kg
- Unit Dimensions: 2 x 25.3 x 24.3 cm
- Manufacturing Origin: Sweden
- System Environment: DCS / Advant Controller
- Condition: Brand New, Factory Original
System Compatibility and Integration
The DSDO110 integrates perfectly with Advant OCS and MasterPiece controller families. It utilizes the standard S100 bus interface for rapid data communication. Moreover, the board supports hot-swap functionality within compatible subracks to minimize system downtime.
Additionally, the hardware design prioritizes low heat dissipation for extended component life. This thermal efficiency allows for high-density mounting in standard control cabinets. Therefore, engineering teams can optimize panel space without compromising thermal safety.
