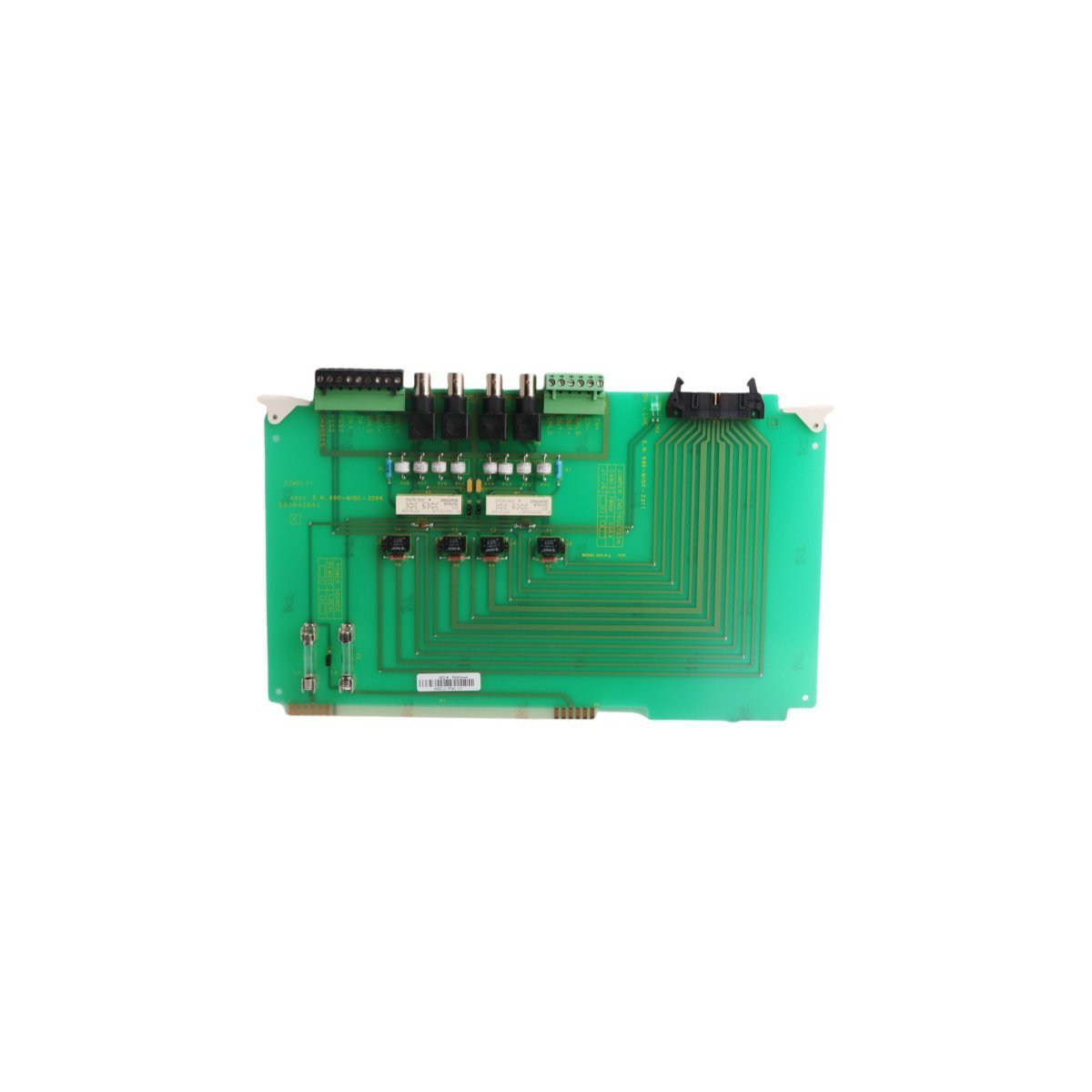

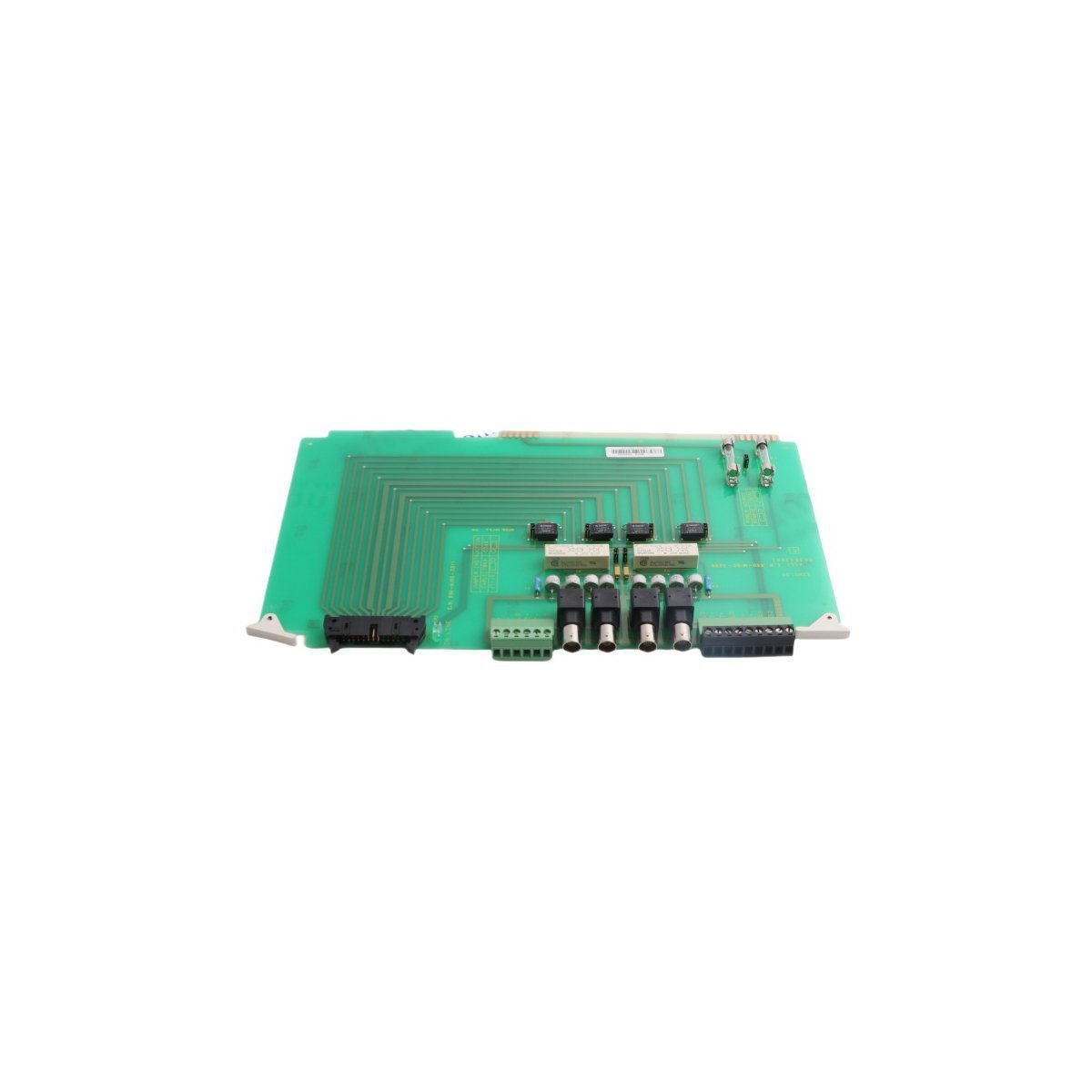

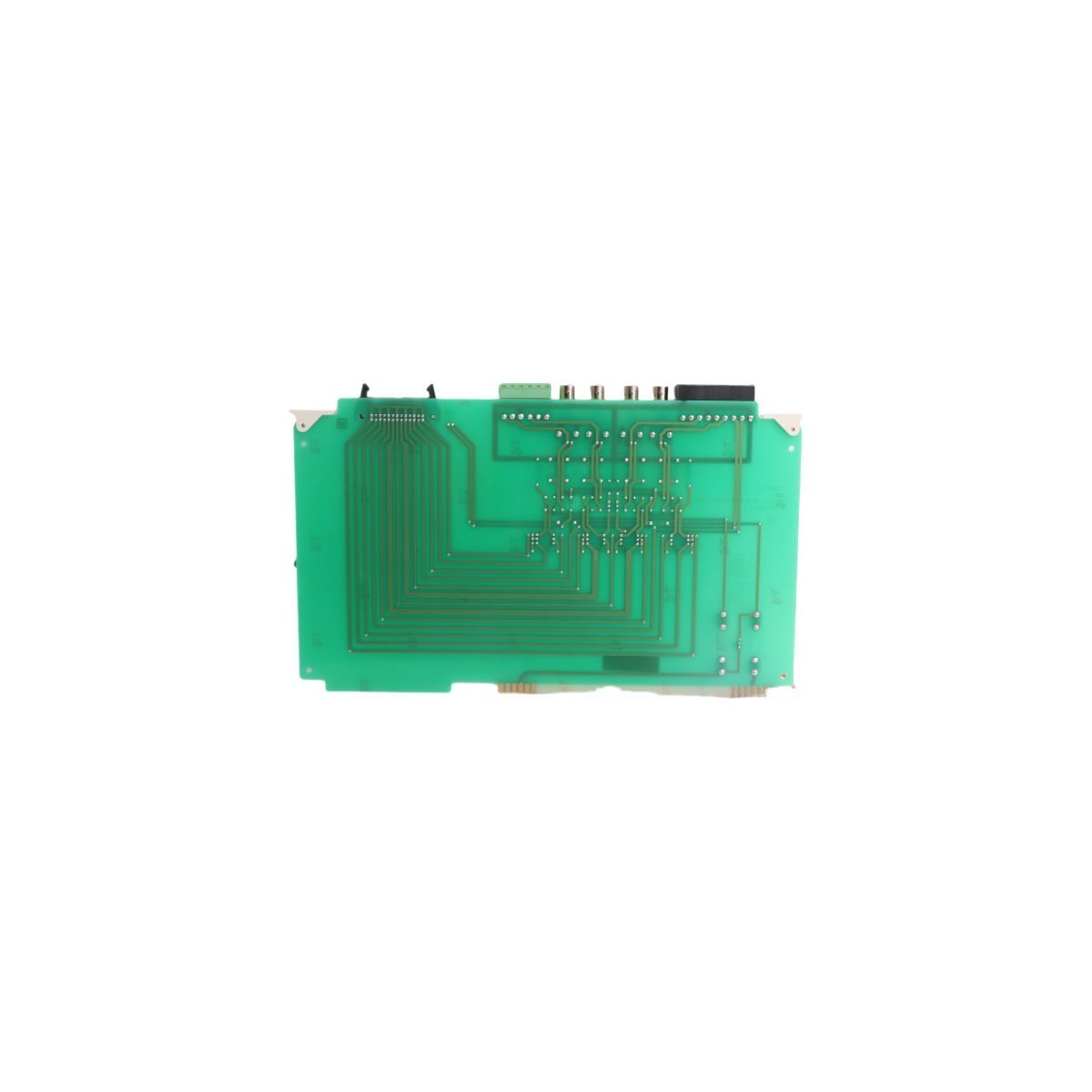

The ABB IIMCL01 serves as a critical termination interface within the Harmony Rack (HR) Series I/O architecture. This Multibus Communication Link module provides essential impedance matching for high-speed data buses. It prevents signal reflections that otherwise degrade communication quality across the DCS network. By stabilizing the electrical environment of the Multibus, the IIMCL01 ensures that every control command reaches its destination without error. Consequently, this hardware maintains the synchronization necessary for complex distributed control processes.
Technical Specifications
| Feature | Details |
| Brand | ABB |
| Model Number | IIMCL01 |
| Product Line | Harmony Rack (HR) Series |
| Module Category | Communication Link Termination |
| Protocol Support | Profibus-DP / Multibus |
| Construction Material | High-Grade Industrial Alloy |
| Net Weight | 0.3 kg |
| Physical Dimensions | 31.2 x 19.2 x 1.8 cm |
| Manufacturing Origin | Sweden |
| System Compatibility | Bailey / Symphony Plus DCS |
Technical Performance Characteristics
- The module utilizes high-precision termination resistors to eliminate signal ghosting on the bus.
- Integrated communication logic supports seamless data exchange via the Profibus-DP protocol.
- A slim, lightweight form factor allows for high-density mounting in standard Harmony Rack cabinets.
- Industrial-grade aluminum housing provides superior heat dissipation and structural rigidity.
- This unit includes passive and active diagnostic points for rapid bus health verification.
- Robust connector interfaces ensure a low-resistance path for critical signal transmission.
- The design resists electromagnetic interference commonly found in heavy industrial power environments.
