3BHE009017R0102 XVC724BE102 ABB ACS2000 Series VLSCD Circuit Boards

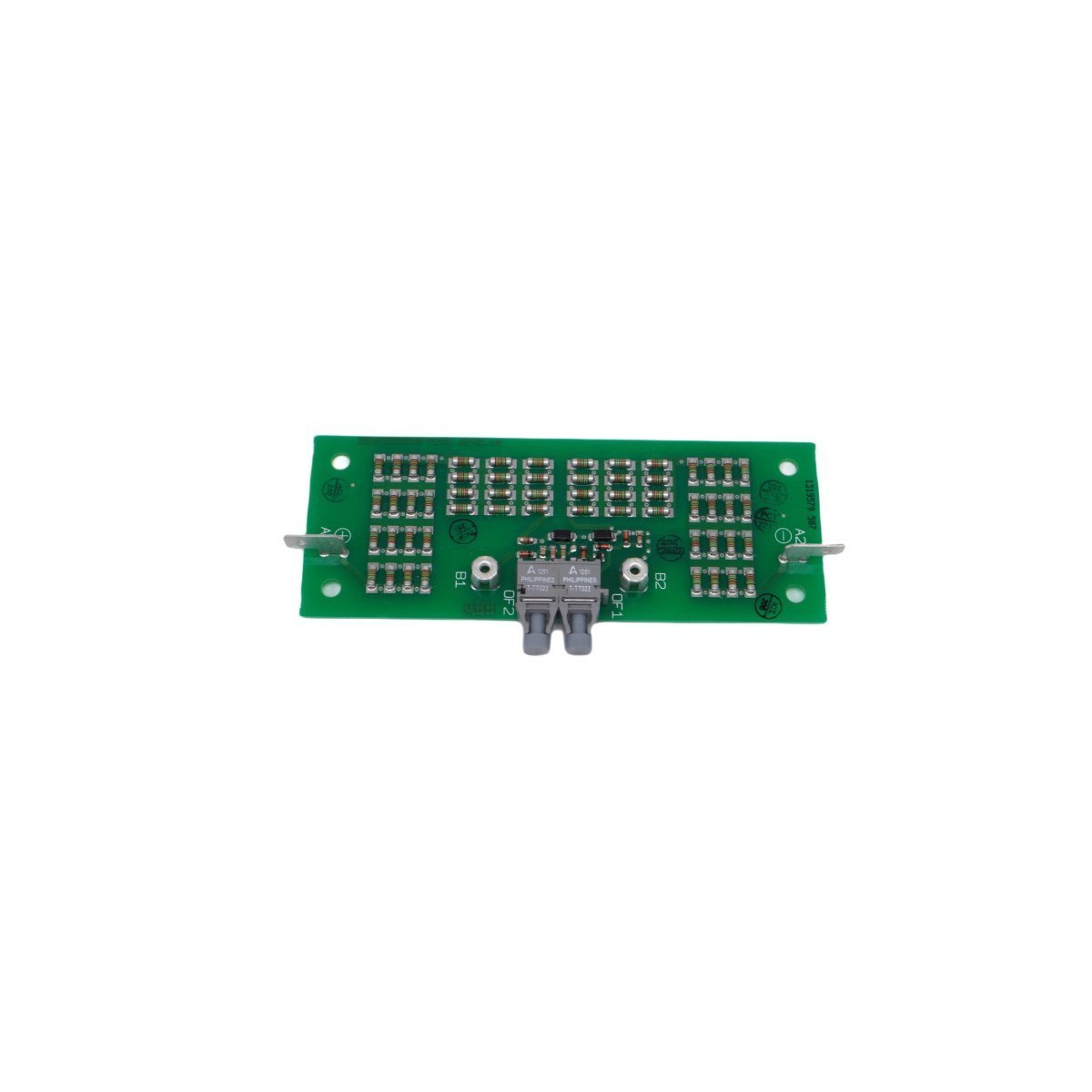

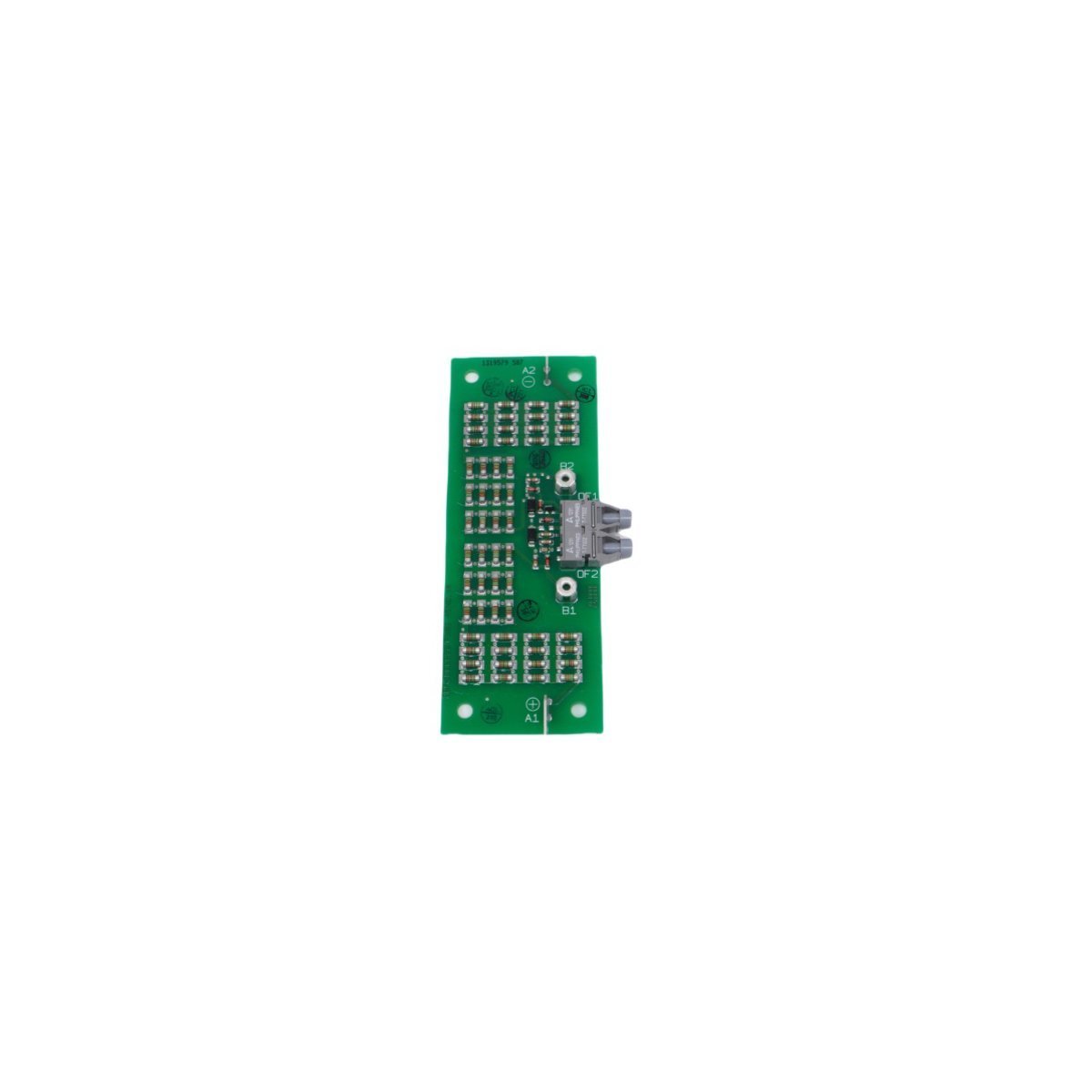

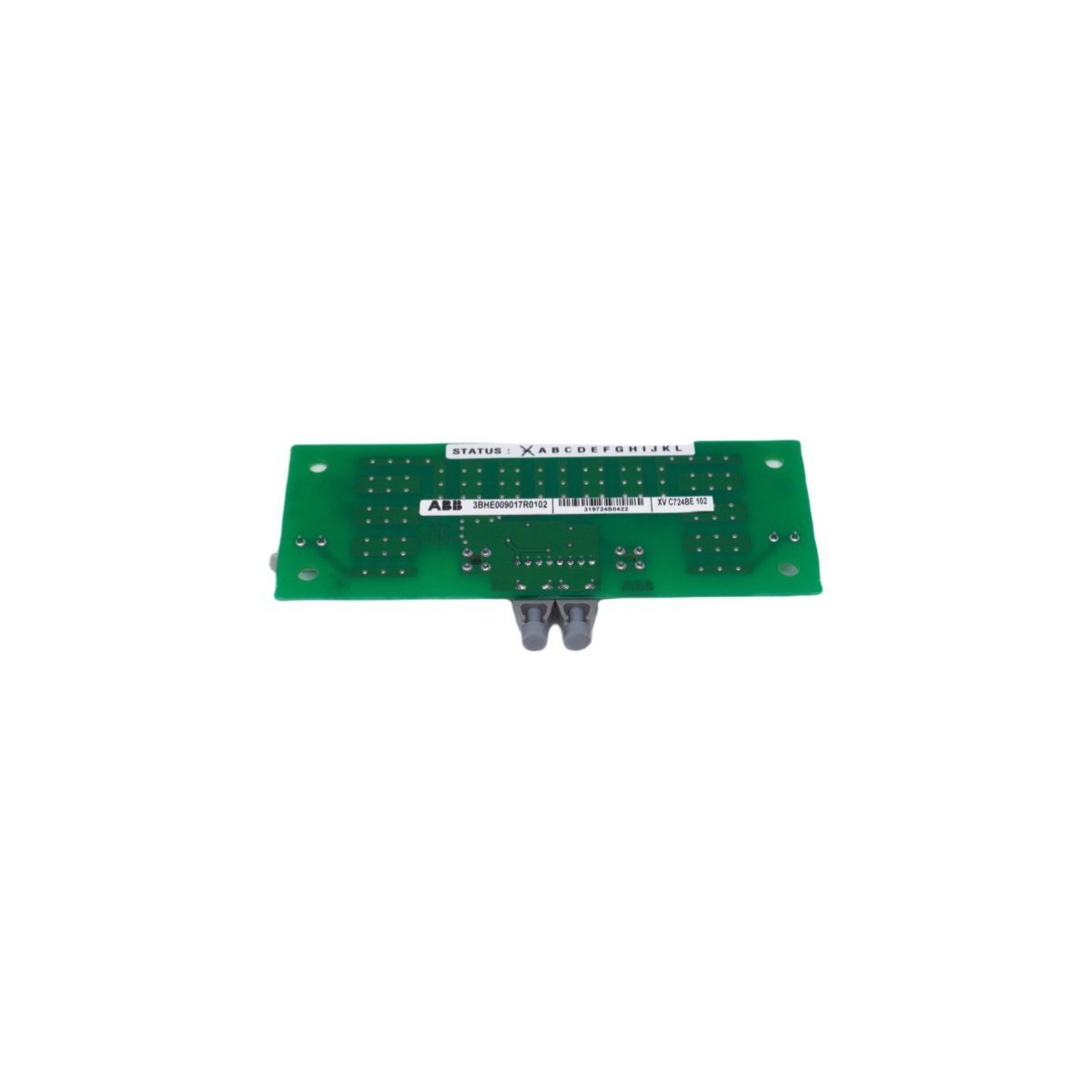

ABB 3BHE009017R0102 XVC724BE102 ACS2000 VLSCD Board

The ABB 3BHE009017R0102 XVC724BE102, also cataloged as the XVC724BE102 VLSCD Board, operates as a dedicated hardware component for pulse execution and dynamic switching signal processing within ACS2000 Series medium voltage drives. Onboard circuits receive control commands from the main drive processing unit and output targeted firing pulses to power semiconductor assemblies. Consequently, the board maintains high-speed switching accuracy while transmitting diagnostic parameters over internal Ethernet router interfaces to the primary DCS network.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks & Signal Scaling

The board integrates directly into Profinet and EtherNet/IP deterministic networks, which allows real-time timing synchronization between control algorithms and field power stages. High-speed optocouplers provide channel-to-channel isolation to prevent electrical transients from degrading onboard processing circuits. Furthermore, conformal coating across the printed circuit board protects delicate surface-mount components against airborne contaminants and ambient moisture in industrial drive enclosures. Firmware flash compatibility enables seamless updates across system revisions without requiring physical hardware modifications.

Frequently Asked Questions

Q: How does the conformal coating affect installation in high-humidity drive enclosures?

A: The protective conformal coating seals surface-mount components against moisture condensation and industrial pollutants. However, technicians must verify that terminal contact points remain clean and corrosion-free during installation.

Q: Can maintenance personnel flash update the board firmware while installed in the drive rack?

A: Technicians flash update the firmware via the central Ethernet router interface using factory service software. System operators must stop drive switching and isolate main power before initiating the flash writing cycle.

Q: What precautions prevent electrostatic damage when handling this lightweight module?

A: Technicians must wear a grounded ESD wrist strap connected to cabinet earth ground, because static discharges can permanently rupture sensitive gate driver semiconductors.

Field Installation Guidelines

1. Disconnect all main medium-voltage power feeds and wait at least 15 minutes to allow internal drive DC bus capacitors to discharge completely before opening the cabinet doors.
2. Wear an ESD grounding wrist strap clamped to the chassis frame before removing the board from its anti-static shielding bag.
3. Align the circuit board with the designated mounting standoffs, and insert retention screws gently into place. Tighten fasteners to 0.4 Nm using a torque screwdriver to prevent PCB stress fractures.
4. Connect internal interface ribbons and Ethernet cables until side latches click firmly, which guarantees solid electrical continuity.
5. Route low-voltage control lines away from high-current phase busbars. Maintain a minimum physical separation distance of 200 mm to block electromagnetic interference from disrupting gate switching signals.
6. Verify that ground drain wires attach directly to the cabinet earth bar with a minimum thread engagement of 5 full turns before restoring power to the unit.
