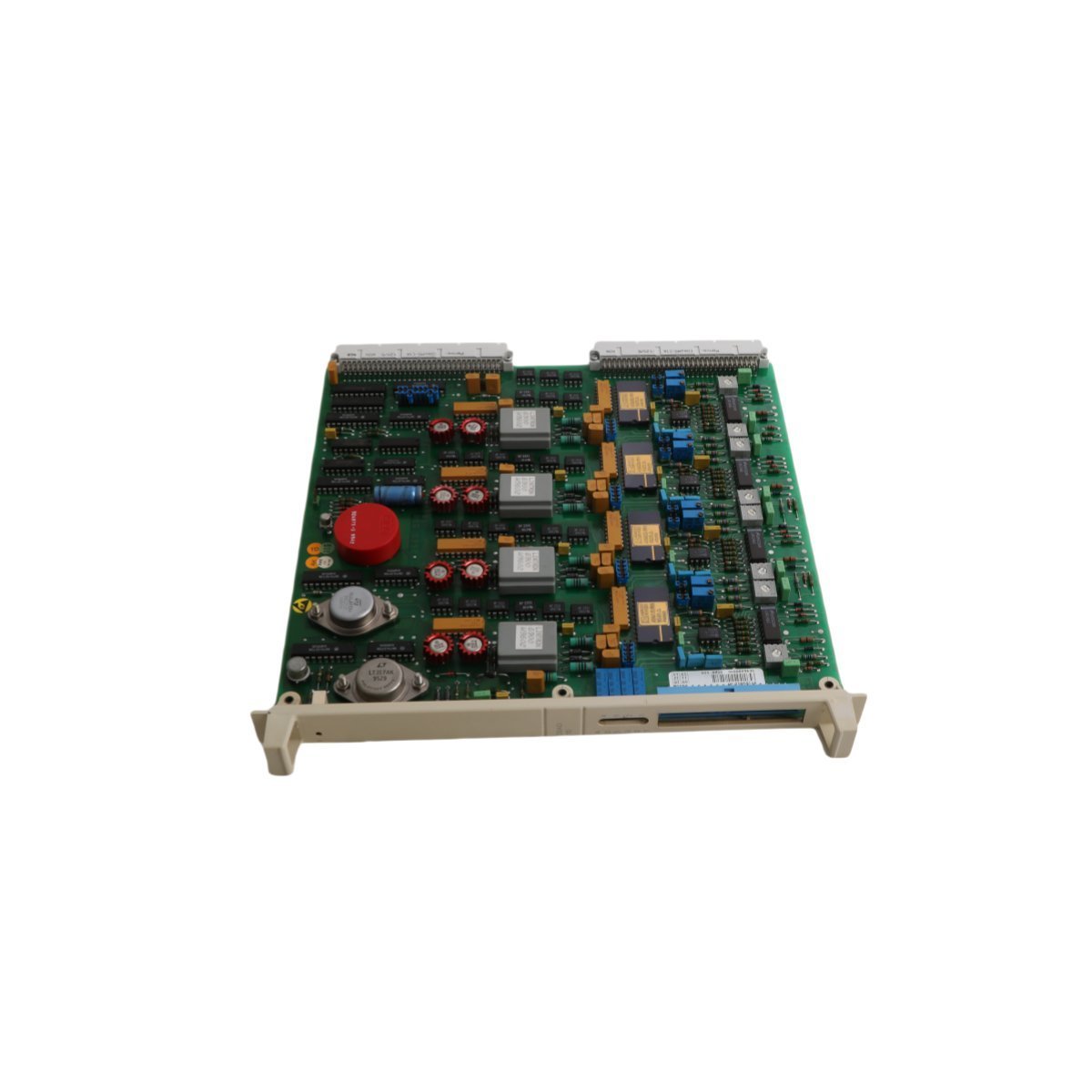

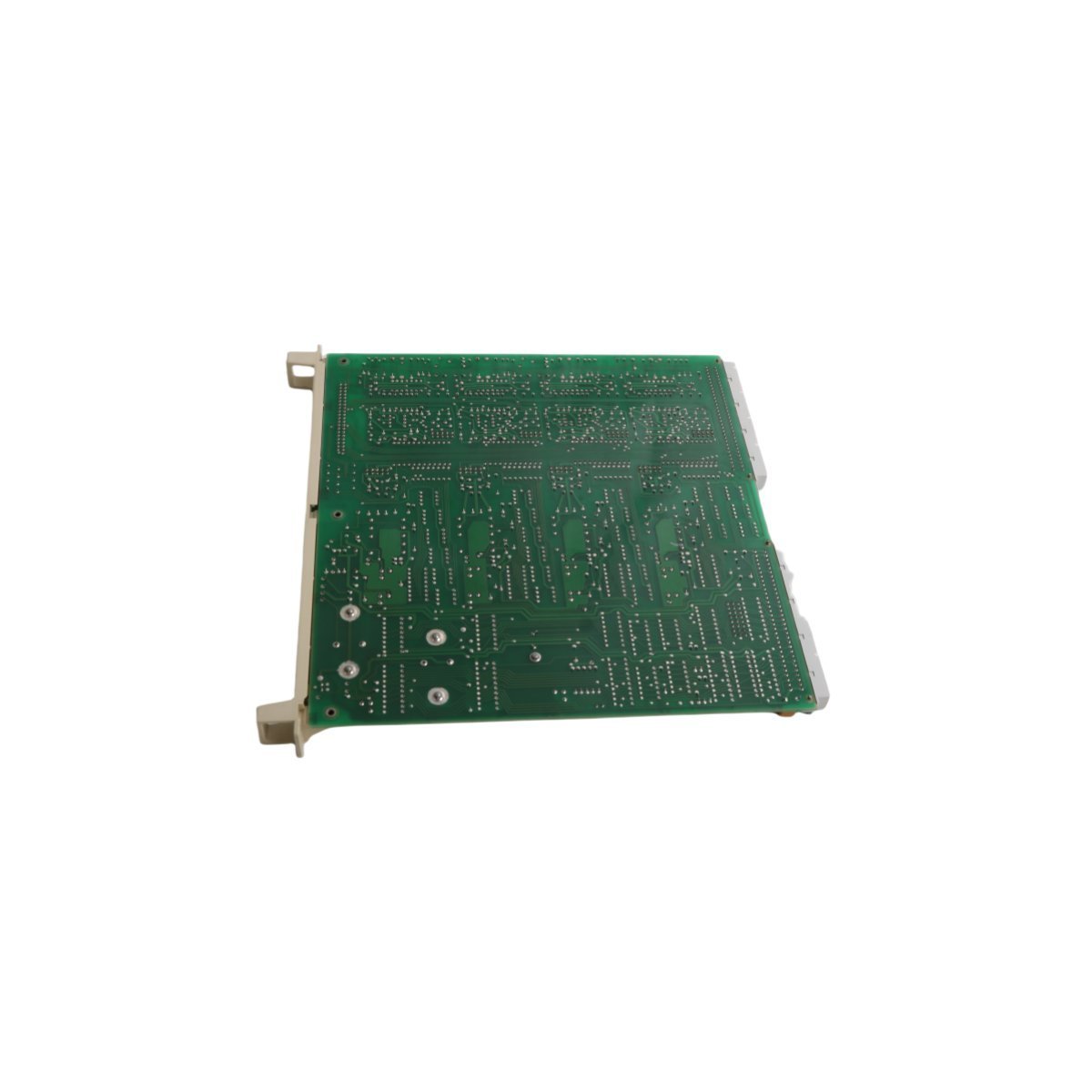

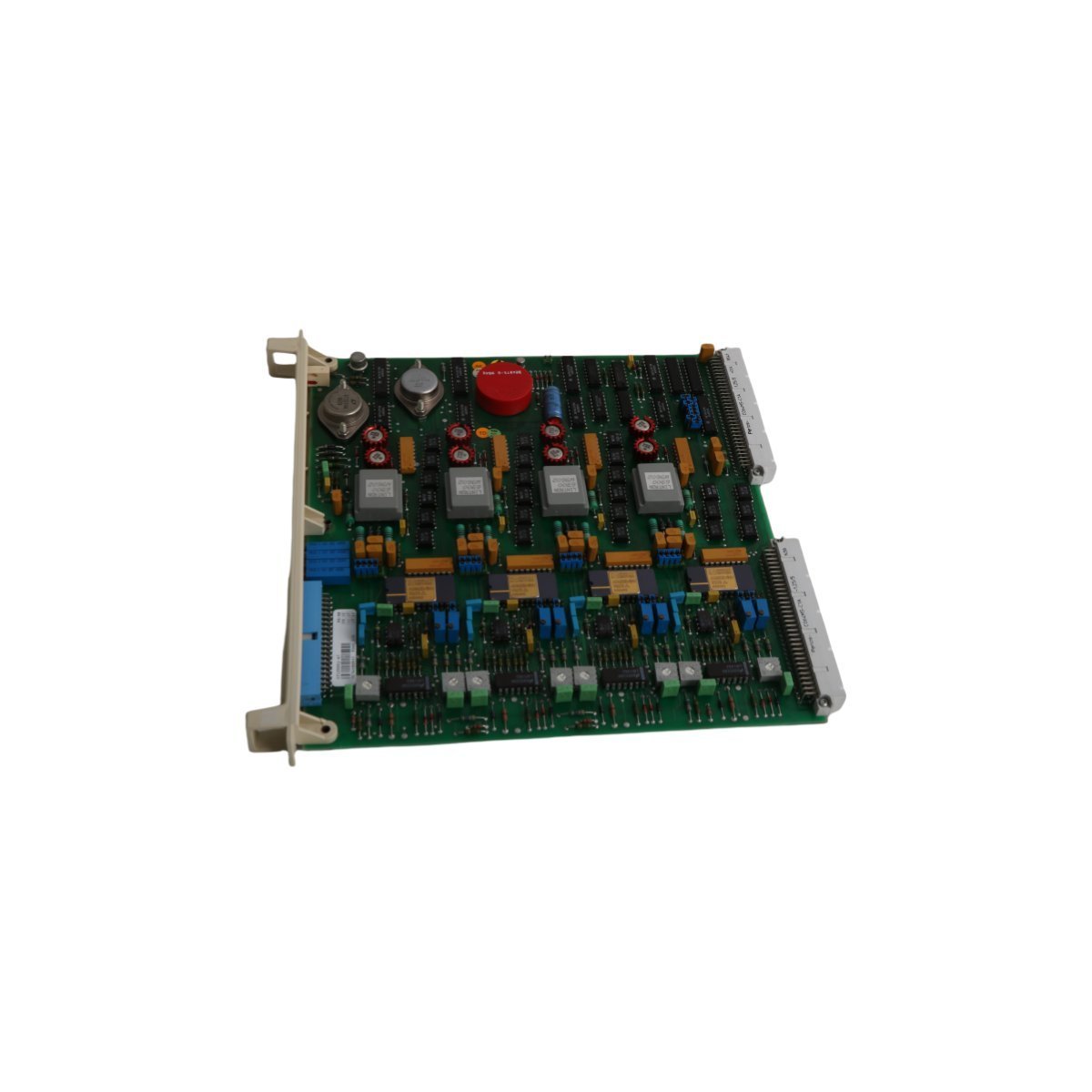

The ABB DSAO 110 (57120001-AT) provides exceptional control over field equipment through accurate analog signal conversion. This module serves as a critical interface within the S100 I/O system architecture. It converts digital controller data into physical electrical signals to drive actuators and valves. Consequently, the unit ensures smooth and stable operation for complex industrial machinery. It specifically targets high-demand applications in chemical processing, water treatment, and manufacturing.
Versatile Output Ranges and High Resolution
This module offers eight independent channels for comprehensive device management. Each channel supports flexible signal standards including ±10 V voltage and ±20 mA current loops. Furthermore, the 12-bit resolution provides the fine-grained control necessary for sensitive process variables. This technical precision allows operators to maintain tight tolerances during production cycles. As a result, the facility achieves better product quality and reduced material waste.
Intelligent Diagnostics and System Reliability
ABB engineers designed the DSAO 110 with integrated self-monitoring features to maximize system uptime. The module performs constant hardware checks to identify potential failures before they disrupt the process. Moreover, the robust Sweden-made construction protects internal circuits from harsh electrical noise. This durability ensures a long service life even in demanding DCS environments. The hardware maintains consistent performance during high-speed data exchanges across the control network.
Technical Specifications
- Brand: ABB
- Model Code: DSAO 110
- Order Number: 57120001-AT
- Product Type: Analog Output Module
- I/O Series: S100 I/O
- Channel Count: 8 Channels
- Signal Ranges: ±10 V / ±20 mA
- Conversion Resolution: 12-Bit
- Net Weight: 0.5 kg
- Dimensions: 2 x 25 x 24.5 cm
- Manufacturing Origin: Sweden
