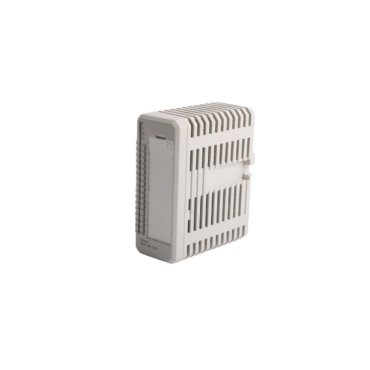

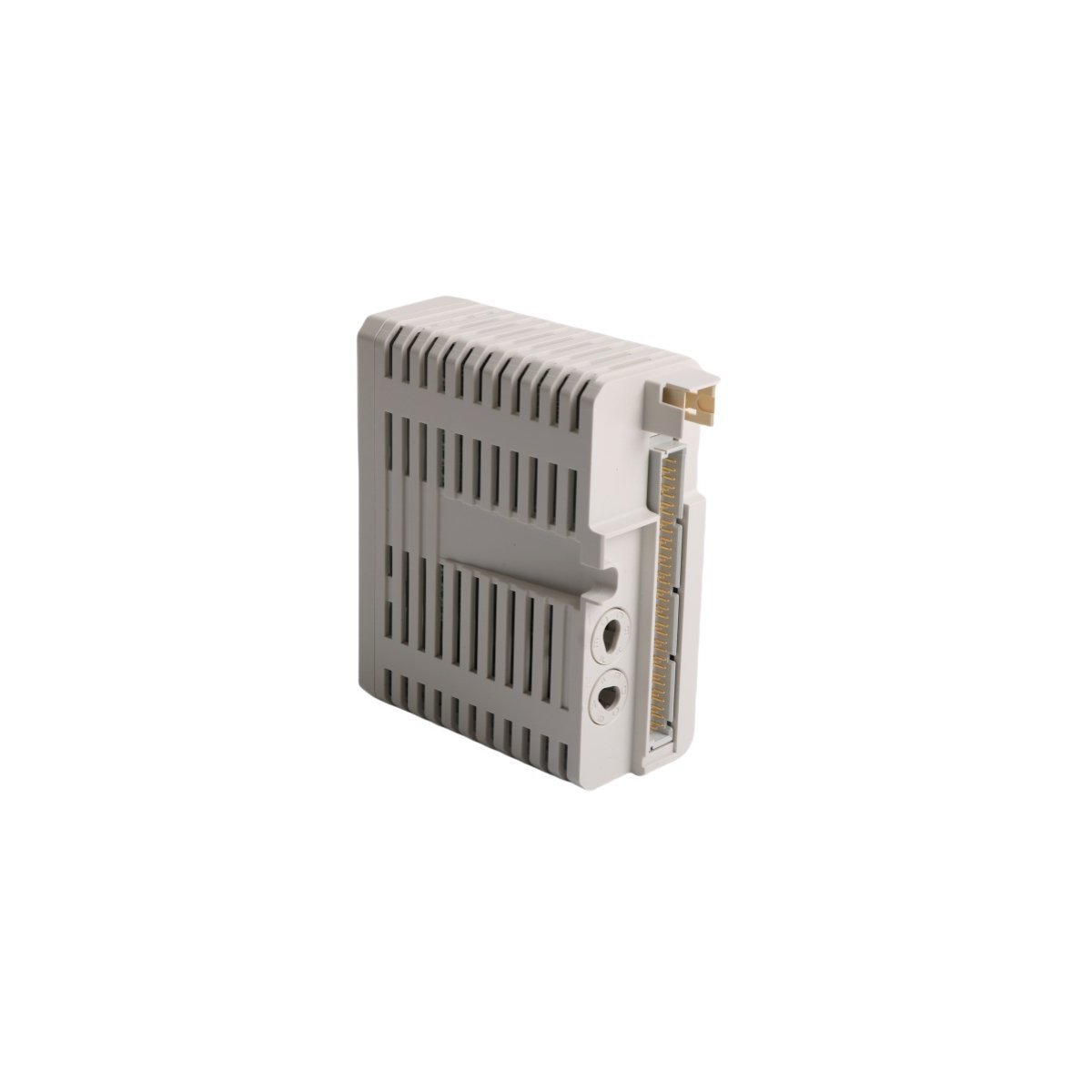

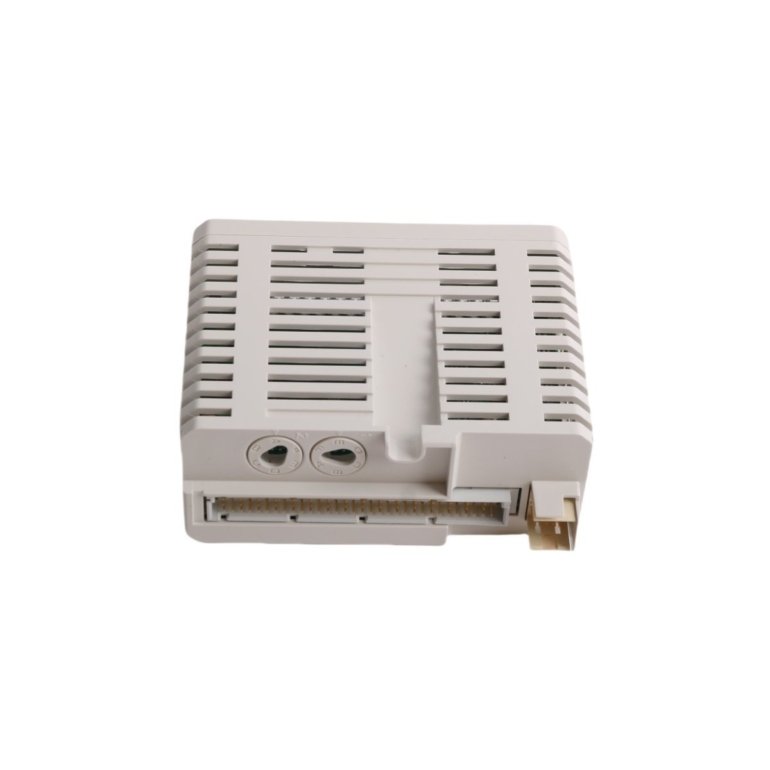

ABB DO818 3BSE069053R1 Digital Output Module

The ABB DO818 functions as a high-capacity switching interface for the AC 800M controller and S800 I/O system. This module provides 32 independent channels to drive field devices like solenoid valves and motor starters. It organizes these channels into two separate groups of 16 to improve electrical isolation. Furthermore, each group monitors its own process voltage to detect power supply failures instantly. The unit manages 24V DC nominal loads with a maximum current of 0.5A per channel. This design ensures the DCS can control many devices while maintaining a compact cabinet footprint. Consequently, the DO818 optimizes space without sacrificing performance in complex automation architectures.

Technical Specifications

Principal Technical Characteristics

• High channel density allows for the control of 32 actuators from a single I/O slot.
• Dual isolated groups provide 50V isolation to protect the system bus from field noise.
• Integrated voltage supervision detects low or missing process power for each 16-channel bank.
• Per-channel LED indicators provide immediate visual feedback for troubleshooting and maintenance.
• Hot-swap support enables module replacement while the rest of the system remains powered.
• Short-circuit protection limits current to prevent internal damage during field wiring faults.
• Fast internal response times meet the requirements for high-speed manufacturing and safety interlocks.
• Low power dissipation reduces the thermal load inside sealed industrial control panels.

Operational Scope and Industry Application

Engineers typically deploy the DO818 in oil and gas refineries and power generation facilities. The module excels in environments that require high reliability and constant diagnostic feedback. Because it handles 32 points, it significantly reduces the cost per I/O point for large projects. The hardware remains fully compatible with standard S800 I/O MTUs for easy installation. This module serves as a reliable backbone for decentralized control in modern manufacturing plants. It effectively bridges the gap between digital logic and physical mechanical action.
