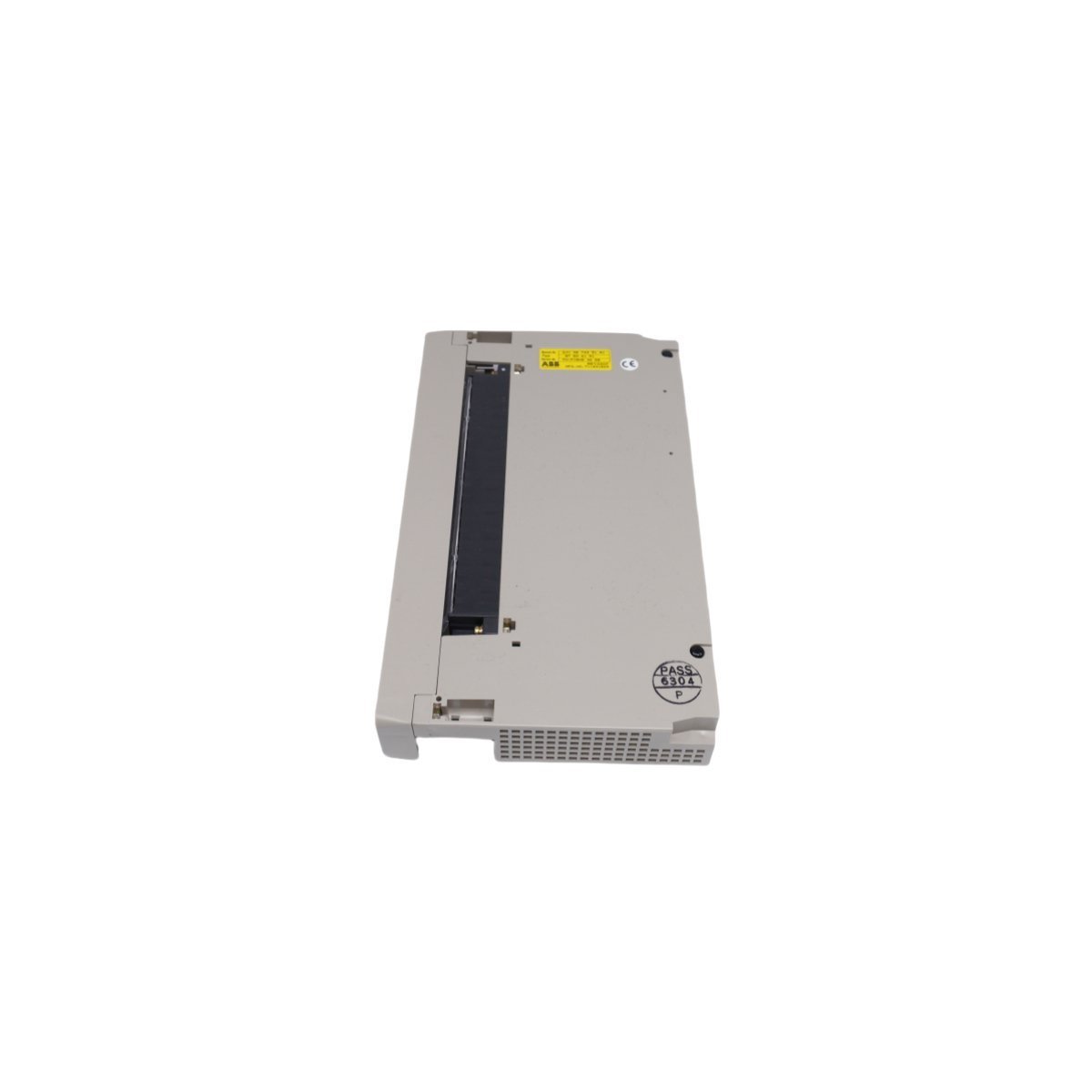

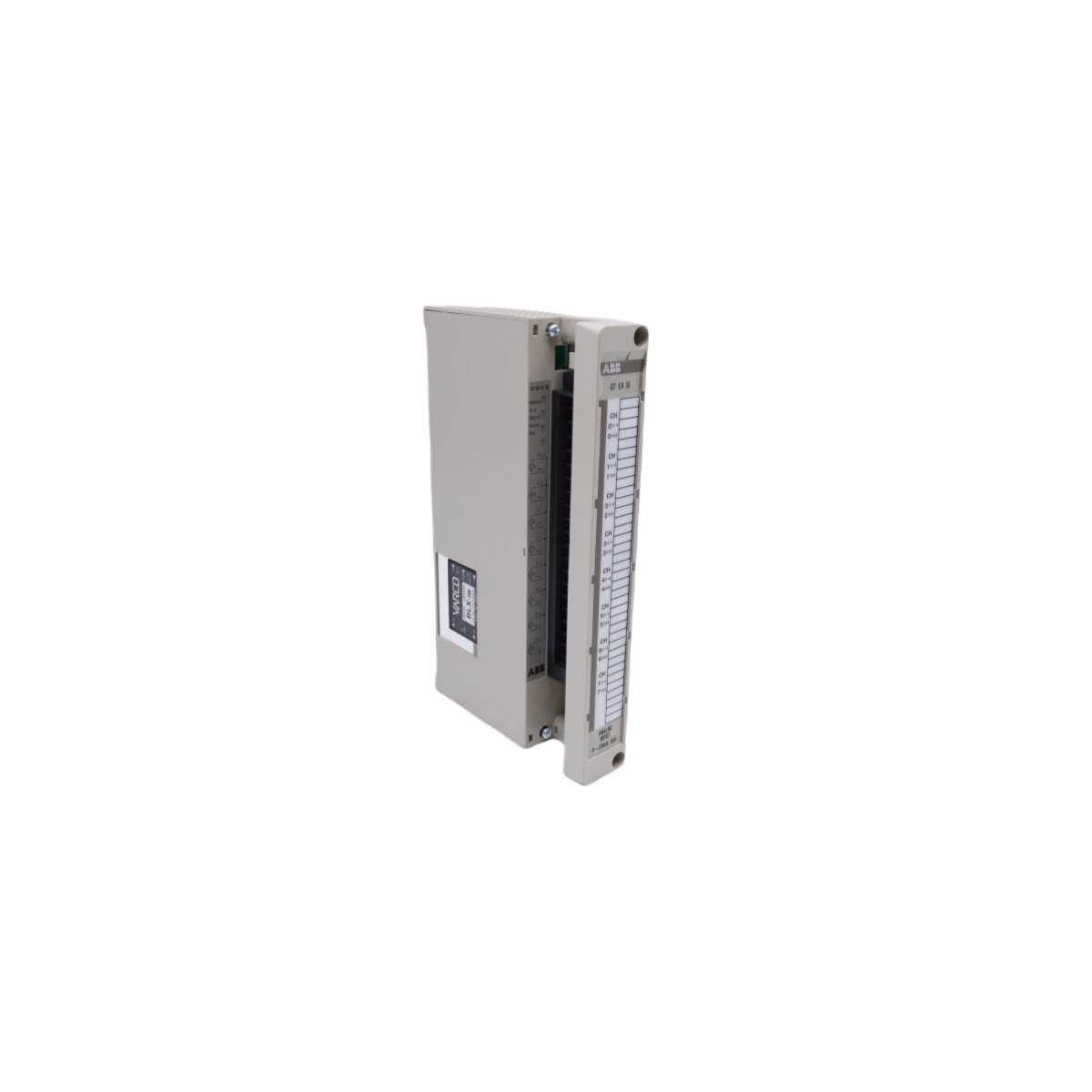

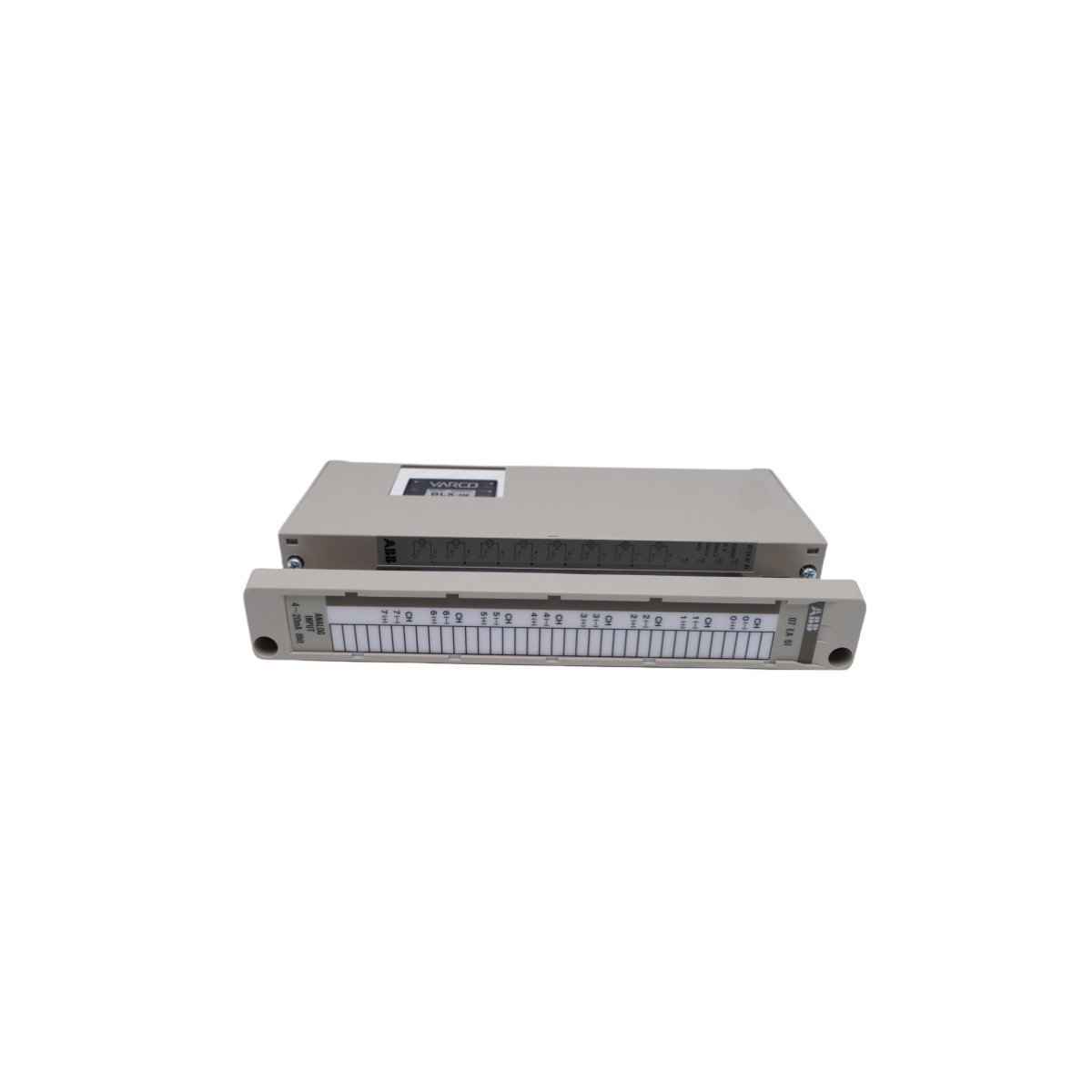

ABB 07EA61R1 GJV3074351R1 Analog Input Module

The ABB 07EA61R1 GJV3074351R1 serves as a high-fidelity analog measurement interface within the Procontic T200 PLC system. This module accurately converts variable field signals into digital data for the central processor. It primary manages standard 4-20 mA current loops from various industrial transmitters. Because it utilizes high-resolution conversion circuitry, the unit ensures exceptional signal clarity. Consequently, process engineers can maintain tight control over temperature, pressure, and flow variables. The 07EA61R1 therefore acts as a critical bridge between physical sensors and digital automation logic.

Technical Specifications

Core Technical Characteristics

• Advanced internal filtering effectively eliminates electromagnetic interference from raw analog field signals.
• The 0.9 kg heavy-duty construction provides superior mechanical durability for industrial racks.
• Integrated diagnostic LEDs offer immediate visual confirmation of module power and channel status.
• High-speed sampling rates allow the controller to react quickly to rapid process fluctuations.
• Galvanic isolation protects the internal system bus from hazardous field-side electrical surges.
• The Sweden-manufactured PCB utilizes high-grade components for long-term operational stability.
• Compatibility with the Procontic T200 ensures seamless integration into established ABB architectures.
• Calibrated input channels maintain high accuracy across the entire standard measurement range.

Operational Utility and Deployment

Automation professionals typically deploy the 07EA61R1 in water treatment, chemical processing, and energy facilities. The module excels at monitoring critical process parameters that require constant analog feedback. Because it handles the 4-20 mA standard, it works with most industrial sensors globally. Although ABB officially discontinued the series in late 2018, these modules remain essential for system maintenance. Using original GJV3074351R1 hardware ensures that legacy PLC systems continue to run without software errors. This module remains a reliable solution for extending the life of existing automation assets.
