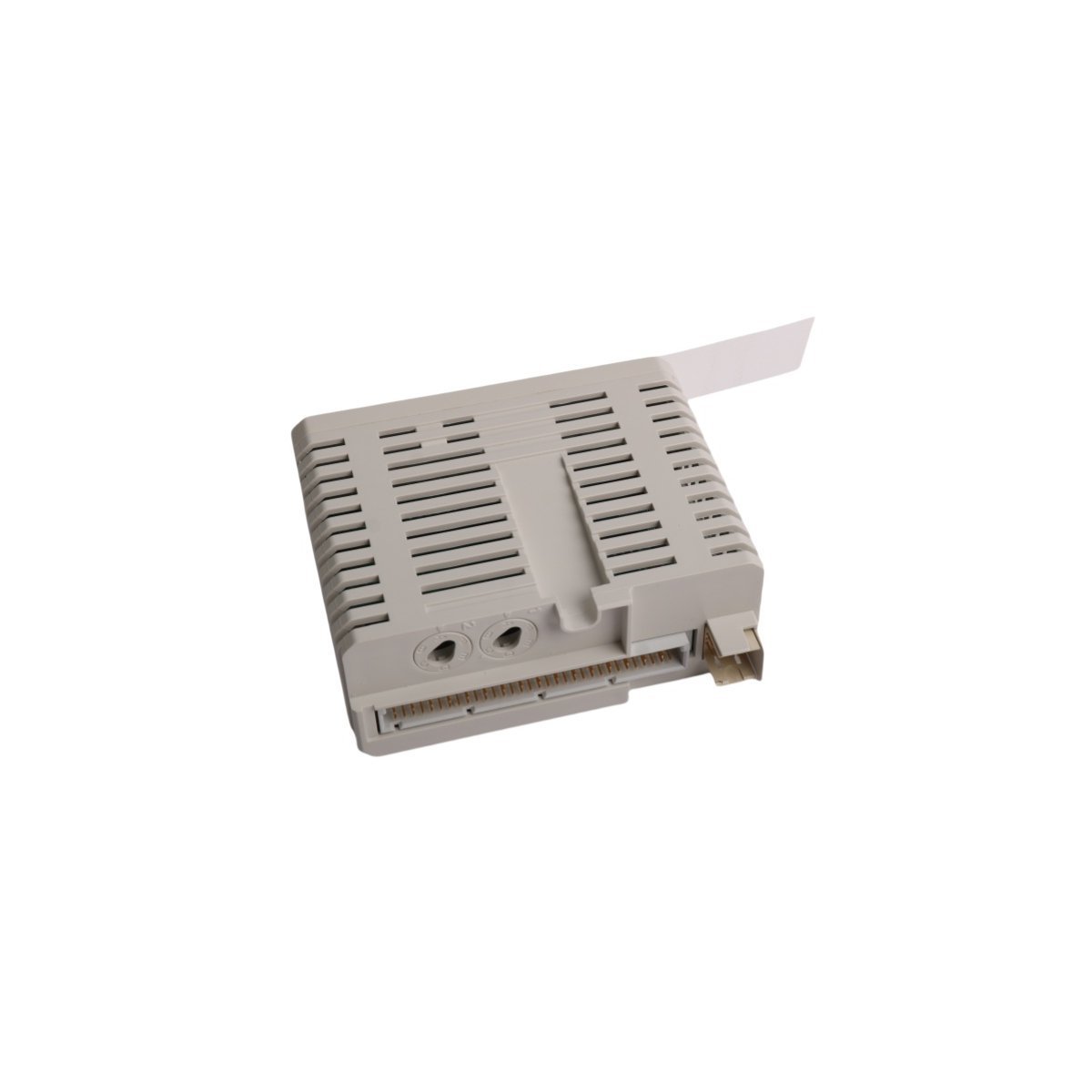

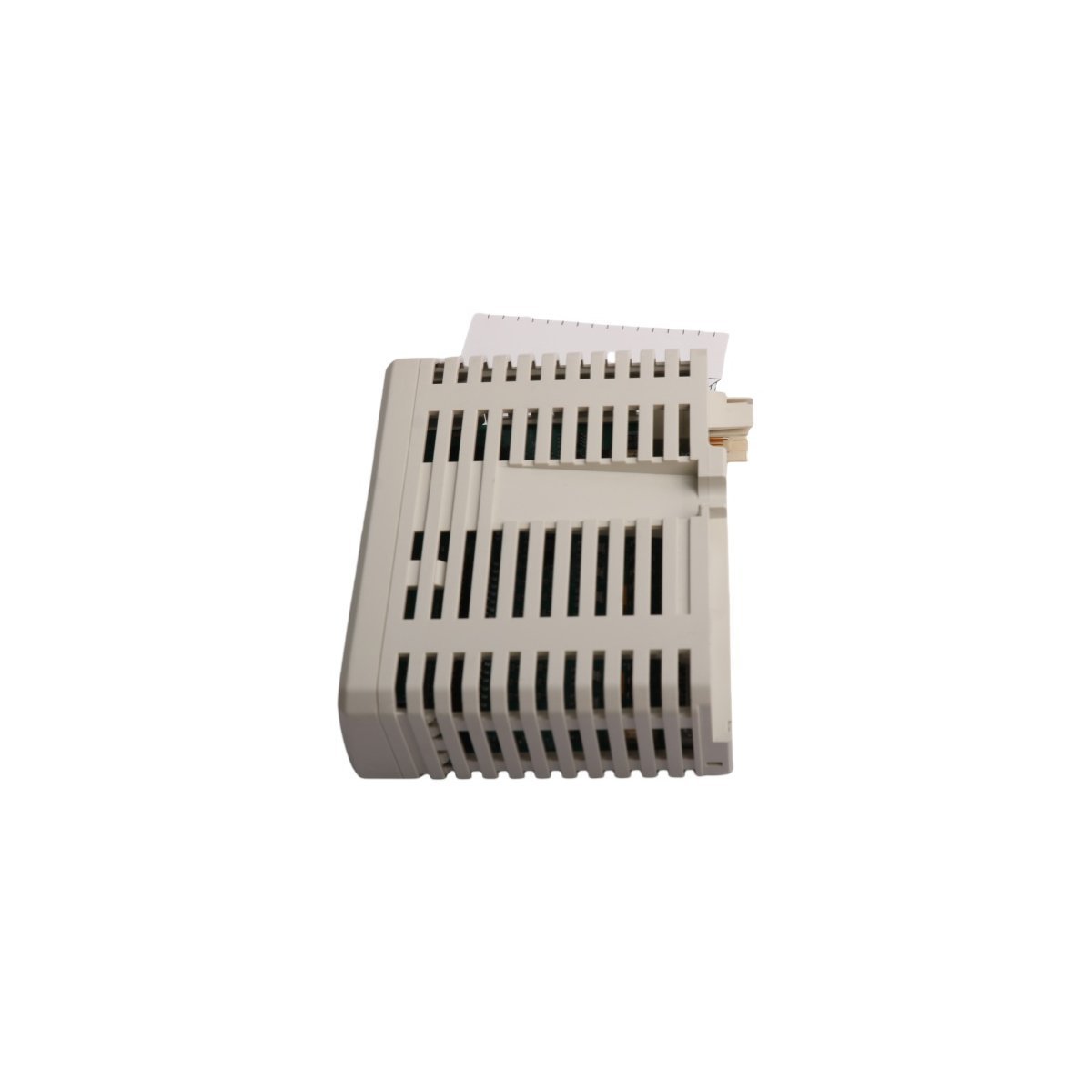

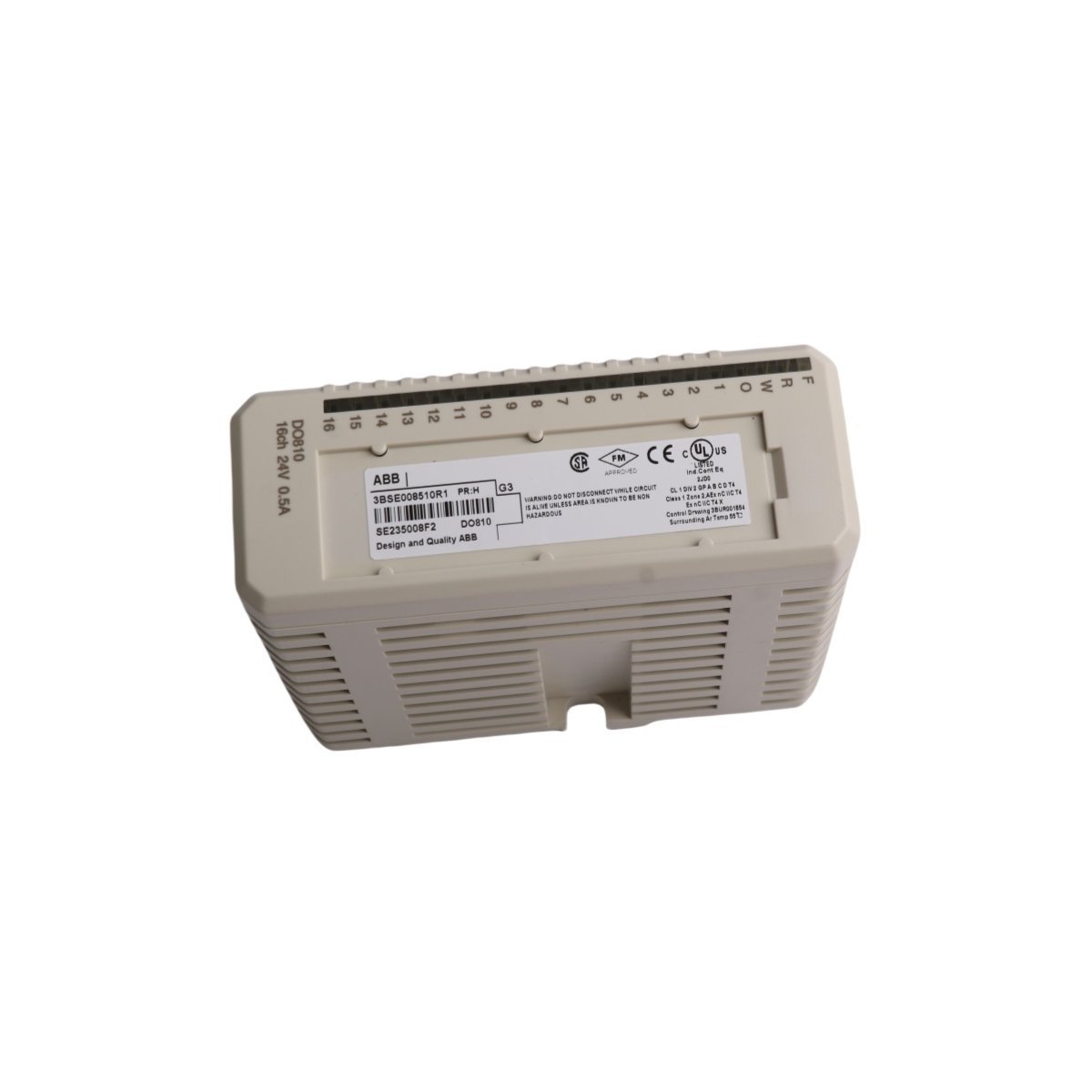

The ABB DO810 (3BSE008510R1) provides 16 high-performance digital output channels for the S800 I/O system. This module executes precise switching commands for field devices within complex automation architectures. Each channel manages a continuous current of 0.5A at a 24V DC nominal voltage. Consequently, the unit drives solenoid valves, relays, and indicators with exceptional accuracy. This hardware ensures reliable execution of control logic in process and manufacturing industries.
Advanced Group Isolation and Intelligent Monitoring
The internal architecture divides the 16 outputs into two electrically isolated groups of eight. This grouping improves system safety and prevents electrical faults from spreading across the module. Furthermore, the DO810 features dedicated voltage supervision for each channel group. The module detects power loss and reports errors via the ModuleBus interface immediately. This intelligent monitoring capability allows operators to identify faults without manual field inspections.
Comprehensive Hardware Protection and Signal Integrity
ABB integrated multiple layers of protection to ensure longevity in harsh electrical environments. Every channel includes built-in suppression for inductive loads and overvoltage protection. Optical isolation barriers separate the field electronics from the internal logic circuits. Additionally, the module uses EMC filters to maintain signal integrity against industrial noise. These features prevent damage during short-circuit conditions or thermal overload events.
Technical Specifications
- Brand: ABB
- Model Code: DO810
- Order Reference: 3BSE008510R1
- Product Type: Digital Output Module
- Channel Configuration: 16 Channels (2 groups of 8)
- Voltage Range: 10V to 30V DC
- Current Rating: 0.5A continuous per channel
- Net Weight: 0.16 kg
- Chassis Dimensions: 4.5 x 11 x 0.15 cm
- Origin: Sweden
