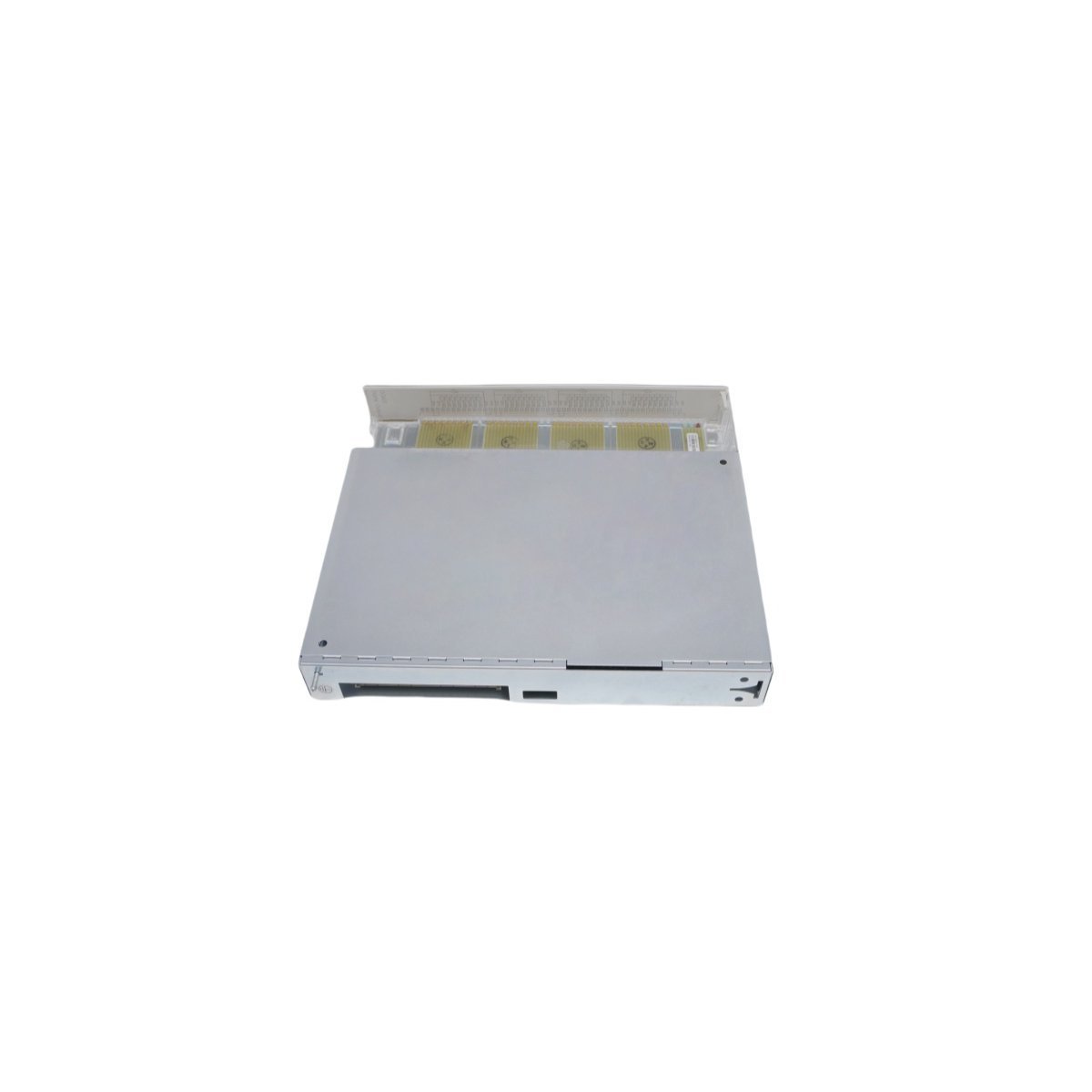

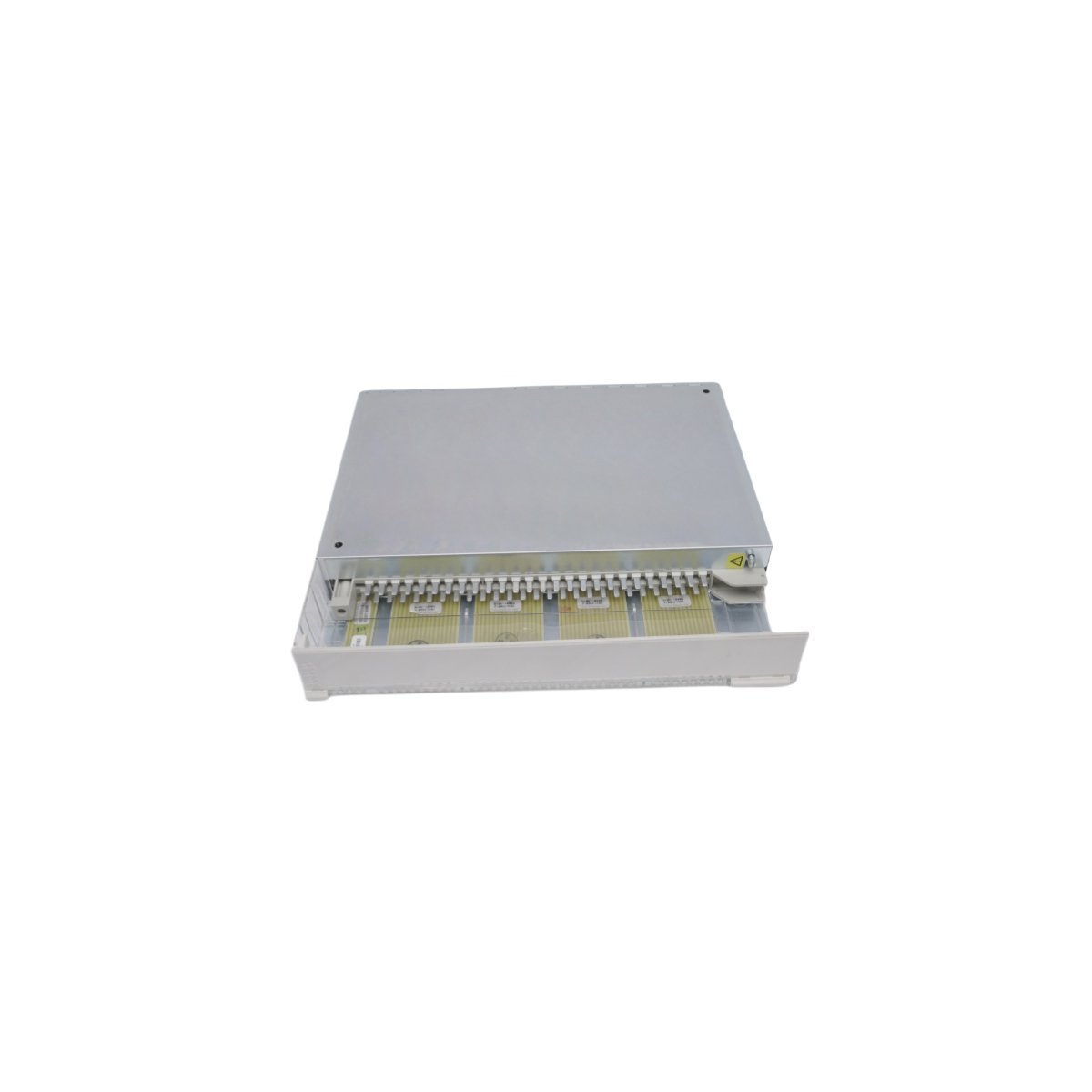

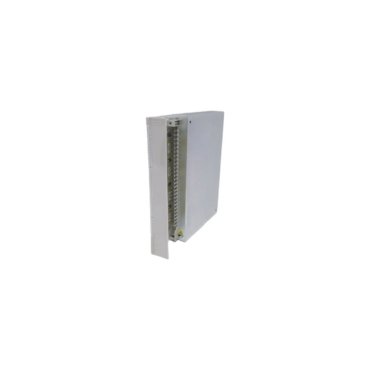

ABB DO620 3BHT300009R1 Digital Output Module

Technical Specifications

Primary Functional Features

• High-Density Channel Configuration: Provides 32 independent output channels in a single module, significantly reducing the required rack space for large-scale automation projects.
• Extended Voltage Range: Rated for operation up to 60V DC, offering compatibility with a broad spectrum of industrial actuators and field devices.
• Extreme Climate Resilience: Engineered to operate reliably in temperatures ranging from -25°C to +70°C, making it suitable for unheated remote terminal units (RTUs) and high-heat processing plants.
• Advanced Communication Protocols: Features an RS-485 interface to ensure rapid and error-free data exchange between the I/O rack and the primary controller.
• Enhanced Safety and Diagnostics: Includes built-in protection mechanisms to safeguard against short circuits and overloads, combined with status indicators for immediate local troubleshooting.

Industrial Applications

• Manufacturing Automation: Controlling pneumatic valves and motorized actuators on assembly lines.
• Energy Infrastructure: Managing switchgear operation and status signaling in electrical substations.
• Process Industries: Operating emergency shutdown (ESD) solenoids and chemical dosing pumps.
• Marine and Offshore: Handling auxiliary control systems in engine rooms and deck machinery where temperature fluctuations are common.
