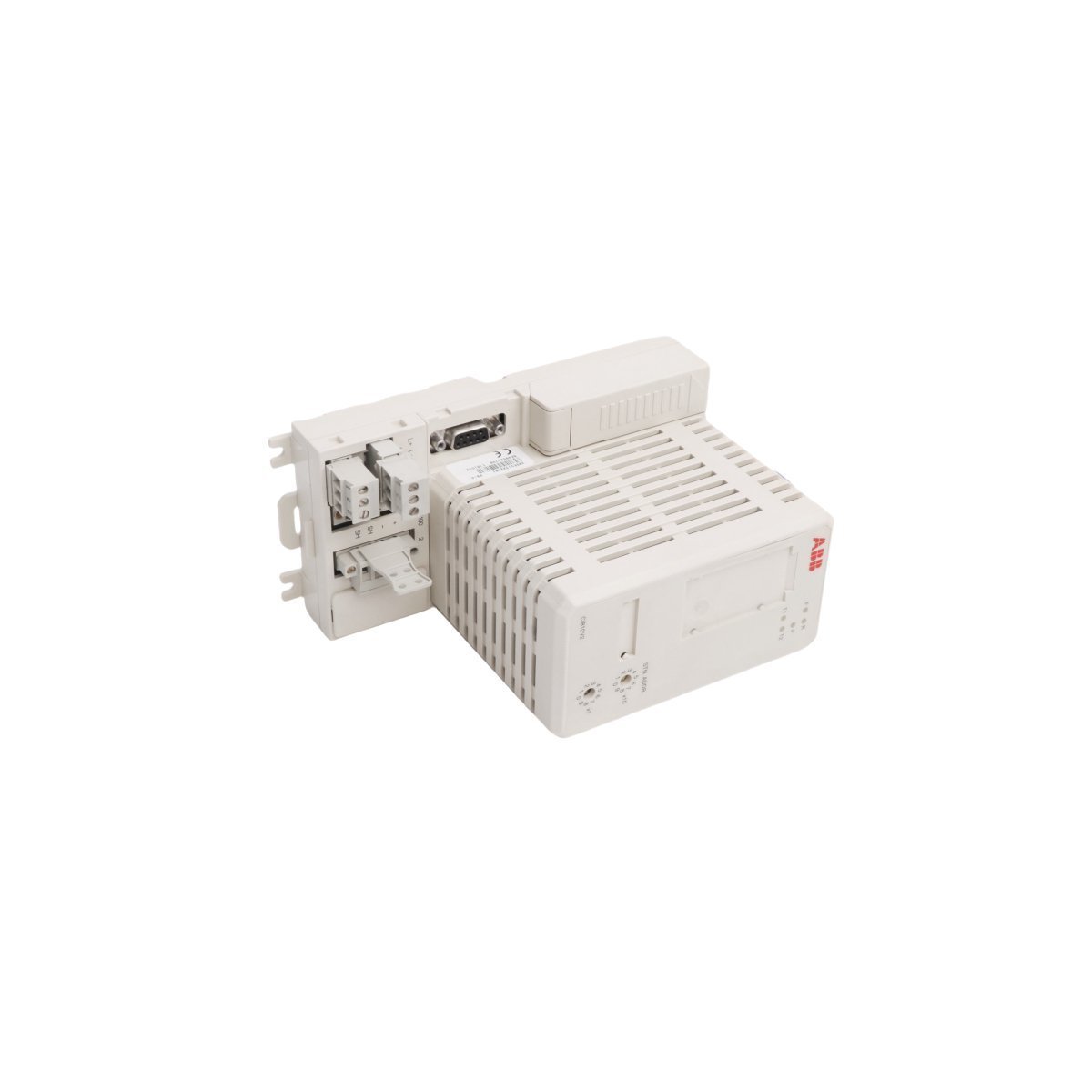

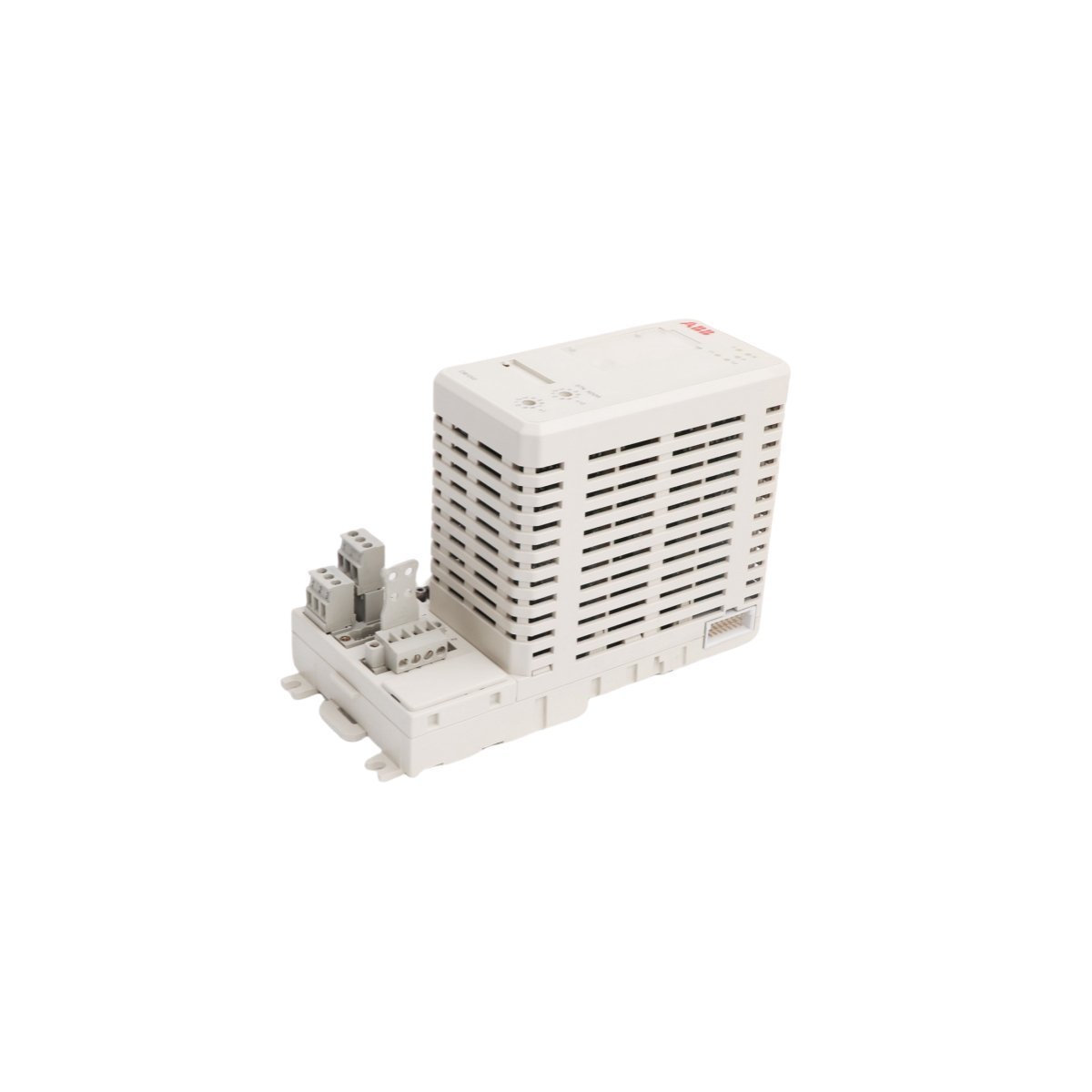

The ABB CI810V2 serves as a critical AF100 communication interface for distributed control systems. This module establishes a high-speed link between Advant controllers and various S800 I/O stations. It manages complex data traffic to ensure real-time synchronization across the industrial network.
Operational Characteristics and Reliability
The CI810V2 includes advanced internal diagnostics for proactive system health monitoring. These features detect transmission errors and hardware failures before they impact production. This early detection capability significantly reduces unplanned downtime in automated facilities.
Additionally, the module features a rugged mechanical design to handle demanding factory conditions. It resists electrical noise and maintains signal integrity in high-EMI settings. The hardware supports continuous operation within manufacturing, energy, and chemical processing sectors.
Integration and Setup
The compact footprint of the 3BSE013224R1 allows for efficient installation on standard DIN rails. It integrates seamlessly into existing AC500 or Advant controller architectures. Technicians can configure the communication parameters quickly using standard ABB engineering tools.
Moreover, the module simplifies the connection between field sensors and central control logic. This centralized communication approach reduces the need for extensive long-distance point-to-point wiring. Therefore, it provides a scalable solution for expanding modern industrial automation networks.
Primary Technical Specifications
- Product Family: Advant OCS / S800 I/O
- Model Number: CI810V2
- Part Number: 3BSE013224R1
- Device Type: Redundant Communication Interface
- Protocol Support: Advant Fieldbus 100 (AF100)
- Physical Mass: 0.44 kg
- Dimensions: 18.6 x 6.5 x 13.0 cm
- Manufacturing Origin: Sweden
- Power Consumption: Optimized for low-heat dissipation
