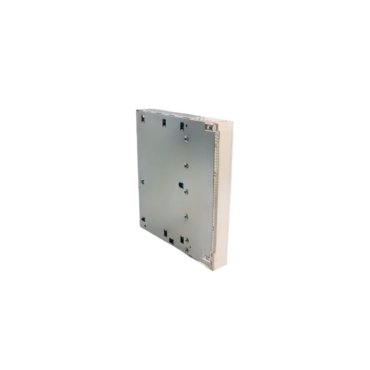

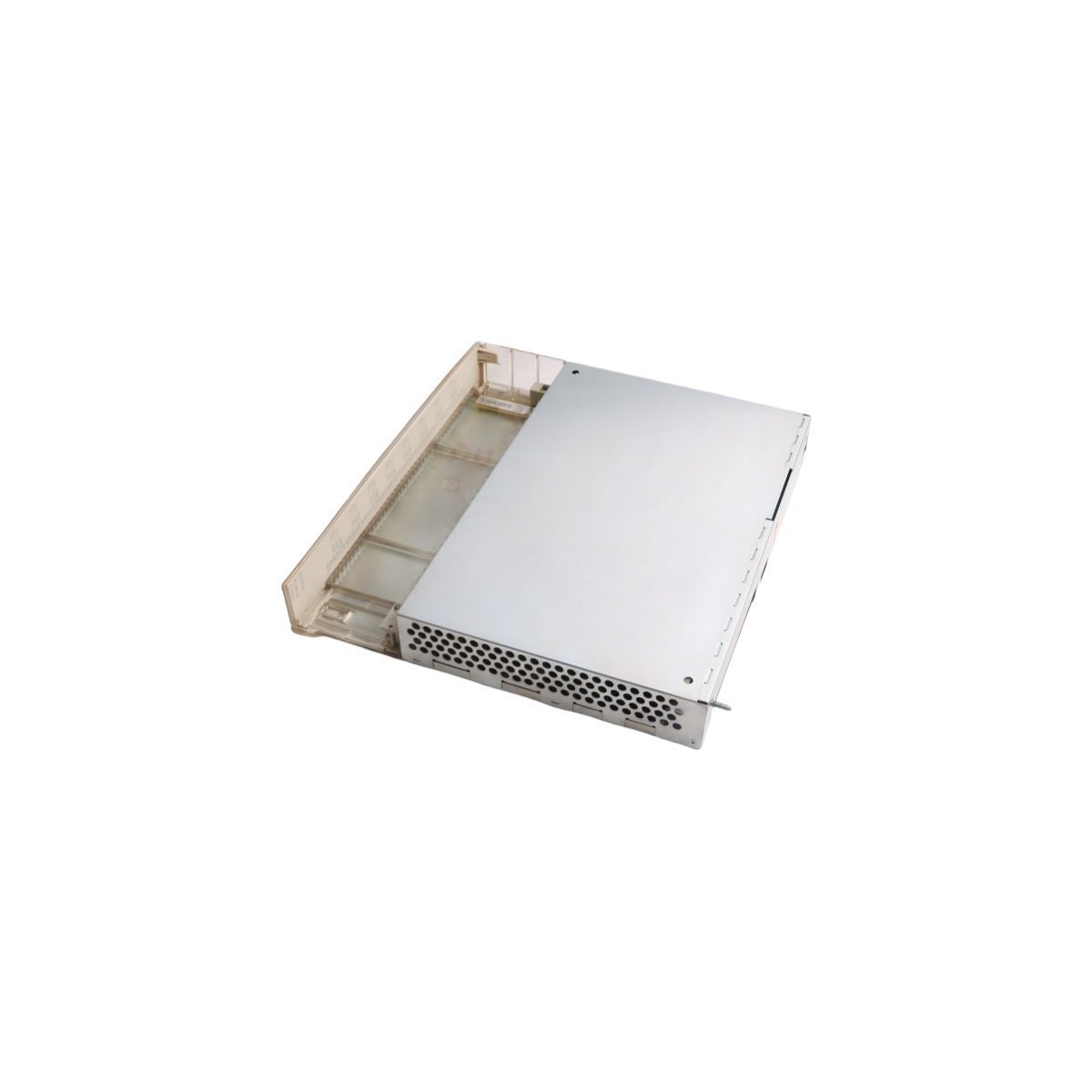

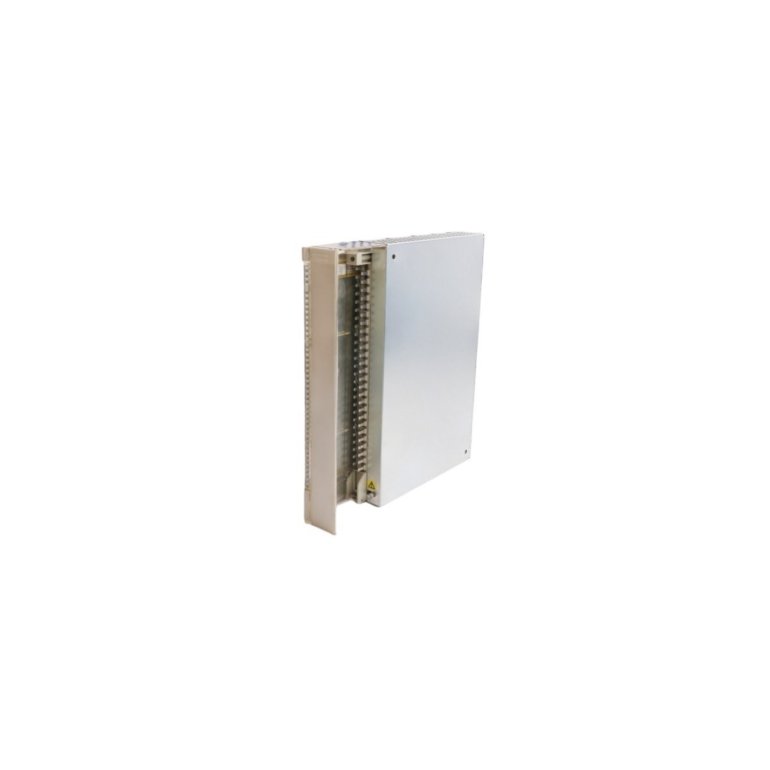

ABB AO650 3BHT300051R1 Analog Output Module

Technical Parameters and System Data

The AO650 module features a high-density channel configuration designed for industrial-scale deployments. The following table outlines the primary technical specifications:

The ABB AO650, identified by part number 3BHT300051R1, functions as a high-performance output interface within the Advant S600 I/O family. This module converts digital commands from the control system into precise analog current or voltage signals to drive field actuators, such as control valves, dampers, and speed governors. By maintaining high signal integrity and low drift, the AO650 enables precise regulation of process variables in complex automation environments. Because it integrates natively with ABB Distributed Control Systems (DCS), it provides a seamless link between software logic and physical mechanical movement.

Advanced Diagnostics and System Resilience

Reliability serves as a core characteristic of the 3BHT300051R1 module. Each of the eight channels includes individual monitoring capabilities to detect open loops or signal deviations immediately. Furthermore, the module incorporates comprehensive galvanic isolation, which protects the internal system bus from field-side electrical interference and potential ground loops. This architectural safety ensures that the control system remains operational even during localized field wiring faults. Since the hardware utilizes advanced thermal management and ruggedized components, it maintains stable performance across a wide range of industrial operating temperatures.
