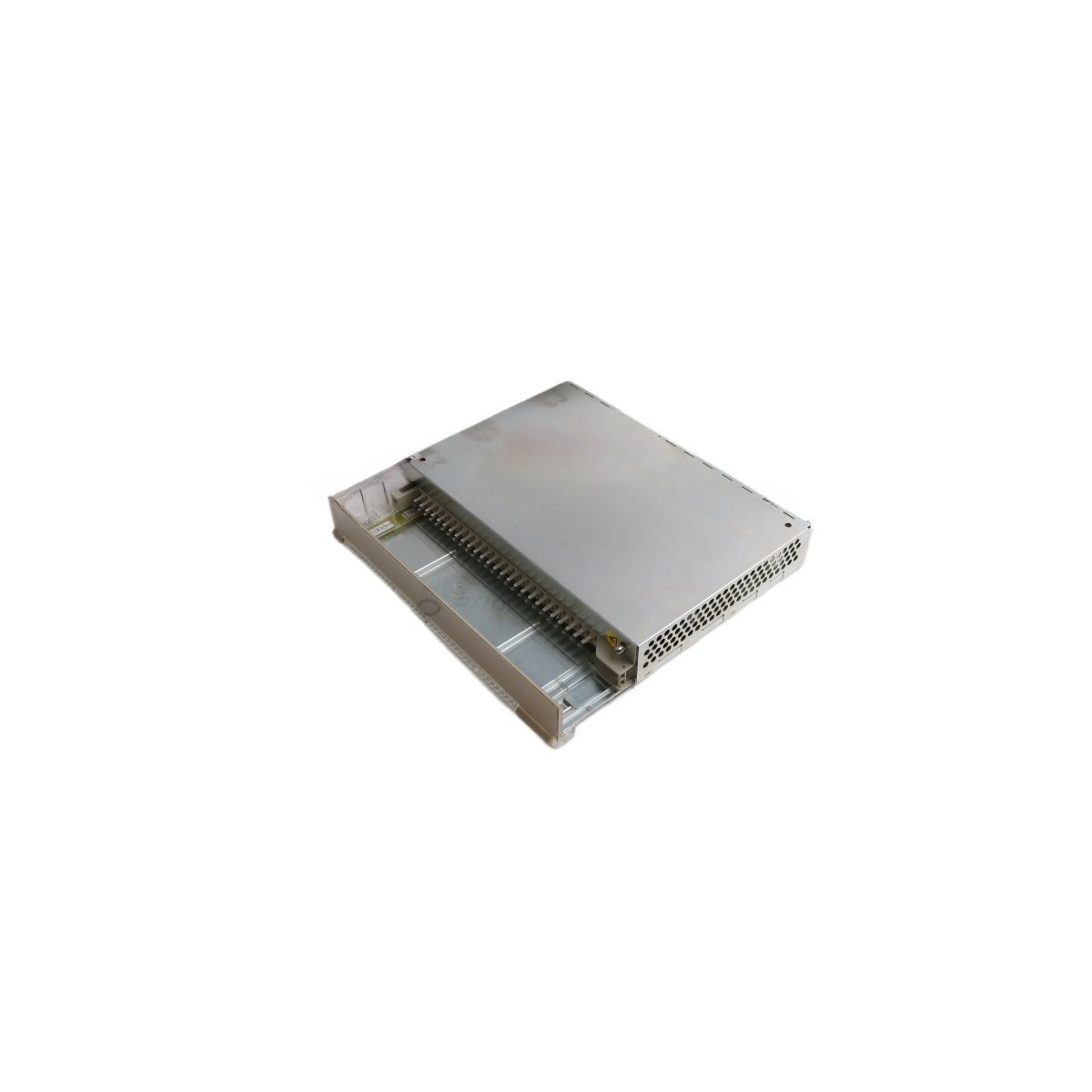

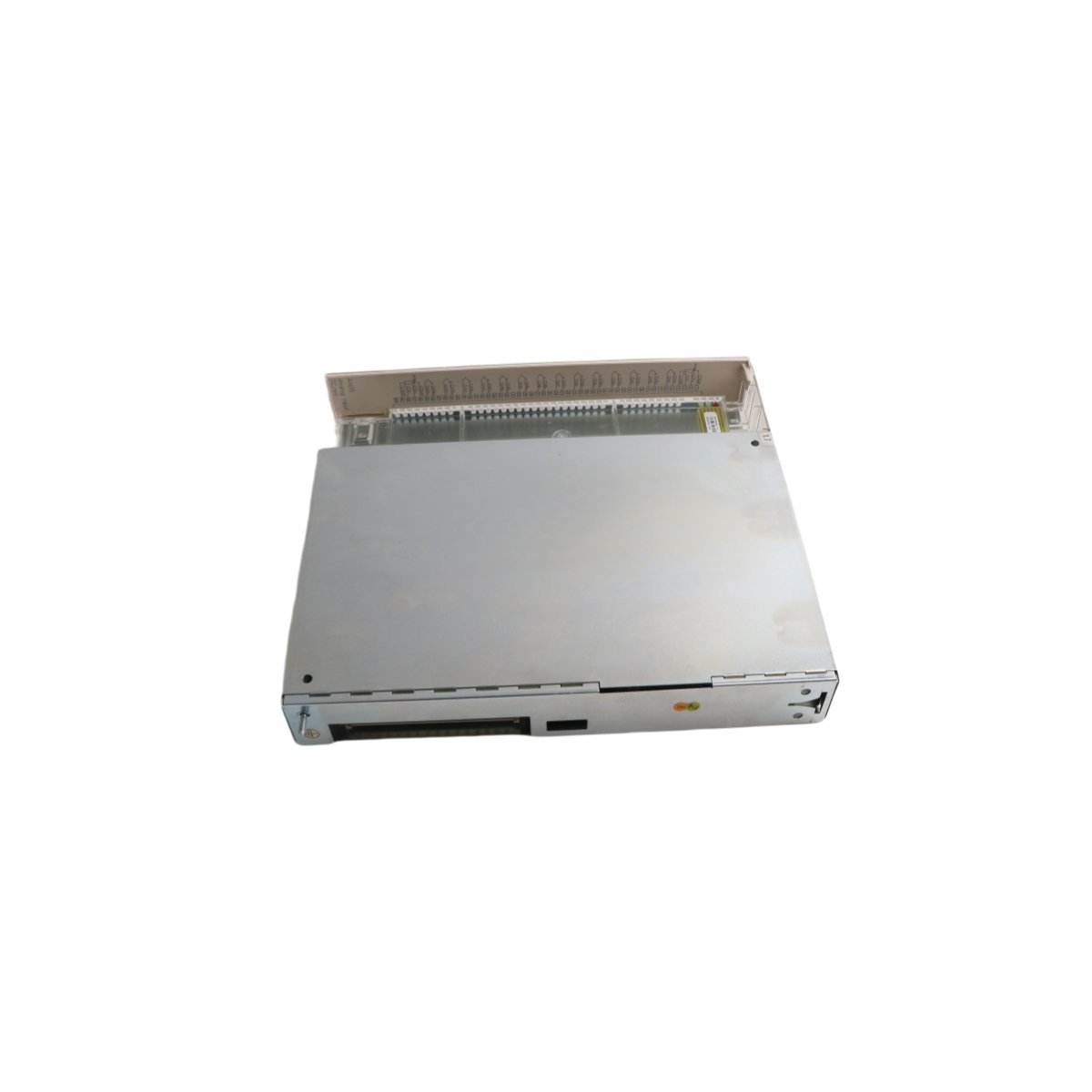

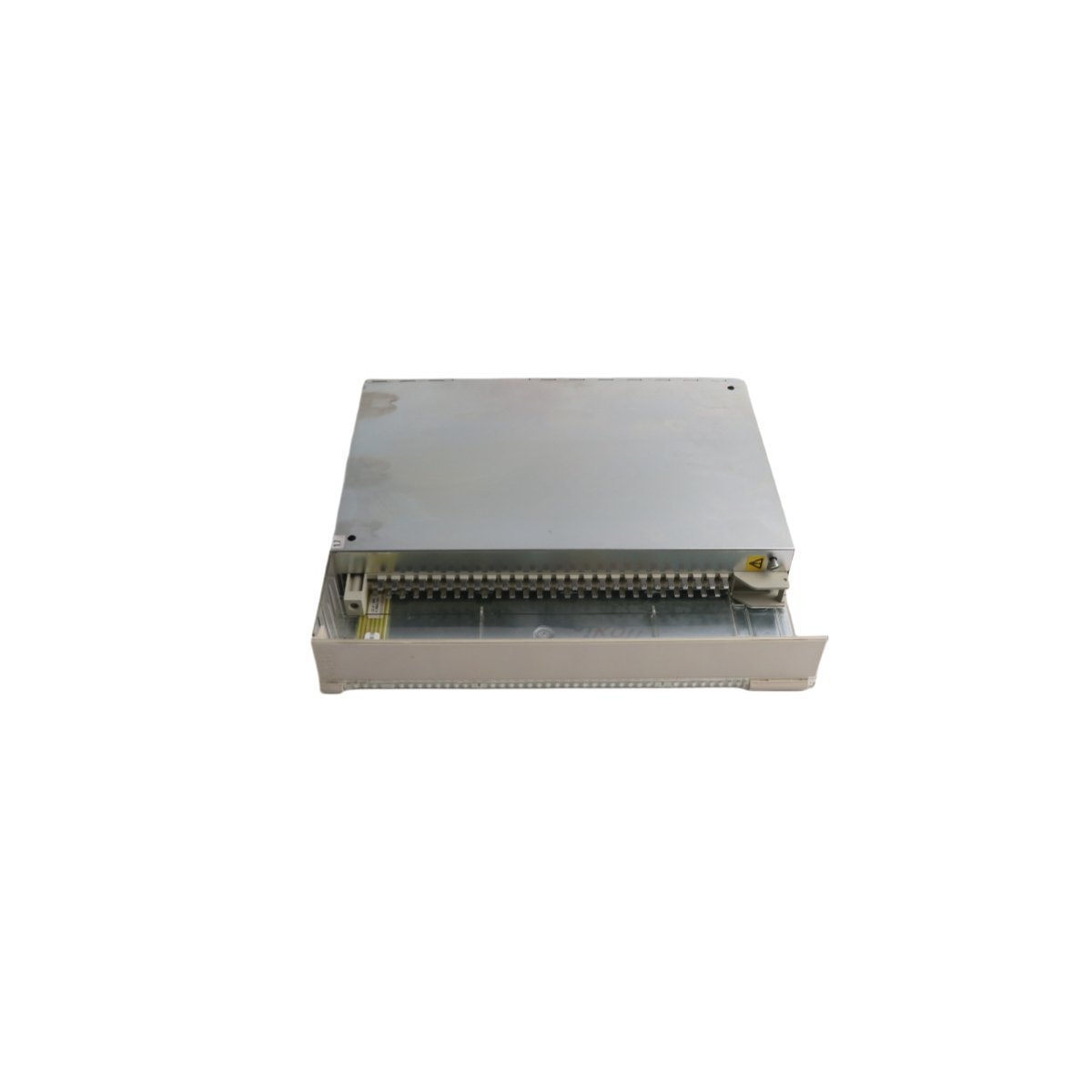

The ABB AI635, identified by part number 3BHT300032R1, serves as a high-performance analog interface specifically designed for the S600 I/O series. This module excels in thermal processing applications, featuring 12-bit resolution to ensure highly accurate data conversion. Its specialized architecture supports a 14+2 channel configuration, primarily optimized for thermocouple inputs. By integrating this module into a Distributed Control System (DCS), plant operators gain precise oversight of critical temperature variables, which is essential for maintaining process stability in complex industrial environments.
Technical Profile and Physical Characteristics
The AI635 module combines a robust mechanical build with sophisticated electronic circuitry to meet rigorous industrial standards:
| Attribute | Specification Detail |
| Manufacturer | ABB |
| Model Number | AI635 |
| Order Number | 3BHT300032R1 |
| Module Type | Advanced Analog Input (TC) |
| Channel Density | 14 + 2 Channels |
| Resolution | 12-Bit |
| Product Family | S600 I/O |
| Unit Weight | 1.18 kg |
| Dimensions | 3.8 cm x 26.3 cm x 27.2 cm |
| Country of Origin | Sweden |
Integration and Maintenance Workflow
The AI635 facilitates straightforward integration into existing ABB control architectures, supported by comprehensive technical documentation. Its design emphasizes ease of installation, allowing for quick mounting and secure terminal connections. This streamlined setup process proves beneficial during both new system commissioning and legacy hardware upgrades. Furthermore, the high channel density of the 14+2 configuration maximizes the utility of each I/O slot, effectively lowering the total cost of ownership by reducing the number of modules required for large-scale temperature monitoring projects.
