ABB ACS 1000 Series UFD402A101 3BHE034872R0101 Control Processor Card

Technical Overview

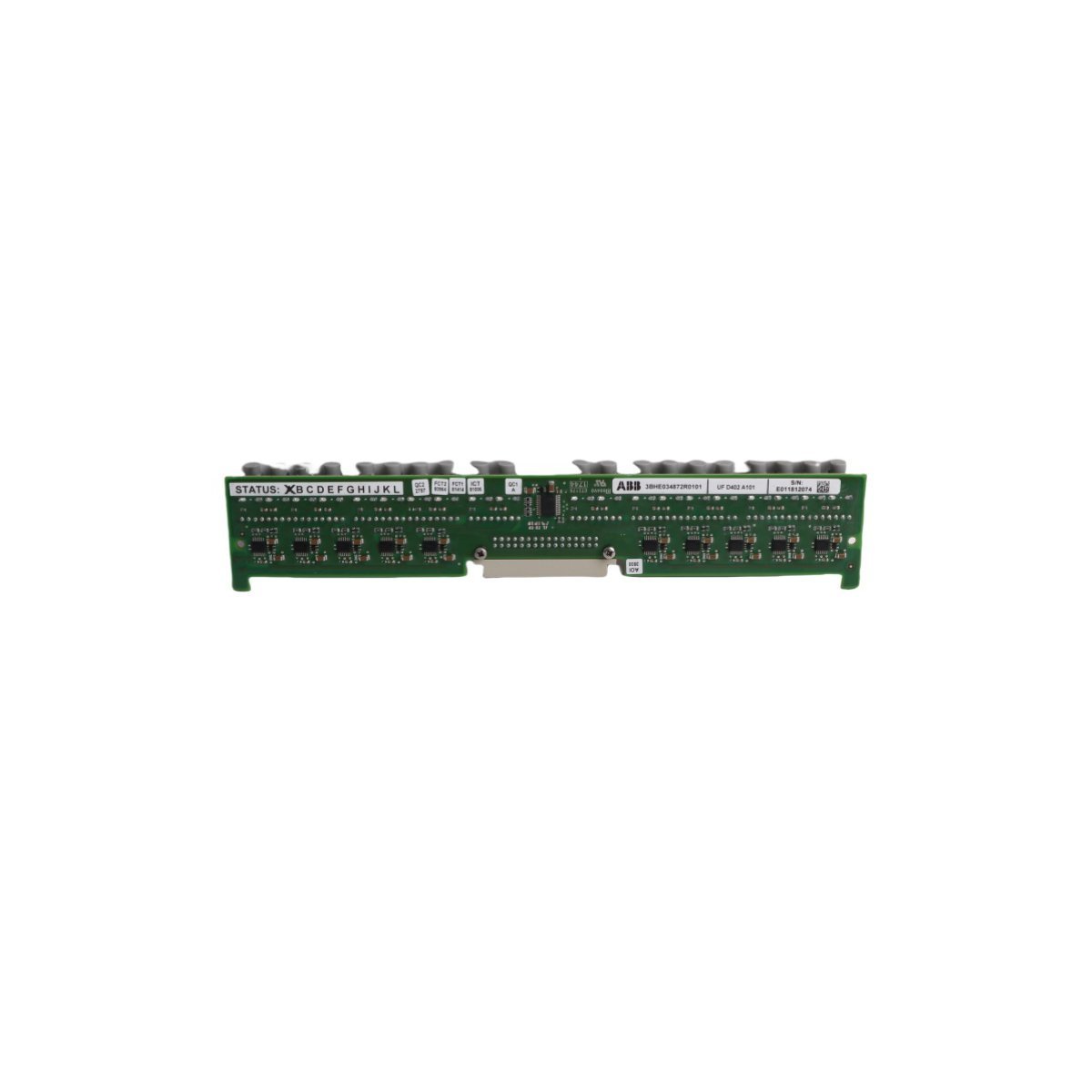

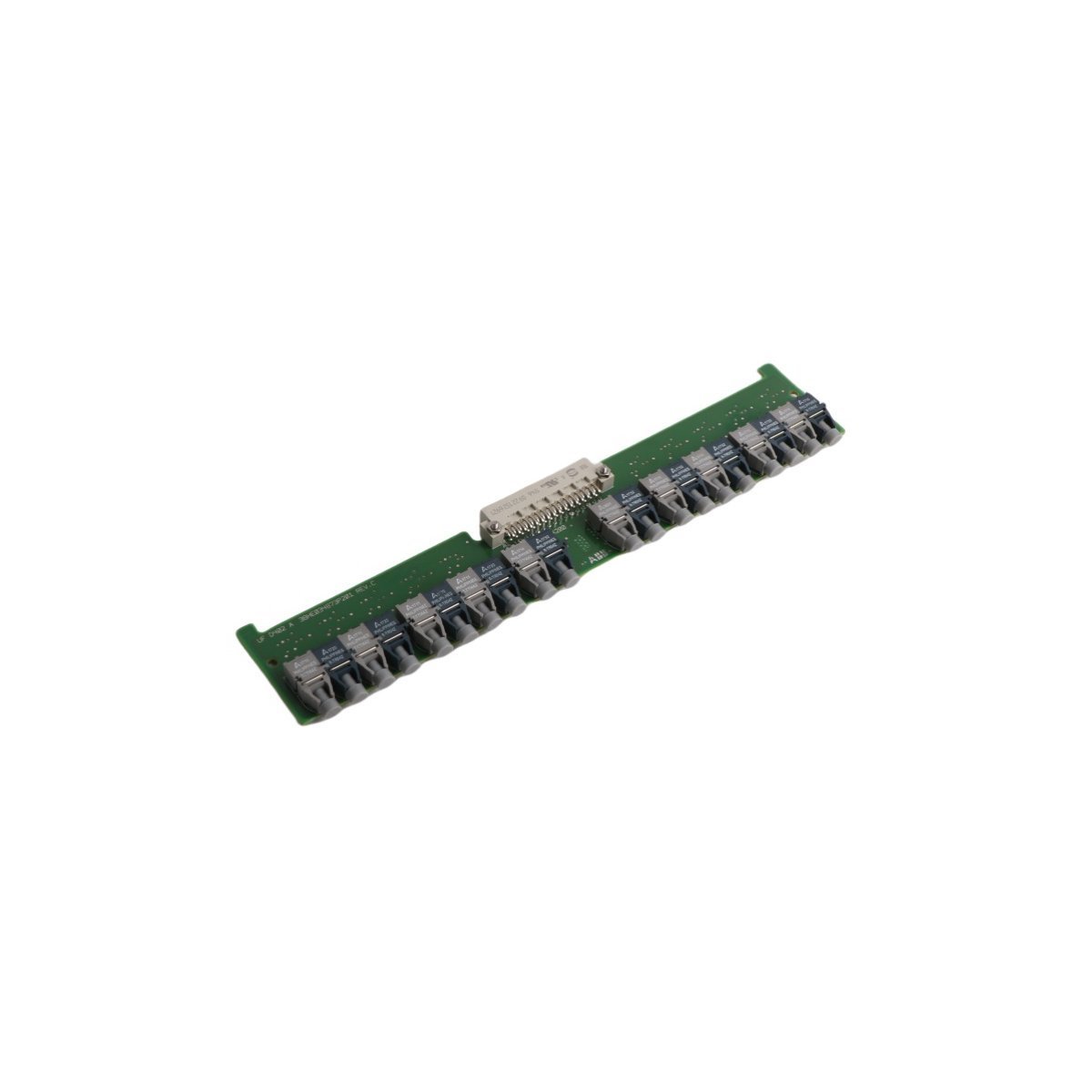

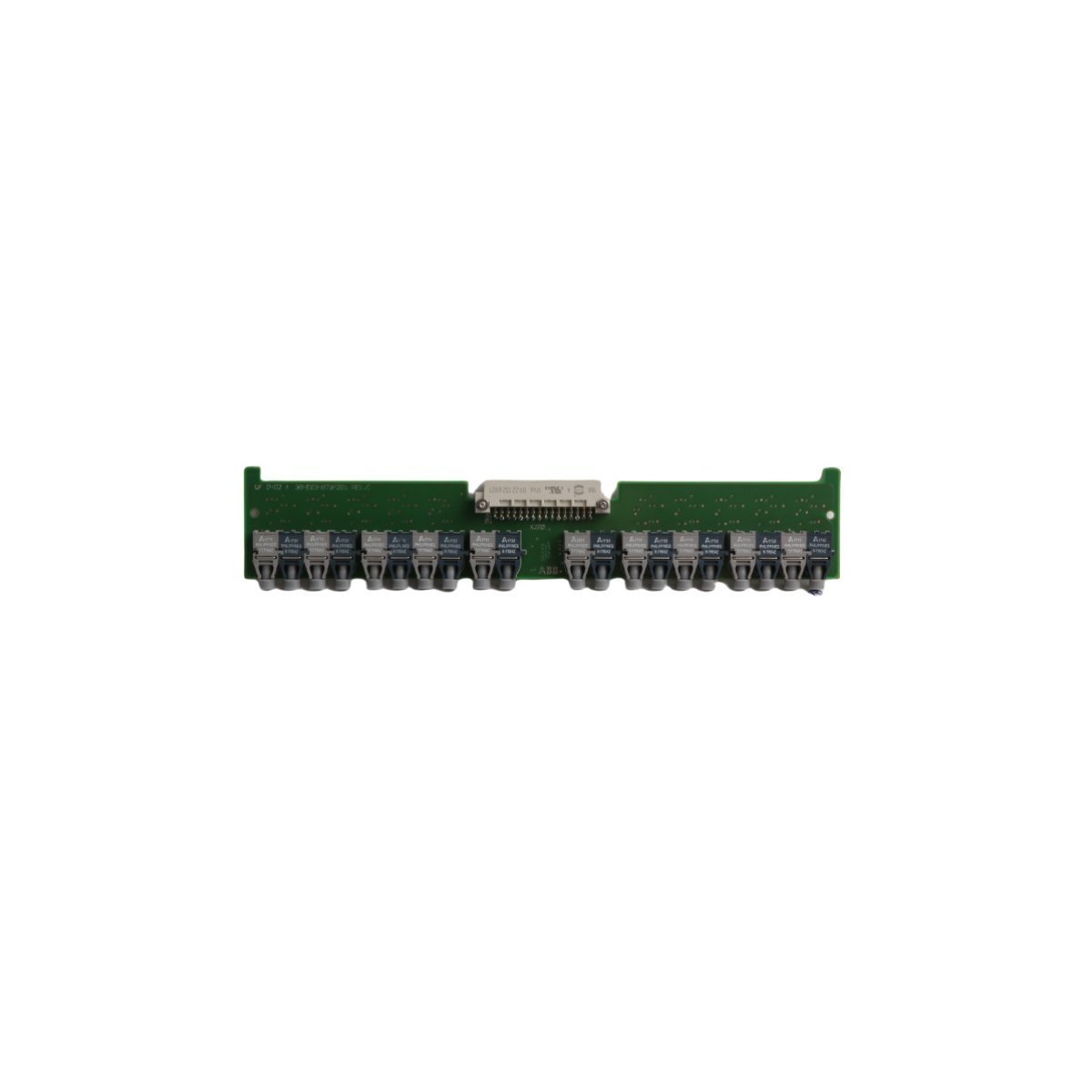

The ABB UFD402A101 3BHE034872R0101 functions as a specialized control hub daughter board within the ACS 1000 medium voltage drive framework. This internal component interfaces directly with the primary drive controllers to execute precise motor regulation commands and hardware telemetry tracking.

Consequently, the board ensures reliable communication between localized sensor modules and the centralized Distributed Control System backbone. The low-profile architecture facilitates immediate hardware expansion while optimizing the thermal profile inside sealed electrical cabinets.

Technical Characteristics

• Wide Thermal Tolerance: The industrial-grade board assembly operates reliably across an extended temperature spectrum from -20°C to +85°C.

• Universal Voltage Support: Universal power input circuitry accommodates line variations spanning from 90V AC up to 264V AC.

• Low Power Consumption: Optimized solid-state component selection limits localized heat generation and conserves system energy.

• Drive System Synchronization: High-speed internal bus logic minimizes signal transmission delay for real-time fault protection monitoring.

• Compact Integration: The streamlined physical layout permits seamless slot mounting onto larger drive control processor cards.

Product Specifications

Industrial Applications

• Medium Voltage Drive Control: The board manages diagnostic feedback loops within ACS 1000 drive enclosures.

• Centrifugal Pump Automation: Heavy-duty water management stations deploy this hardware to regulate high-capacity fluid pumping drives.

• Industrial Fan Modulation: Large industrial ventilation networks utilize the processor board for stable speed control loops.

• Compressor Station Control: Gas pipeline processing facilities rely on this board to coordinate continuous heavy motor loads.
