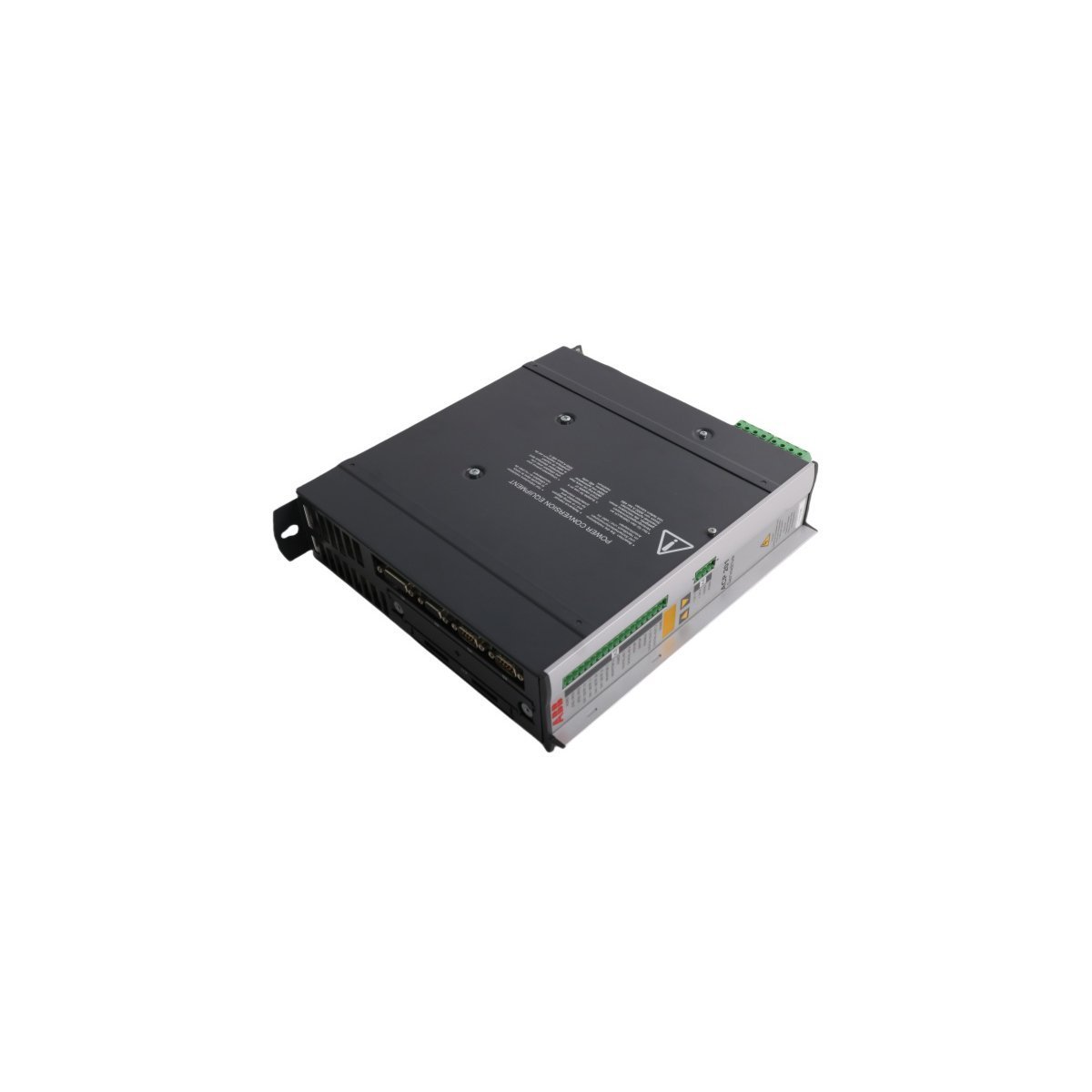

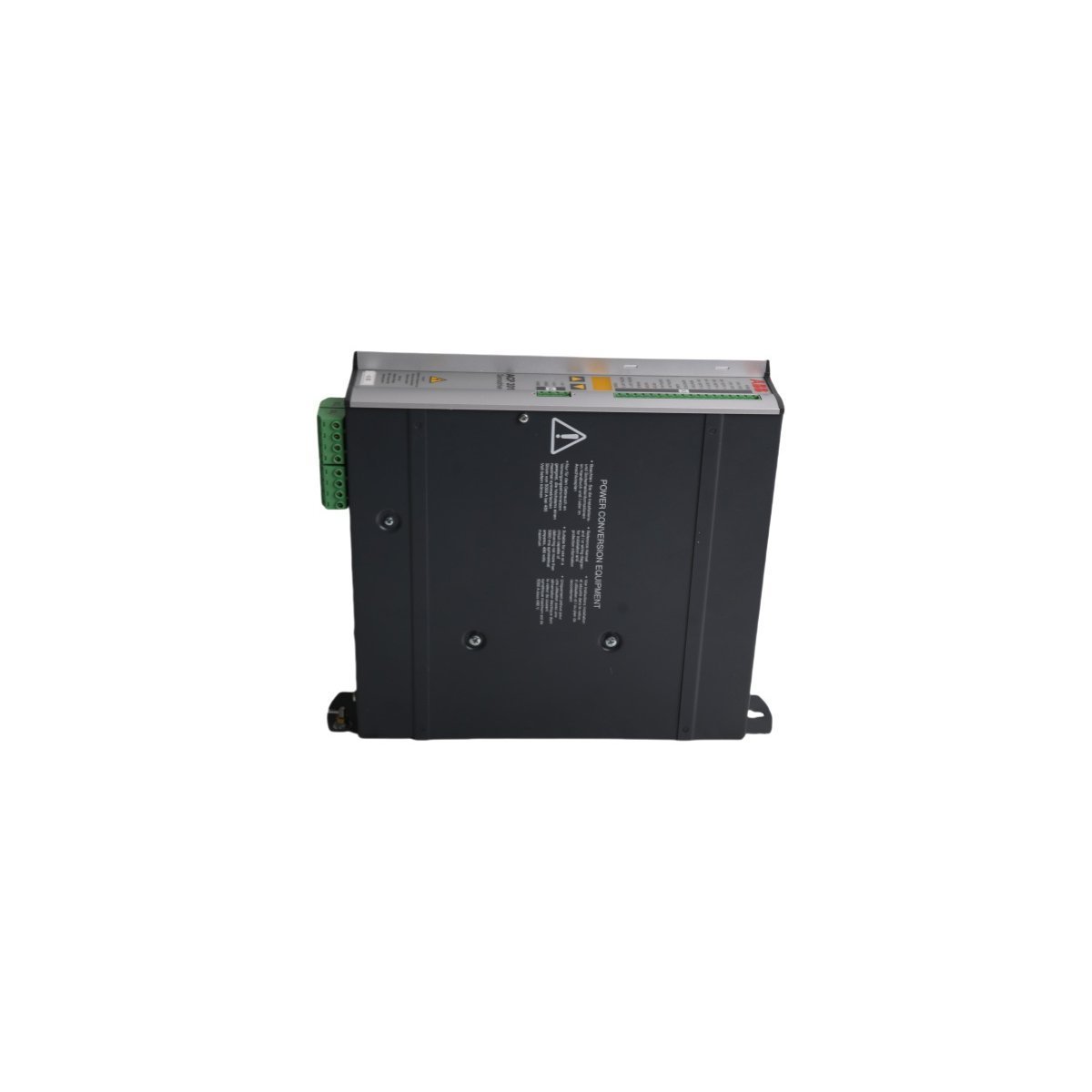

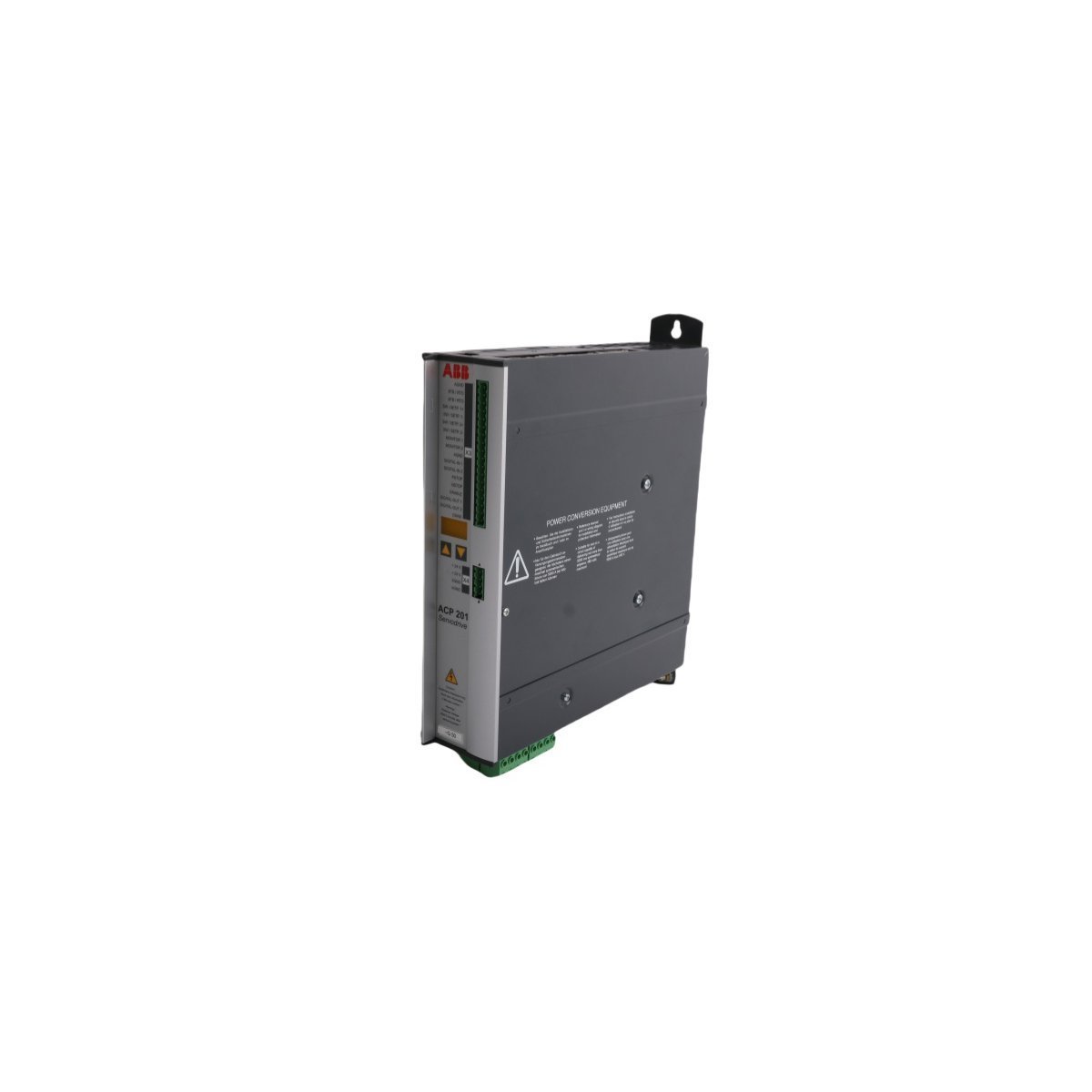

ABB ACP201-02 3ADM2001132R0101 Servo Drive

The ABB ACP201-02 operates as a sophisticated servo drive designed for high-dynamic industrial motion. This unit converts control signals into precise mechanical force for synchronous motors. Because it utilizes advanced power electronics, the drive ensures exceptional torque stability across various speeds. It serves as a core component in automated assembly lines and CNC machinery. Furthermore, the 3ADM2001132R0101 model handles demanding acceleration cycles with minimal energy loss. Consequently, it improves the overall throughput of automated production cells.

The drive supports diverse feedback systems to maintain absolute positioning accuracy. This allows for seamless synchronization between multiple axes in complex robotic applications. High-resolution internal processing enables the unit to execute motion profiles with extreme repeatability. Therefore, manufacturers can achieve tighter tolerances in delicate fabrication processes.

Connectivity and Integrated Safety Protocols

Reliable data exchange is essential for modern Distributed Control Systems (DCS). The ACP201-02 integrates natively with EtherCAT and CANopen industrial networks. These protocols facilitate real-time communication between the drive and the primary PLC. Moreover, the hardware design prioritizes operator security through Safe Torque Off (STO) functionality. This safety feature prevents unexpected motor restarts during emergency stop conditions. As a result, the system complies with rigorous international safety standards for industrial machinery.

The modular construction of the 3ADM2001132R0101 simplifies the installation process. Engineers can mount the unit in high-density electrical cabinets to save floor space. Additionally, the rugged outer shell protects internal circuits from typical industrial contaminants. This durability ensures a long service life in continuous 24/7 operation environments.

Operational Efficiency and System Maintenance

The ACP201-02 includes intuitive diagnostic tools for rapid performance monitoring. Users can access drive status and fault logs through standard ABB software interfaces. This transparency reduces the time required for commissioning and periodic troubleshooting. Furthermore, the drive optimizes power consumption based on real-time load requirements. This efficiency lowers operational costs while reducing the thermal load on control enclosures. The ACP201-02 remains a premier choice for upgrading legacy motion systems.

Technical Specifications and Hardware Profile
