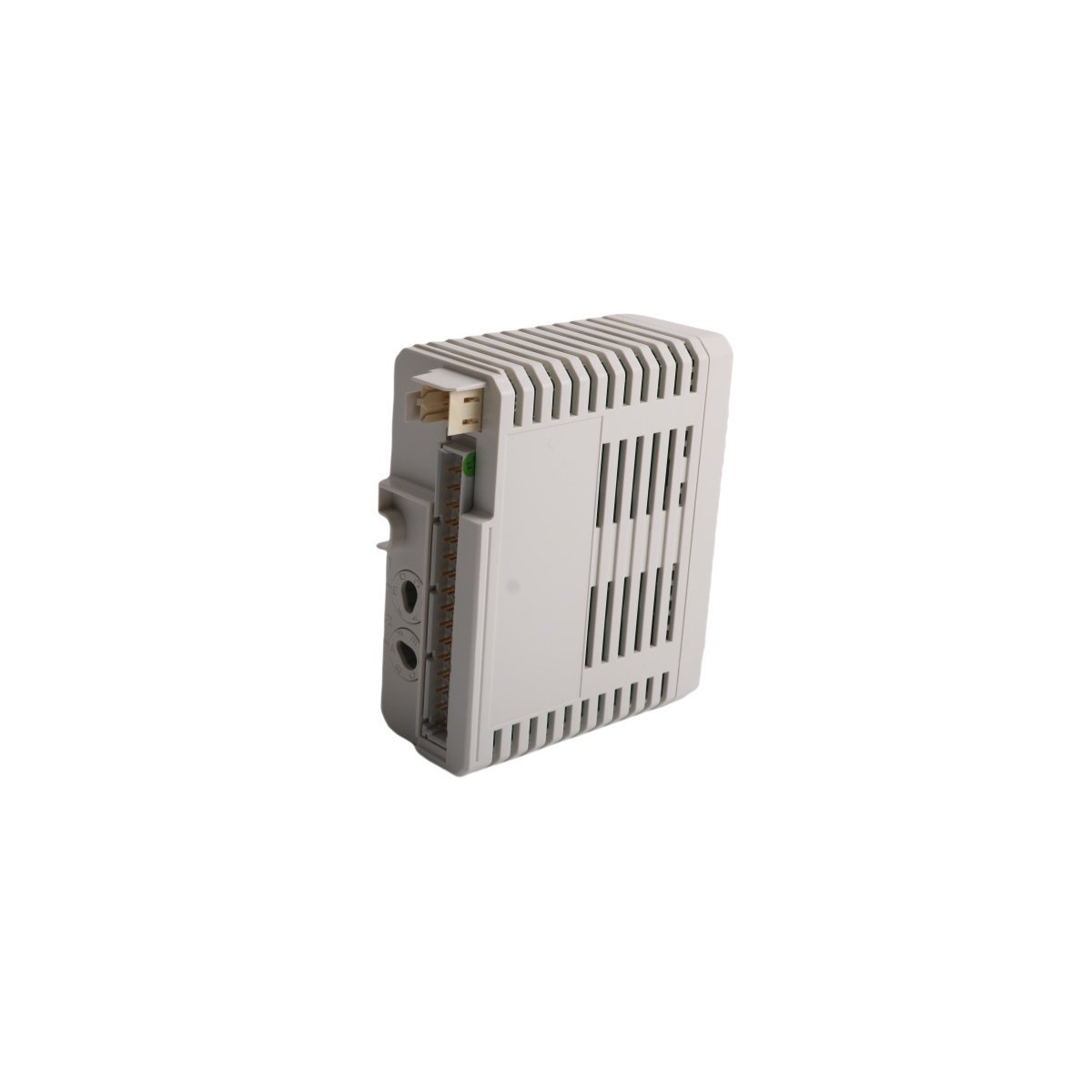

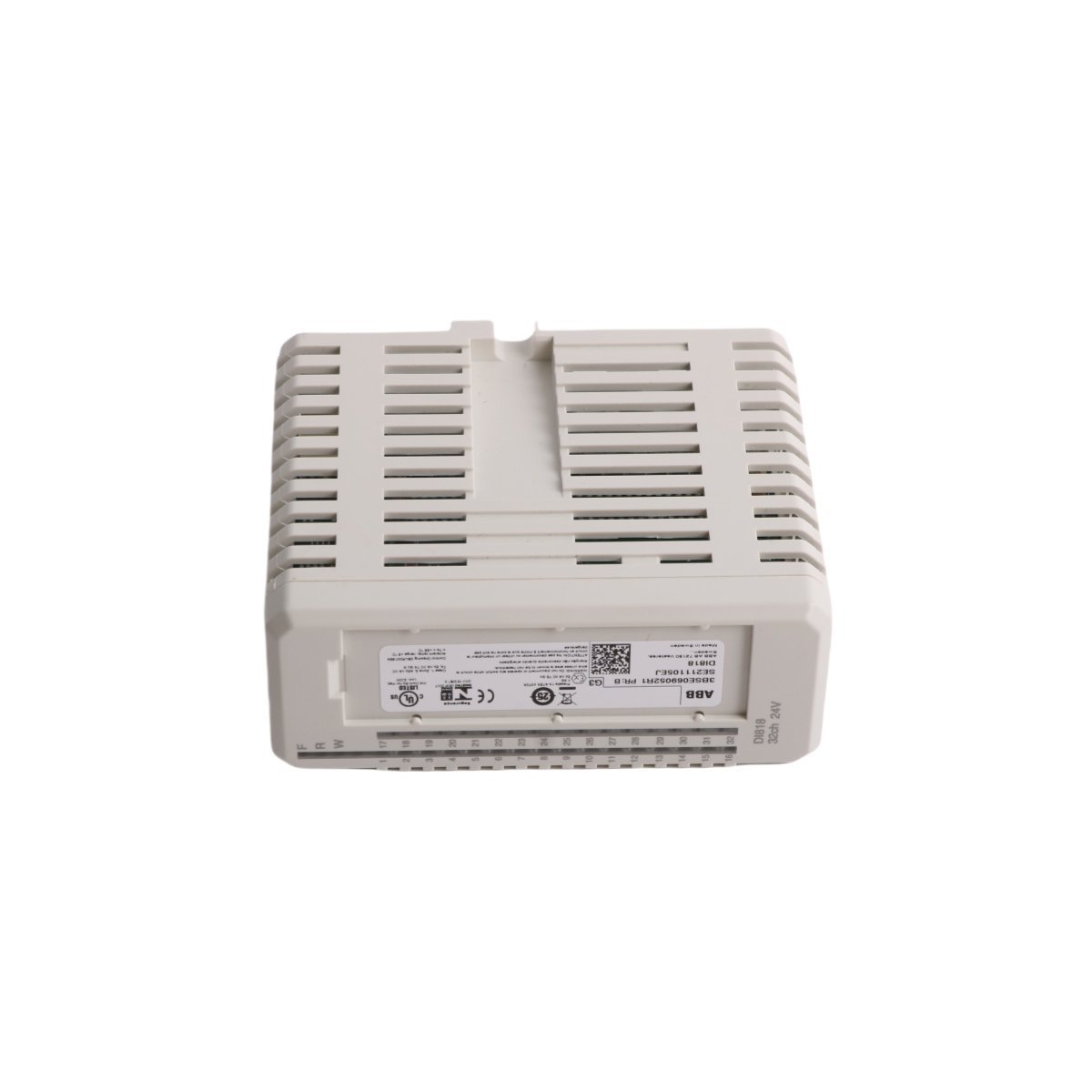

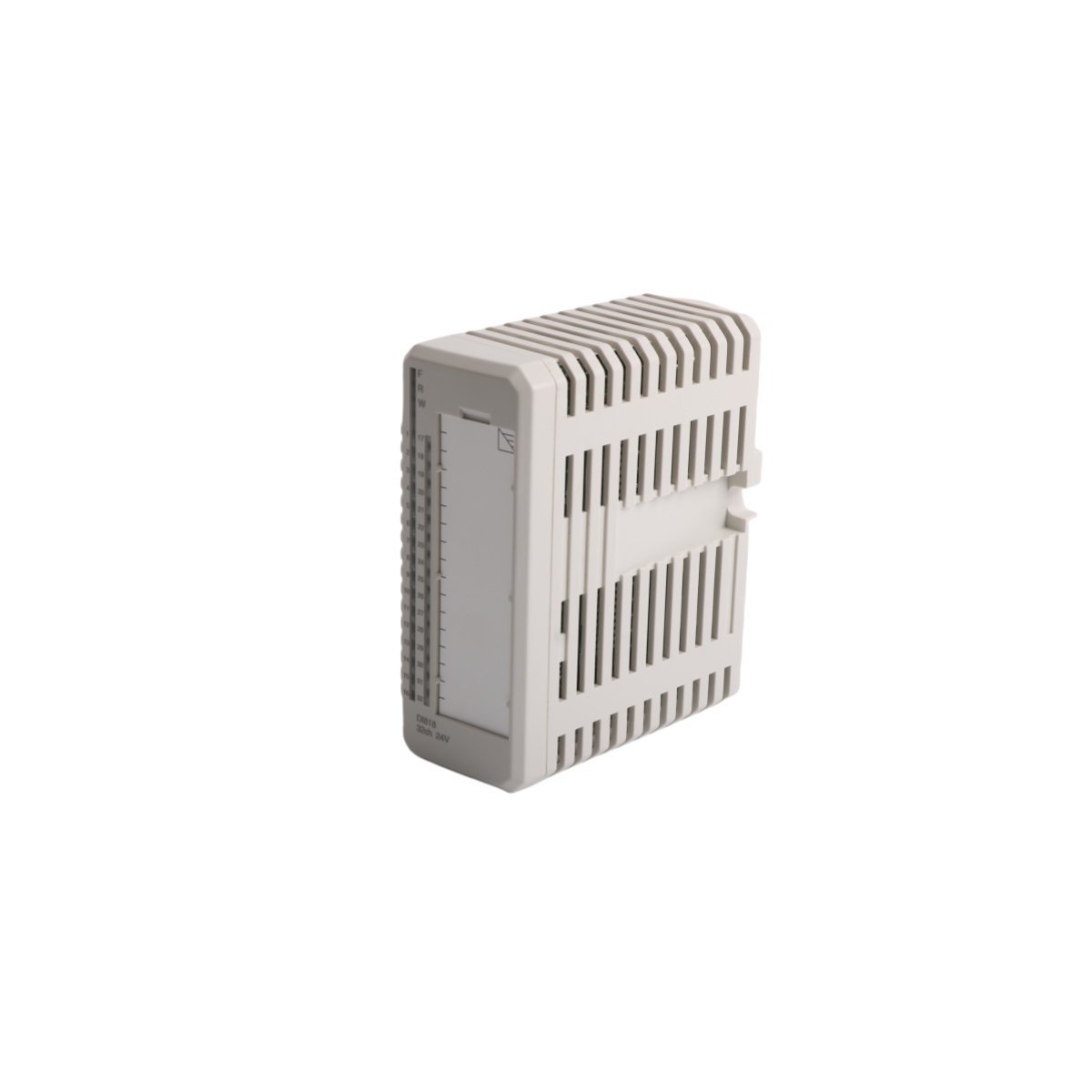

ABB DI818 3BSE069052R1 Digital Input Module

The ABB DI818 3BSE069052R1 provides high-density signal processing for the S800 I/O system family. This module captures digital states from field equipment and transmits them to AC 800M controllers. It functions as a reliable interface between the physical process and the central control logic. By using this module, industrial operators achieve precise monitoring of contact states in real-time. The unit excels in managing high-speed data acquisition within complex automation loops.

Operational Characteristics

This 16-channel hardware supports various 24V DC configurations for maximum field flexibility. It effectively processes both current-sinking and current-sourcing inputs across industrial networks. Furthermore, the module utilizes galvanic isolation to shield sensitive internal electronics from external surges. With a 1500V AC isolation rating, it maintains signal purity despite significant electrical noise. These features ensure consistent performance in heavy-duty manufacturing and energy sectors.

Technical Specifications

• Manufacturer: ABB
• Model: DI818
• Order Number: 3BSE069052R1
• I/O Series: S800 I/O
• Input Channels: 16 Channels
• Rated Voltage: 24V DC
• Galvanic Isolation: 1500V AC
• Communication: ModuleBus Protocol
• Physical Weight: 0.16 kg
• Dimensions: 4.3 x 11 x 11.8 cm
• Manufacturing Origin: Sweden
• Compliance: Industrial EMC Standards

System Integration and Use

The DI818 integrates directly into the ABB ModuleBus for simplified wiring and configuration. Engineers often deploy this module in oil and gas refineries or power generation facilities. Its compact footprint significantly reduces the required rail space in control cabinets. Additionally, the plug-and-play design speeds up hardware commissioning and maintenance routines. The module also provides diagnostic feedback to help technicians quickly identify field-side faults.

Environmental Performance

Robust Swedish engineering allows the DI818 to operate reliably in diverse climate conditions. It withstands standard industrial temperature fluctuations without compromising data accuracy. Because the module uses high-quality materials, it offers a long service life in continuous processes. This durability makes it a cost-effective choice for modernizing existing DCS infrastructures. Proper installation ensures the integrity of the entire digital input chain.
