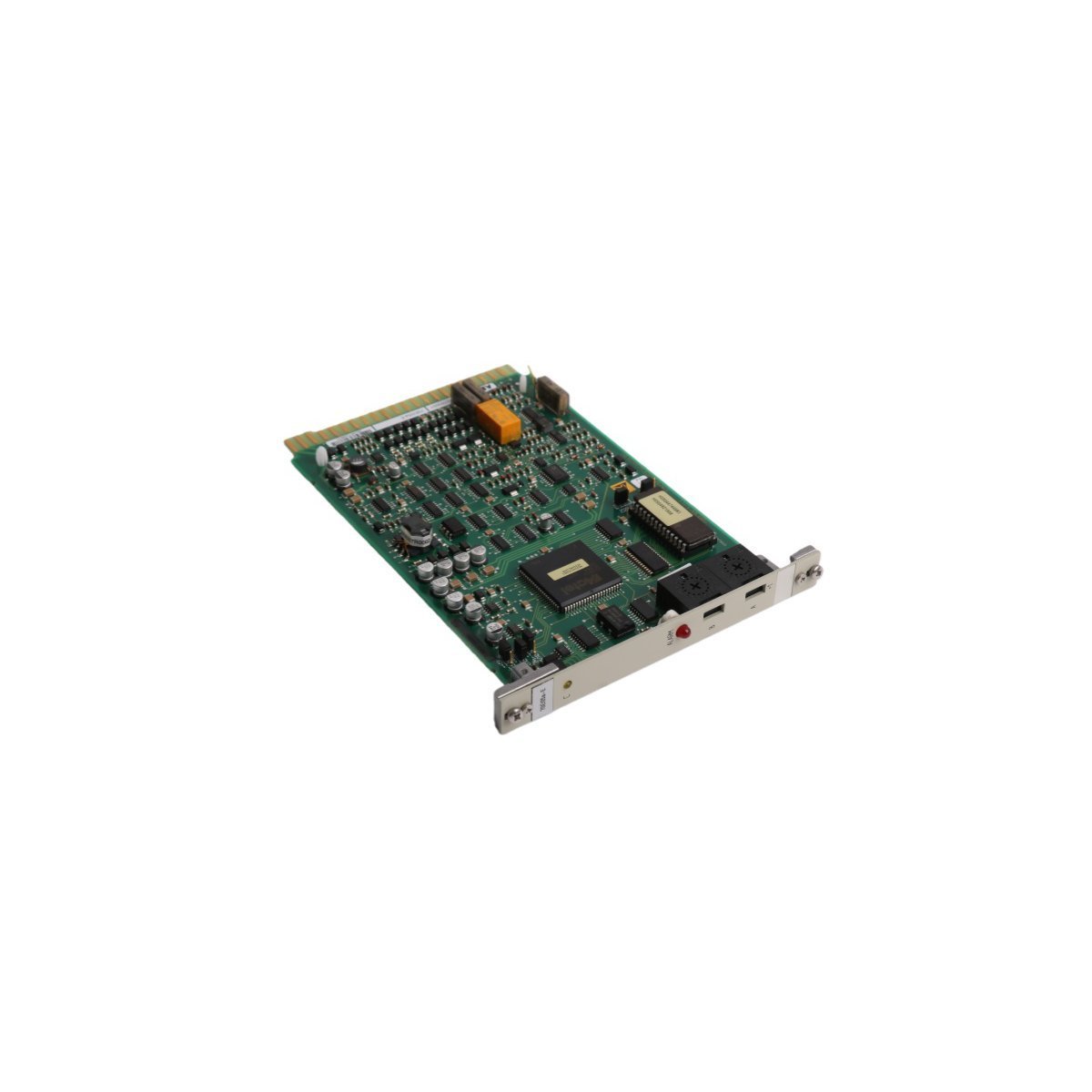

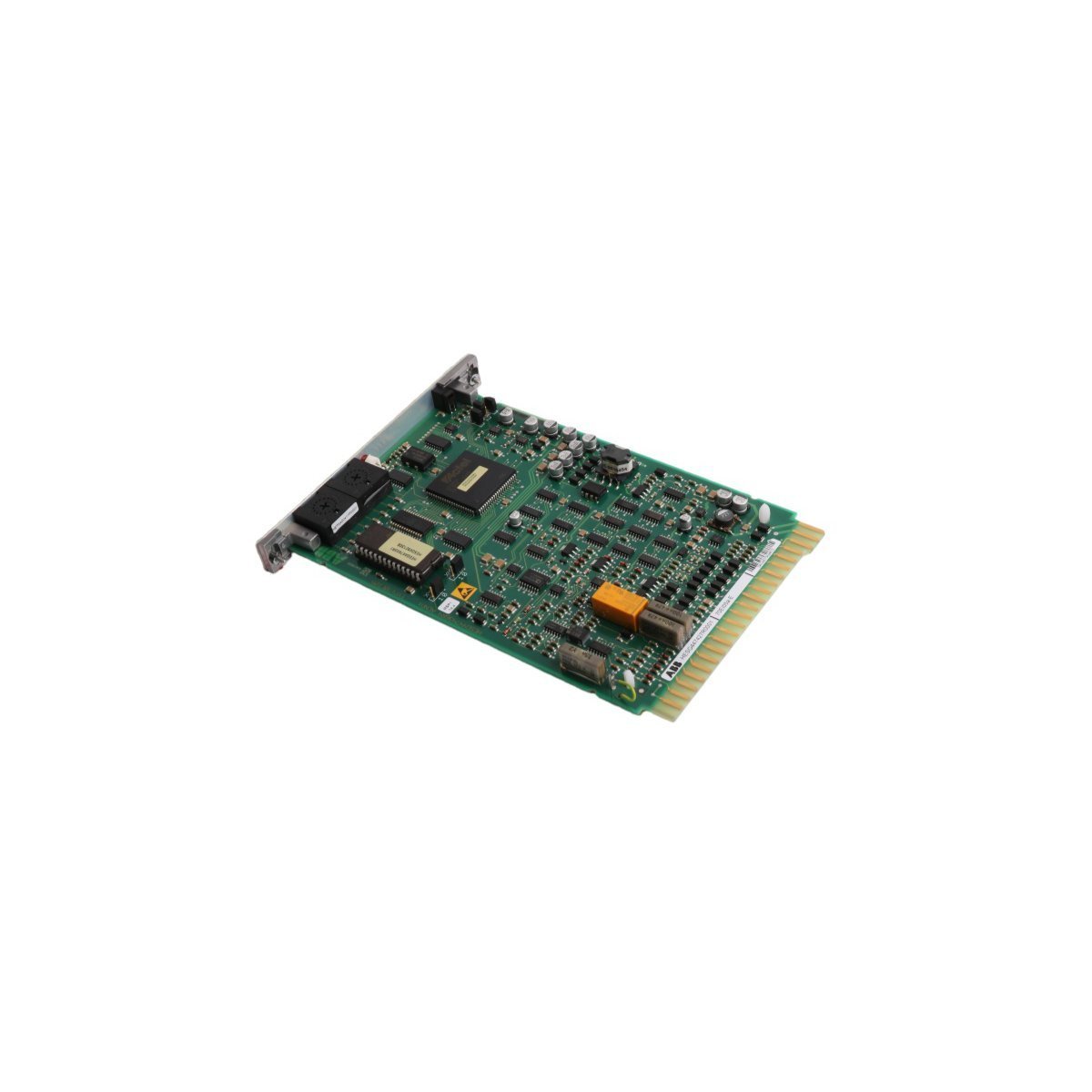

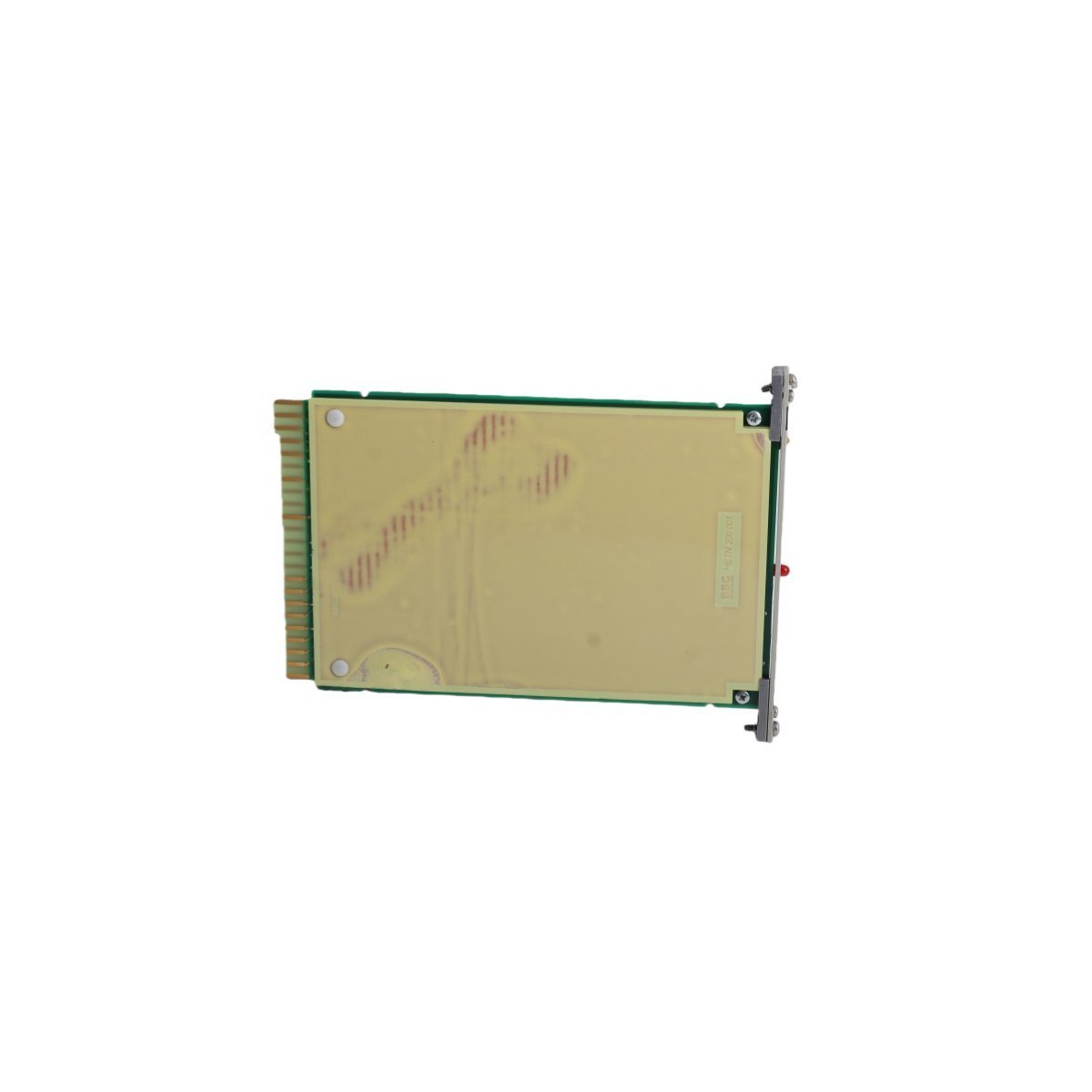

ABB 70AB01C-ES HESG447224R2 HESG447224R0002 Digital Output Module

The ABB 70AB01C-ES (Order Number: HESG447224R2) functions as a specialized output module within the Procontrol P13 platform. It manages critical signal distribution to field-level actuators and control devices. The hardware utilizes a robust digital signal processing engine to ensure high-speed command execution. Furthermore, it maintains rigorous signal accuracy for complex industrial power systems. This unit effectively bridges the gap between the central controller and peripheral equipment. Consequently, it provides the precise output required for demanding automation tasks.

Technical Characteristics and Design

• Procontrol Compatibility: Specifically engineered for the P13 DCS framework.
• Address Management: Supports non-consecutive channel addressing via P13 software.
• Diagnostic Tools: Includes integrated simulation and forcing functions for rapid maintenance.
• Robust Circuitry: Features specialized local bus communication to ensure data integrity.
• Thermal Tolerance: Built for sustained operation in high-density industrial control cabinets.

Operational Advantages

Modern control systems require high availability and efficient troubleshooting capabilities. This module supports system modernization by offering advanced configuration flexibility. Technicians use the P13 Configurator to perform real-time diagnostics and signal verification. Furthermore, the compact design allows for efficient space utilization in existing control racks. The module ensures operational continuity by providing stable, repeatable outputs for mission-critical processes. Adopting this hardware safeguards equipment longevity and improves overall system responsiveness in continuous production cycles.

Technical Specification Overview
