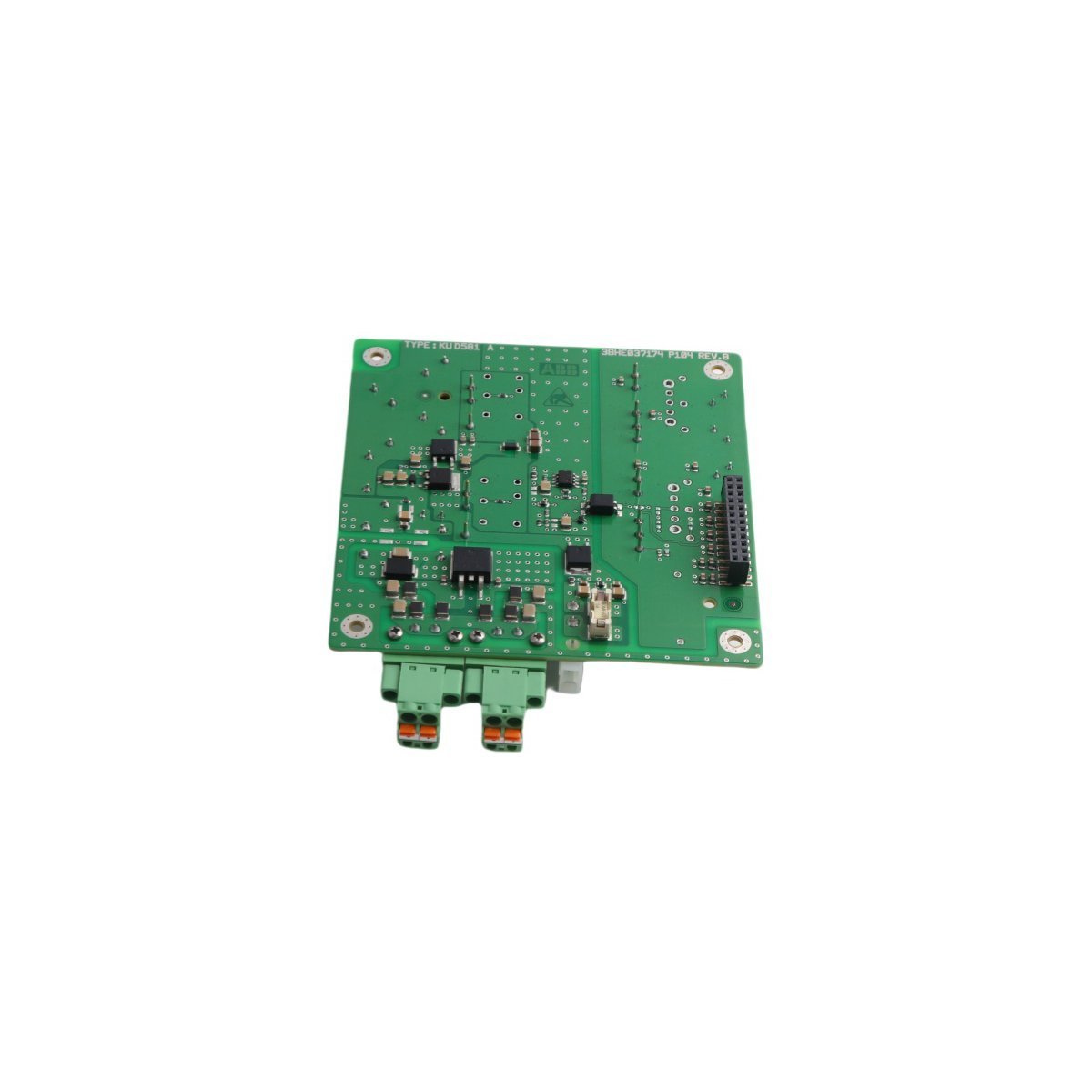

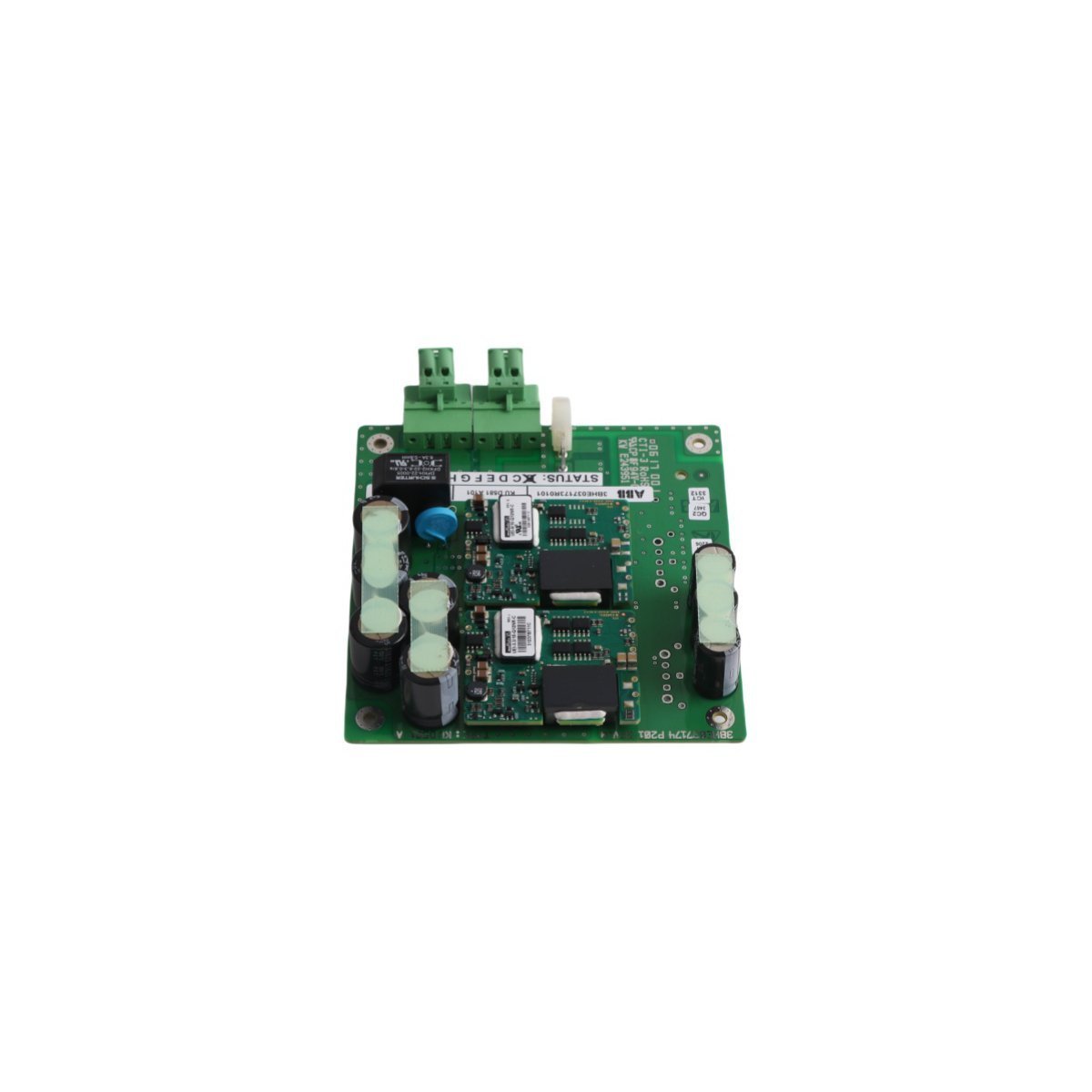

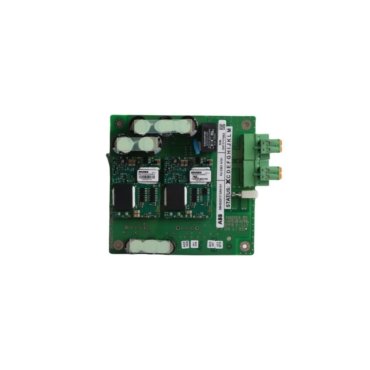

ABB 3BHE037173R0101 KUD581 A101 Controller Board

Key Technical Specifications

• Model Identification: 3BHE037173R0101 / KUD581 A101
• Compatible System: ABB ACS 1000 Series Drives
• Primary Function: Drive Control and Signal Processing
• Communication Protocols: Ethernet, RS-485
• Safety Ratings: IEC 61508 / ISO 61508 Compliant
• Physical Dimensions: 11 cm x 13.5 cm x 3 cm
• Unit Weight: 0.2 kg
• Country of Manufacture: Sweden

The ABB 3BHE037173R0101, also identified by the KUD581 A101 hardware designation, is a high-performance controller board engineered specifically for the ACS 1000 medium voltage drive system. This board serves as a primary control interface, managing complex drive logic and ensuring synchronized operation of power electronics. By leveraging advanced digital control algorithms, the KUD581 A101 maintains precise regulation over motor speed and torque. This capability makes it a fundamental component for heavy-duty industrial applications where process stability is mandatory.

Advanced Processing and Machinery Regulation

Precision is the hallmark of the 3BHE037173R0101 control architecture. The board processes high-speed signals to provide real-time adjustments to machinery, reducing mechanical stress and optimizing energy consumption. Because it utilizes integrated digital technology, the KUD581 A101 can execute complex tasks with minimal latency. This level of responsiveness is vital for maintaining the efficiency of ACS 1000 drives in demanding sectors like mining, water management, and power generation.

Industrial Connectivity and Safety Standards

Seamless integration into a Distributed Control System (DCS) is made possible through the board’s robust communication suite. The 3BHE037173R0101 features multiple interfaces, including RS-485 and Ethernet ports, allowing for comprehensive networked control and remote monitoring. Furthermore, this board adheres to rigorous international safety standards, including IEC 61508 and ISO 61508. These certifications confirm that the hardware meets the functional safety requirements necessary for protecting both personnel and high-value industrial assets.

Durable Design for Harsh Environments

Reliability remains a priority for ABB in the design of the KUD581 A101. The controller board features a ruggedized construction that allows it to operate effectively in extreme climates, ranging from sub-zero temperatures to high-heat environments. Its compact 11×13.5x3cm form factor enables installation in space-constrained drive cabinets without sacrificing functionality. Additionally, the board’s high resistance to electromagnetic interference (EMI) ensures that signal processing remains accurate even in the presence of heavy electrical machinery.
