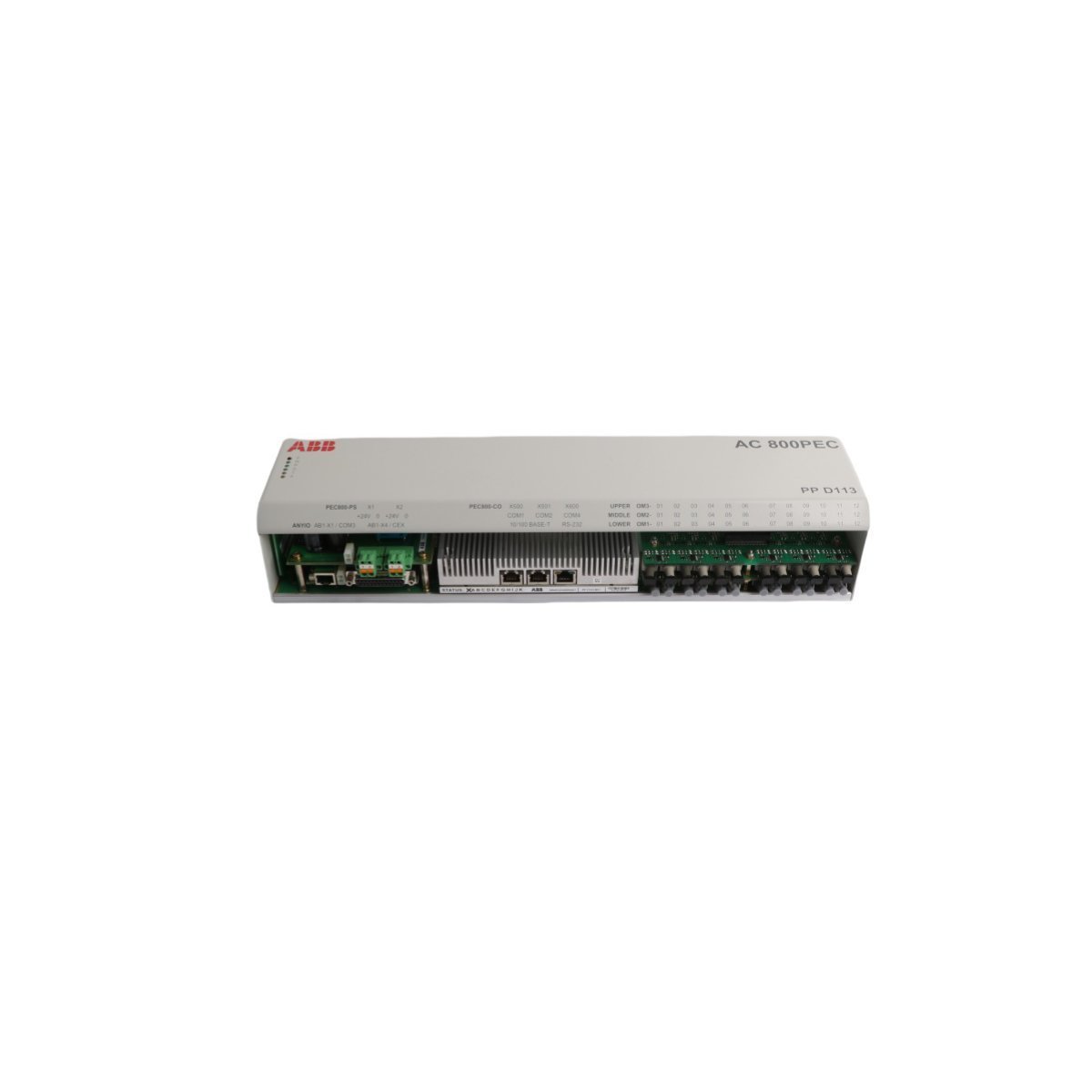

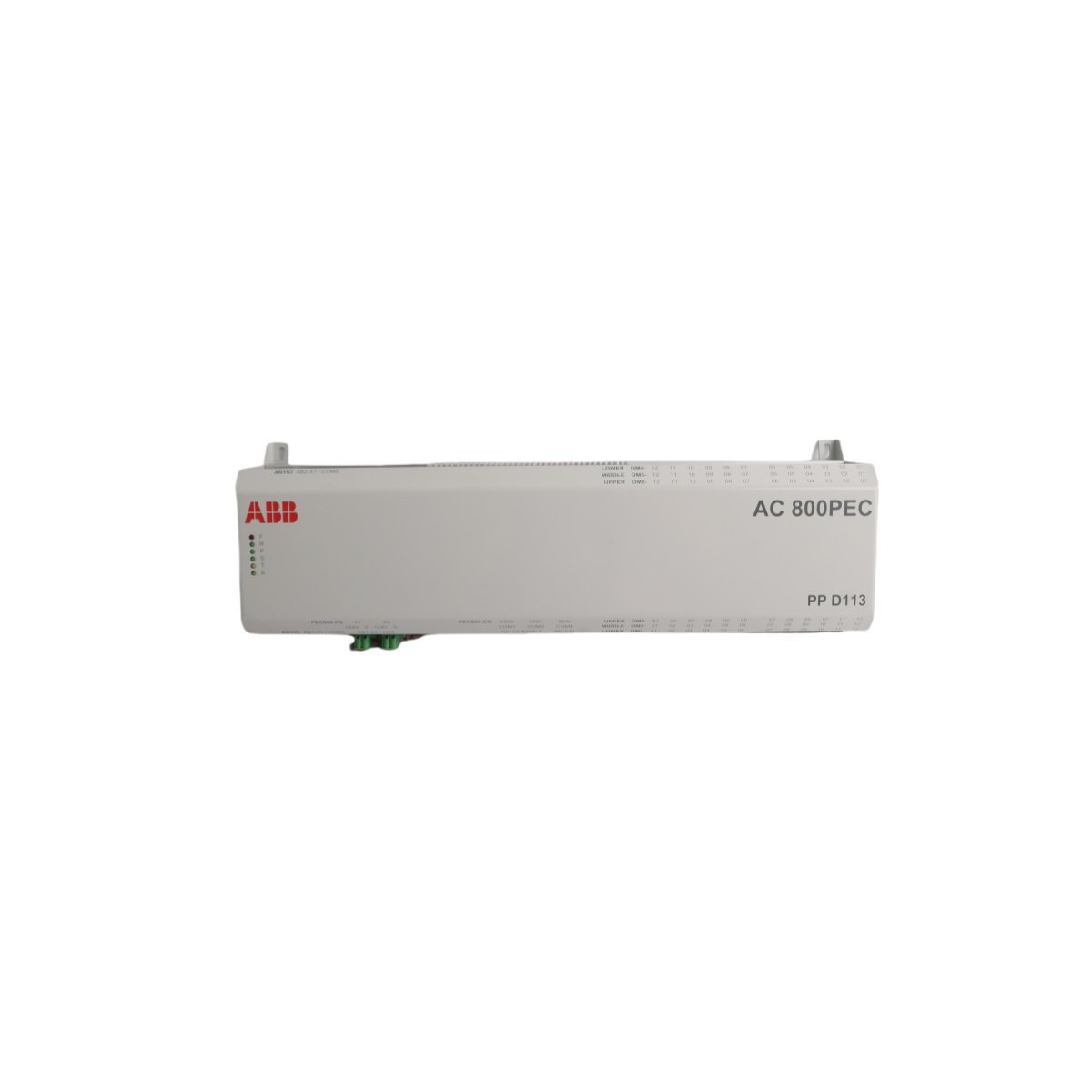

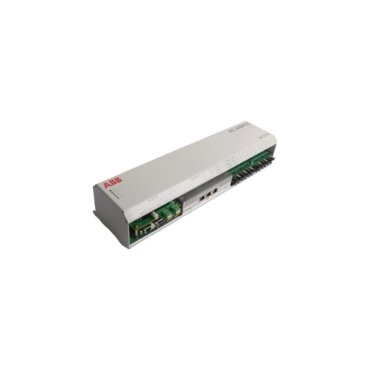

The ABB PPD113 B01-10-150000, designated by part number 3BHE023784R1023, represents the high-performance core of the AC 800PEC control system. This controller module specializes in high-speed power electronics control, providing the computational speed required for demanding industrial applications such as static excitation and large drive systems. By combining the flexibility of a general-purpose controller with the rapid execution of a field-programmable gate array (FPGA), the PPD113 manages up to 1500 channels simultaneously. This dual-architecture approach allows the module to handle both slow process control loops and extremely fast power electronic switching cycles within a single hardware unit.
Connectivity and Network Integration
Integration into modern plant infrastructures remains a primary strength of the 3BHE023784R1023. The module supports a diverse range of industrial communication standards, ensuring seamless data transparency across the enterprise. Furthermore, the inclusion of multiple high-speed interfaces facilitates real-time synchronization between the controller and peripheral power modules.
The hardware supports several critical protocols:
- Modbus TCP/IP for standard industrial networking.
- High-speed Ethernet for controller-to-controller communication.
- OPC-UA for secure, platform-independent data exchange with supervisory systems.
- Specialized fiber-optic links for low-latency communication in high-voltage environments.
Technical Specifications
- Brand: ABB
- Model: PPD113 B01-10-150000
- Order Number: 3BHE023784R1023
- Series: AC 800PEC
- Module Type: High-Speed Controller
- Control Capacity: Up to 1500 Channels
- Net Weight: 2.64 kg
- Dimensions: 45cm x 15.5cm x 10cm
- Origin: Sweden
- HS Code: 8537101190
