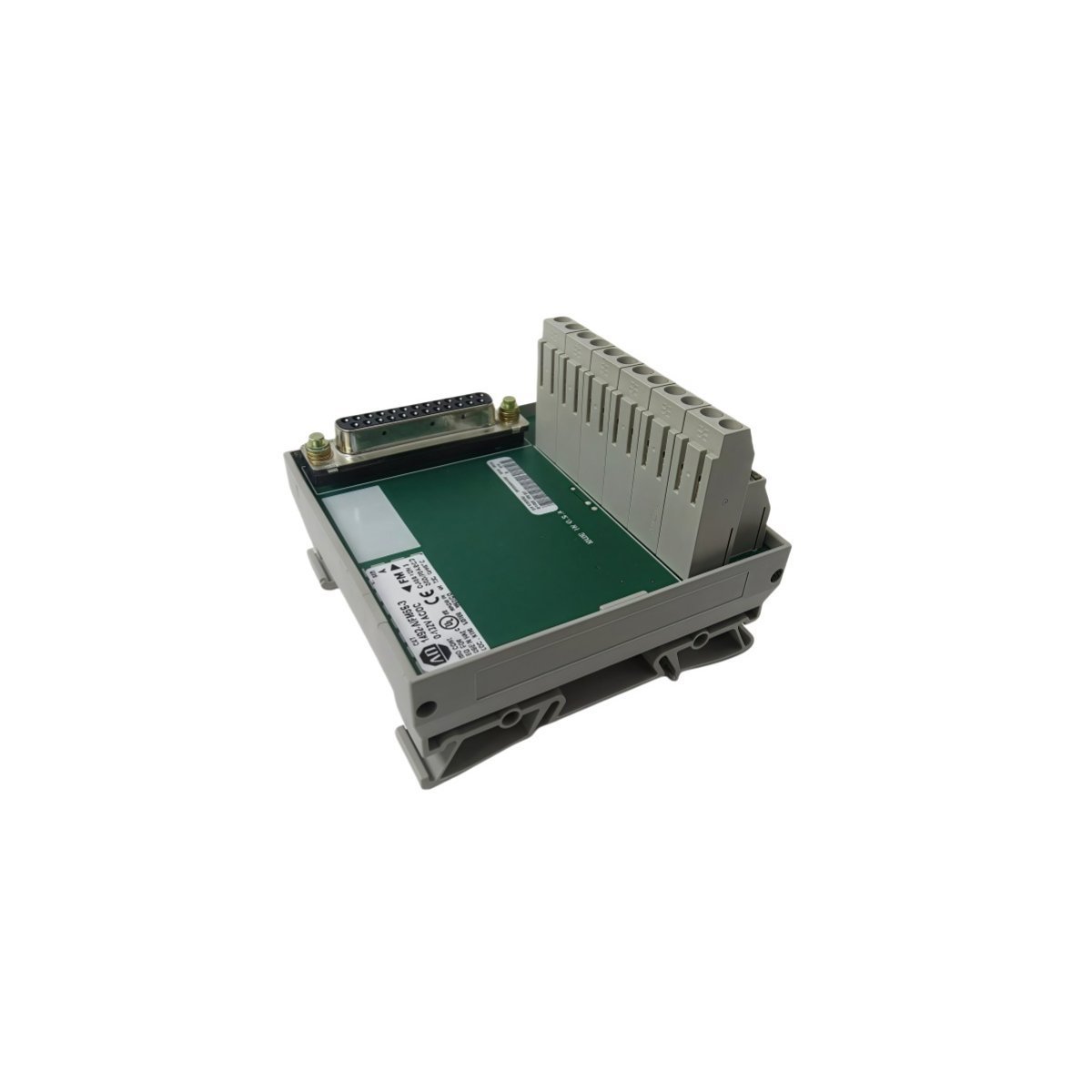

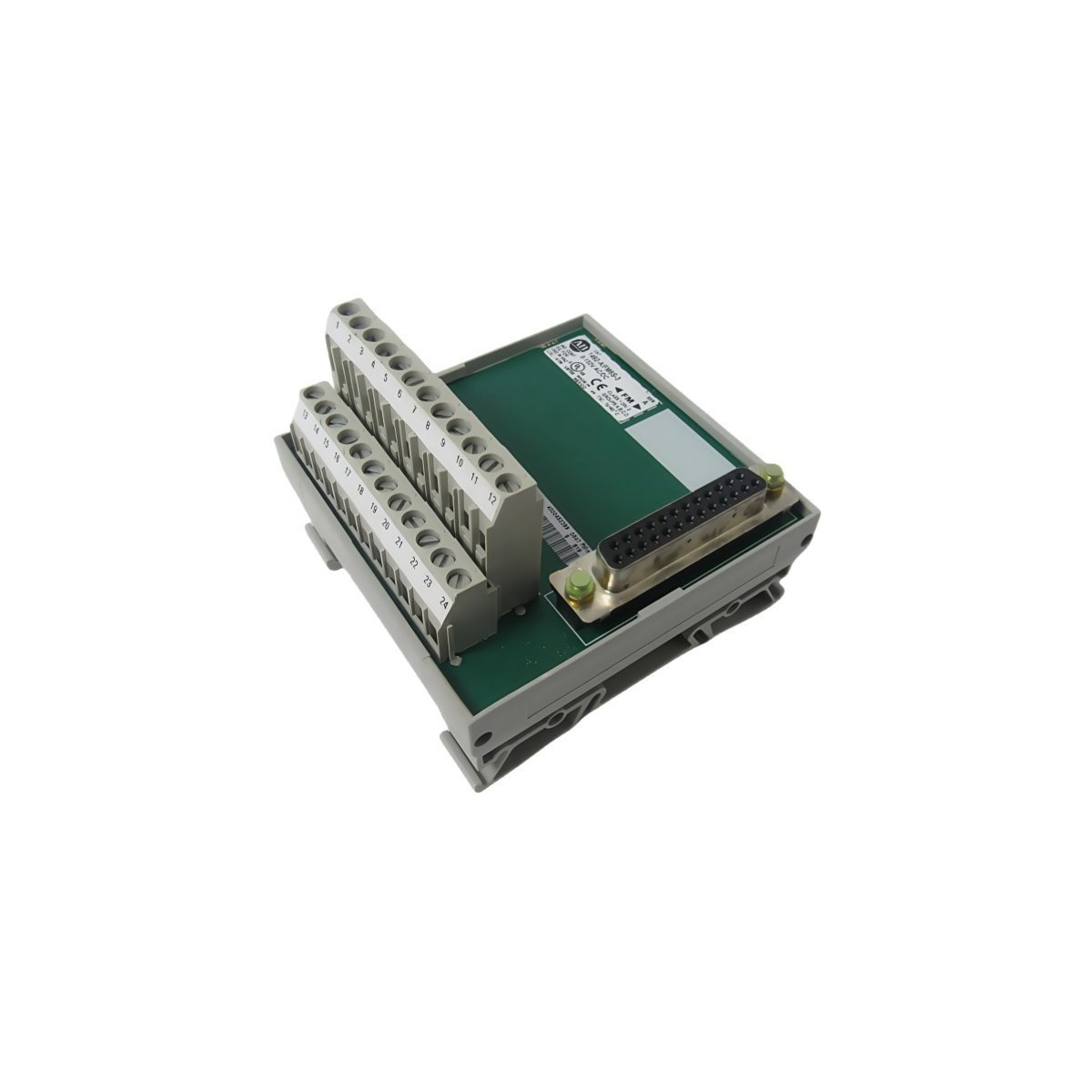

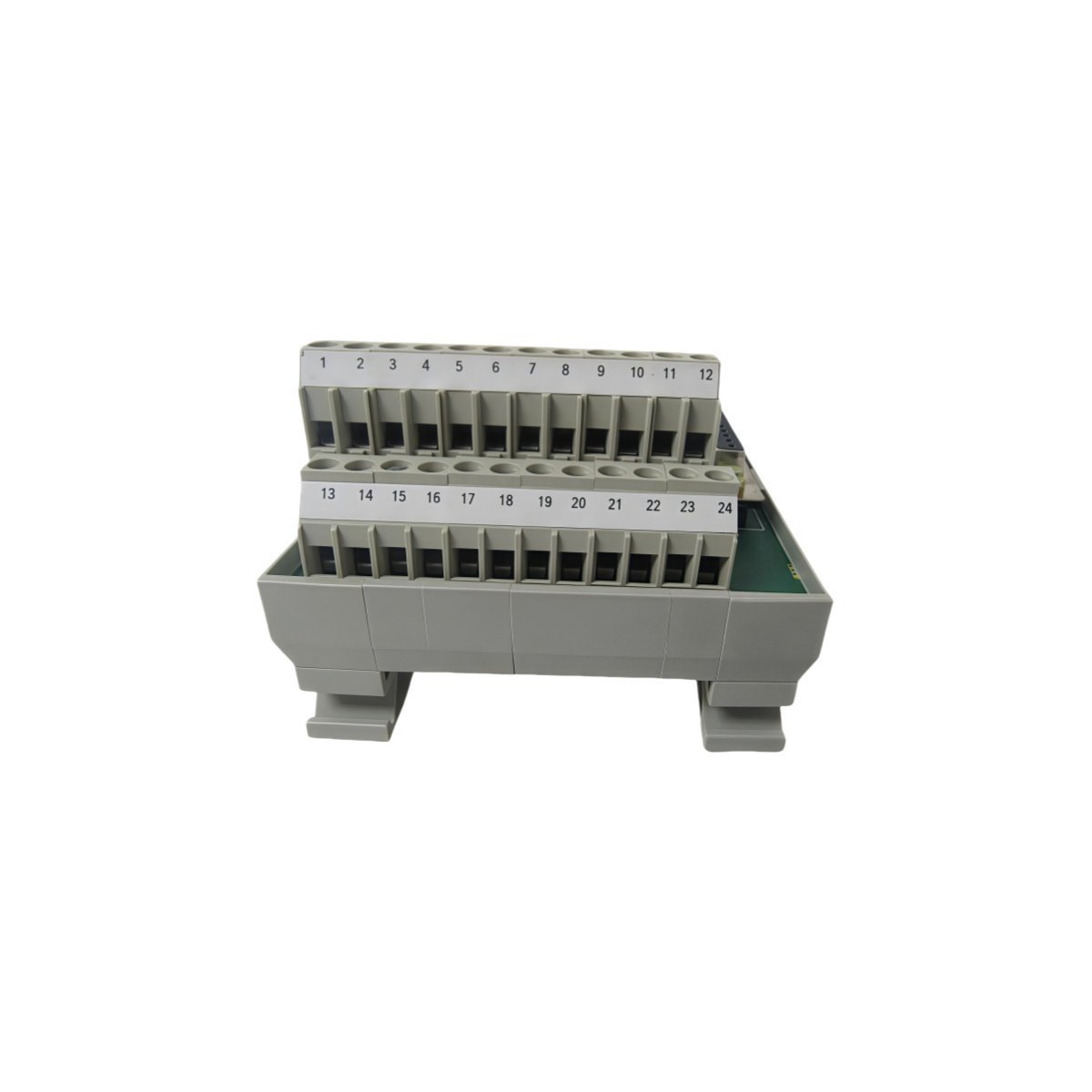

1492-AIFM6S-3 Allen Bradley PLC Pre-Wired Analog Interface Module with Shield Grounding
Sale!99 in stock
- Brand: Allen Bradley / Rockwell Automation
- Model Number: 1492-AIFM6S-3
- Product Type: Analog Interface Module (AIFM)
- Total Channels: 6 isolated channels
- Input Voltage Range: 0 to 132V AC/DC (Max continuous operational limits)
- Isolation Rating: 600V AC/DC channel-to-channel and channel-to-ground isolation
- Input Signal Formats: Compatible with ±10V voltage loops and 0–20mA current loops
- Mechanical Connection: Heavy-duty screw clamp terminals
- Mounting Configuration: Standard 35mm DIN rail mounting
- Physical Dimensions: 8.1 x 8.9 x 7.6 cm
- Net Weight: 0.1 kg
- HS Code: 8537101190
- Chemical and petrochemical processing refineries
- Municipal water and wastewater treatment infrastructure
- Power generation facilities and electrical substations
- High-accuracy temperature, pressure, and flow monitoring networks
- Multi-axis distributed industrial automation systems
WordPress Product Short Description
The Allen Bradley 1492-AIFM6S-3 is a specialized 6-channel analog interface module designed to streamline PLC wiring. This module features advanced channel-to-channel isolation and dedicated shield termination points to maximize signal purity.
Product Overview
The Allen Bradley 1492-AIFM6S-3 serves as a high-density, field-side interface for programmable logic controller (PLC) analog I/O systems. This module simplifies field wiring connections by replacing point-to-point wiring with standard pre-wired cable assemblies.
Technical Specifications
Key Hardware Characteristics
Functional Description
The 1492-AIFM6S-3 module functions as an intermediate signal routing block between field instruments and PLC analog modules. It utilizes independent feed-through isolation barriers to separate each measurement loop cleanly.
Consequently, the hardware prevents ground loop currents and cross-talk from degrading your system data. The built-in shield terminals provide a direct path to the chassis ground. This design significantly reduces high-frequency electromagnetic interference (EMI).
Furthermore, onboard LED status indicators give technicians immediate visual feedback for diagnostic troubleshooting.
Industrial Applications
| Weight | 0.1 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 8.1 x 8.9 x 7.6 cm |
