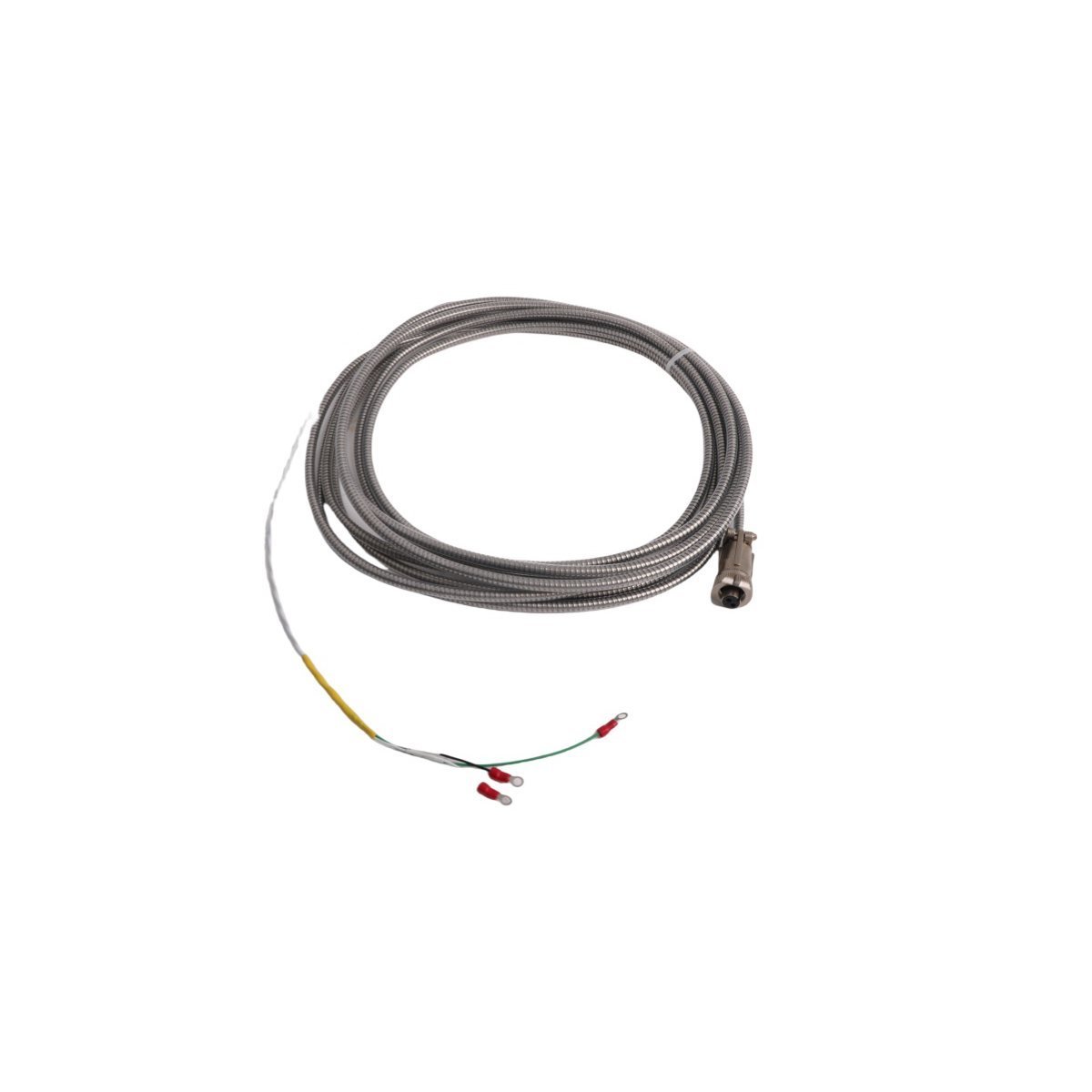

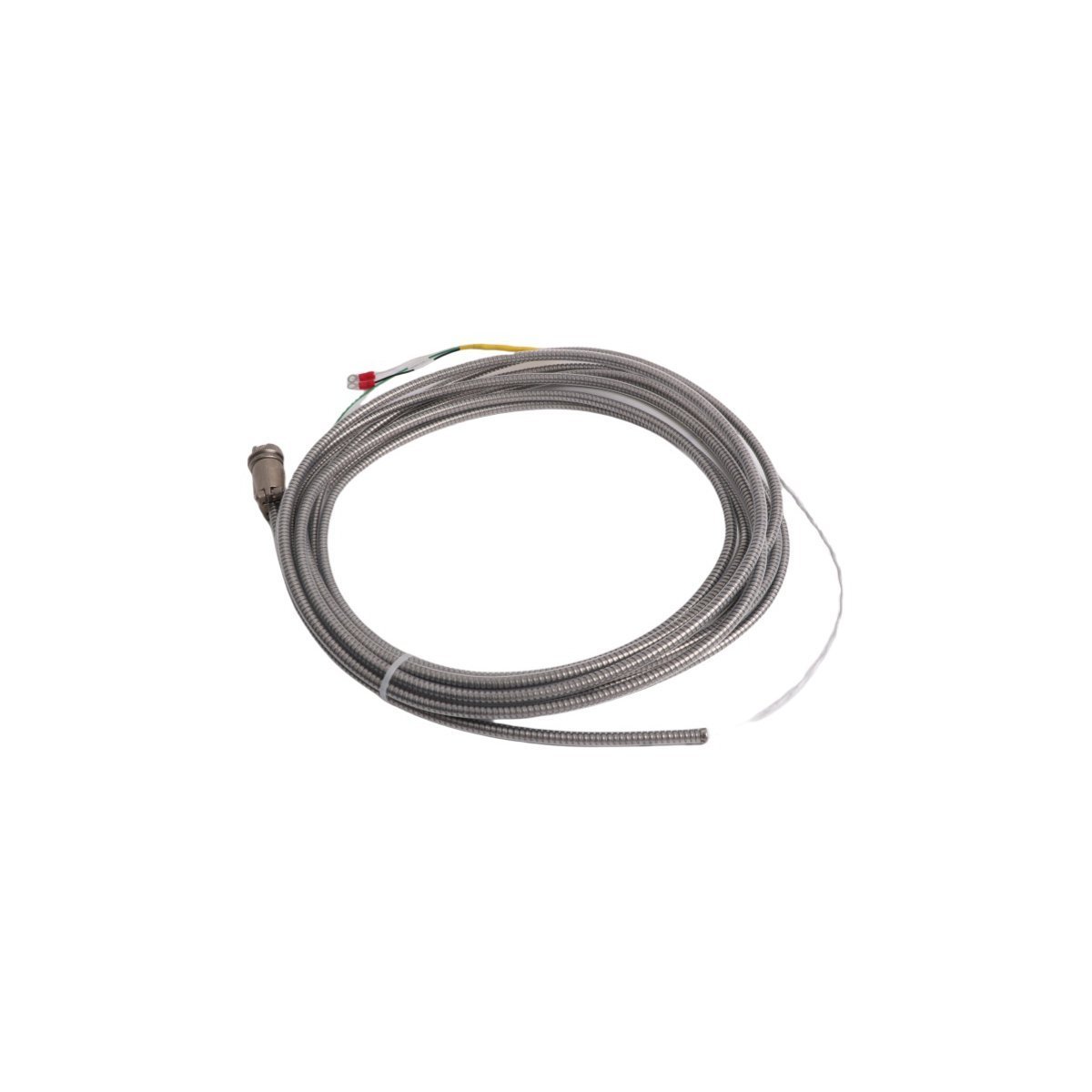

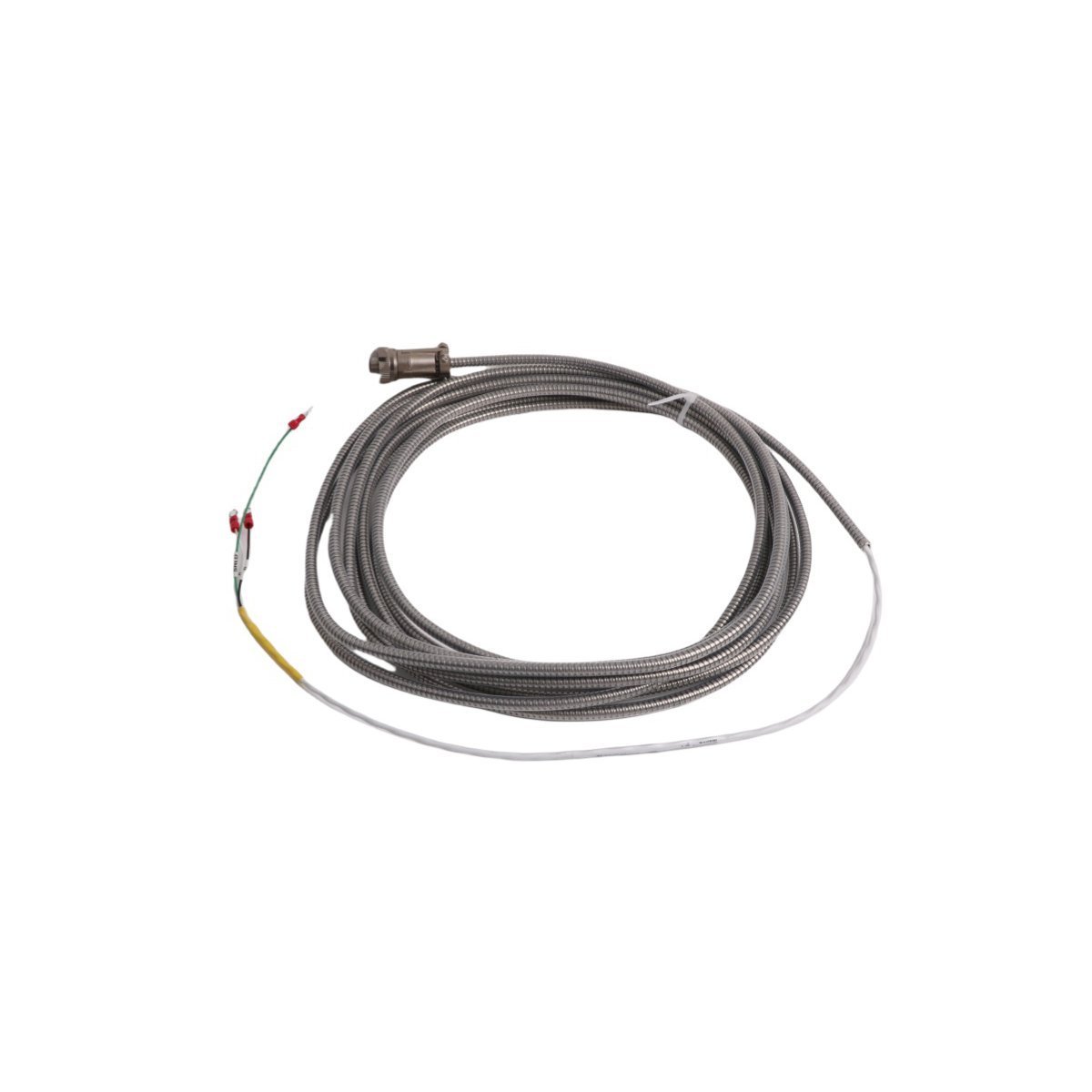

Bently Nevada 84661-25 Velomitor Interconnect Cable

The Bently Nevada 84661-25 (84661 Interconnect Cable), which engineers use for signal transmission between seismic transducers and monitoring hardware in TSI systems, provides direct physical execution of low-noise analog signal path routing.

Suffix Breakdown & Model Matrix

• 84661: Base model identifier for Velomitor seismic transducer interconnect cabling.
• -25: Length specification indicating a total cable length of 25 feet (approx. 7.62 meters).

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 84661-25 maintains signal integrity for velocity transducers by utilizing shielded twisted-pair construction; consequently, it minimizes the coupling of electromagnetic interference (EMI) into the vibration signal path. Technicians must ensure proper routing, as mechanical stress induces noise in the transducer output. Furthermore, when installers integrate these cables into a monitoring loop, they verify the integrity of the 5-pin MS-style interface to prevent contact resistance, which would otherwise skew the signal and impact rotor dynamics diagnostics. To achieve effective cross-talk suppression, personnel must keep these signal paths physically isolated from high-voltage motor power conductors .

Frequently Asked Questions (FAQ)

Q: What precautions should technicians take when routing the 84661-25 in areas with high motor drive noise?A: Users should route the cable through dedicated metallic conduit. Additionally, they must maintain maximum possible separation from VFD output cables or high-power motor leads. If conduits must cross, personnel should orient them at 90-degree angles to minimize inductive coupling.

Q: Can the cable shield connect to ground at both ends?A: No. To avoid ground loops, which induce 50/60 Hz hum into the vibration signal, technicians must connect the cable shield to ground at a single defined point—typically at the monitor terminal block—while they keep the shield insulated at the transducer end.

Field Installation Guidelines

• Mounting: Technicians engage the 5-pin MS-style connector into the transducer receptacle until the locking ring reaches the fully locked position. They apply a small amount of dielectric grease to the connector pins if they install the unit in high-humidity or corrosive atmospheres.

• Securing: Installers utilize cable ties or stainless steel clamps every 0.5 to 1 meter. This practice prevents the cable from vibrating against sharp edges of the machine casing, which would cause insulation abrasion over time.

• Termination: Technicians strip the conductors carefully to avoid nicking the copper strands. They also insulate the shield drain wire with heat-shrink tubing at the transducer end to prevent accidental contact with the machine housing.

• Verification: Finally, the team performs a continuity check between the connector pins and the terminal ends to verify wiring integrity before they energize the system.
