Bently Nevada 330101-00-11-15-12-CN 3300 XL Proximity Probe

Bently Nevada 330101-00-11-15-12-CN Proximity Probes

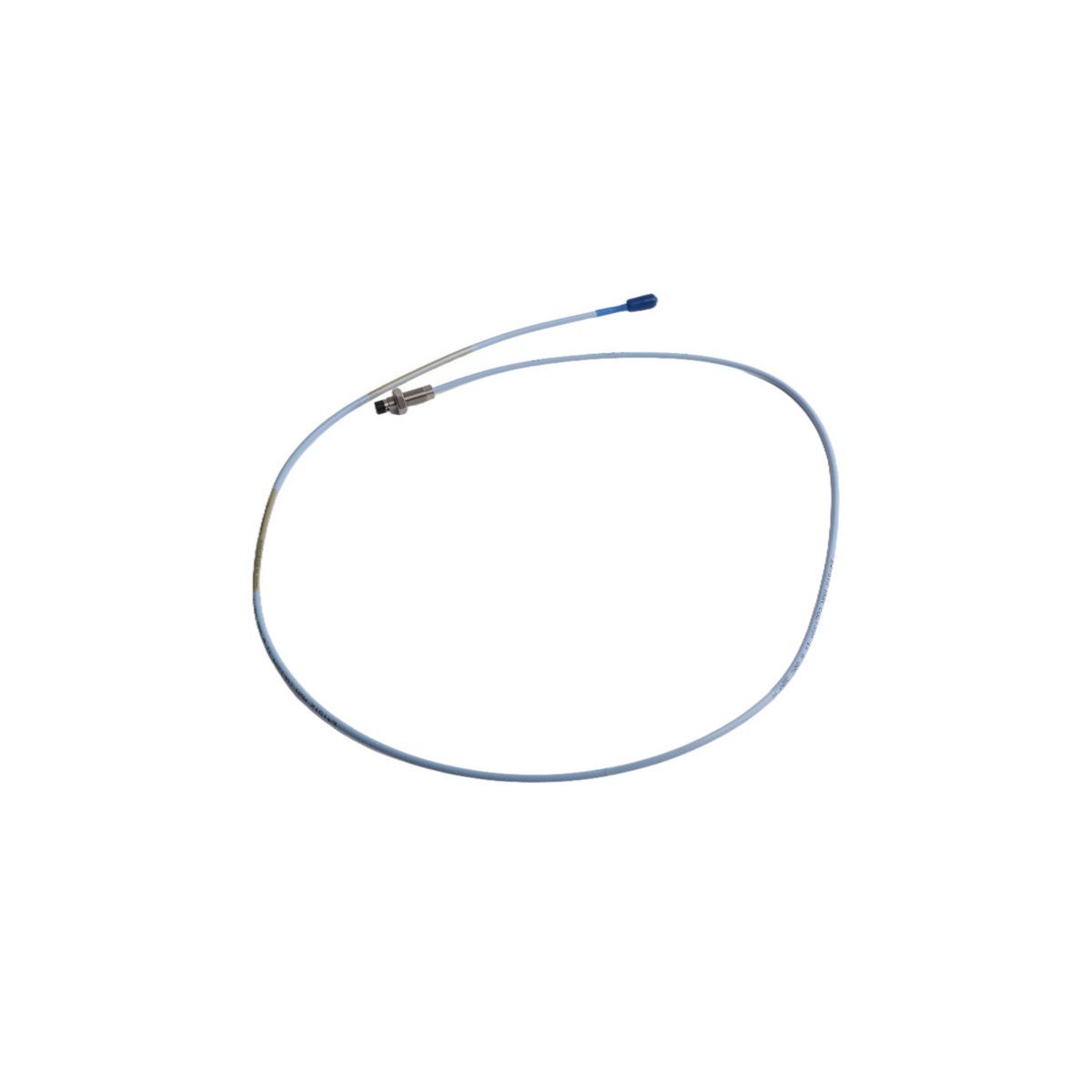

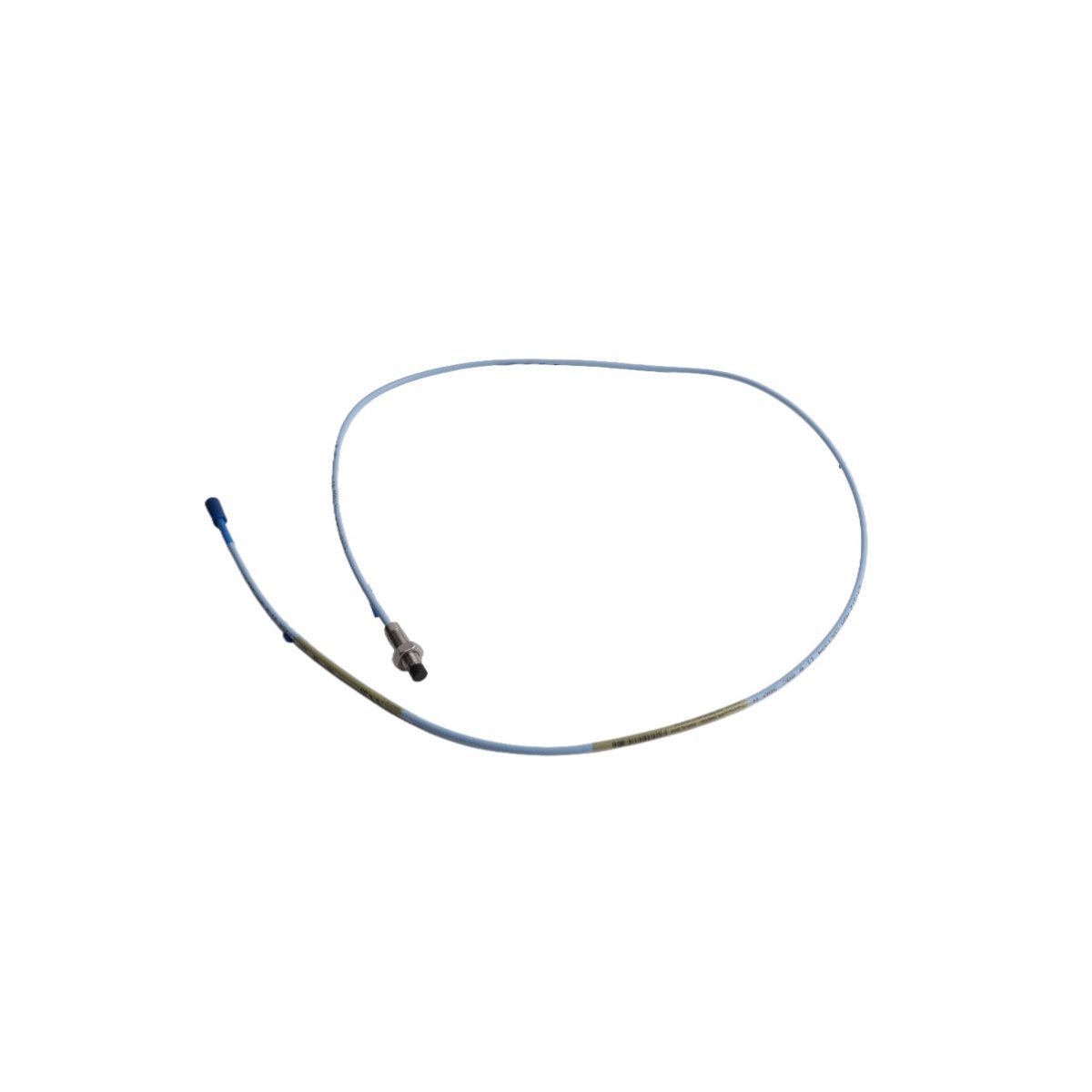

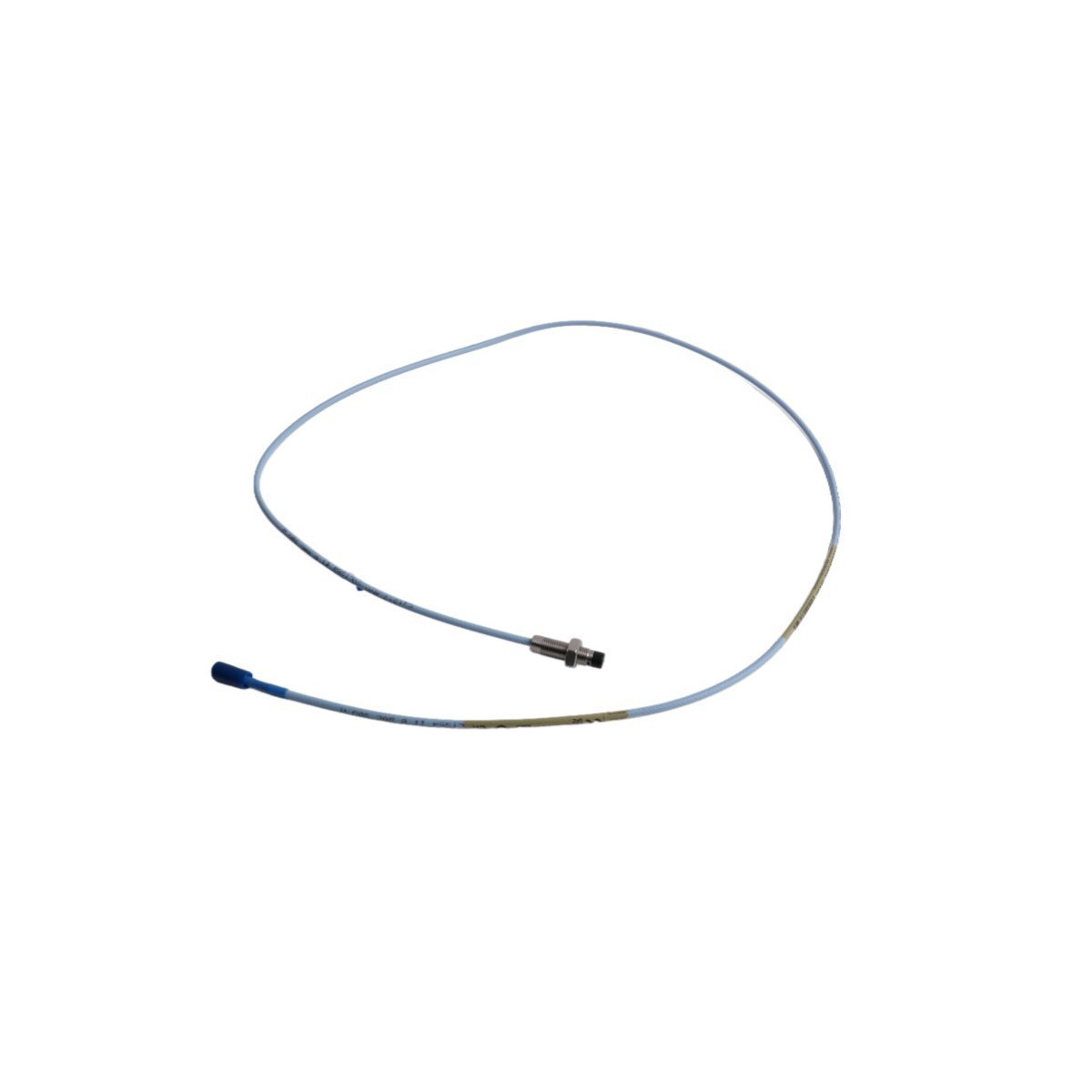

The Bently Nevada 330101-00-11-15-12-CN serves as the primary 330101 Proximity Probes utilized to execute precision fluid-film bearing displacement and shaft position monitoring across micro-inch measurement envelopes. The hardware functions as a non-contacting transducer head within the 3300 XL Proximity Transducer System matrix. Field operators deploy this hardware assembly to transmit continuous radio frequency variations generated by metallic target proximity directly to downstream machinery protection monitors.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware design maintains consistent eddy-current probe scaling metrics to prevent measurement drift across wide thermal shifts. When tracking rapid rotor dynamics on high-speed industrial shafts, the sensor tip maintains standard linear scale factors when matched with a corresponding 3300 XL Proximitor Sensor. Field technicians conduct gap voltage validation (-10 VDC targets) within the calibrated linear envelope to establish the proper physical static gap before logging active rotation data.

The transducer layout provides cross-talk suppression equivalent to standard 8 mm baseline models, minimizing electromagnetic coupling when installers position multi-axis XY pairs in close physical proximity. The FluidLoc cable configuration structurally blocks process fluids from migrating through the internal conductor layers, preserving high-frequency signal integrity under harsh industrial pressure differences.

Frequently Asked Questions

Q: Can field maintenance crews splice or extend the 1.5-meter FluidLoc cable attached to the 330101-00-11-15-12-CN sensor?

A: No, field engineers must never modify the native length of the probe cable assembly. The Proximitor relies on a precise fixed electrical length to generate the accurate resonant frequency; modifications will shift the scale factor outside calibration limits.

Q: What action occurs within the monitor rack if the ClickLoc connector becomes grounded to the machine case?

A: A shield or center-conductor ground fault paths the excitation voltage directly to the machine structure, forcing an immediate under-voltage fault. Technicians must bypass active shutdown loops prior to inspecting the physical connector insulation.

Q: Does the -CN suffix alter the electrical or mechanical calibration performance of the 3300 XL probe?

A: No, the -CN suffix specifies regional commercial compliance certification routing, but the physical sensor head retains the standard 3300 XL 8 mm electrical properties and scale factor parameters.

Field Installation Guidelines

• Tighten the 3/8-24 UNF probe body within its mechanical mounting bracket using specified torque limits to avoid crushing the internal coil housing under compression.
• Maintain the standard side-view clearance diameters around the 8 mm tip face during installation to eliminate parasitic eddy-current tracking from nearby structural steel boundaries.
• Slip non-conductive insulation boots over the ClickLoc coaxial mating junctions to prevent raw signal loops from establishing destructive secondary ground references.
• Route the flexible 1.5-meter line through dedicated protective conduit layers, enforcing minimum bend radii to protect the internal core from mechanical shear stresses.
