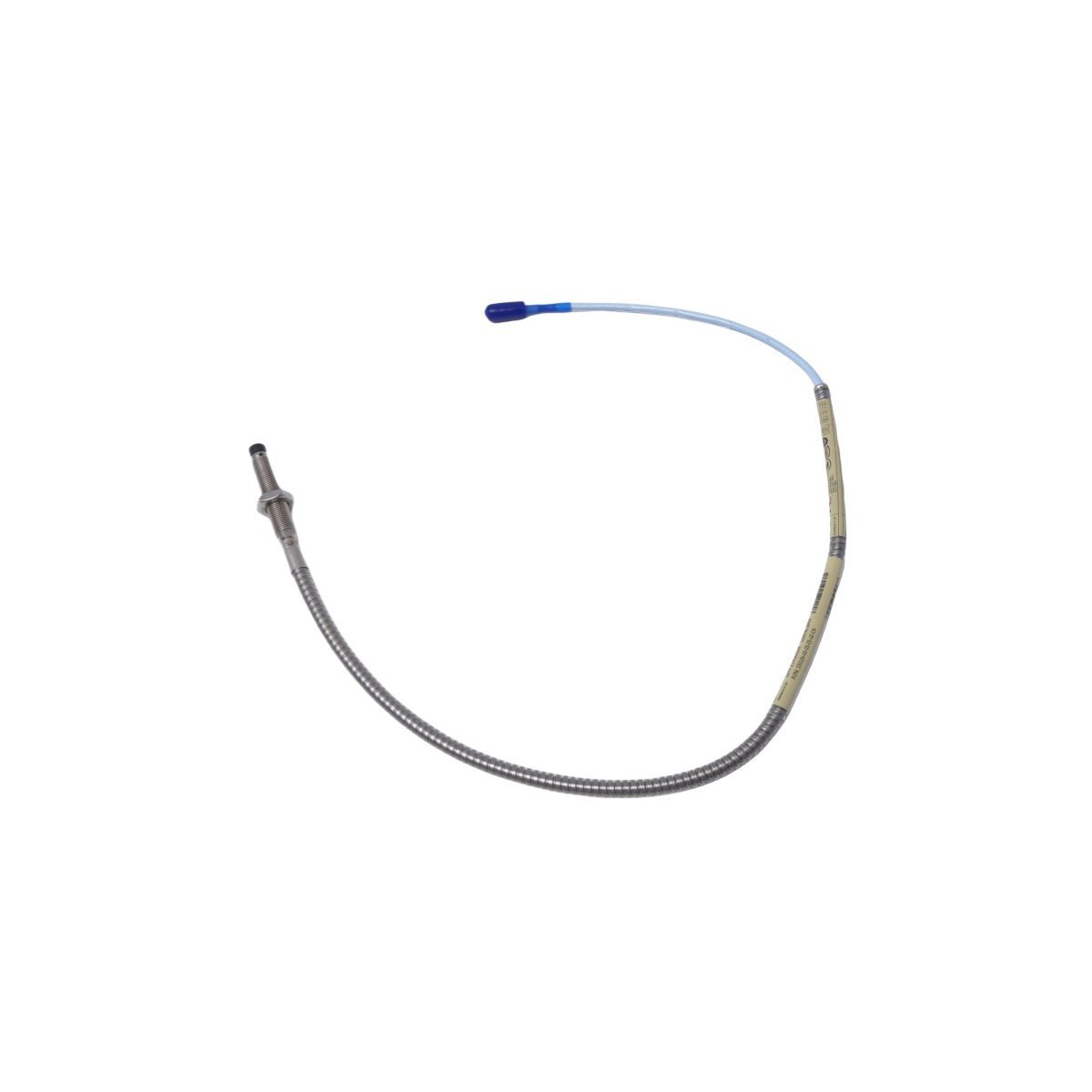

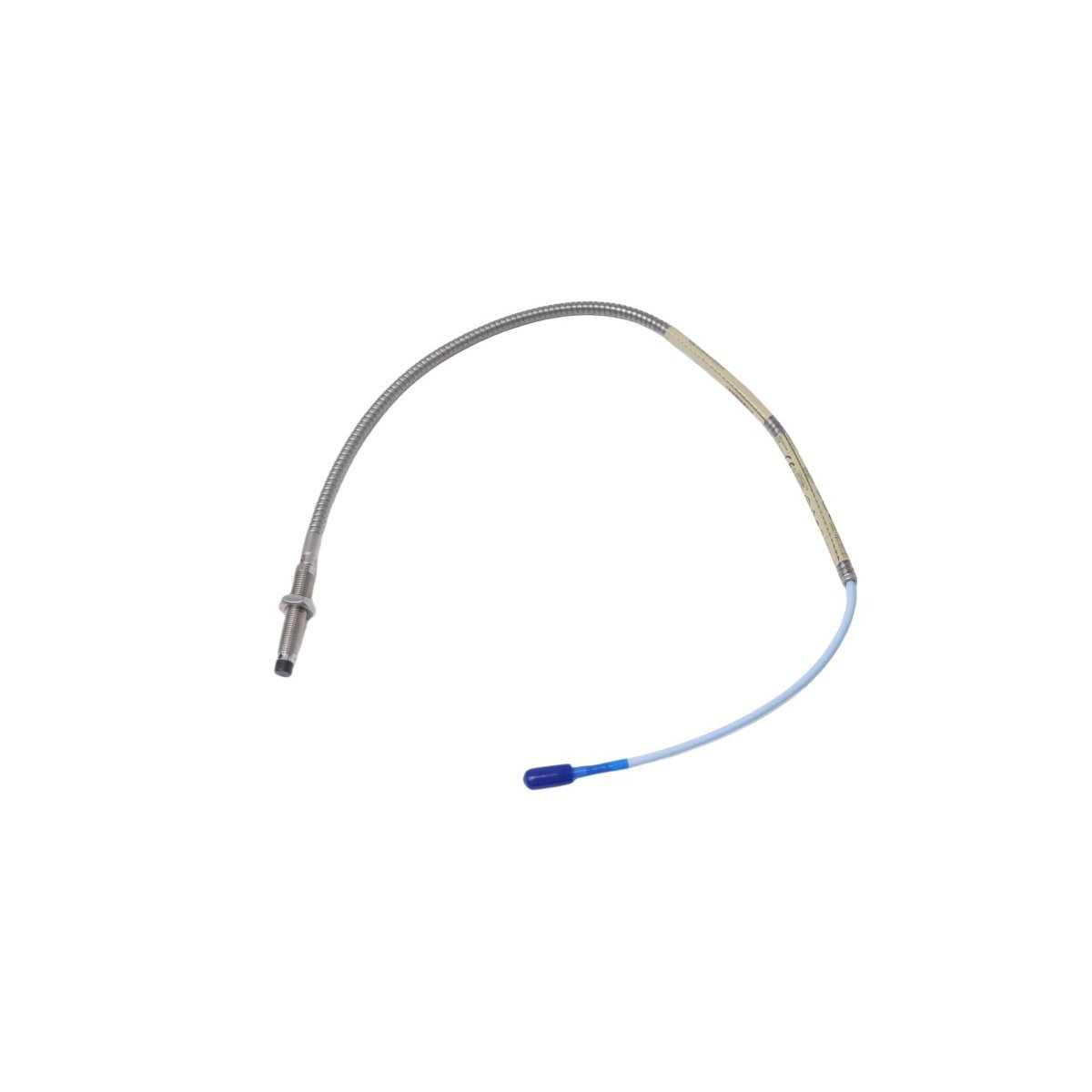

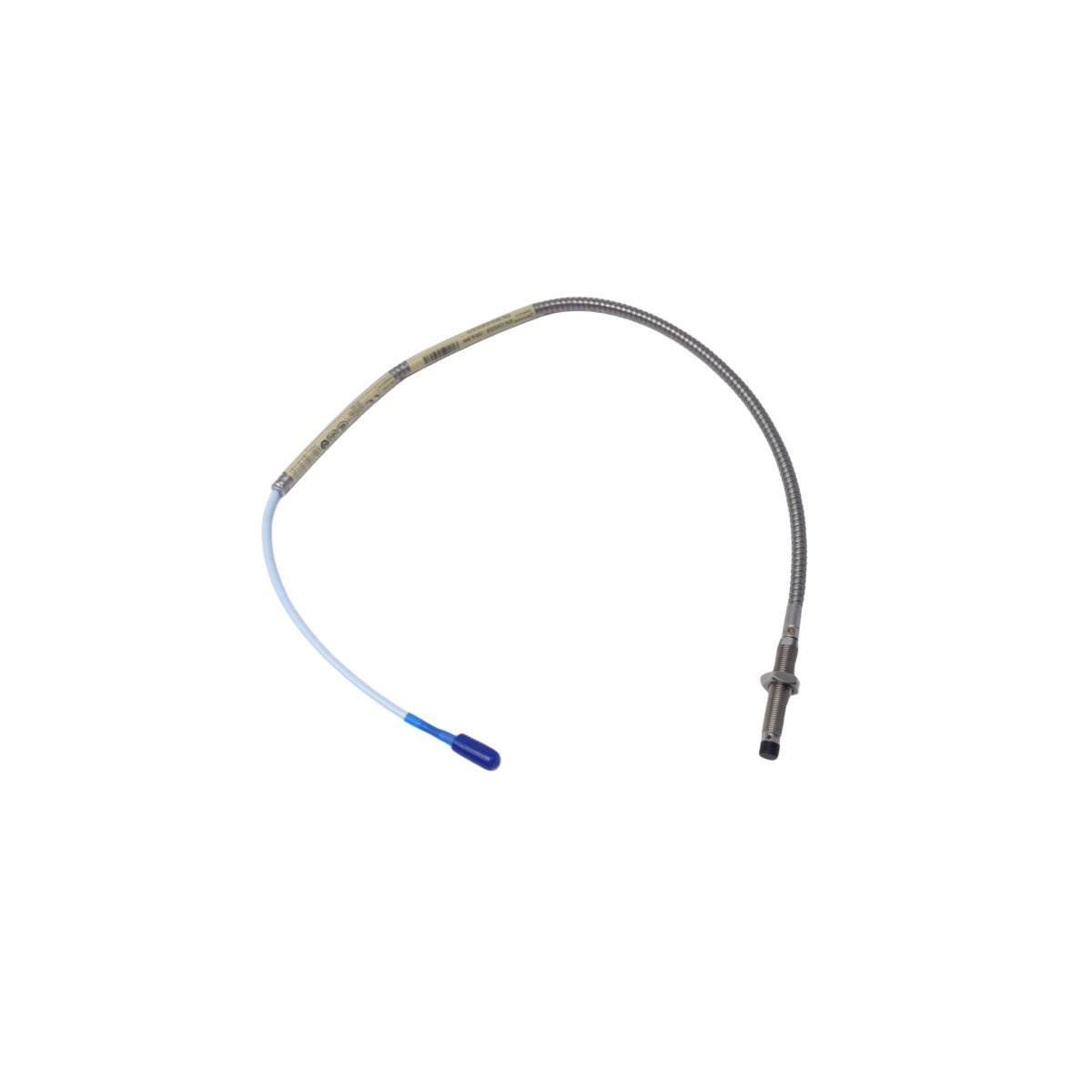

Bently Nevada 8mm Proximity Probe 330101-00-28-10-12-CN for TSI Systems

Enhanced Industrial Overview

The Bently Nevada 330101-00-28-10-12-CN serves as a critical sensing component within the 3300 XL Proximitor Transducer System. This specific configuration features an Extended Temperature Range (ETR) design, allowing the probe to maintain structural integrity and signal precision in thermal conditions that exceed standard industrial limits. Engineers typically deploy these probes in high-performance turbines, large-scale compressors, and steam-driven machinery where ambient temperatures frequently surpass 177 deg Celsius.

By utilizing eddy current technology, the probe facilitates non-contacting displacement monitoring of shaft vibration and position. This capability is vital for early fault detection and machine protection, helping operators avoid catastrophic mechanical failures. The ETR probe construction withstands peak temperatures up to 218 deg Celsius (425 deg Fahrenheit), ensuring continuous data transmission even during thermal surges in heavy-duty rotating equipment.

Operational Compatibility and System Logic

The 330101-00-28-10-12-CN probe offers seamless backwards compatibility with standard 3300 XL series components. While this ETR probe can interface with standard extension cables and Proximitor sensors without hardware modifications, the system will naturally default to ETR accuracy specifications. For maximum thermal resilience across the entire signal path, users often pair this probe with ETR-rated extension cables capable of reaching 260 deg Celsius (500 deg Fahrenheit).

This modular approach allows for flexible installation strategies, such as using the ETR probe at the high-heat measurement point while utilizing standard cabling in cooler junction boxes. The probe remains a core element of Turbine Supervisory Instrumentation (TSI) strategies, providing the reliability required for safety-critical monitoring.

Detailed Technical Specifications

• Brand: Bently Nevada
• Model: 330101-00-28-10-12-CN
• Series: 3300 XL 8 mm Proximity Transducer System
• Probe Diameter: 8 mm
• Temperature Rating: ETR (Extended Temperature Range) up to 218 deg Celsius
• Total Length: 1.2 meters (approximate based on -12 suffix)
• Unthreaded Length: 1.0 inch (based on -10 suffix)
• Case Thread: 3/8-24 UNF (standard configuration)
• Application: Vibration, Thrust, and Speed monitoring
• Country of Origin: USA
• Shipping Weight: 0.55 kg

Primary Industrial Applications

• Steam and Gas Turbine vibration analysis
• Centrifugal Compressor shaft position monitoring
• High-pressure boiler feed pumps
• Power Generation facilities and Petrochemical refineries
