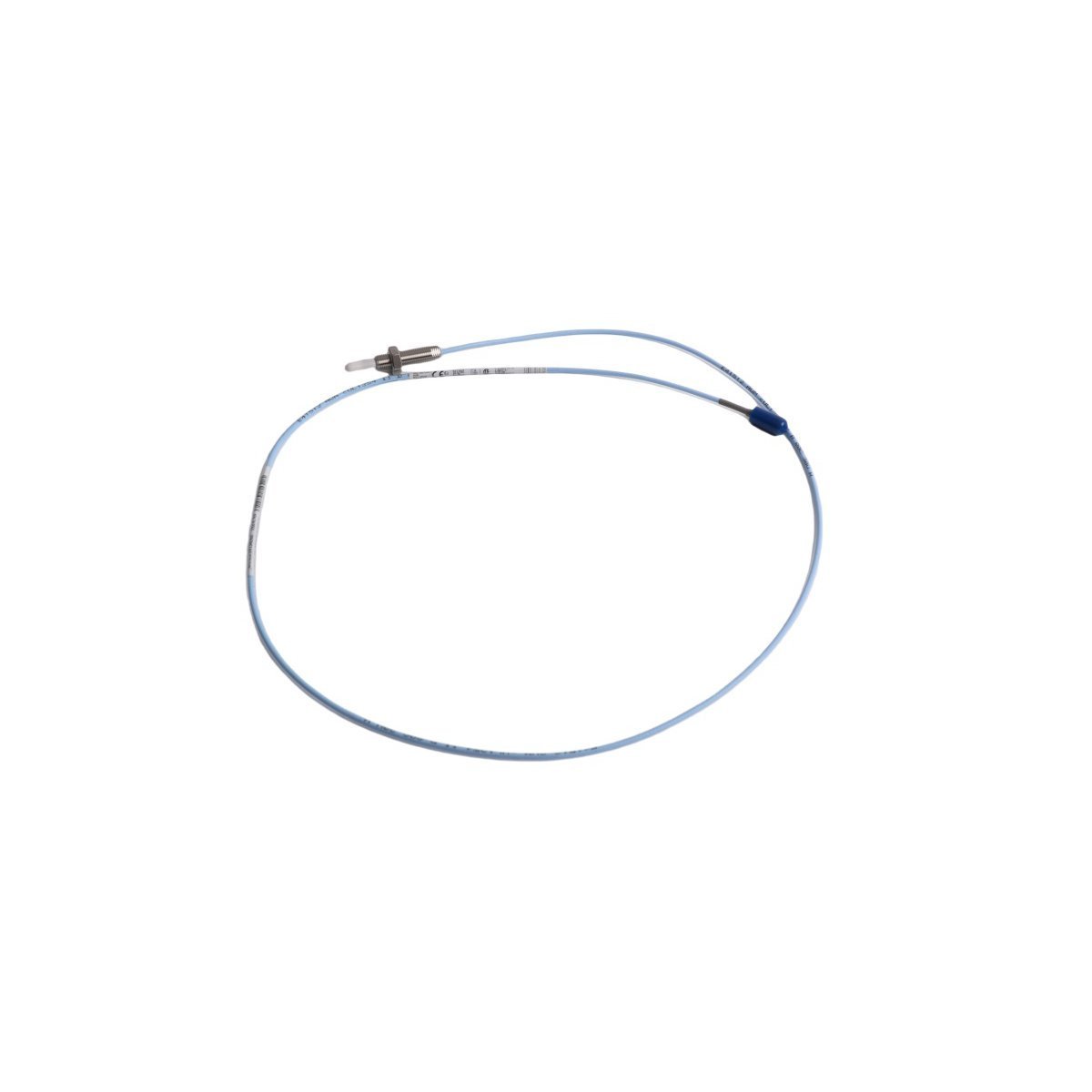

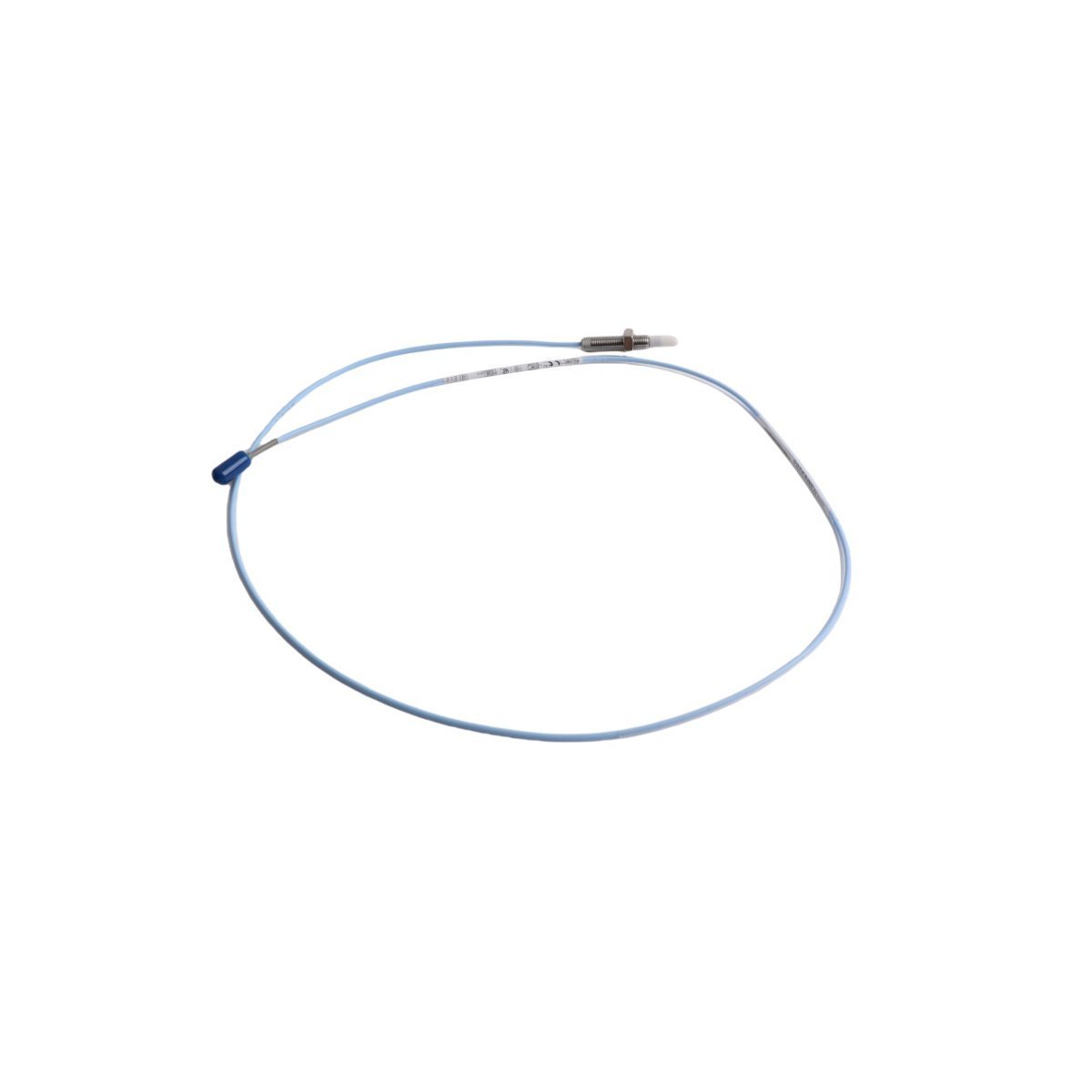

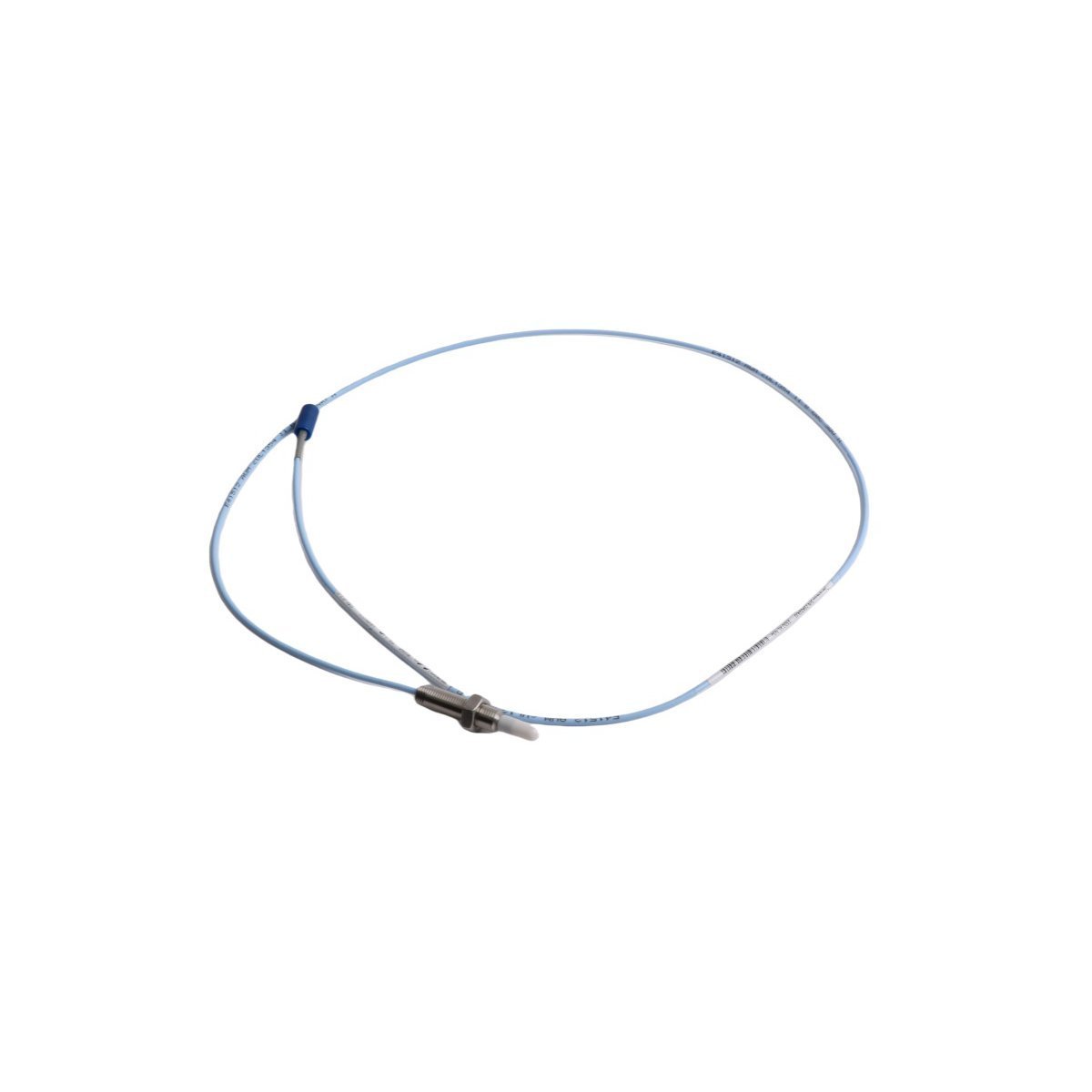

3300 XL NSv Eddy Current Probe 330908-00-16-10-01-05 by Bently Nevada

Brief Product Description

This industrial proximity probe delivers precise non-contact vibration tracking for small-bore target areas. It works inside the 3300 XL NSv transducer system to verify asset structural integrity.

Product Description

The Bently Nevada 330908-00-16-10-01-05 serves as a high-precision eddy current proximity sensor within the specialized 3300 XL NSv (Narrow Side View) product family. Engineers specify this transducer architecture when standard-size probe tips face side-view constraints or restrictive installation spaces. The advanced electronic design reliably monitors shaft movement without making physical contact, capturing subtle shaft imbalances and positional shifts directly.

Core Functional Applications

Turbine Supervisory Instrumentation (TSI) engineers integrate this narrow side-view probe into high-density machine environments. Consequently, heavy industries leverage these constant data streams to eliminate mechanical blind spots and lower overall asset downtime.

• Radial shaft vibration tracking inside small-diameter fluid-film bearings
• Axial thrust displacement monitoring for tight industrial turbine assemblies
• Centrifugal compressor shaft position checking and structural wear analysis
• High-speed industrial pump diagnostics and early bearing defect tracking
• Compact machinery speed sensing and Keyphasor phase reference signaling

Technical Characteristics and Design Features

This device combines a compact mechanical outline with excellent chemical and thermal endurance under harsh conditions. A 3/8-24 UNF threaded, non-armored body facilitates easy insertion through narrow boreholes. Additionally, the integrated 1.0-meter cable uses a gold-plated ClickLoc coaxial connector and a dedicated connector protector to block external fluids.

• Narrow side-view tip design diminishes side-wall interference in tight spaces
• Unarmored body design provides extra routing flexibility inside complex housings
• Integrated connector protection prevents fluid intrusion and mechanical strain
• Standard material calibration matches target AISI 4140 steel alloys perfectly
• Global intrinsically safe certifications enable safe operation in hazardous environments

Technical Specifications
